Conway Trough East Details

PropertyValue
Rupture Count129
Ruptures Above Sect Min Mag126
Ruptures w/ Nonzero Rates11
Magnitude Range[6.51, 7.89]
Length Range[15, 340] km
Total Rate3.283863E-4 /yr
Multi-Fault Rate3.283863E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults15

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

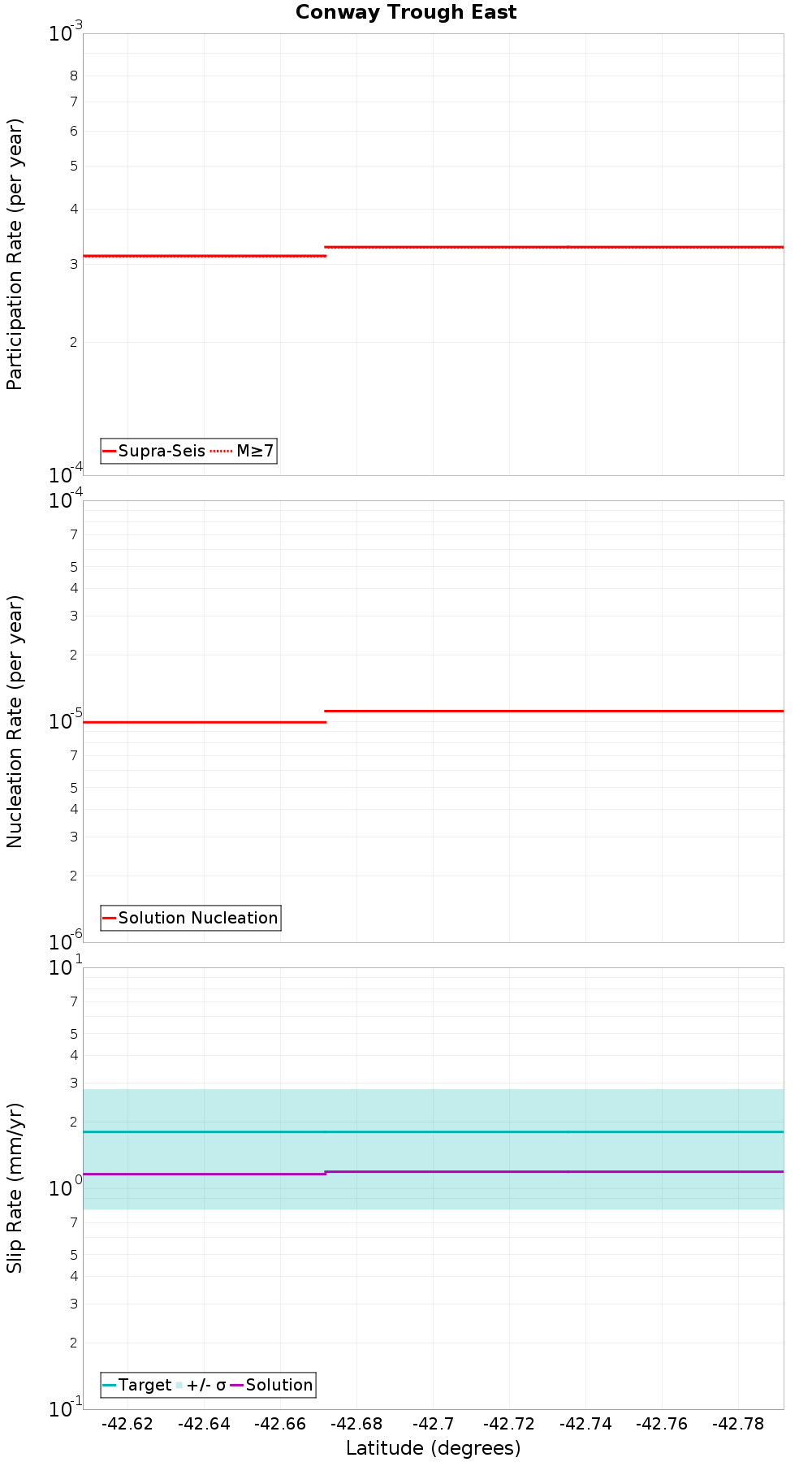

Along-Strike Values

(top)

Along-strike plot

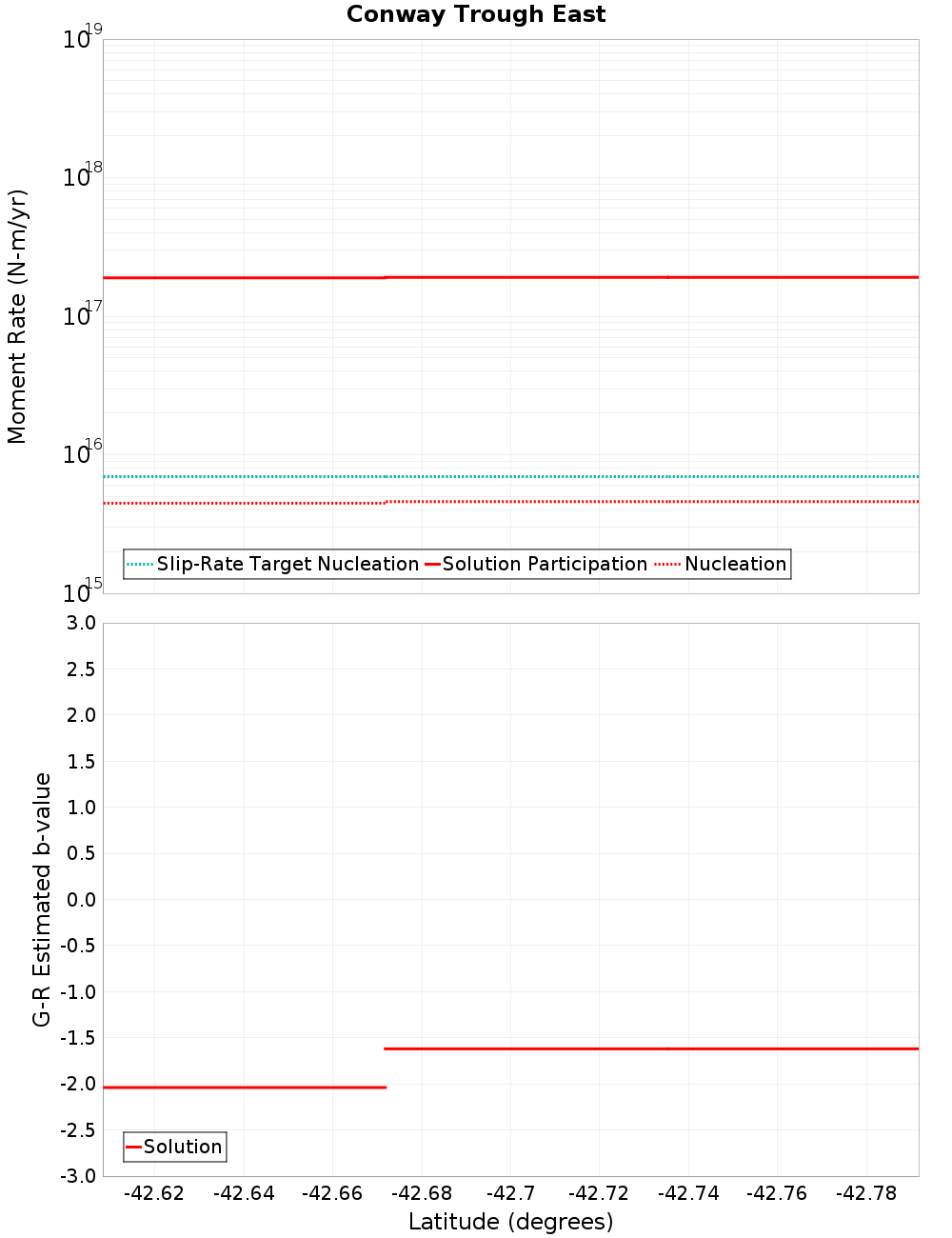

Moment-Rates and b-Values

(top)

Along-strike plot

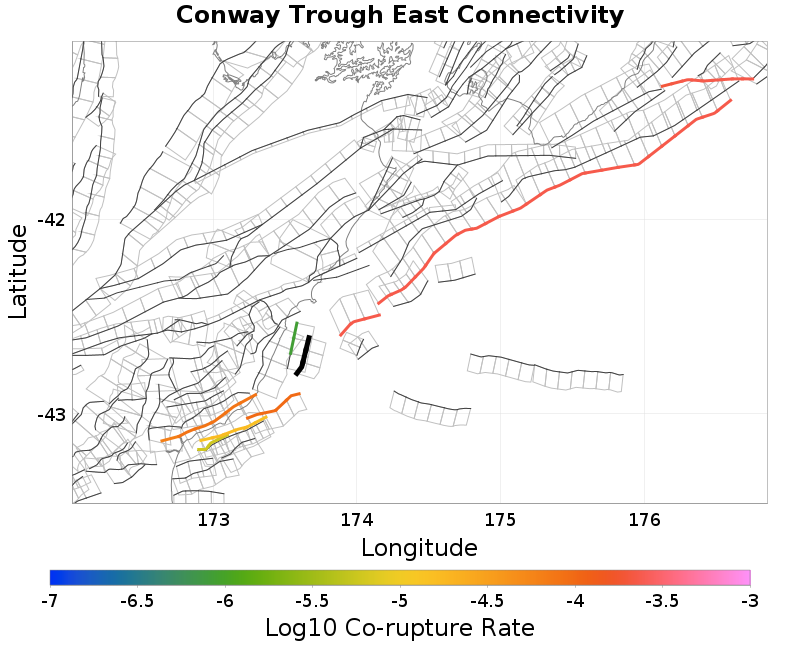

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Conway Trough West, 5.06 km away
Marlborough Slope 11, 8.46 km away
Hawkswood, 10.89 km away
Point Gibson, 11.43 km away
Marlborough Slope 9, 12.77 km away
Marlborough Slope 2, 13.46 km away
Hundalee, 15.71 km away
StoneJug, 19.67 km away

Conway Trough West, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate8.4004216E-7

Marlborough Slope 11, 8.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkswood, 10.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate9.654387E-5

Marlborough Slope 9, 12.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Marlborough Slope 2, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate2.3100238E-4

Hundalee, 15.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

StoneJug, 19.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
