Kidnappers Ridge Details

PropertyValue
Rupture Count70
Ruptures Above Sect Min Mag65
Ruptures w/ Nonzero Rates3
Magnitude Range[6.70, 7.51]
Length Range[19, 129] km
Total Rate4.8050194E-4 /yr
Multi-Fault Rate4.257778E-4 /yr (88.61%)
Directly-Connected Faults1
All Co-Rupturing Faults4

Table Of Contents

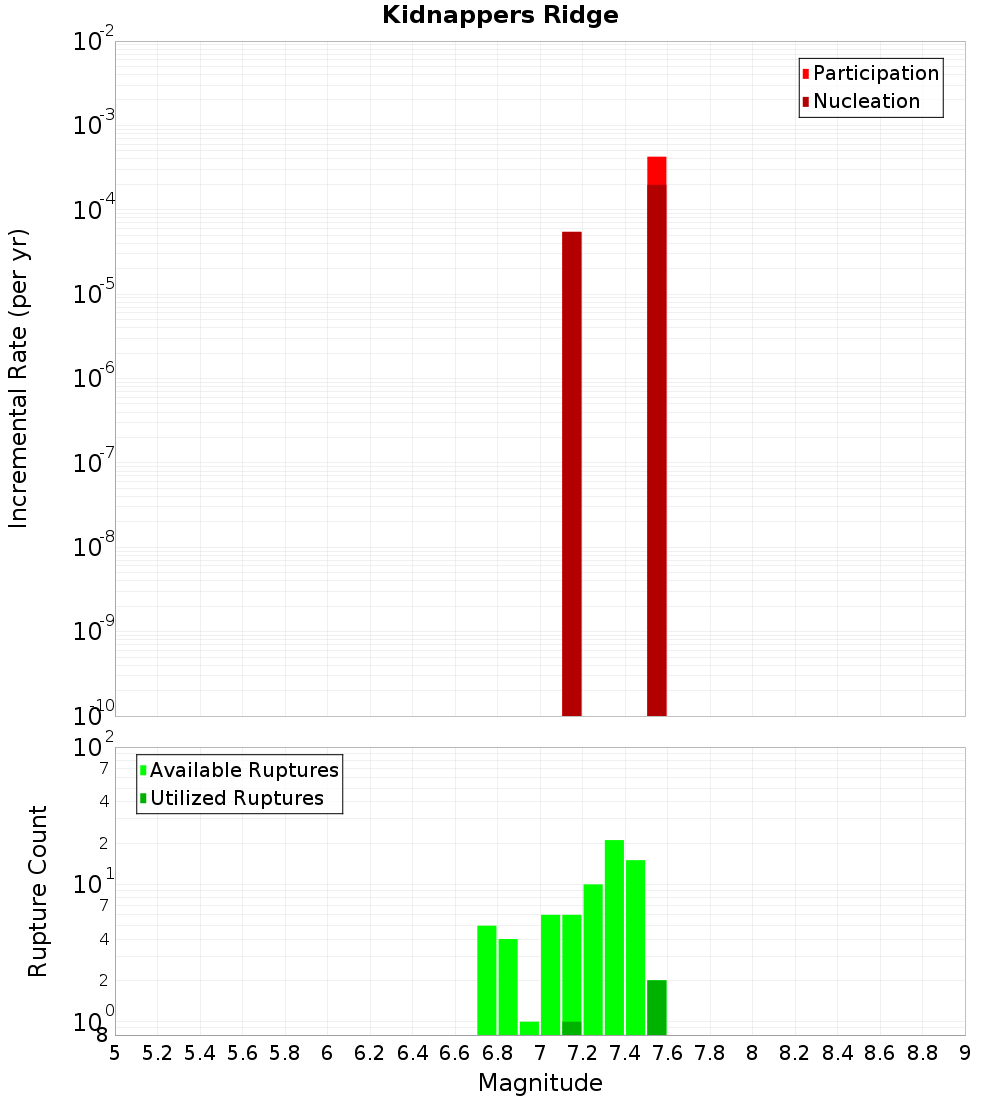

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

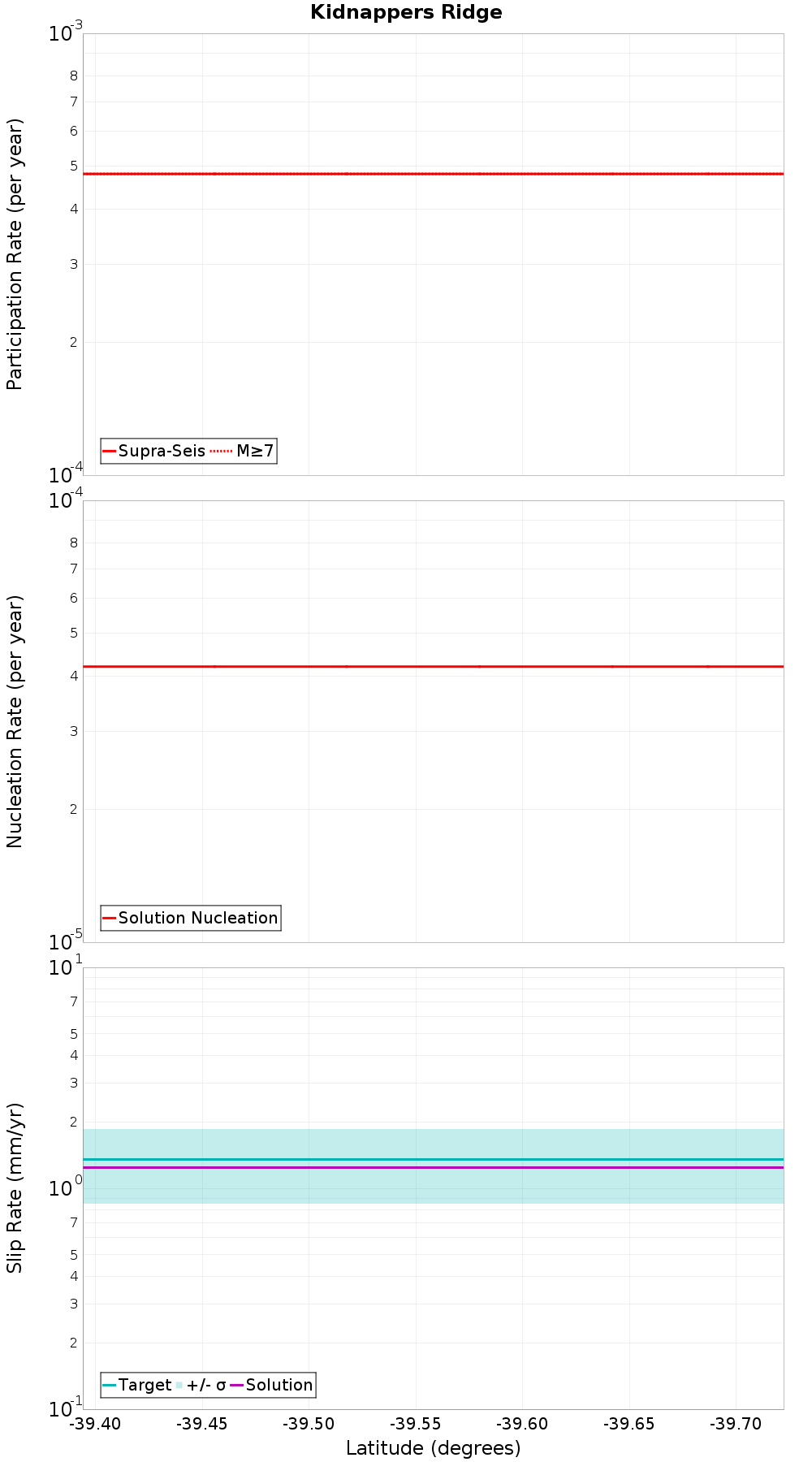

Along-Strike Values

(top)

Along-strike plot

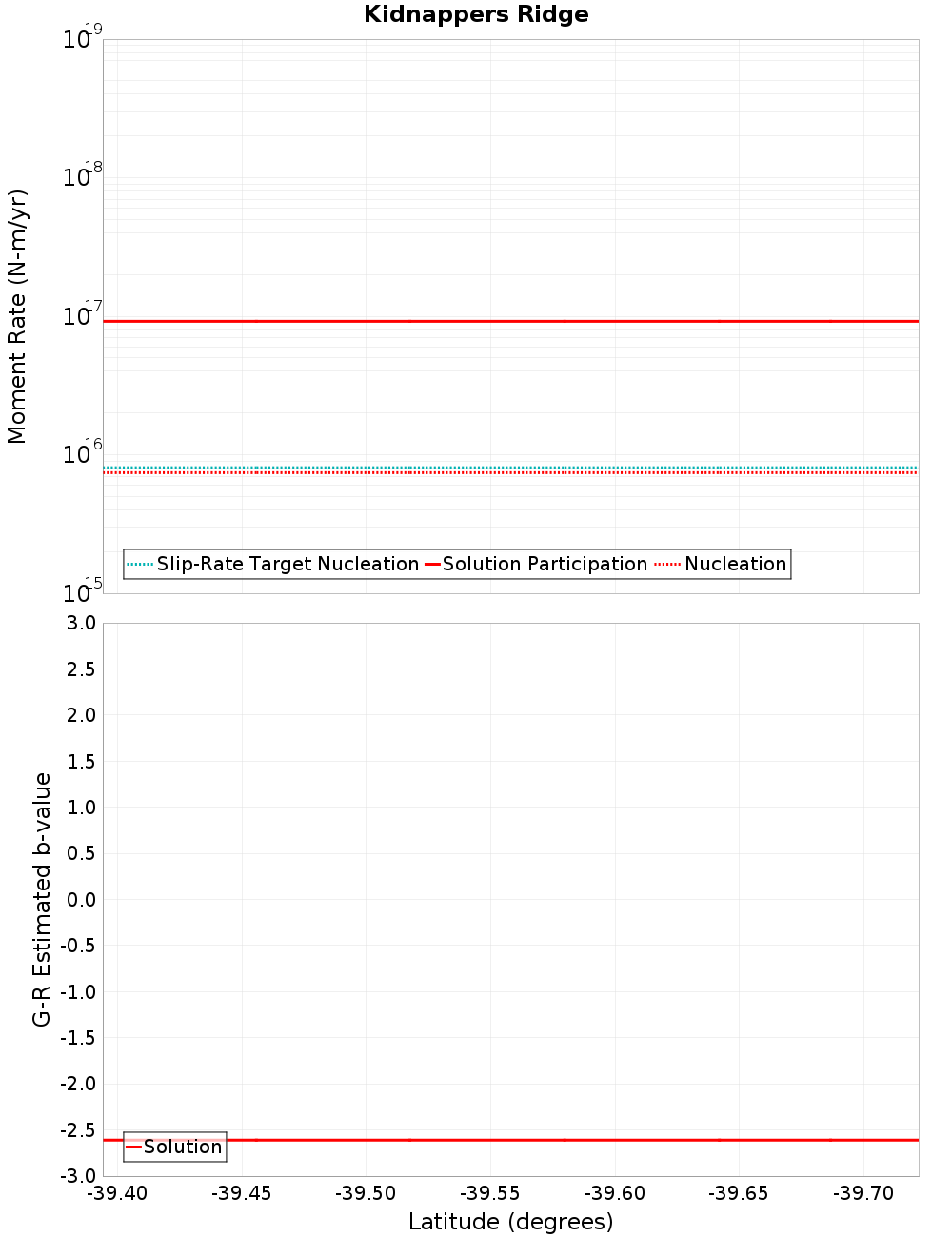

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimarama 3 & 4, 3.48 km away
Waimarama 1 & 2, 8.69 km away
Hawke Bay 8, 10.62 km away
Lachlan 1 & 2, 10.9 km away
Tukituki Thrust, 11.24 km away
Hawke Bay 5 & 11, 11.87 km away
Kairakau North, 16.64 km away
Lachlan 3, 17.17 km away
Kairakau 2, 17.5 km away
Awanui, 18.17 km away
Hawke Bay 4, 19.23 km away

Waimarama 3 & 4, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count55
Co-rupture Rate4.257778E-4

Waimarama 1 & 2, 8.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 8, 10.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lachlan 1 & 2, 10.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tukituki Thrust, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 5 & 11, 11.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kairakau North, 16.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate1.04297236E-4

Lachlan 3, 17.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kairakau 2, 17.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate3.2148056E-4

Awanui, 18.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawke Bay 4, 19.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
