Roaring Meg Details

PropertyValue
Rupture Count54
Ruptures Above Sect Min Mag53
Ruptures w/ Nonzero Rates1
Magnitude Range[6.83, 7.88]
Length Range[20, 198] km
Total Rate1.7251312E-5 /yr
Multi-Fault Rate1.7251312E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults18

Table Of Contents

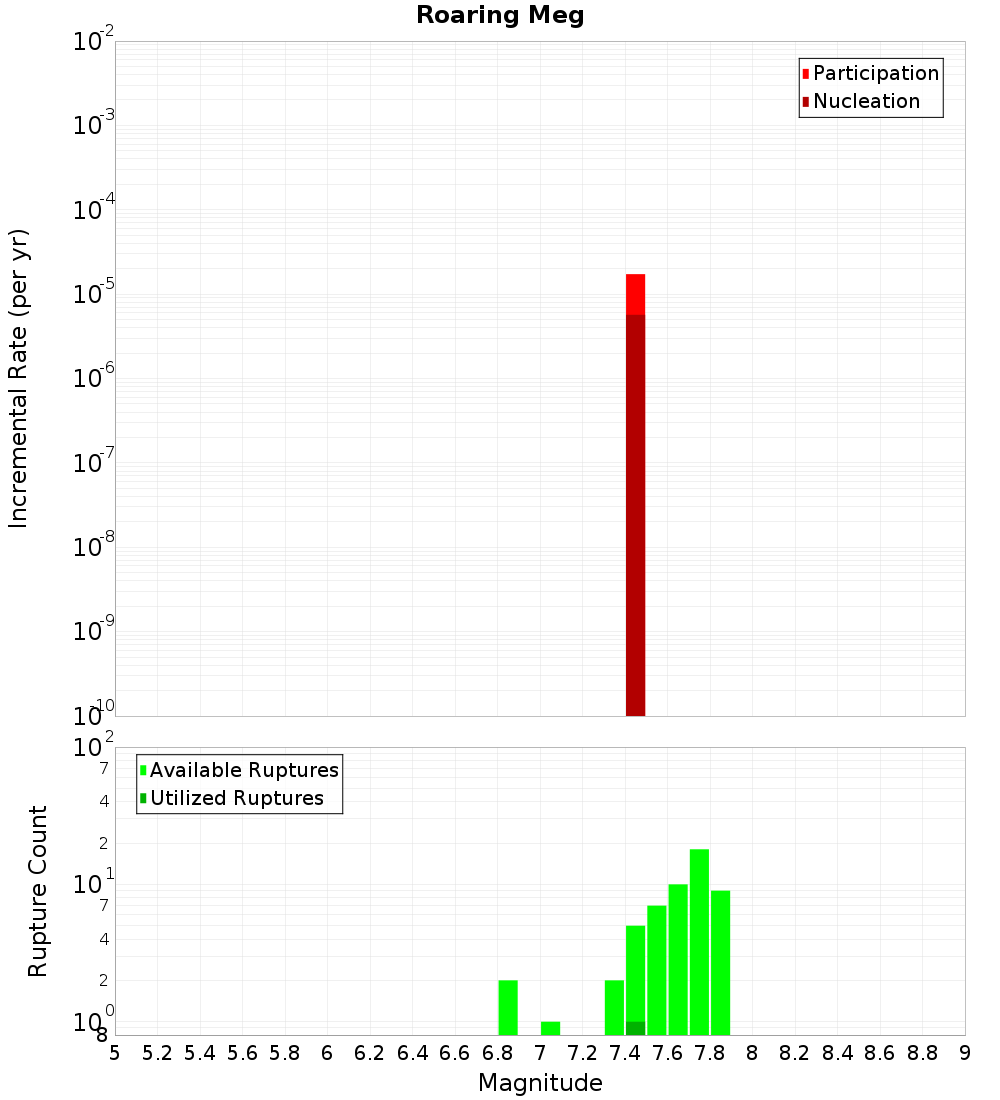

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

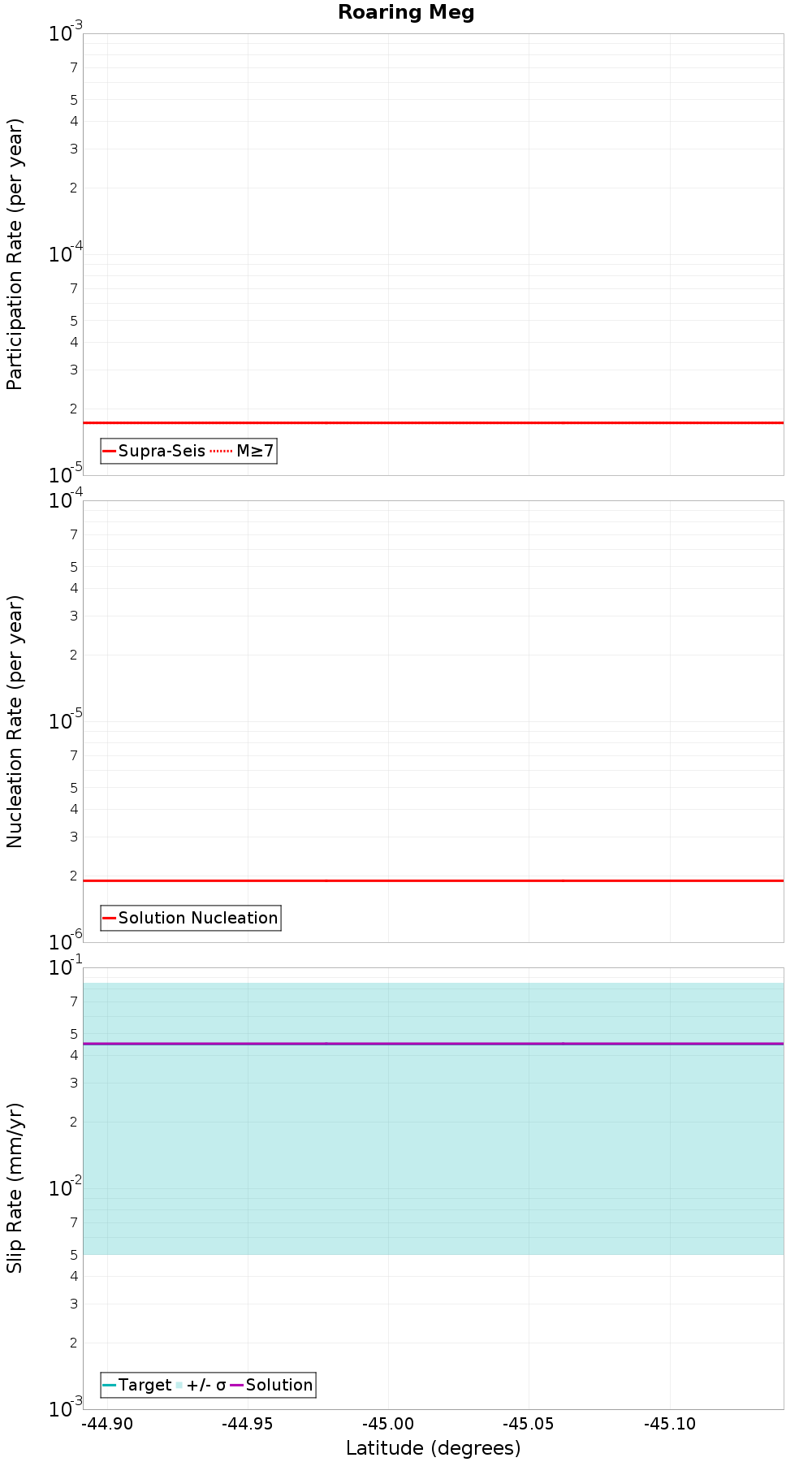

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pisa, 0.18 km away
Paddys Ridge, 0.41 km away
NW Cardrona South, 2.76 km away
NW Cardrona North, 3.16 km away
Nevis, 5.46 km away
Roaring Lion, 6.05 km away
Dunstan, 10.34 km away
Old Man, 11.24 km away
Motatapu, 13.14 km away
Garvie, 14.21 km away

Pisa, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count47
Co-rupture Rate0.0

Paddys Ridge, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona South, 2.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona North, 3.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nevis, 5.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.7251312E-5

Roaring Lion, 6.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Dunstan, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Old Man, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Motatapu, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 14.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0
