Wellington Hutt Valley: 4 Details

PropertyValue
Rupture Count8,142
Ruptures Above Sect Min Mag8,140
Ruptures w/ Nonzero Rates19
Magnitude Range[6.69, 8.22]
Length Range[18, 574] km
Total Rate0.0014193485 /yr
Multi-Fault Rate0.0014193485 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults100

Table Of Contents

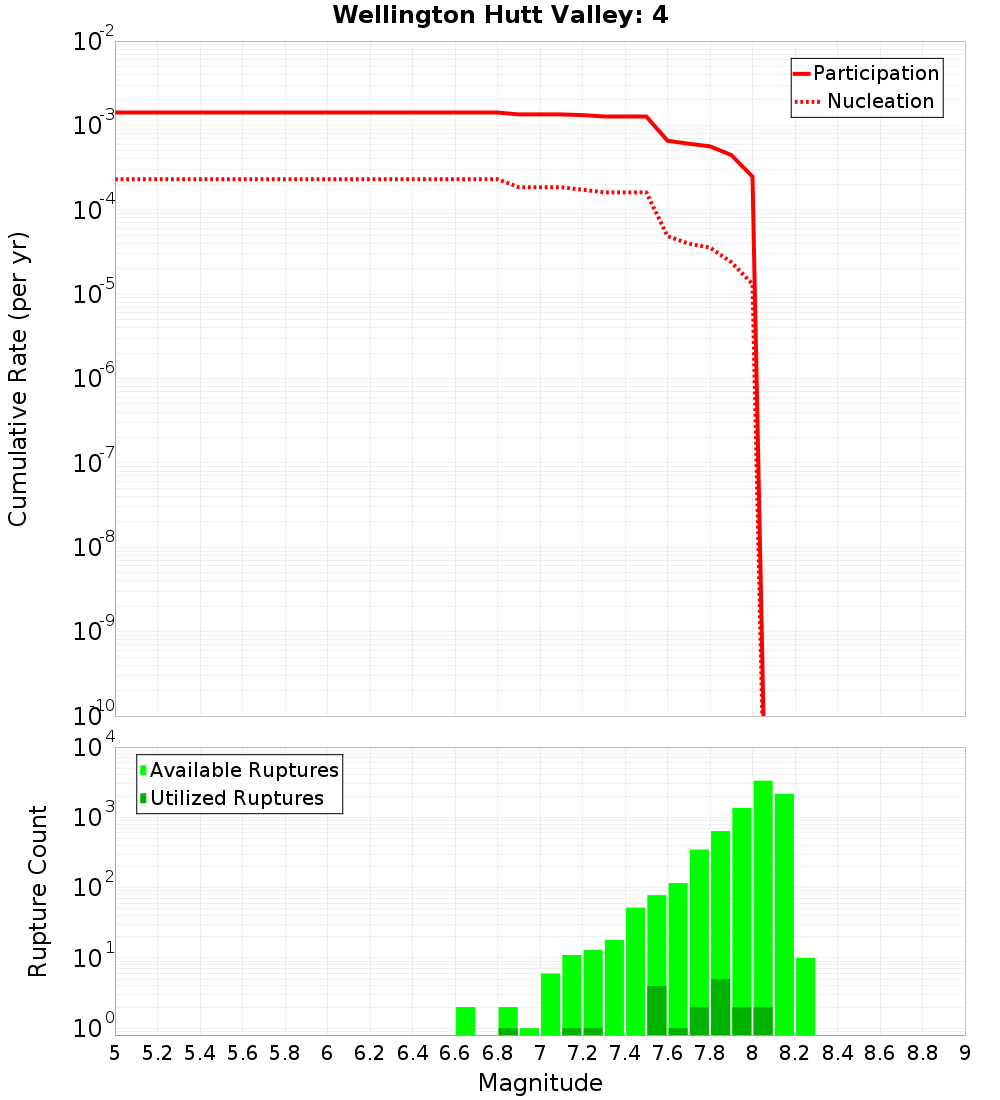

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

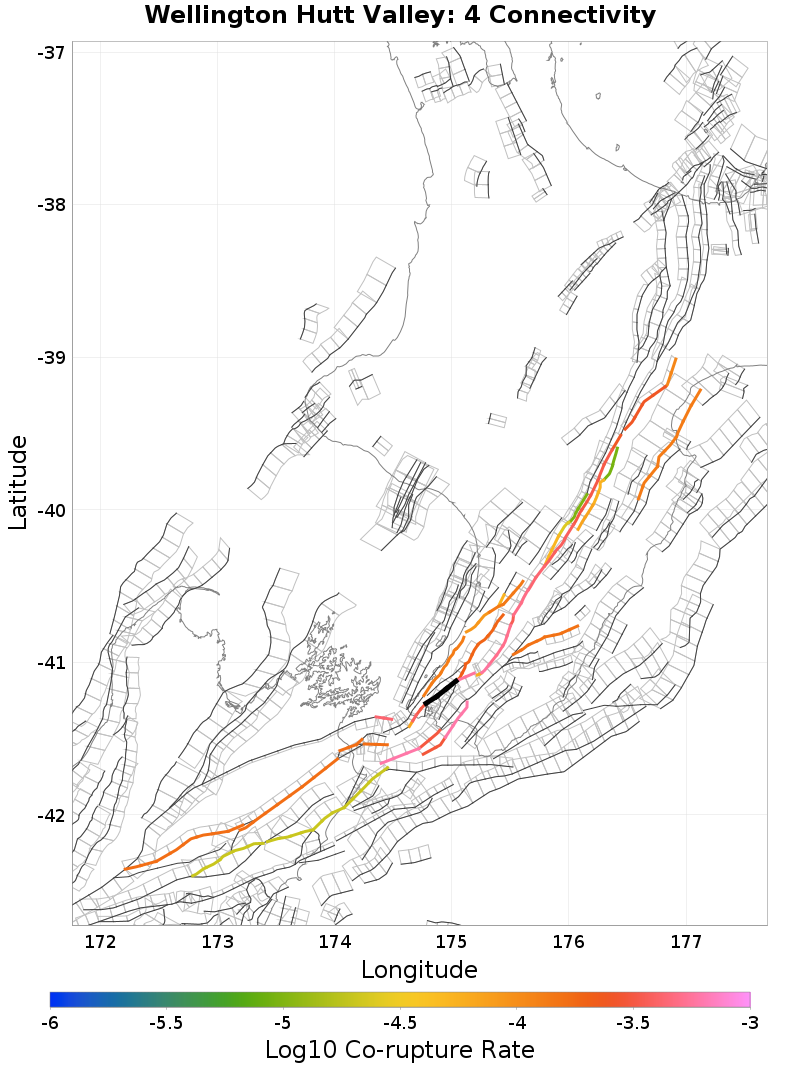

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 3, 0 km awayPukerua - Shepherds Gully: 1, 9.04 km away
Akatarawa, 0.01 km awayShepherds Gully - Mana, 10.91 km away
Wellington Hutt Valley: 5, 0.01 km awayWellington Hutt Valley: 2, 10.98 km away
Wharekauhau, 0.09 km awayOtaki Forks: 1, 14.19 km away
Whitemans Valley, 0.09 km awayWellington: Tararua 1, 15.42 km away
Aotea - Evans Bay, 1.2 km awayOtaheke South, 15.77 km away
Wairarapa: 1, 2.73 km awayOkupe 1, 15.82 km away
Wairarapa: 2, 3.98 km awayWellington: Tararua 2, 17.35 km away
Moonshine, 4.31 km awayOhariu South 2, 17.41 km away
Ohariu, 4.6 km awayBidwill, 18 km away
Pukerua - Shepherds Gully: 2, 8.22 km awayWellington Hutt Valley: 1, 19.11 km away
Pukerua - Shepherds Gully: 3, 8.98 km away

Wellington Hutt Valley: 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count254
Co-rupture Rate3.202251E-4

Akatarawa, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count2,300
Co-rupture Rate2.1537386E-4

Wellington Hutt Valley: 5, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count5,589
Co-rupture Rate5.677828E-4

Wharekauhau, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count2,640
Co-rupture Rate6.064745E-4

Whitemans Valley, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 1, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate3.1015647E-4

Wairarapa: 2, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Moonshine, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count173
Co-rupture Rate0.0

Ohariu, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count2,441
Co-rupture Rate1.3326685E-4

Pukerua - Shepherds Gully: 2, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 3, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate0.0

Shepherds Gully - Mana, 10.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count85
Co-rupture Rate0.0

Wellington Hutt Valley: 2, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count805
Co-rupture Rate3.9072515E-4

Otaki Forks: 1, 14.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count2,311
Co-rupture Rate1.8944331E-4

Wellington: Tararua 1, 15.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate6.119307E-5

Otaheke South, 15.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 15.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 2, 17.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count5,434
Co-rupture Rate5.677828E-4

Ohariu South 2, 17.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count347
Co-rupture Rate0.0

Bidwill, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count103
Co-rupture Rate0.0
