White Island 1 Details

PropertyValue
Rupture Count42,631
Ruptures Above Sect Min Mag42,597
Ruptures w/ Nonzero Rates21
Magnitude Range[6.52, 8.21]
Length Range[14, 594] km
Total Rate8.8891364E-4 /yr
Multi-Fault Rate8.8891364E-4 /yr (100.00%)
Directly-Connected Faults11
All Co-Rupturing Faults94

Table Of Contents

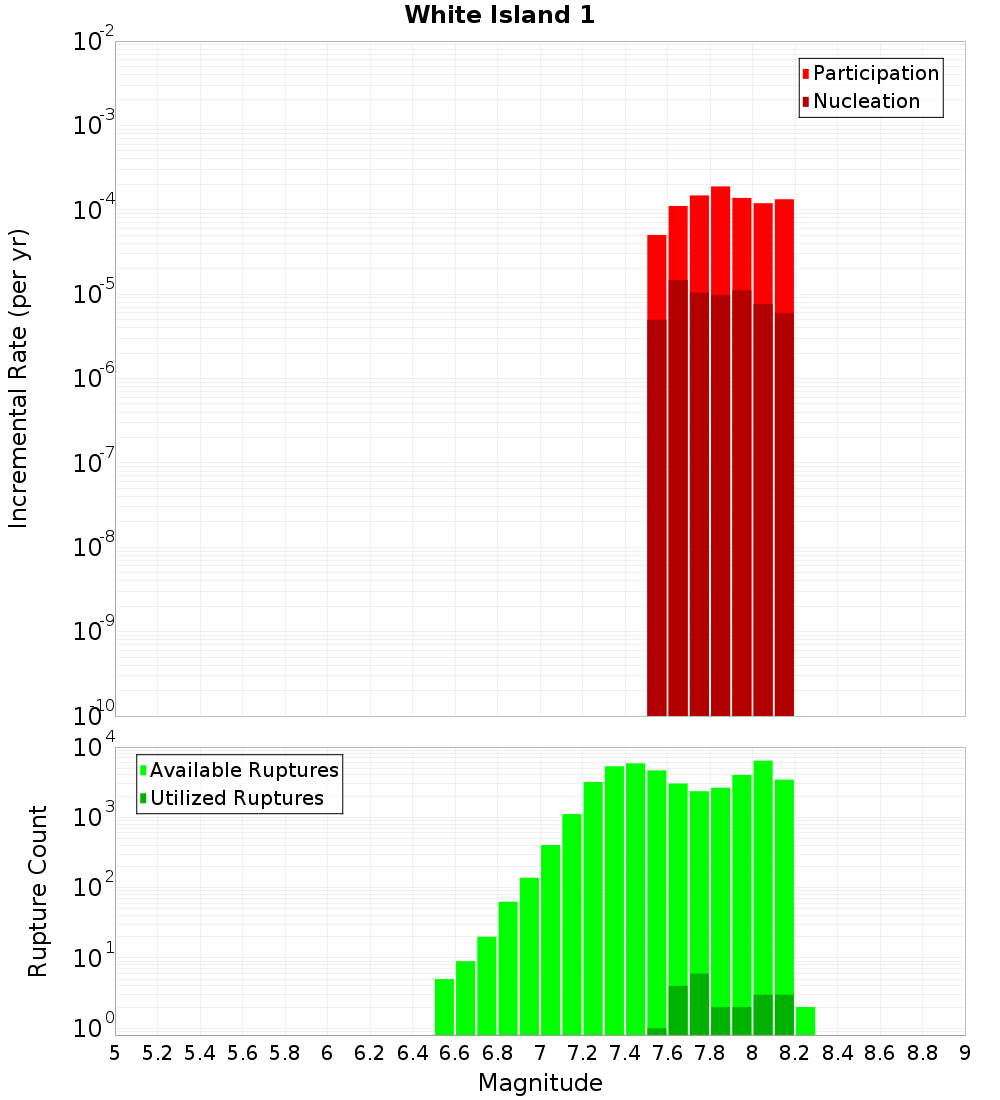

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

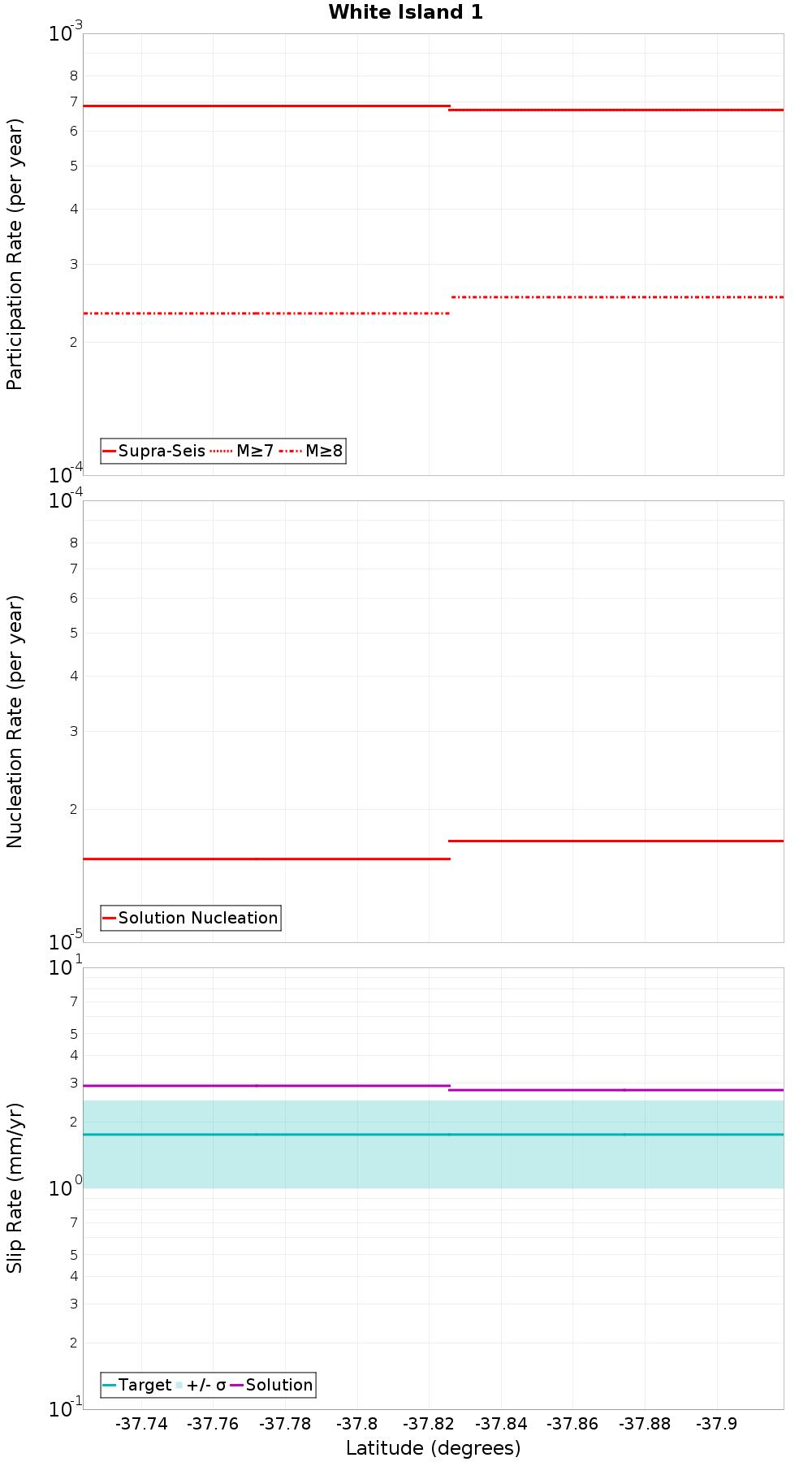

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

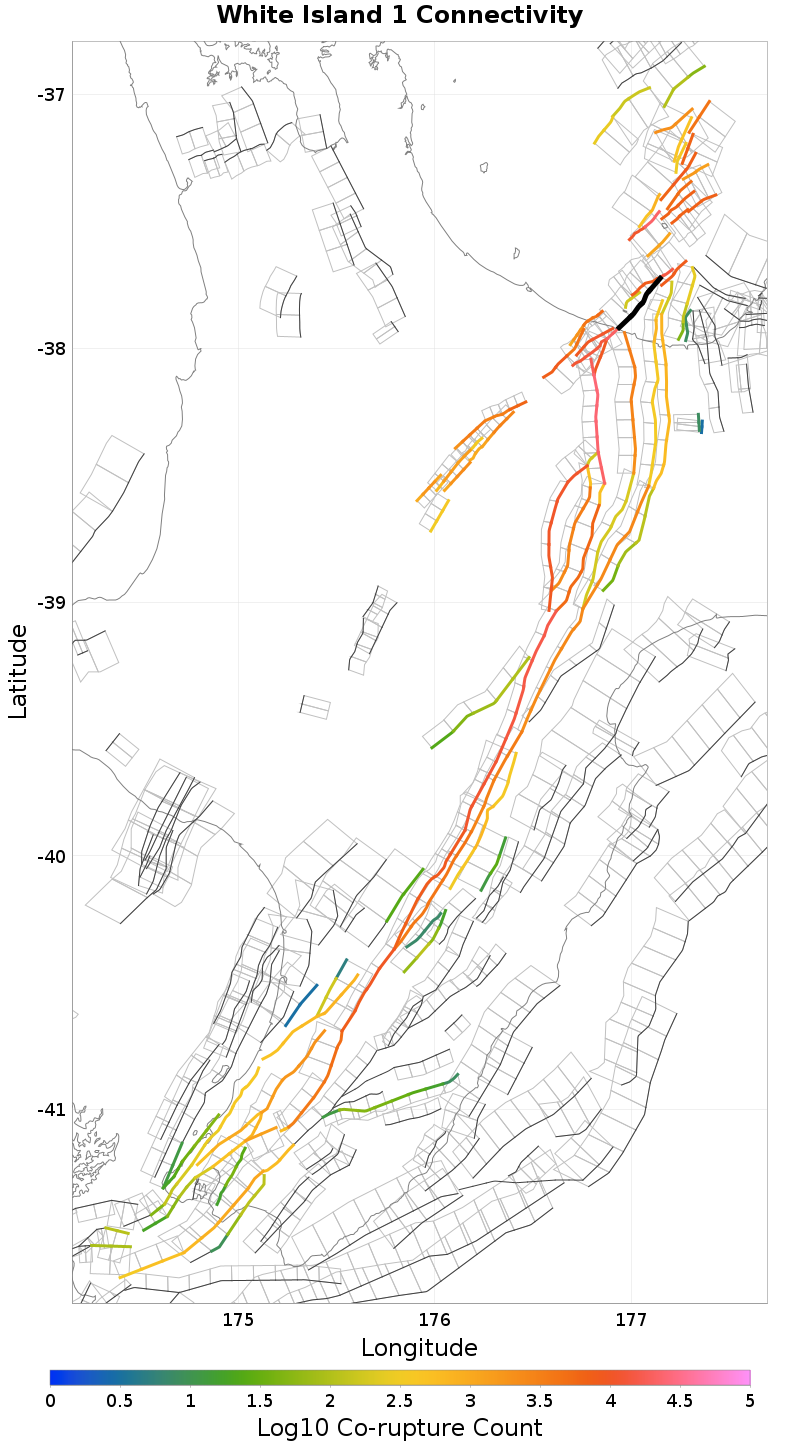

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Edgecumbe Coastal, 0 km awayAwakeri, 7.32 km away
Ohiwa 1, 0.16 km awayCalypso 2, 8.93 km away
Rangitaiki 2, 0.71 km awayWaiotahi: North, 9.8 km away
Whakaari 4, 1.58 km awayBraemar, 11.21 km away
White Island 2, 1.95 km awayOhae 1, 13.68 km away
Rangitaiki 1, 2.04 km awayOpotiki 3, 13.82 km away
Otakiri, 2.46 km awayOhae 2, 17.69 km away
Matata, 2.65 km awayTe Arawa 1, 18.12 km away
Whakatane: North, 3.09 km awayWaiohau: North, 18.73 km away
Edgecumbe 1987, 5.15 km awayOpape 1, 18.74 km away
Waimanawa - Waikaremoana, 5.15 km awayOpotiki 2, 19.47 km away
Waimana: North, 7.11 km awayVolkner 3, 19.72 km away

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count20,923
Co-rupture Rate3.993312E-4

Ohiwa 1, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count14,822
Co-rupture Rate2.6891162E-4

Rangitaiki 2, 0.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count8,072
Co-rupture Rate2.042043E-4

Whakaari 4, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count21,785
Co-rupture Rate5.4448005E-4

White Island 2, 1.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count7,959
Co-rupture Rate2.9414642E-4

Rangitaiki 1, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count168
Co-rupture Rate0.0

Otakiri, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count11,394
Co-rupture Rate5.6493136E-5

Matata, 2.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count6,468
Co-rupture Rate5.0287115E-5

Whakatane: North, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count3,438
Co-rupture Rate1.1954993E-4

Edgecumbe 1987, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count13,631
Co-rupture Rate2.9607027E-4

Waimanawa - Waikaremoana, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate0.0

Waimana: North, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count733
Co-rupture Rate1.323902E-4

Awakeri, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count9,236
Co-rupture Rate6.6065986E-5

Calypso 2, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count1,145
Co-rupture Rate5.0287115E-5

Waiotahi: North, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?true
Co-rupture Count763
Co-rupture Rate2.183441E-4

Braemar, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count10,257
Co-rupture Rate1.10670575E-4

Ohae 1, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count247
Co-rupture Rate0.0

Ohae 2, 17.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 18.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count7,088
Co-rupture Rate2.6987548E-4

Waiohau: North, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count25,359
Co-rupture Rate2.576717E-4

Opape 1, 18.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 19.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Volkner 3, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MDEuMFF0ZGVa
Connected?true
Directly Connected?false
Co-rupture Count748
Co-rupture Rate1.257625E-4
