Titri South Details

PropertyValue
Rupture Count26
Ruptures Above Sect Min Mag26
Ruptures w/ Nonzero Rates2
Magnitude Range[7.09, 7.76]
Length Range[29, 144] km
Total Rate6.211472E-5 /yr
Multi-Fault Rate6.211472E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults7

Table Of Contents

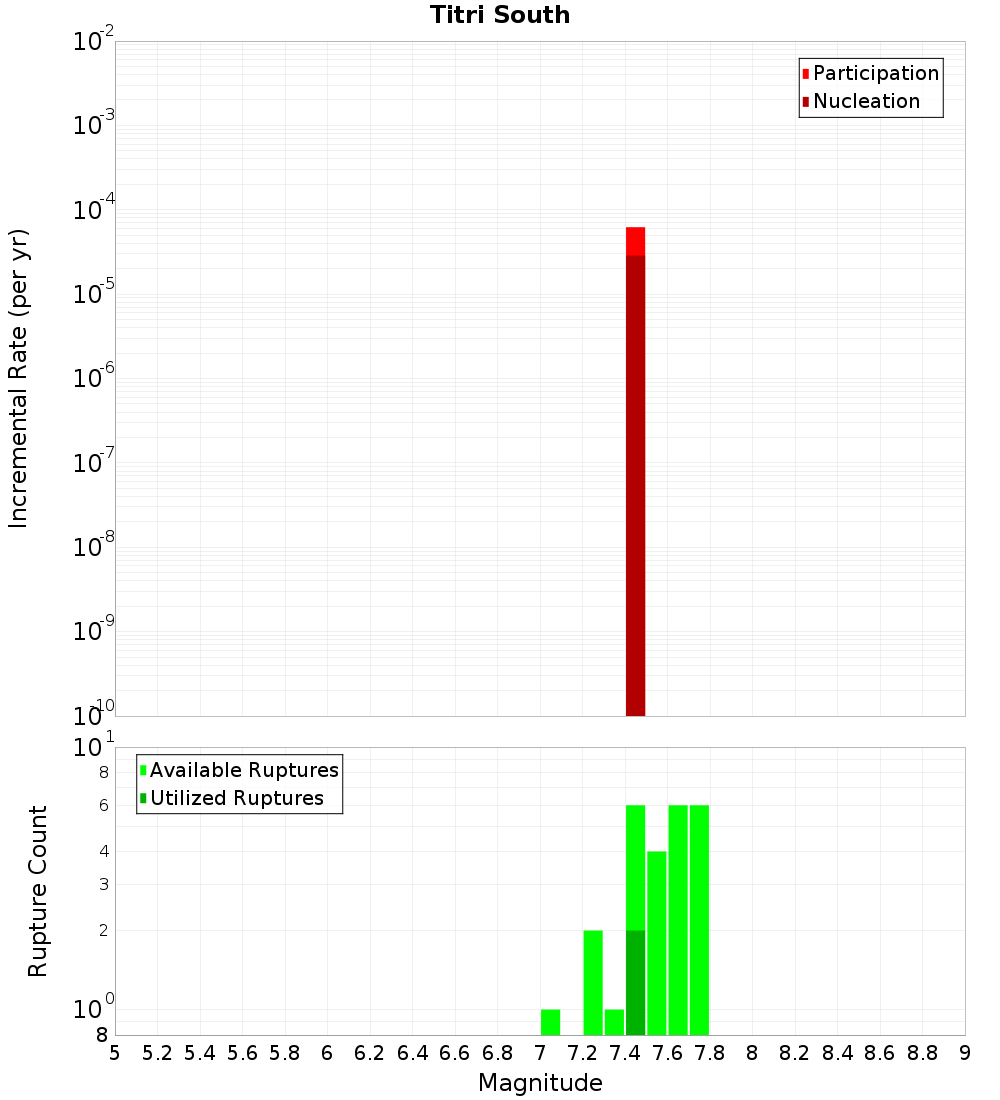

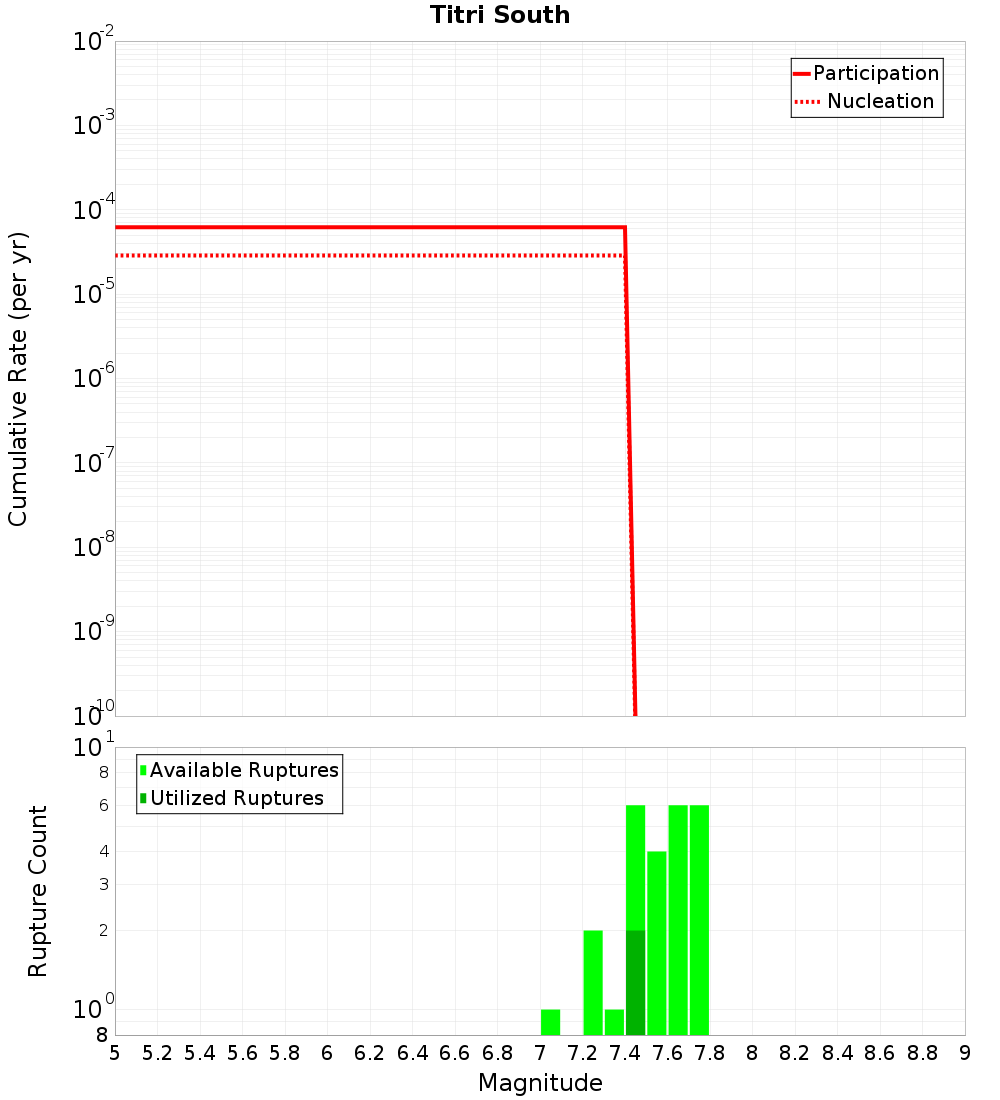

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

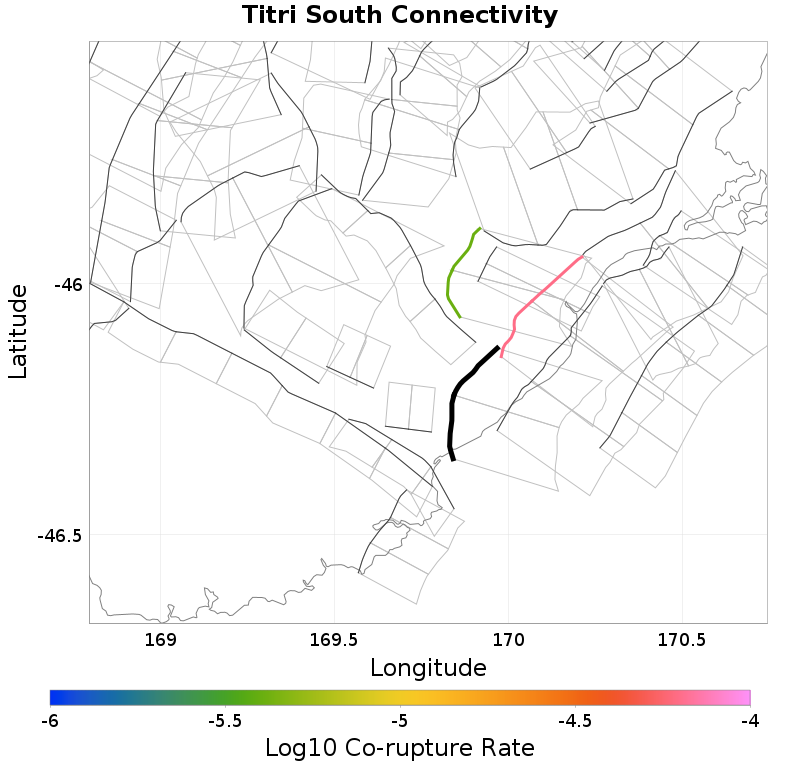

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Titri Central, 0.34 km away
Otanomomo, 4.13 km away
Tuapeka, 4.19 km away
Akatore, 5.02 km away
Little Hillfoot, 5.15 km away
Hillfoot, 7.63 km away
Waitahuna 1, 8.31 km away
Green Island, 10.73 km away
Waitahuna 2, 11.05 km away
Settlement, 11.67 km away
Titri North, 14.14 km away
Clifton, 17.61 km away

Titri Central, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate6.211472E-5

Otanomomo, 4.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuapeka, 4.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 5.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Hillfoot, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hillfoot, 7.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 8.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate4.046251E-6

Green Island, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Waitahuna 2, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Settlement, 11.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate0.0

Titri North, 14.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Clifton, 17.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTMuMEtHc2VN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
