Inangahua Details

Property	Value
Rupture Count	66
Ruptures Above Sect Min Mag	66
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.87, 7.90]
Length Range	[20, 218] km
Total Rate	7.06228E-5 /yr
Multi-Fault Rate	7.06228E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	5

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

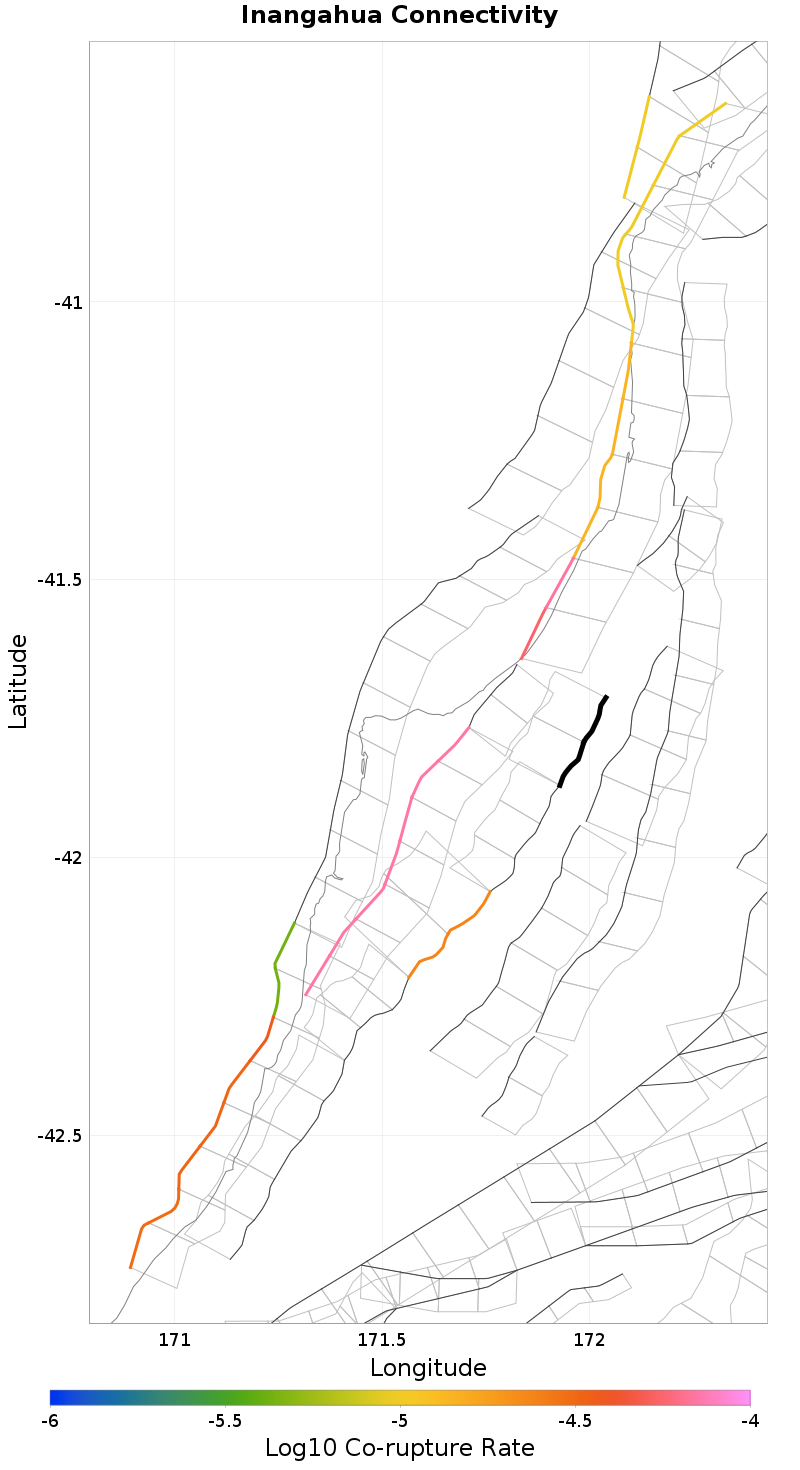

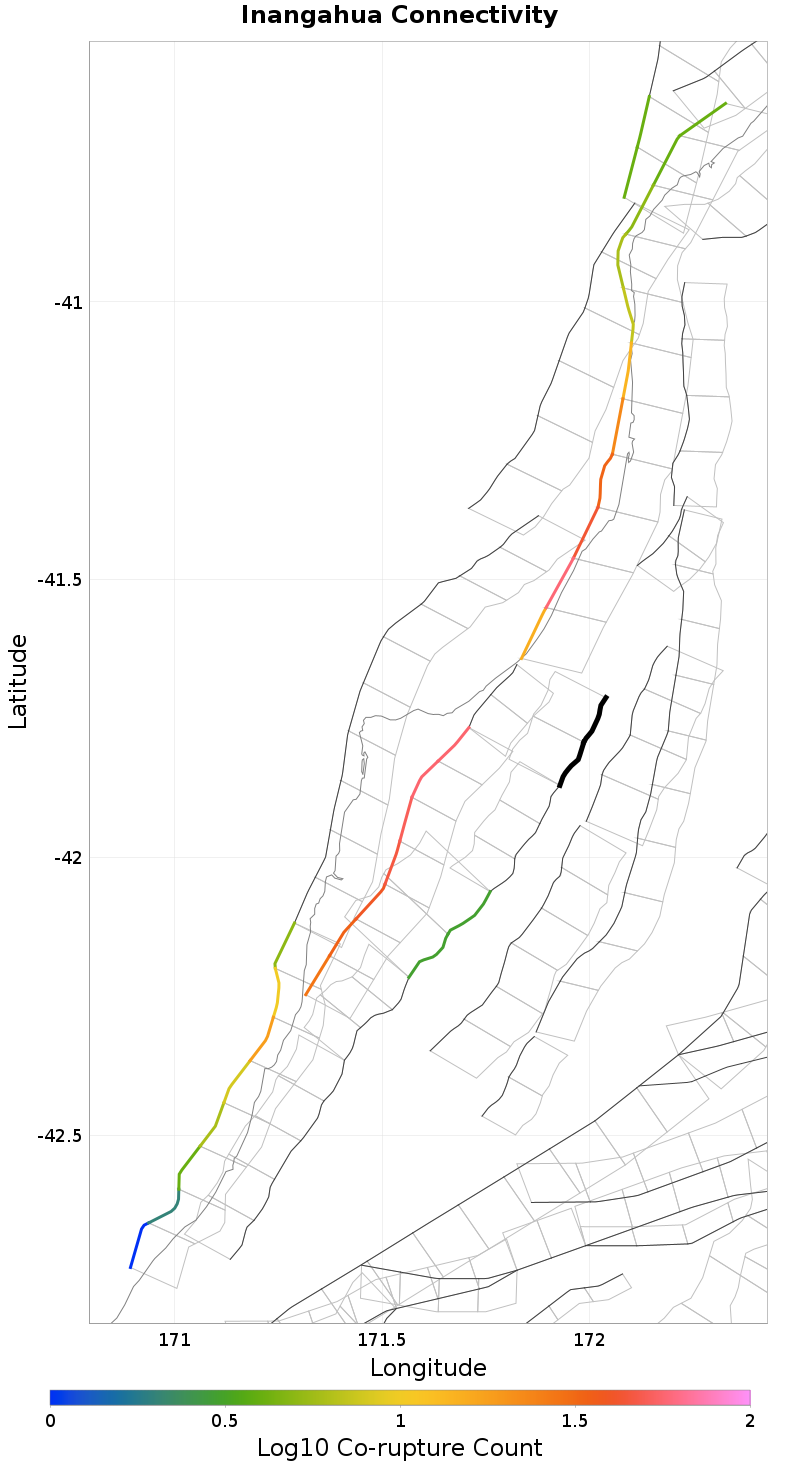

Connectivity
- Nearby Sections

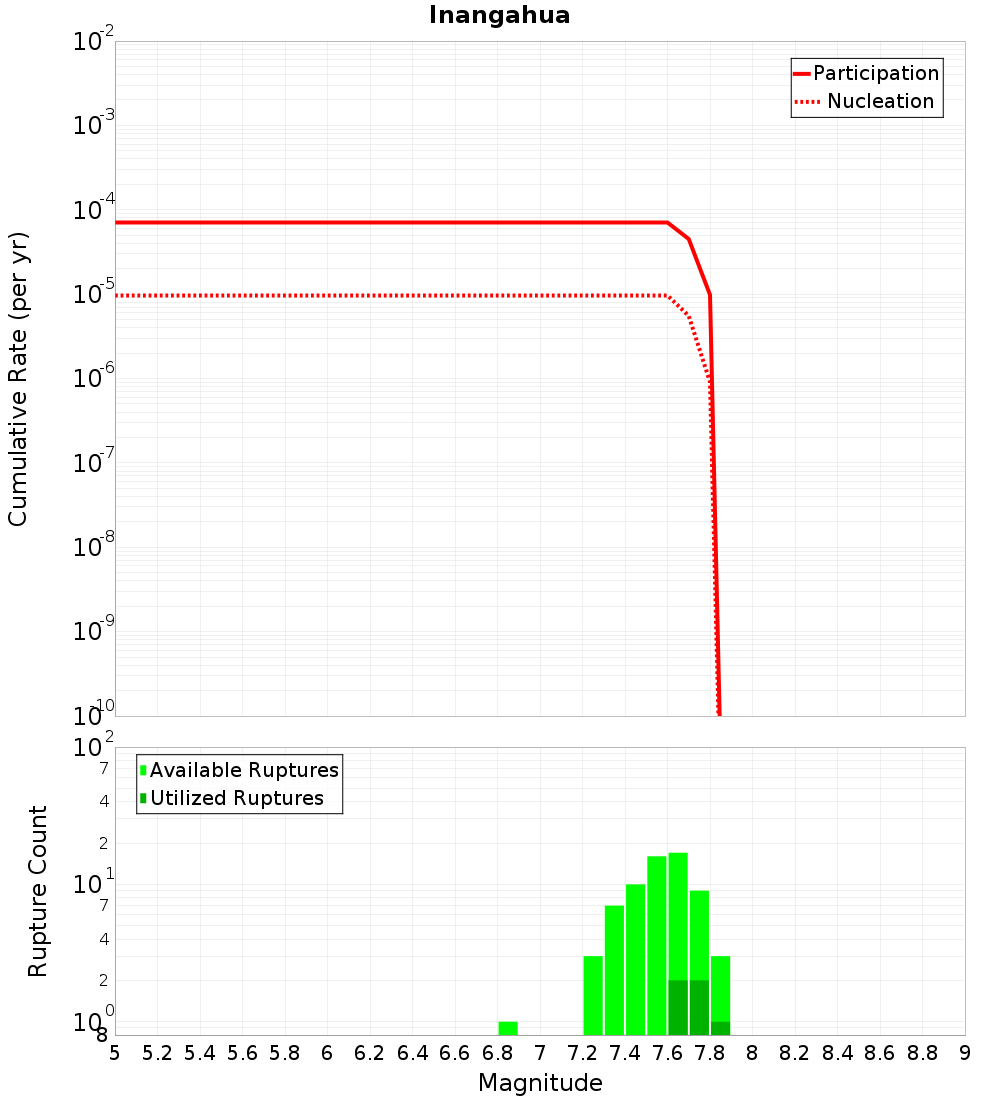

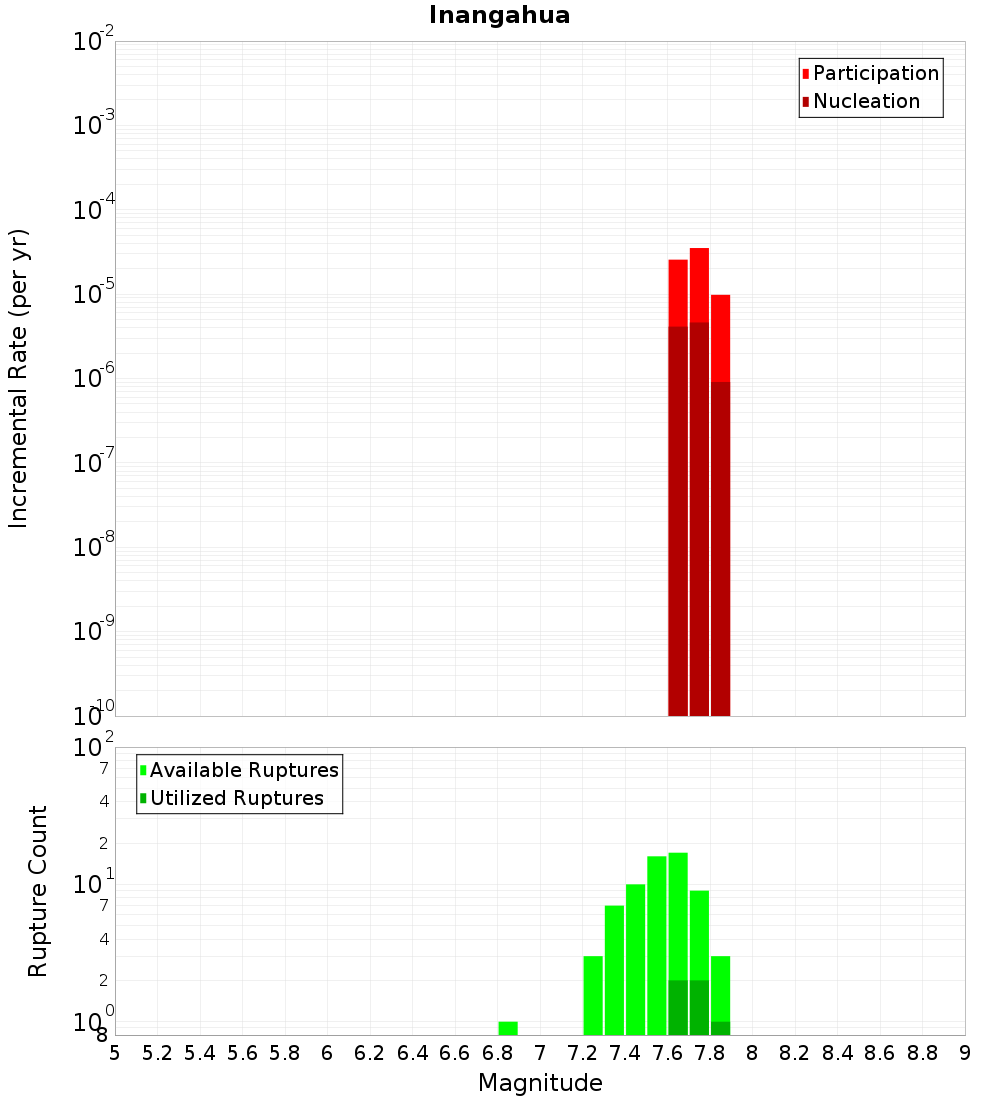

Magnitude-Frequency Distribution

Incremental	Cumulative

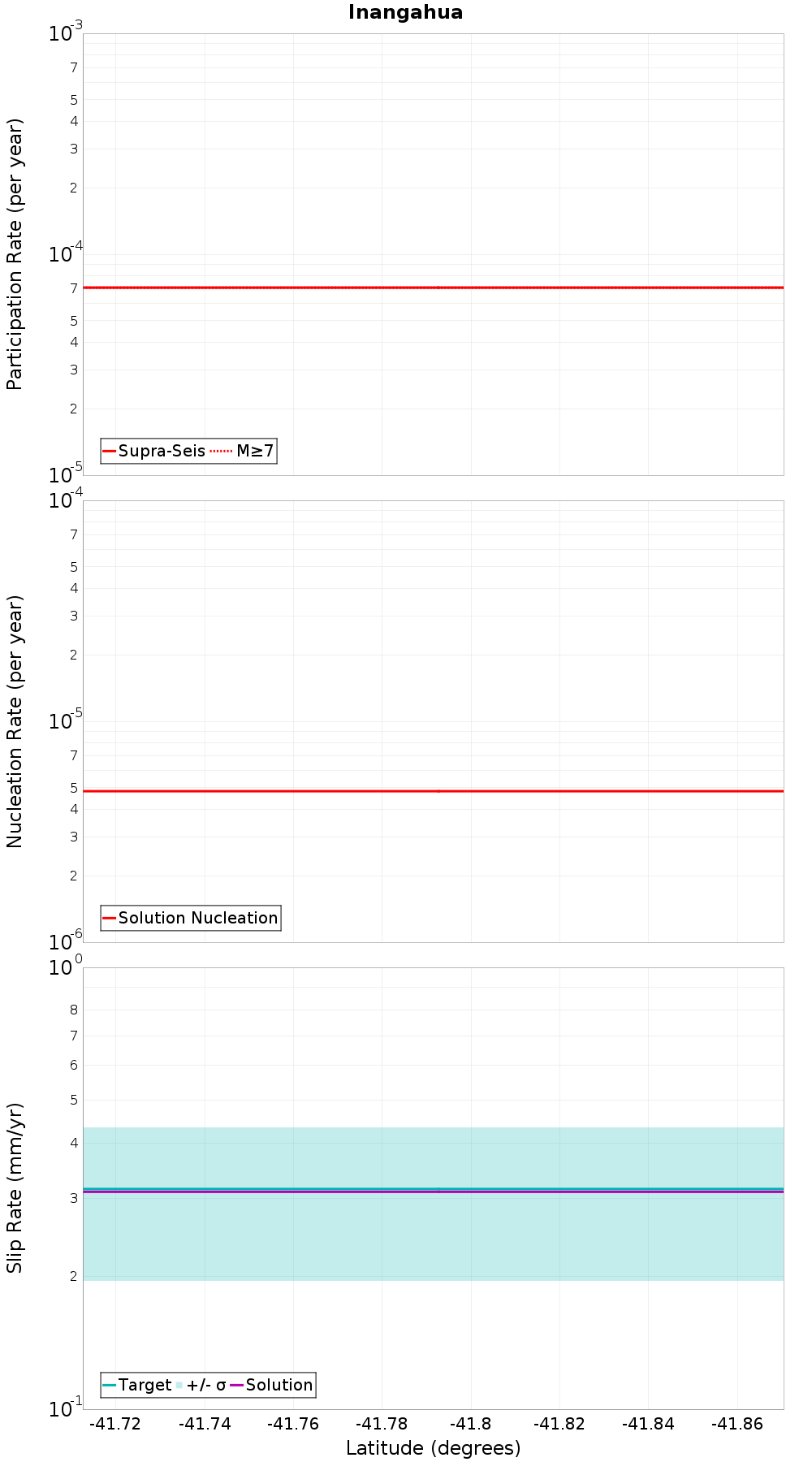

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Paparoa West: North, 0.83 km away
Paparoa West, 1.12 km away
Kongahau, 1.46 km away
Lyell, 5.51 km away
Lyell South, 9 km away
White Creek, 13.07 km away
Cape Foulwind 2, 17.34 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paparoa West: North, 0.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paparoa West, 1.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?	true
Directly Connected?	true
Co-rupture Count	56
Co-rupture Rate	7.06228E-5

Kongahau, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	6.8782894E-5

Lyell, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lyell South, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Creek, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cape Foulwind 2, 17.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
