Wellington Hutt Valley: 3 Details

PropertyValue
Rupture Count4,454
Ruptures Above Sect Min Mag4,453
Ruptures w/ Nonzero Rates9
Magnitude Range[6.58, 8.28]
Length Range[11, 520] km
Total Rate0.0015010238 /yr
Multi-Fault Rate0.0015010238 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults74

Table Of Contents

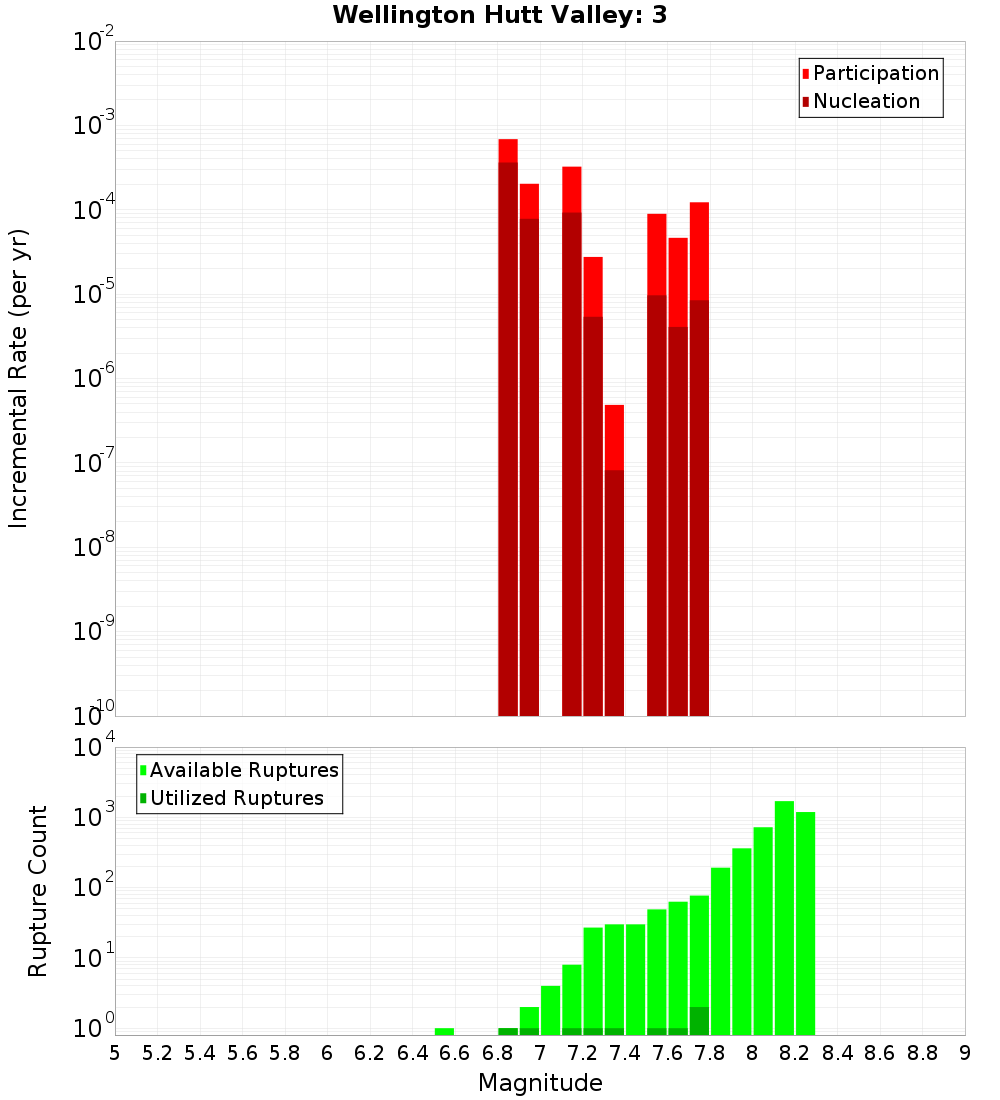

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

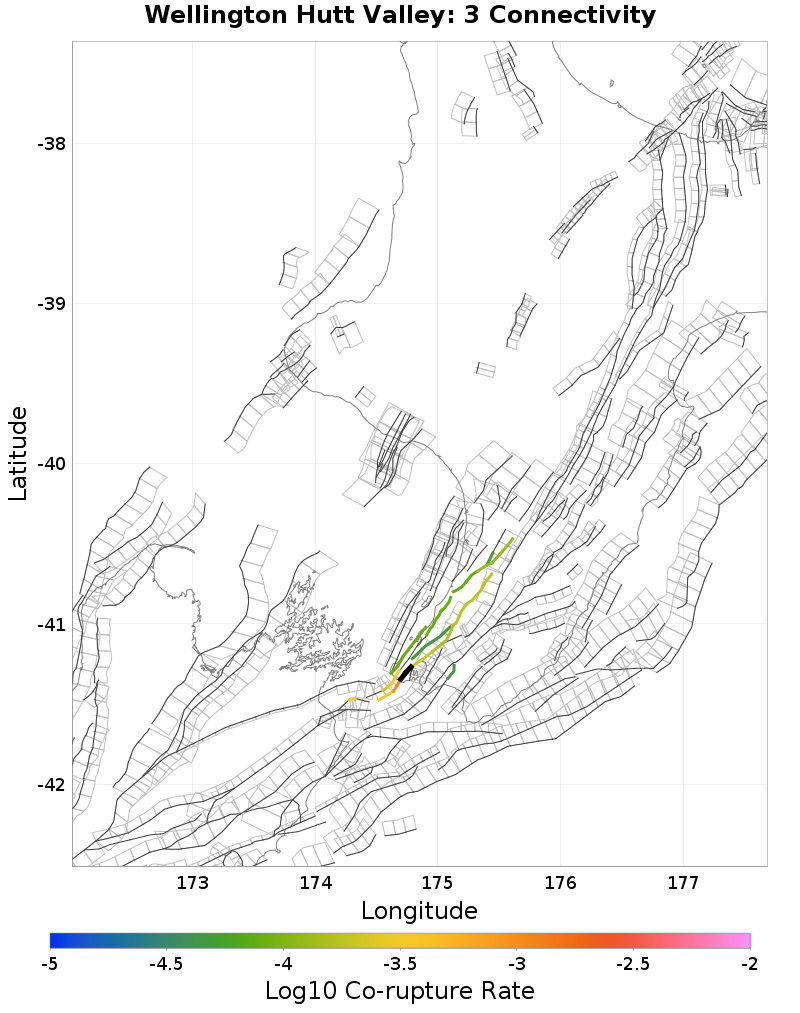

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 2, 0 km awayShepherds Gully - Mana, 7.84 km away
Wellington Hutt Valley: 4, 0 km awayWellington Hutt Valley: 1, 8.44 km away
Whitemans Valley, 1.35 km awayPukerua - Shepherds Gully: 3, 8.98 km away
Aotea - Evans Bay, 1.42 km awayWairarapa: 1, 12.73 km away
Ohariu, 3.96 km awayOkupe 1, 13.49 km away
Moonshine, 5.8 km awayOhariu South 1, 13.74 km away
Ohariu South 2, 6.81 km awayOtaheke South, 16.13 km away
Pukerua - Shepherds Gully: 1, 7.12 km awayWairarapa: Needles, 16.88 km away
Pukerua - Shepherds Gully: 2, 7.12 km awayWairau 3, 17.76 km away
Wharekauhau, 7.29 km away

Wellington Hutt Valley: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?true
Co-rupture Count2,661
Co-rupture Rate0.001176644

Wellington Hutt Valley: 4, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count254
Co-rupture Rate2.0860929E-4

Whitemans Valley, 1.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 1.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Ohariu, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?true
Co-rupture Count613
Co-rupture Rate4.0196173E-4

Moonshine, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?true
Co-rupture Count3,910
Co-rupture Rate4.6485307E-5

Ohariu South 2, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count1,088
Co-rupture Rate2.8129984E-4

Pukerua - Shepherds Gully: 1, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count323
Co-rupture Rate7.806871E-5

Pukerua - Shepherds Gully: 2, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count225
Co-rupture Rate7.806871E-5

Wharekauhau, 7.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate4.6485307E-5

Shepherds Gully - Mana, 7.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wellington Hutt Valley: 1, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate3.2437983E-4

Pukerua - Shepherds Gully: 3, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate7.806871E-5

Wairarapa: 1, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 13.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 1, 13.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Otaheke South, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 16.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wairau 3, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTQuMDl1UWlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
