Mohaka: South Details

PropertyValue
Rupture Count67,236
Ruptures Above Sect Min Mag67,230
Ruptures w/ Nonzero Rates32
Magnitude Range[6.88, 8.50]
Length Range[25, 1,119] km
Total Rate9.07372E-4 /yr
Multi-Fault Rate9.07372E-4 /yr (100.00%)
Directly-Connected Faults12
All Co-Rupturing Faults136

Table Of Contents

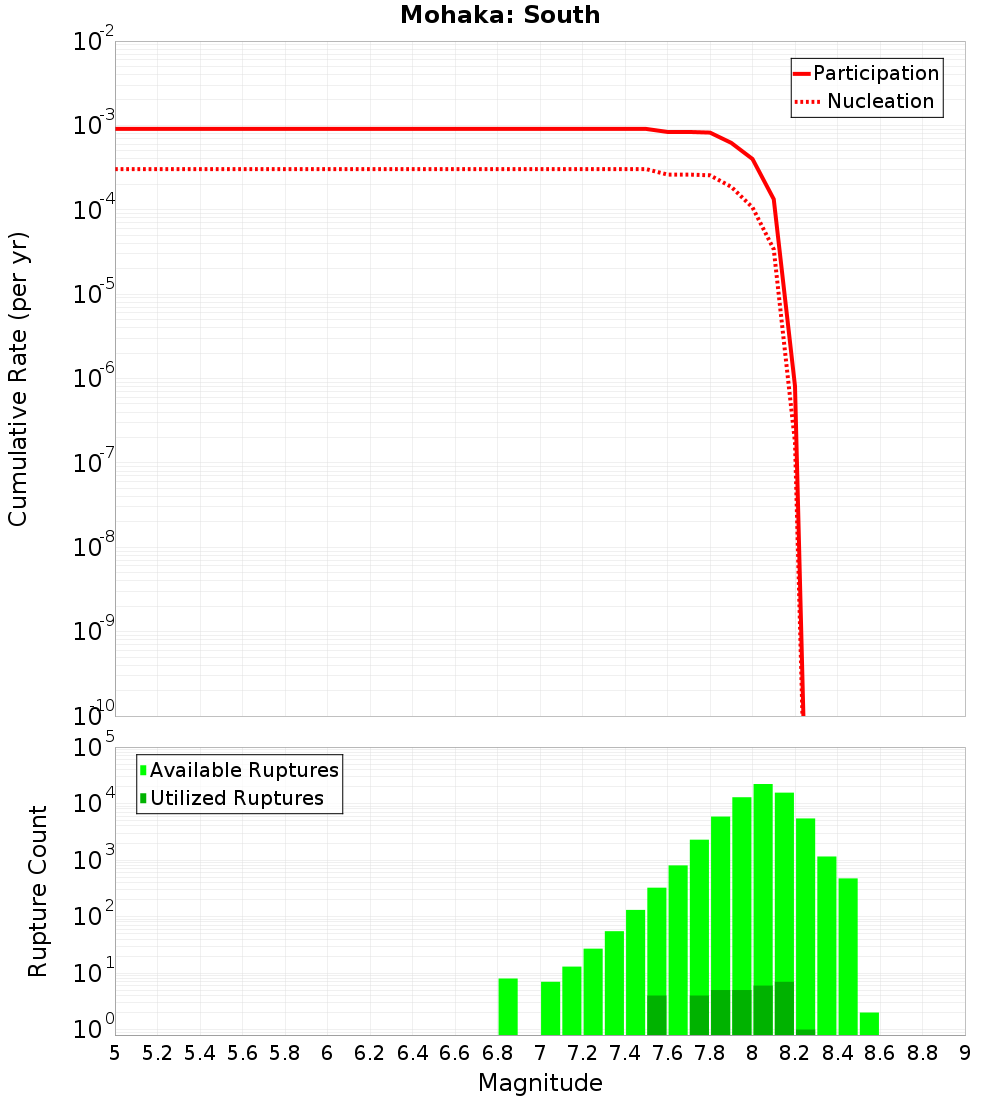

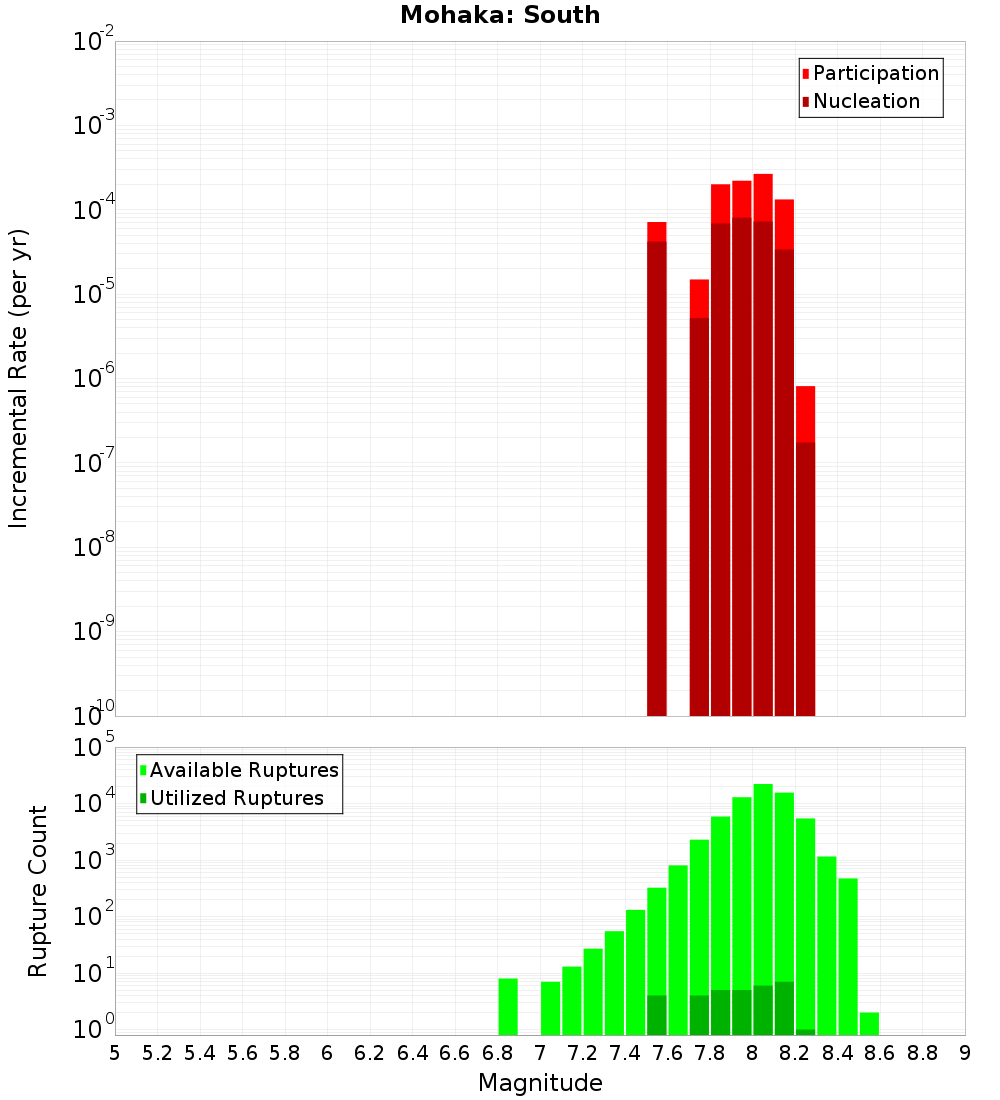

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington: Pahiatua, 0 km awayRuataniwha, 6.61 km away
Mohaka: North, 0 km awayMaunga, 9.06 km away
Ruahine: South, 0 km awayPohangina, 9.44 km away
Wakarara, 0.13 km awayAwanui, 12.7 km away
Rangefront, 0.2 km awayTokomaru, 14.28 km away
Woodville, 0.4 km awayTe Heka, 14.94 km away
Ruahine: Central, 2.68 km awayKaweka, 17.19 km away
Pahiatua, 4.26 km awayWaewaepa, 17.23 km away
Ruahine: North, 4.35 km awayNorthern Ohariu, 18.2 km away
Patoka - Rangiora, 5.52 km awayOruawharo - Mangatoro, 18.37 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count59,718
Co-rupture Rate8.105654E-4

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count40,874
Co-rupture Rate1.9748375E-4

Ruahine: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count9,652
Co-rupture Rate0.0

Wakarara, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count5,782
Co-rupture Rate1.8988376E-5

Rangefront, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count7,199
Co-rupture Rate8.8211695E-5

Woodville, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count194
Co-rupture Rate4.7581714E-5

Ruahine: Central, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count9,296
Co-rupture Rate2.3980001E-5

Pahiatua, 4.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count703
Co-rupture Rate2.3989312E-5

Ruahine: North, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count17,854
Co-rupture Rate2.2636146E-5

Patoka - Rangiora, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count4,098
Co-rupture Rate2.0644102E-4

Ruataniwha, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count449
Co-rupture Rate8.071484E-6

Maunga, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?true
Co-rupture Count295
Co-rupture Rate0.0

Pohangina, 9.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?false
Co-rupture Count269
Co-rupture Rate0.0

Awanui, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?false
Co-rupture Count836
Co-rupture Rate1.4414627E-4

Tokomaru, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?false
Co-rupture Count3,634
Co-rupture Rate0.0

Te Heka, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?false
Co-rupture Count79
Co-rupture Rate0.0

Kaweka, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waewaepa, 17.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 18.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?true
Directly Connected?false
Co-rupture Count9,188
Co-rupture Rate1.11887355E-4

Oruawharo - Mangatoro, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MTguMHJkVzVI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
