Poverty Bay Details
| Property | Value |
|---|---|
| Rupture Count | 28 |
| Ruptures Above Sect Min Mag | 26 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.54, 7.59] |
| Length Range | [12, 129] km |
| Total Rate | 6.456688E-4 /yr |
| Multi-Fault Rate | 6.456688E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 9 |
Table Of Contents

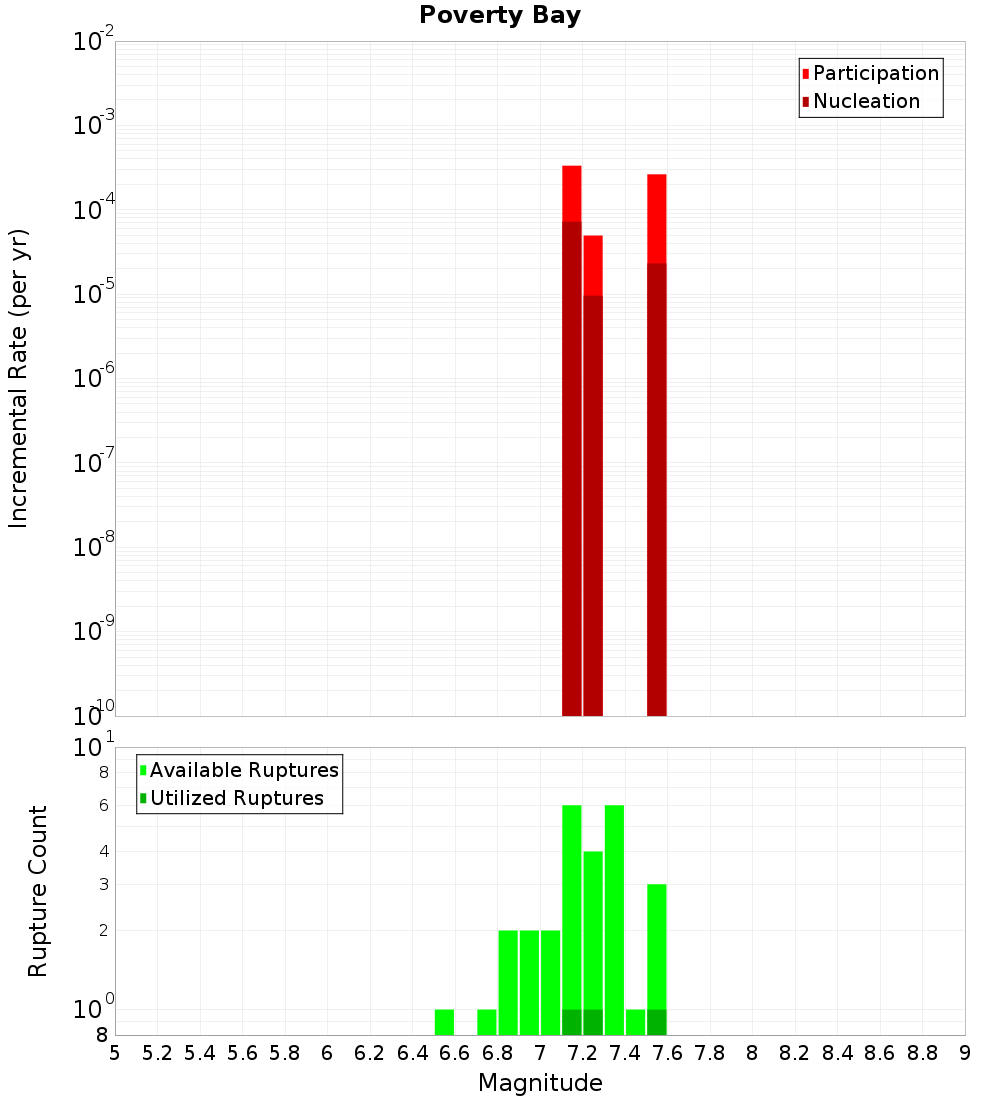

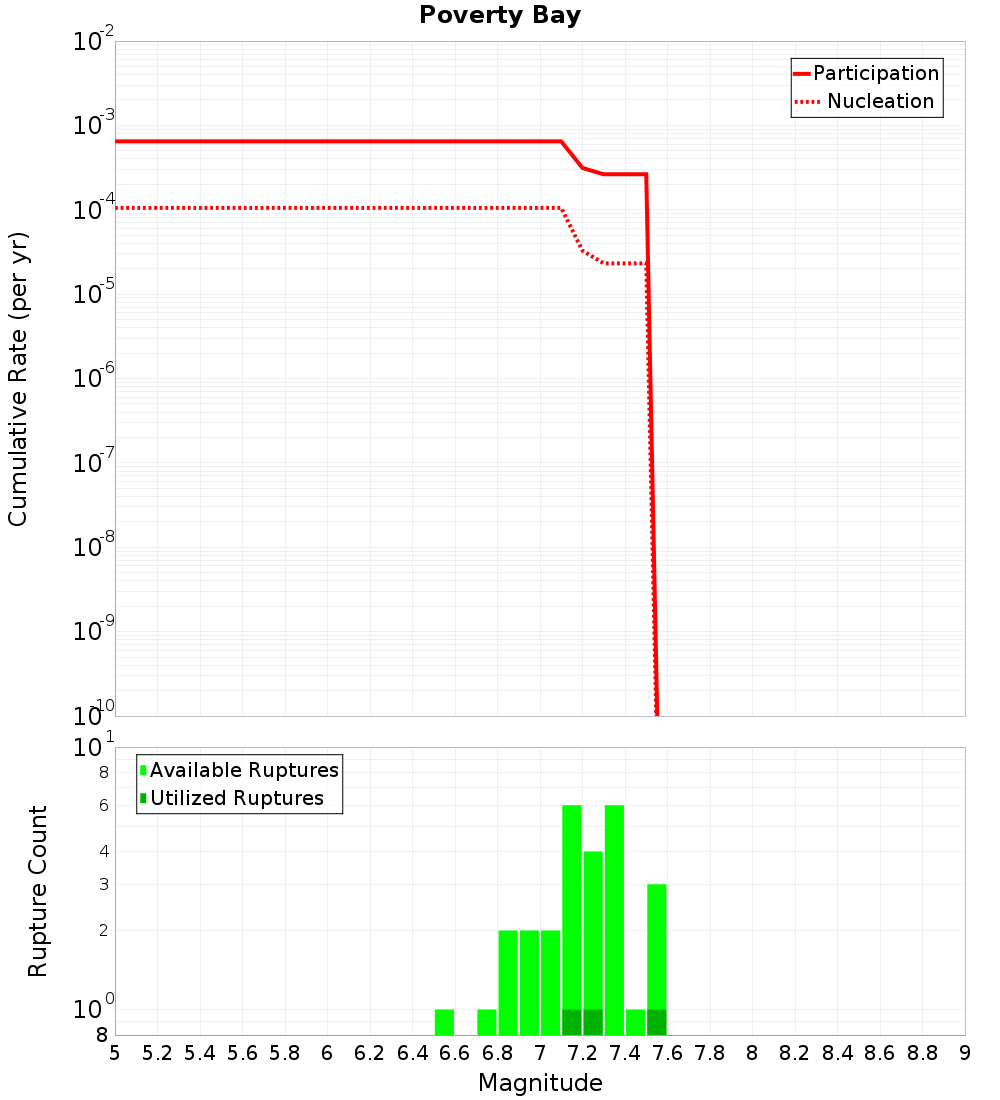

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

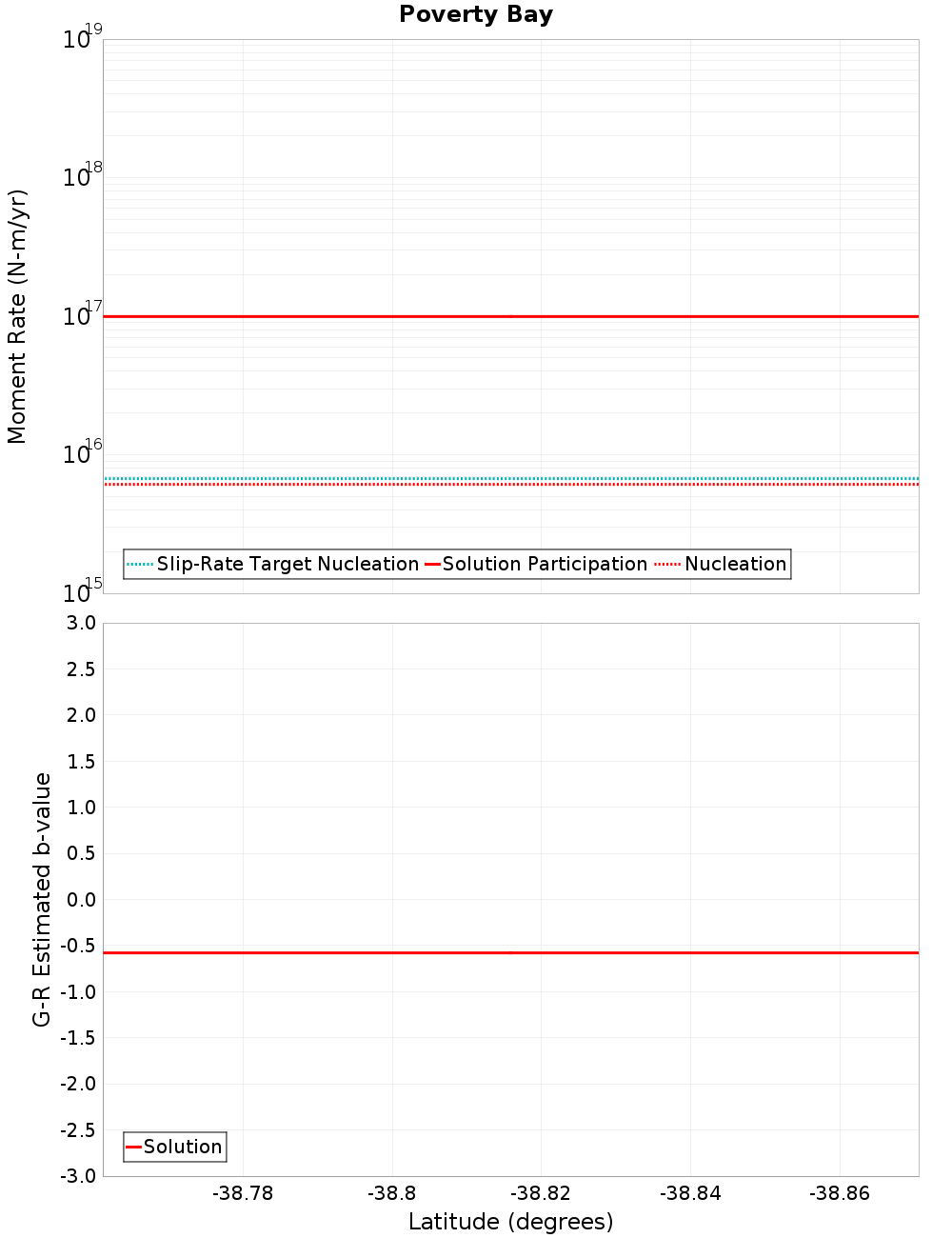

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Gable End South, 3.79 km away |
| Lachlan 3, 3.85 km away |
| Ariel East, 7.83 km away |
| Ariel Bank, 8.84 km away |
| Repongaere, 14.02 km away |
| Te Ikaarongamai, 14.33 km away |
Gable End South, 3.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzEuMFVUUndj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 6.456688E-4 |
Lachlan 3, 3.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzEuMFVUUndj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 3.825637E-4 |
Ariel East, 7.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzEuMFVUUndj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Ariel Bank, 8.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzEuMFVUUndj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Repongaere, 14.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzEuMFVUUndj | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Te Ikaarongamai, 14.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzEuMFVUUndj | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
