Beaumont River Details

PropertyValue
Rupture Count446
Ruptures Above Sect Min Mag445
Ruptures w/ Nonzero Rates5
Magnitude Range[7.05, 8.06]
Length Range[24, 228] km
Total Rate8.227584E-6 /yr
Multi-Fault Rate8.227584E-6 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults29

Table Of Contents

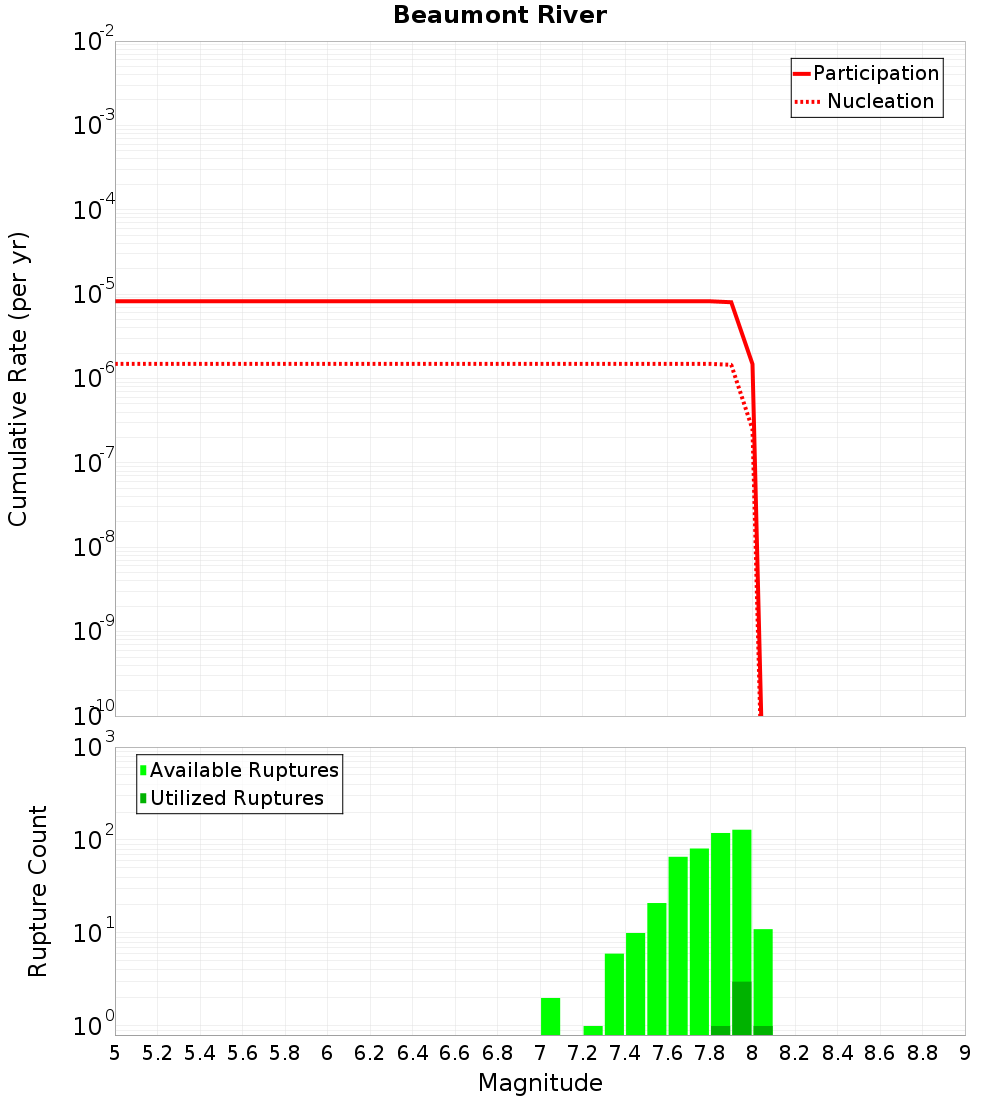

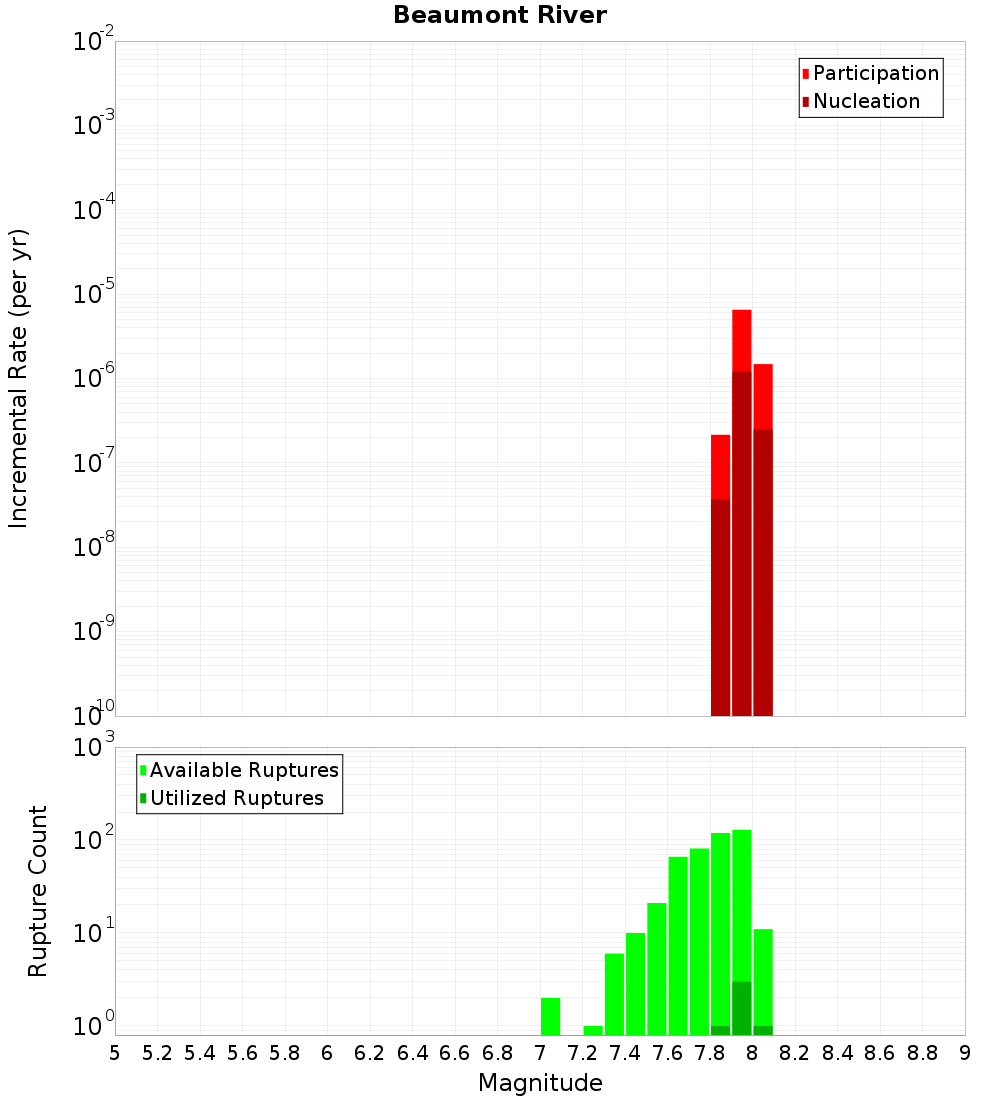

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

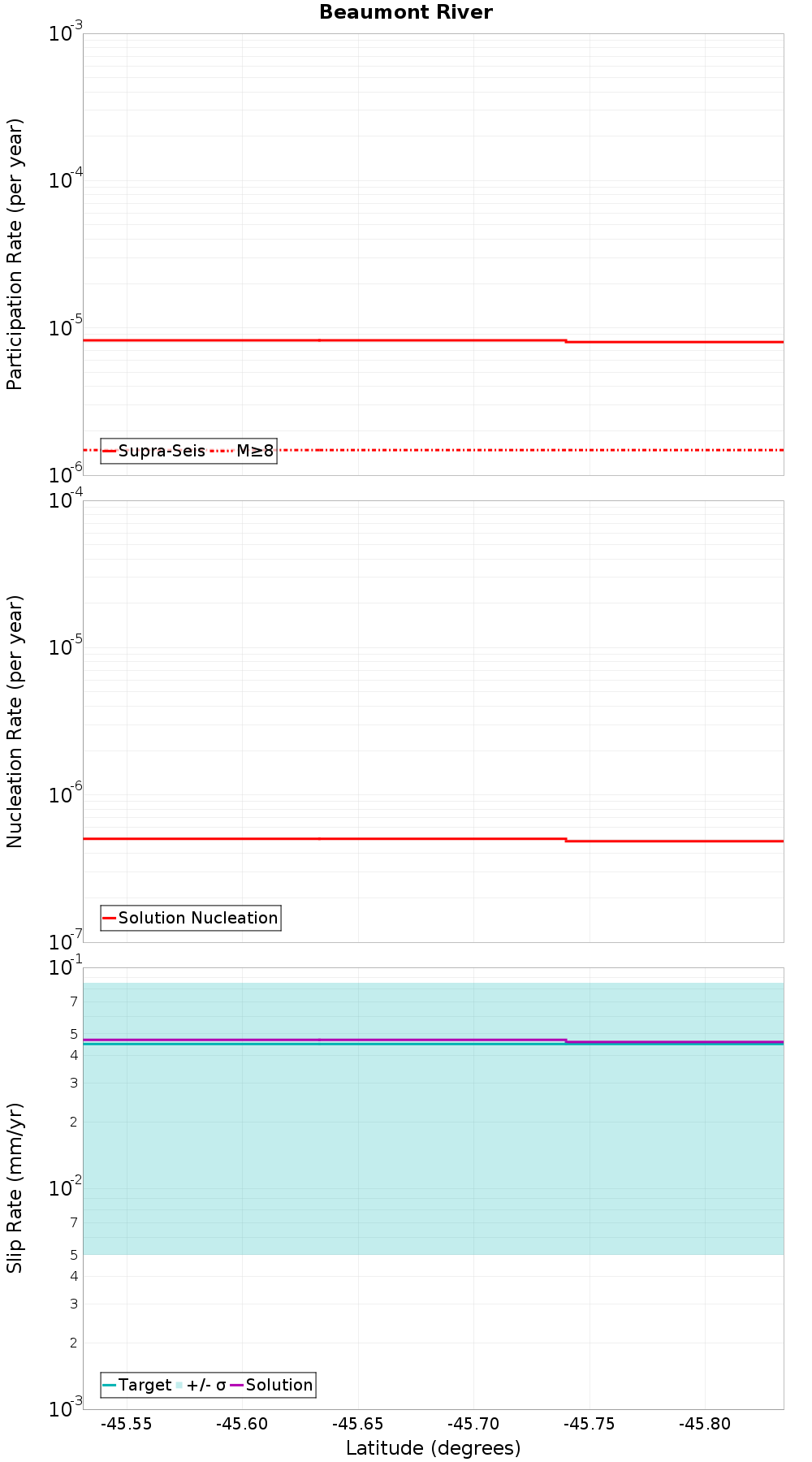

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Logan Burn, 0.16 km awayLake Onslow, 3.85 km away
Pylap, 0.16 km awayNichols Rock, 5.01 km away
Maungatua - North Taieri, 0.31 km awayLong Valley, 5.05 km away
Hyde South - The Twins, 0.34 km awayLittle Valley, 10.37 km away
Hyde North, 0.34 km awayTeviot, 10.54 km away
Backbone, 0.6 km awaySpylaw, 12.97 km away
Tuapeka, 0.91 km awayFlat Stream - Glenpark, 17.74 km away
Blue Mountain, 3.48 km awayHorse Flat, 19.76 km away

Logan Burn, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Pylap, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count95
Co-rupture Rate0.0

Maungatua - North Taieri, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate2.1536742E-7

Hyde South - The Twins, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count40
Co-rupture Rate0.0

Hyde North, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count84
Co-rupture Rate1.6952675E-6

Backbone, 0.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate0.0

Tuapeka, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Blue Mountain, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count287
Co-rupture Rate8.012216E-6

Lake Onslow, 3.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 5.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count169
Co-rupture Rate3.9131887E-6

Long Valley, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count93
Co-rupture Rate2.6191276E-6

Little Valley, 10.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate0.0

Teviot, 10.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Spylaw, 12.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate5.393089E-6

Flat Stream - Glenpark, 17.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count80
Co-rupture Rate0.0

Horse Flat, 19.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0
