Flat Stream - Glenpark Details

PropertyValue
Rupture Count128
Ruptures Above Sect Min Mag126
Ruptures w/ Nonzero Rates4
Magnitude Range[6.98, 8.02]
Length Range[23, 216] km
Total Rate9.005264E-6 /yr
Multi-Fault Rate9.005264E-6 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults20

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

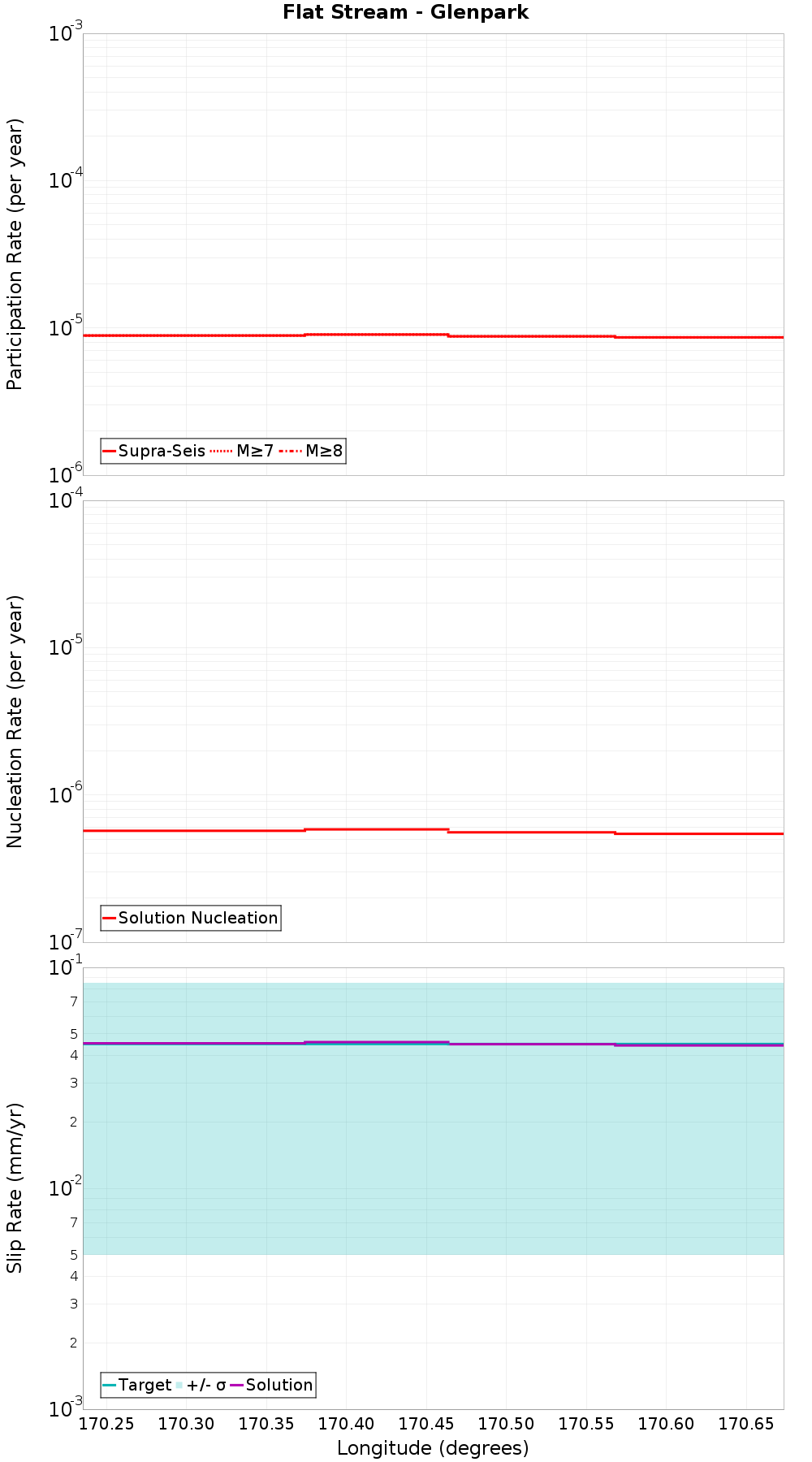

Along-Strike Values

(top)

Along-strike plot

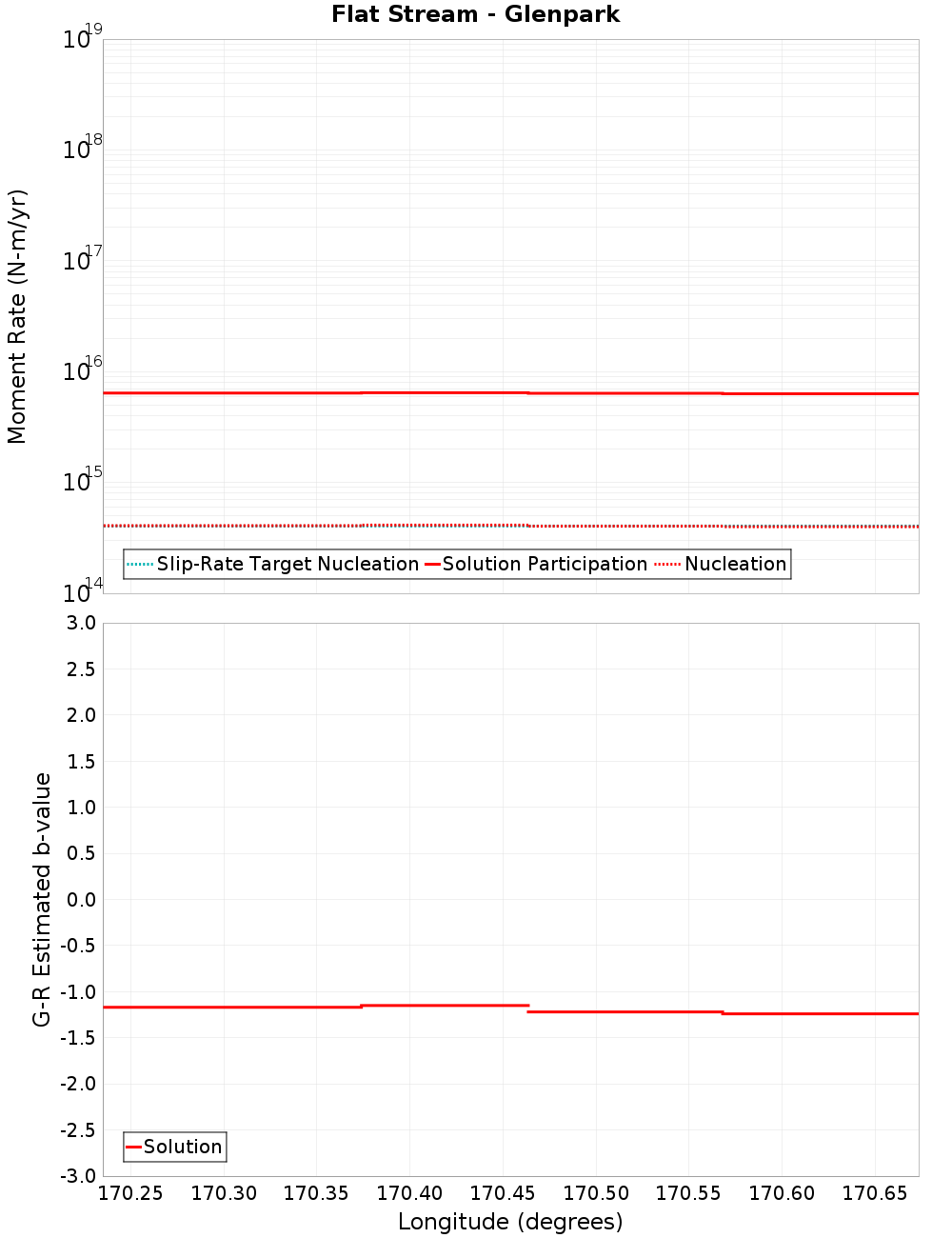

Moment-Rates and b-Values

(top)

Along-strike plot

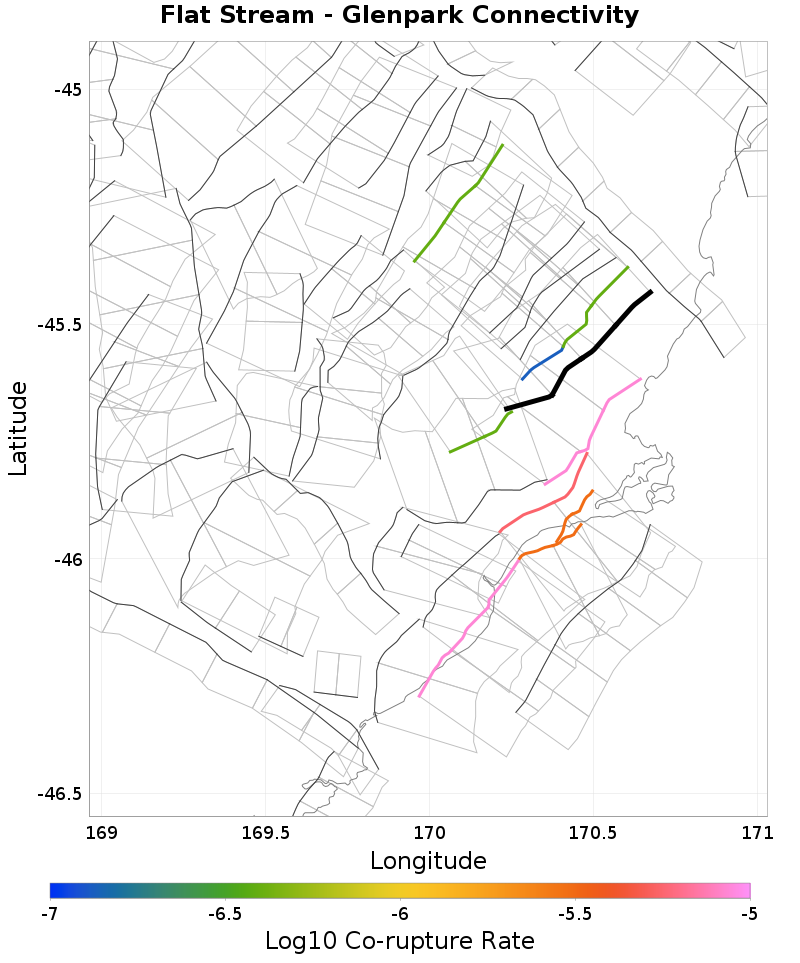

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Nichols Rock, 0.34 km away
Dunback Hill, 2.82 km away
Waihemo, 3.2 km away
Waipiata, 5.65 km away
Logan Burn, 6.4 km away
Murphys Creek, 7.18 km away
Sliver Stream - Merton, 8.28 km away
Billys Ridge, 9.9 km away
Maungatua - North Taieri, 11.66 km away
Pylap, 12.38 km away
Ranfurly, 13.03 km away
Horse Flat, 13.11 km away
Hyde North, 14.79 km away
Titri North, 16.1 km away
Beaumont River, 17.74 km away

Nichols Rock, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count97
Co-rupture Rate3.8645035E-7

Dunback Hill, 2.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate3.8645035E-7

Waihemo, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waipiata, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate3.8645035E-7

Logan Burn, 6.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Murphys Creek, 7.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate0.0

Sliver Stream - Merton, 8.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate8.618813E-6

Billys Ridge, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Pylap, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 13.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Horse Flat, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Hyde North, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri North, 16.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate5.558529E-6

Beaumont River, 17.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzMuMExUUDZn
Connected?true
Directly Connected?false
Co-rupture Count80
Co-rupture Rate0.0
