Waitahuna 1 Details
| Property | Value |
|---|---|
| Rupture Count | 5 |
| Ruptures Above Sect Min Mag | 5 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [7.11, 7.58] |
| Length Range | [23, 73] km |
| Total Rate | 1.2304022E-5 /yr |
| Multi-Fault Rate | 1.2304022E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

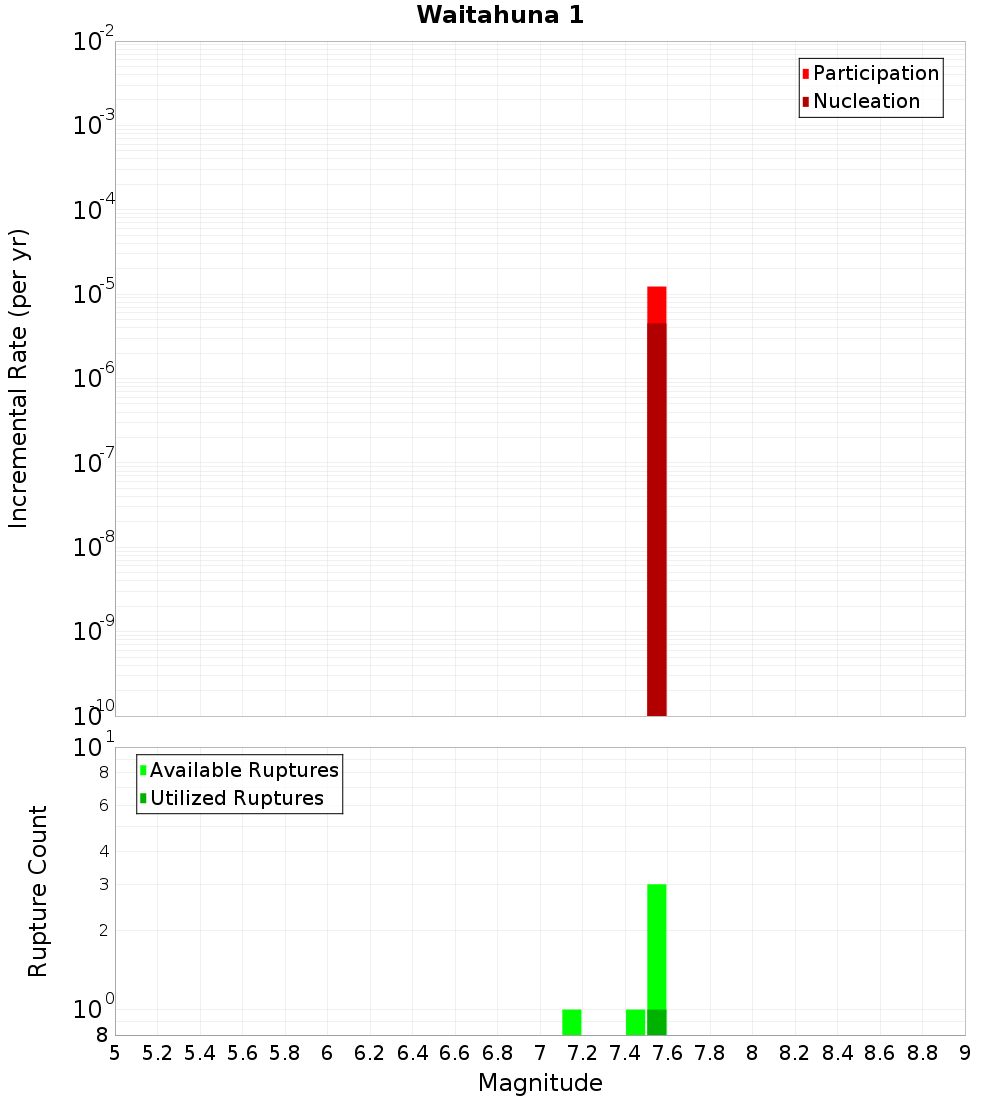

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

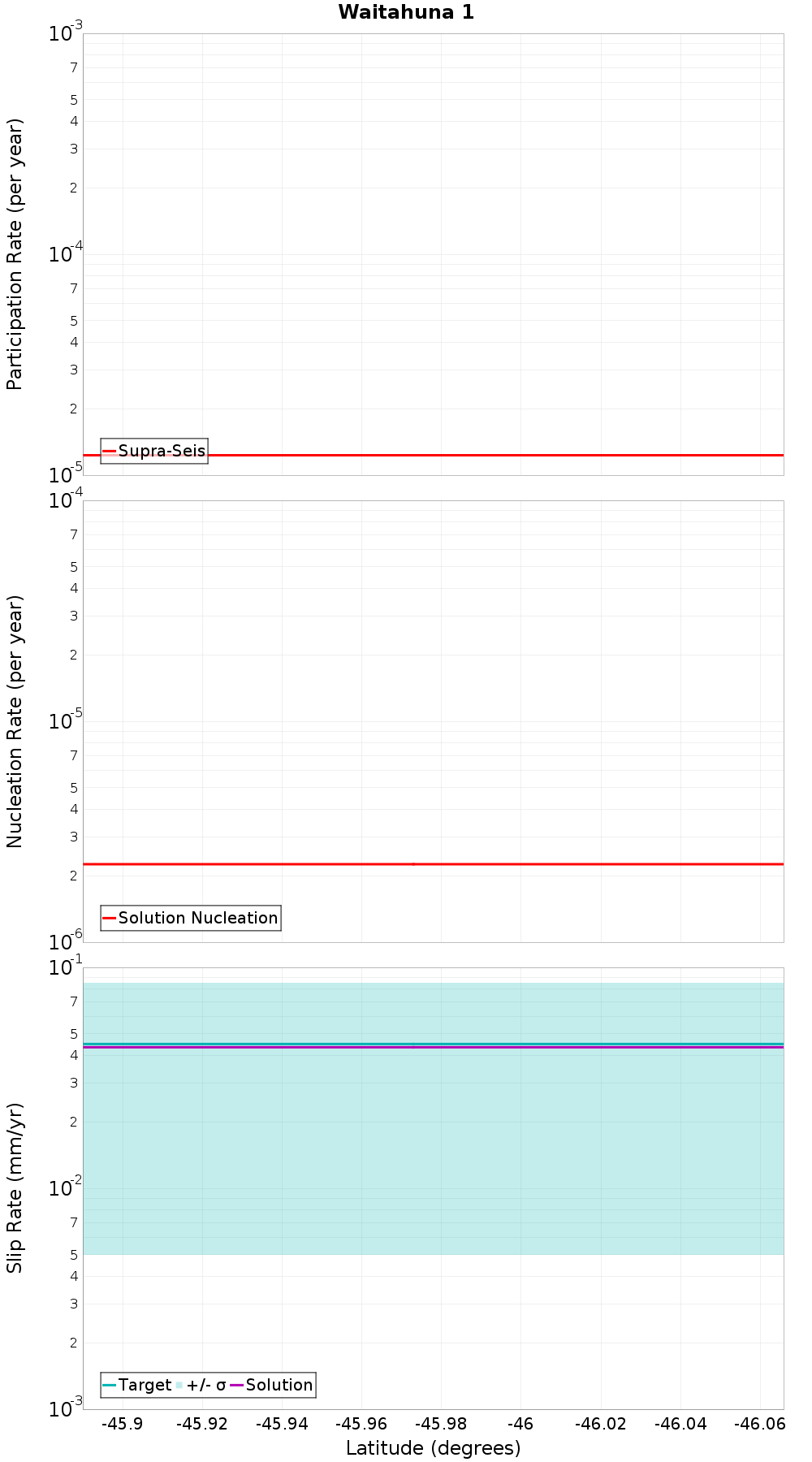

Along-Strike Values
Moment-Rates and b-Values

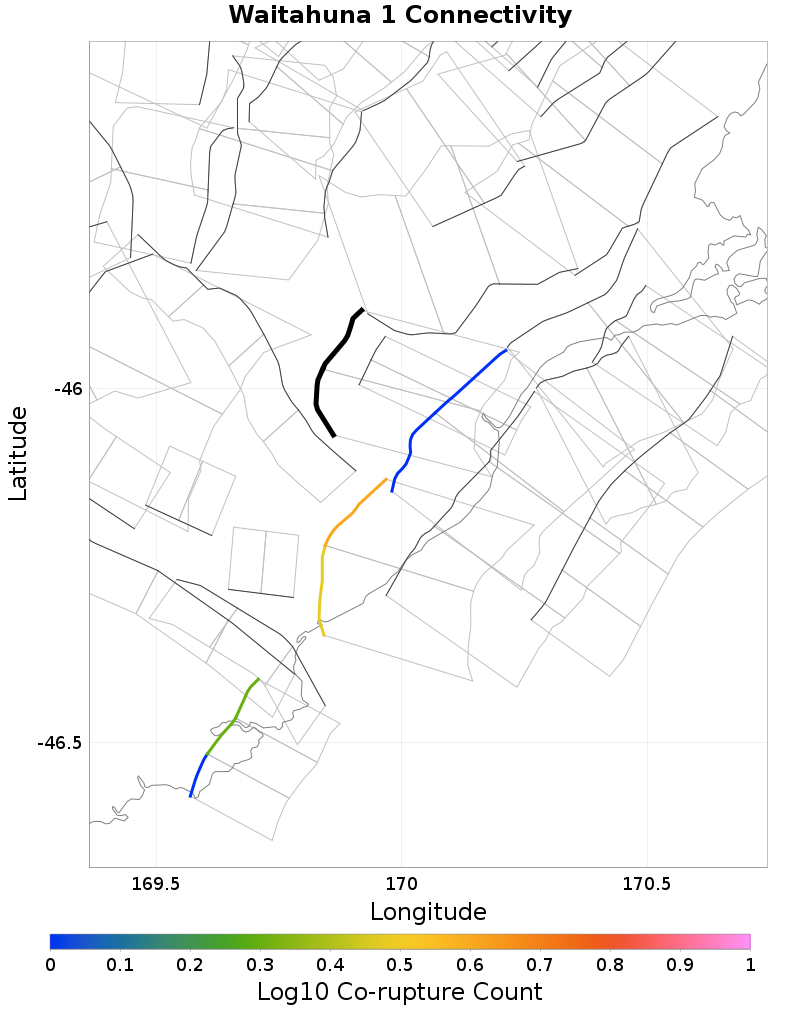

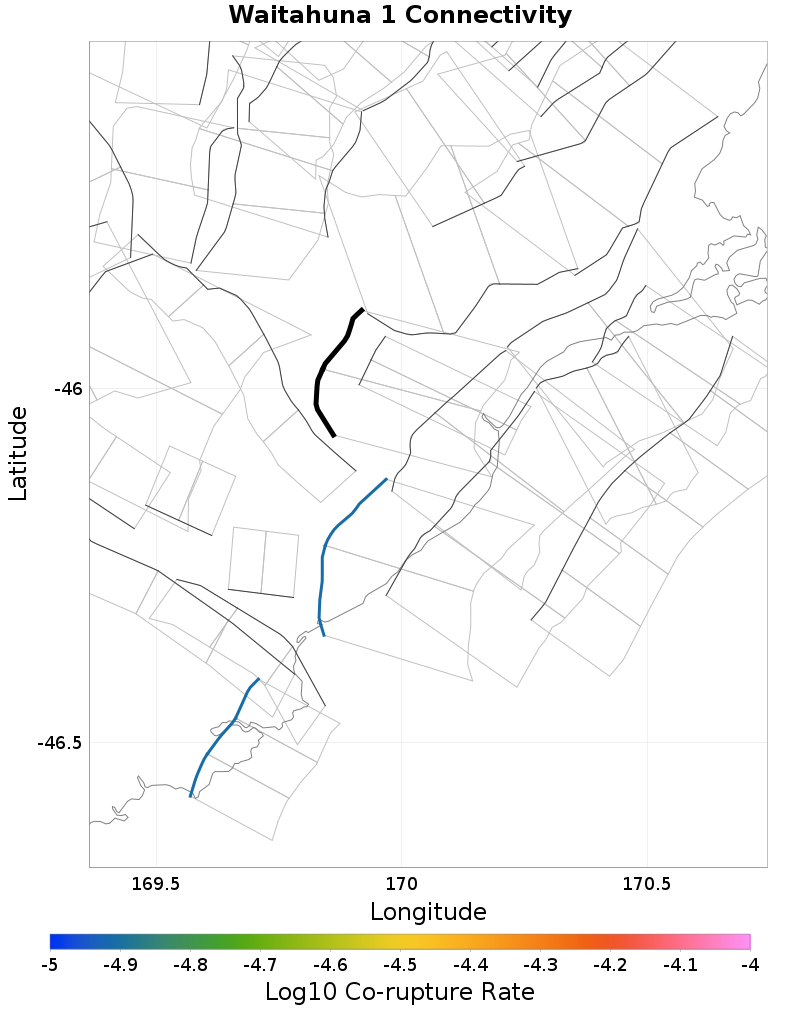

Connectivity
 |  |
|---|
Nearby Sections
Maungatua - North Taieri, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuapeka, 1.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitahuna 2, 3.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Titri Central, 7.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Titri South, 8.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.2304022E-5 |
Hyde South - The Twins, 12.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Akatore, 15.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Titri North, 15.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Nichols Rock, 16.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Green Island, 17.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Sliver Stream - Merton, 19.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3MzcuMHNnNG56 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
