Ohena 2 Details
| Property | Value |
|---|---|
| Rupture Count | 19 |
| Ruptures Above Sect Min Mag | 17 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.86, 7.42] |
| Length Range | [20, 73] km |
| Total Rate | 1.4007826E-4 /yr |
| Multi-Fault Rate | 1.4007826E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

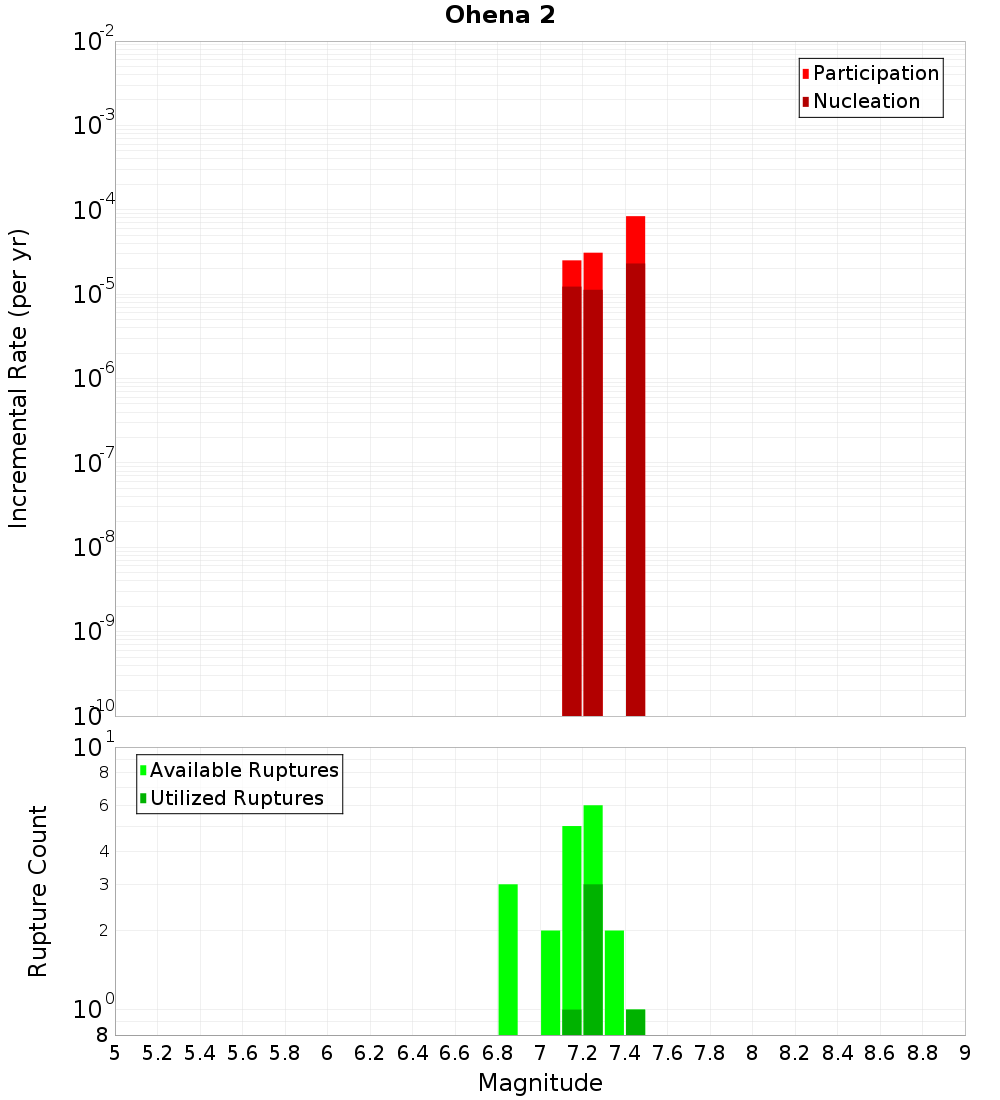

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

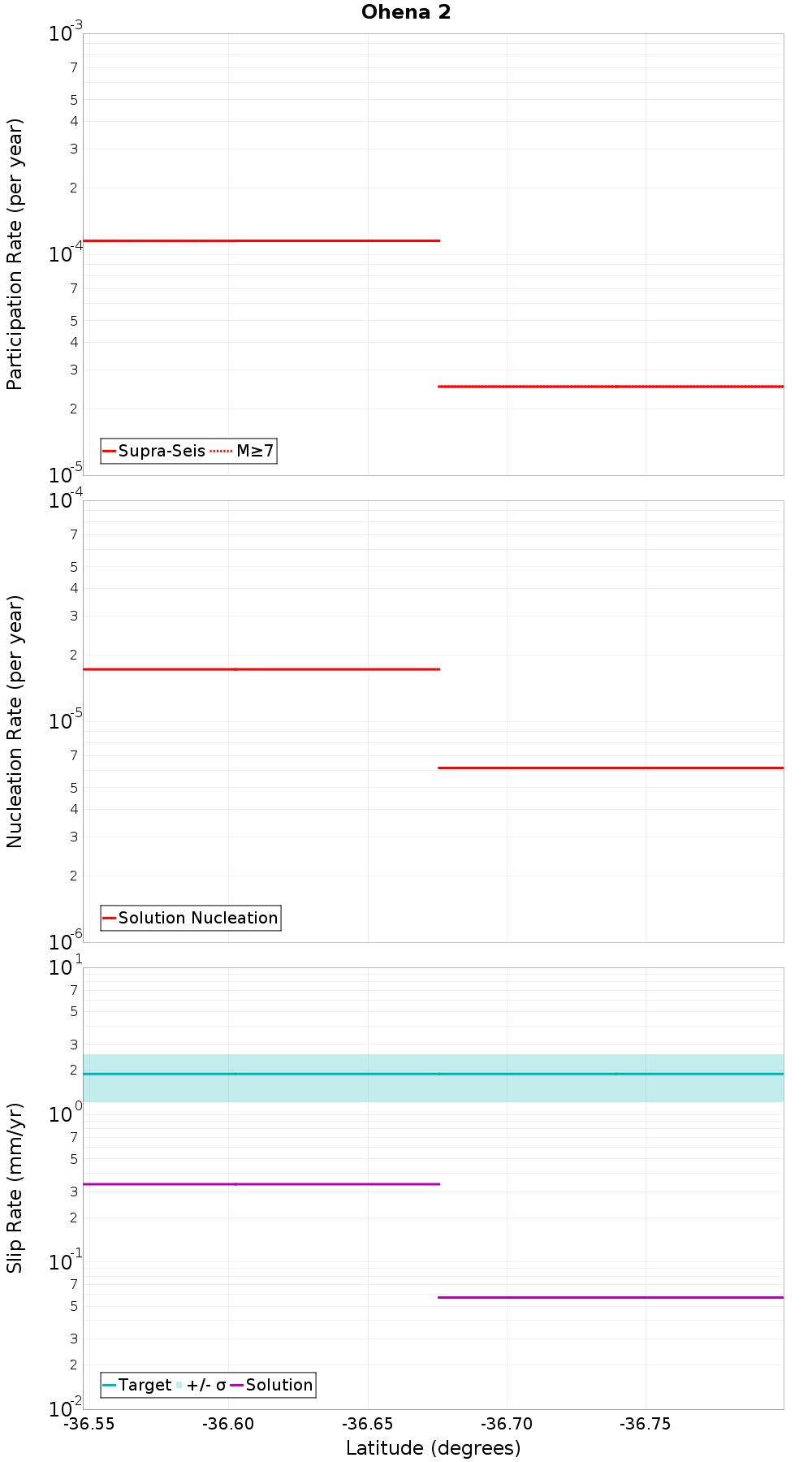

Along-Strike Values

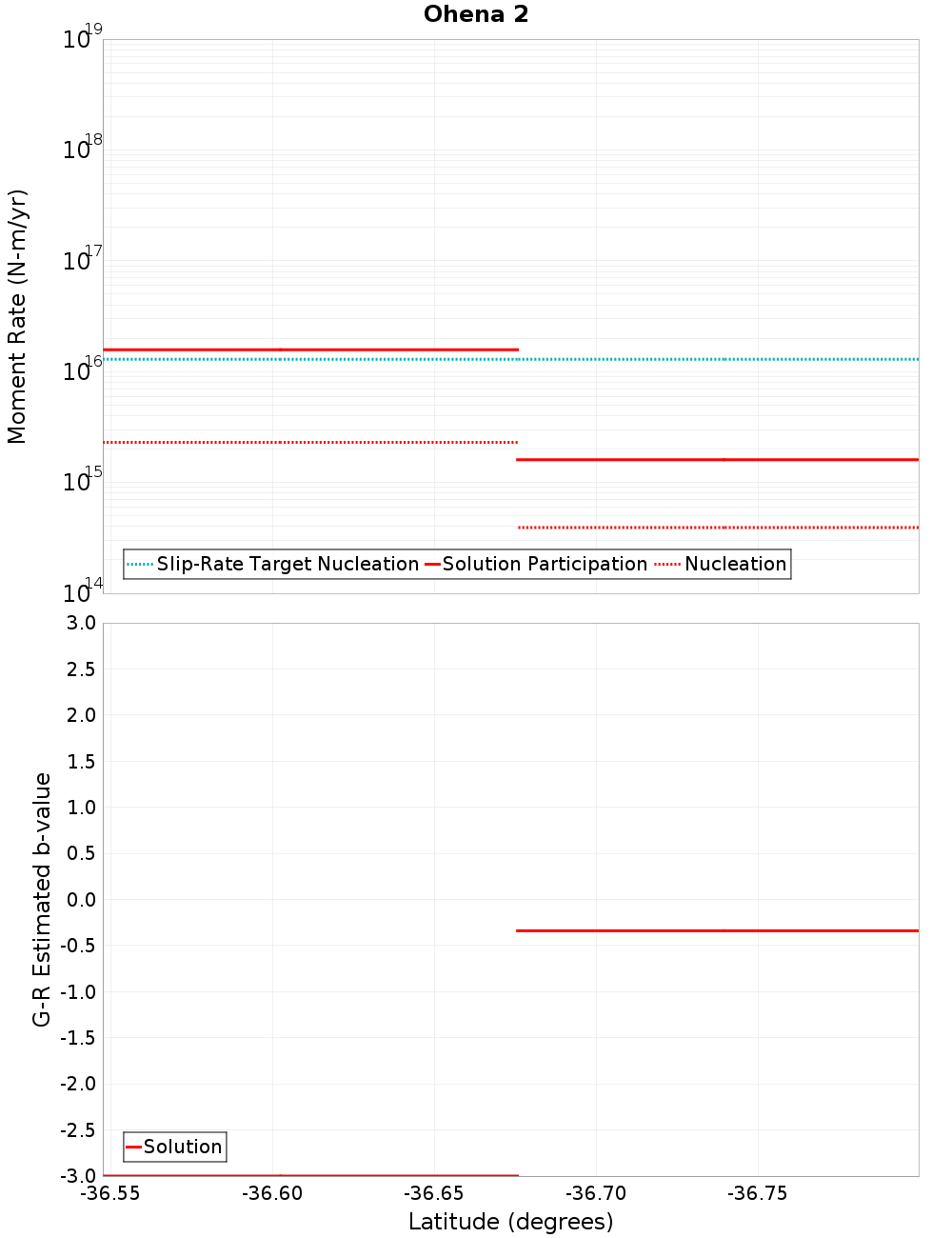

Moment-Rates and b-Values

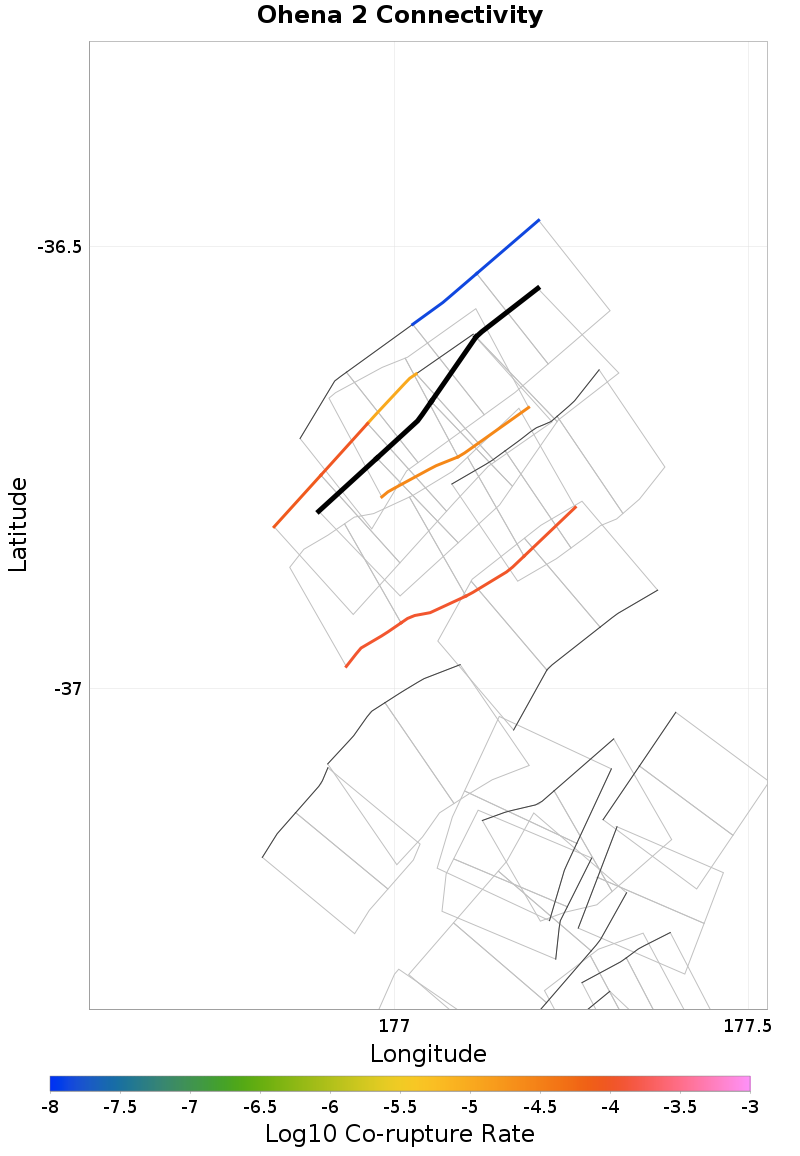

Connectivity
 |  |
|---|
Nearby Sections
Ngatoro South 5, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDIuMEU5dnVS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 2.514149E-5 |
Tauranga Trough West 2, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDIuMEU5dnVS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.1492332E-4 |
Ohena 3, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDIuMEU5dnVS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 9.417197E-5 |
Ohena 4, 4.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDIuMEU5dnVS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.3456651E-8 |
Tauranga Trough East 2, 4.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDIuMEU5dnVS | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Ngatoro South 2, 6.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDIuMEU5dnVS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuakana 7, 19.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDIuMEU5dnVS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 2, 19.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDIuMEU5dnVS | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
