Braemar Details

Property	Value
Rupture Count	16,587
Ruptures Above Sect Min Mag	16,574
Ruptures w/ Nonzero Rates	127
Magnitude Range	[6.63, 8.37]
Length Range	[14, 549] km
Total Rate	5.4605E-4 /yr
Multi-Fault Rate	5.4605E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	91

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

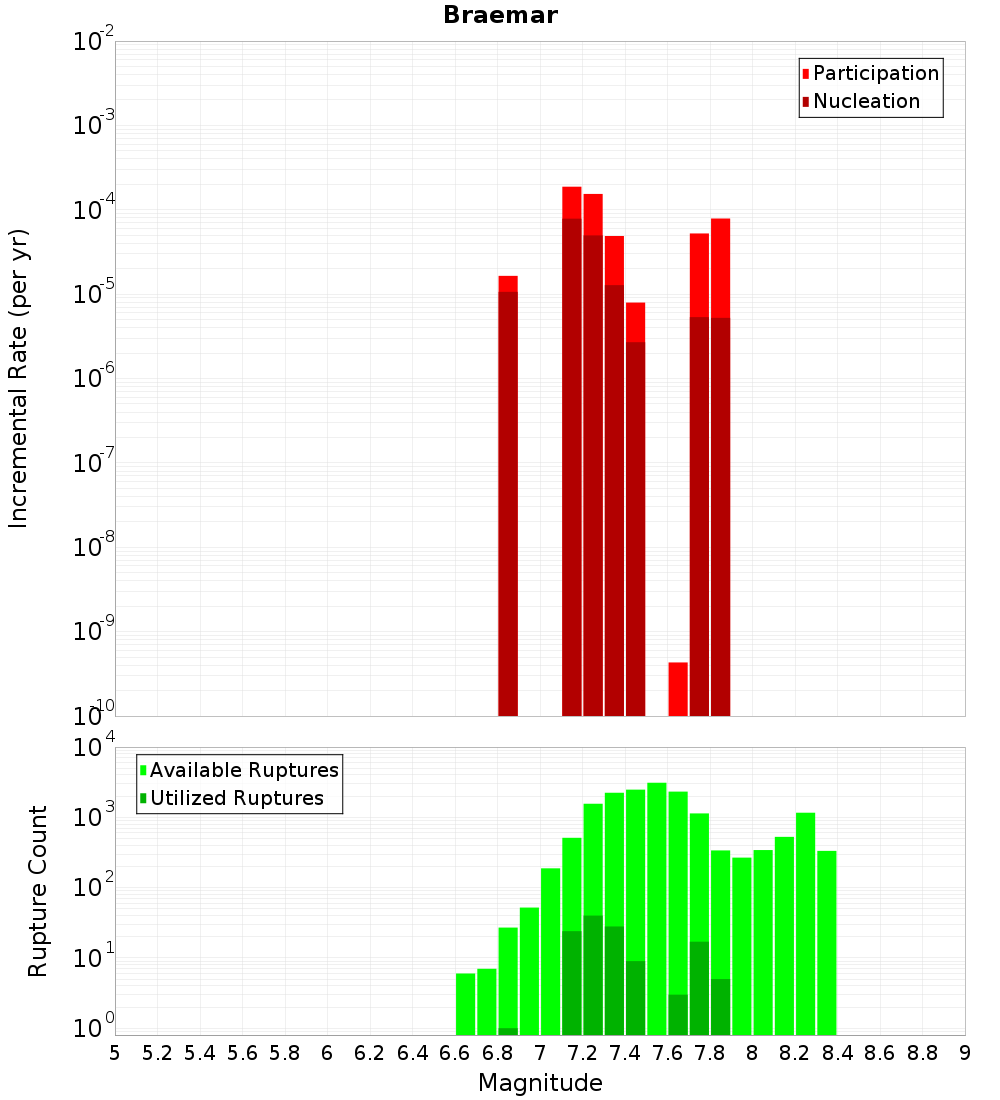

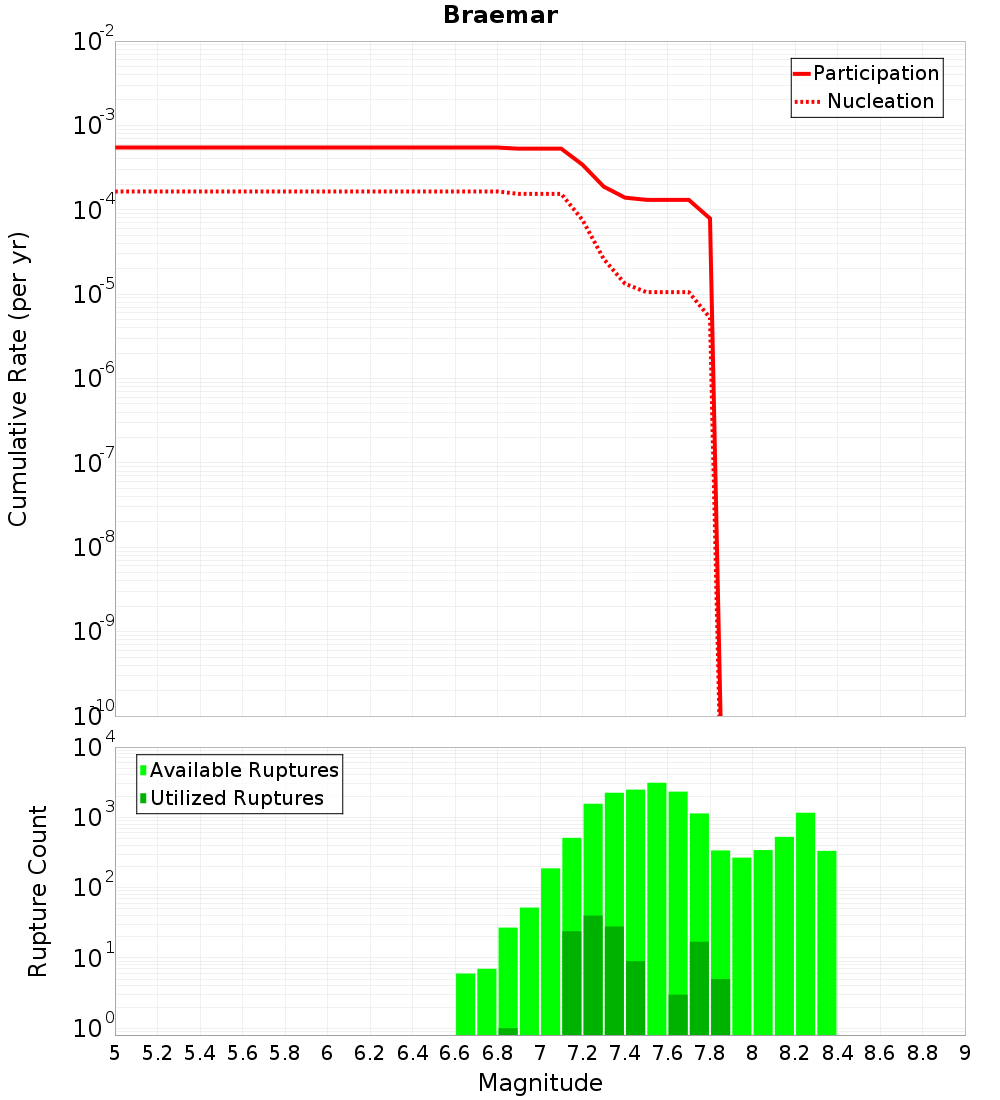

Magnitude-Frequency Distribution

Incremental	Cumulative

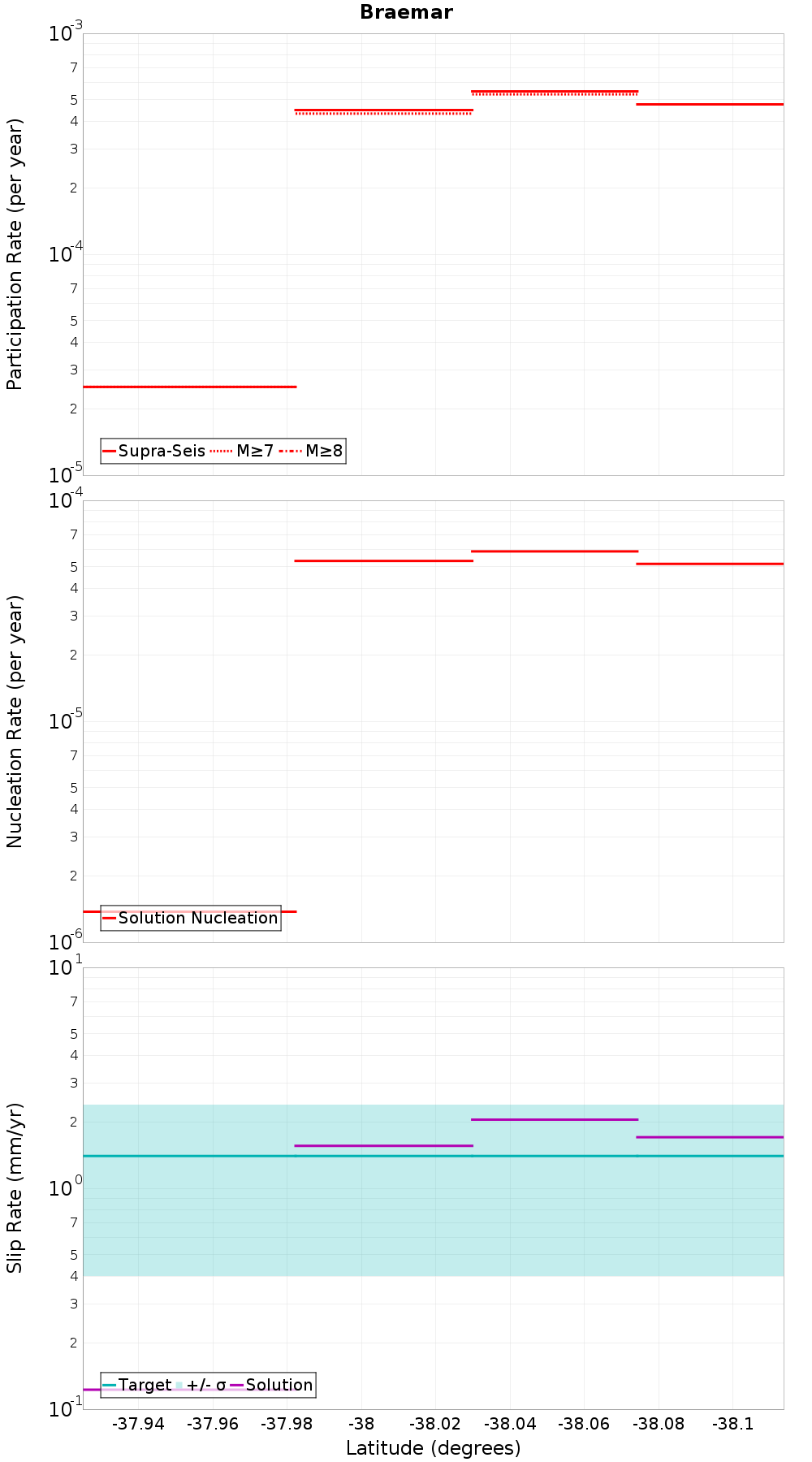

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awakeri, 0.15 km away
Edgecumbe 1987, 0.31 km away
Waiohau: North, 0.34 km away
Otakiri, 0.69 km away
Matata, 1.02 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 6.14 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 19.88 km away

Awakeri, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,773
Co-rupture Rate	0.0

Edgecumbe 1987, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	3,994
Co-rupture Rate	4.2695225E-5

Waiohau: North, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	4,111
Co-rupture Rate	0.0

Otakiri, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,523
Co-rupture Rate	1.0203053E-4

Matata, 1.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	5,524
Co-rupture Rate	4.0132424E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	6,907
Co-rupture Rate	9.1744514E-5

Whakatane: North, 6.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	false
Co-rupture Count	88
Co-rupture Rate	1.7483055E-8

White Island 1, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	false
Co-rupture Count	10,260
Co-rupture Rate	1.2165131E-4

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	10,199
Co-rupture Rate	3.9845554E-4

Waimana: North, 19.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	false
Co-rupture Count	38
Co-rupture Rate	0.0
