Puketerata North Details

Property	Value
Rupture Count	3,234
Ruptures Above Sect Min Mag	3,162
Ruptures w/ Nonzero Rates	102
Magnitude Range	[6.15, 7.84]
Length Range	[7, 214] km
Total Rate	4.3210204E-4 /yr
Multi-Fault Rate	4.3210204E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

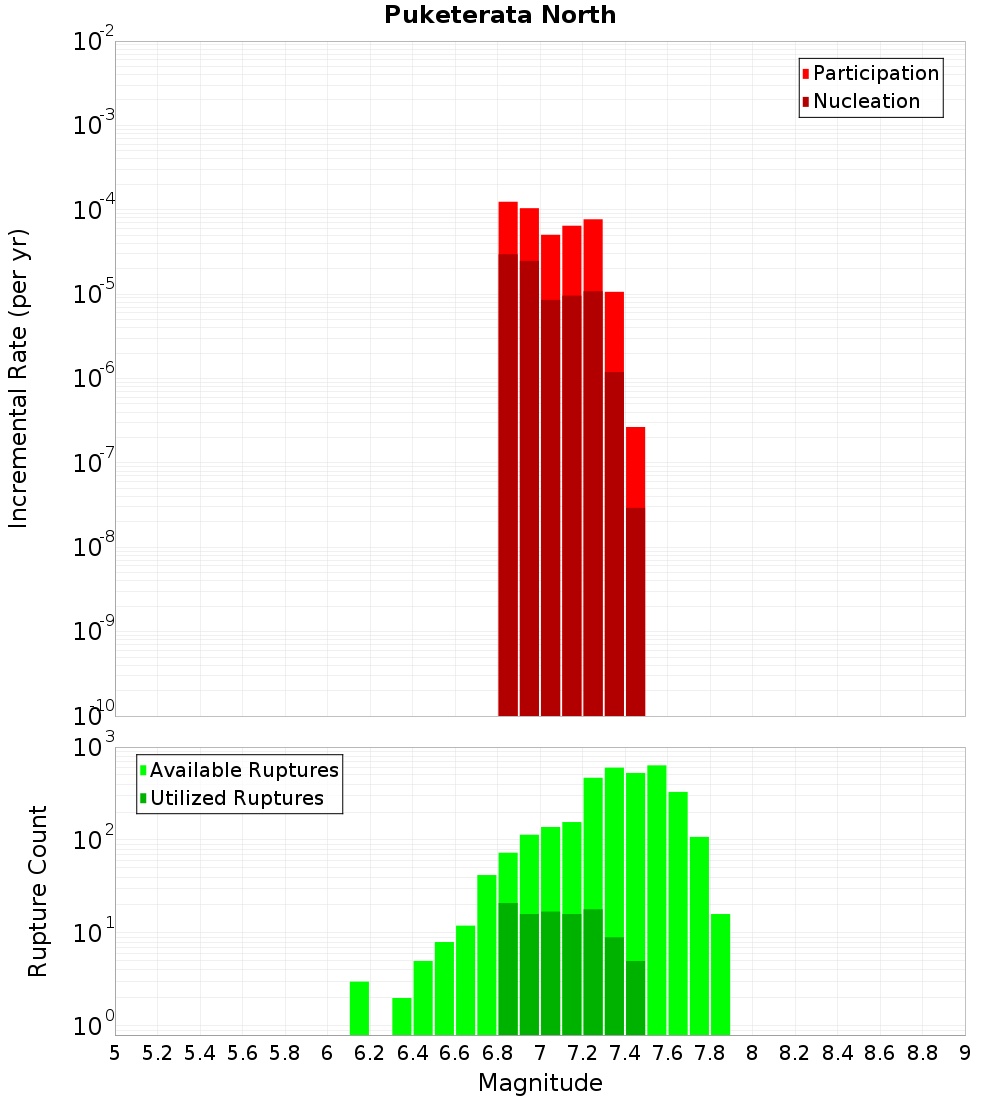

Magnitude-Frequency Distribution

Incremental	Cumulative

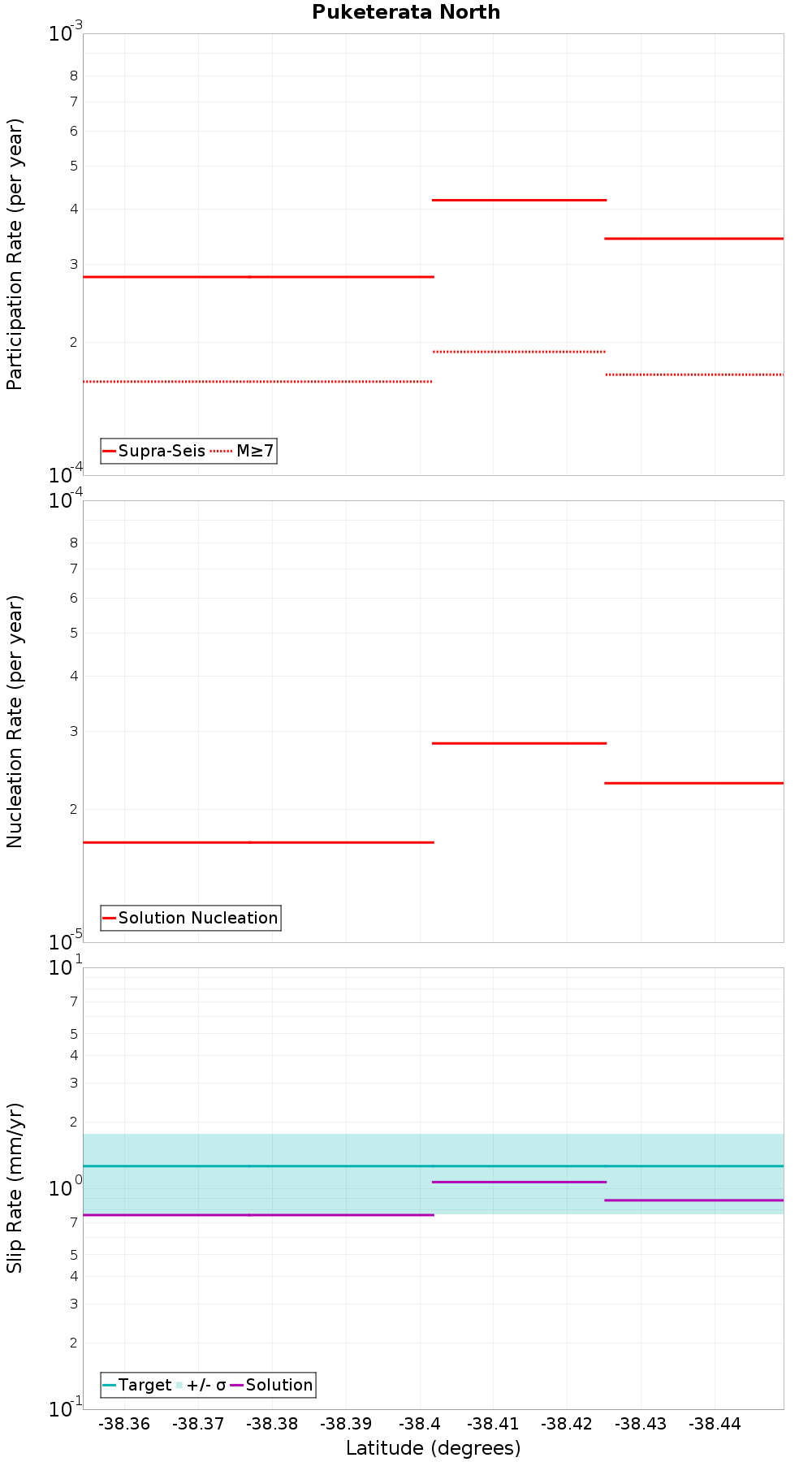

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.1 km away
Maleme, 0.17 km away
Paeroa, 2.15 km away
Orakeikorako, 3.28 km away
EarthquakeFlat - Tumunui, 7.65 km away
Whangamata West, 9.6 km away
Kaiapo, 17.13 km away

Puketerata, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,007
Co-rupture Rate	1.9738513E-4

Maleme, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	2,134
Co-rupture Rate	1.5127254E-4

Paeroa, 2.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	1,759
Co-rupture Rate	2.3349935E-4

Orakeikorako, 3.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	true
Co-rupture Count	734
Co-rupture Rate	1.6359627E-4

EarthquakeFlat - Tumunui, 7.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	false
Co-rupture Count	2,932
Co-rupture Rate	2.1341287E-4

Whangamata West, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	false
Co-rupture Count	1,694
Co-rupture Rate	1.6180429E-4

Kaiapo, 17.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NDYuMDhVRXpu
Connected?	true
Directly Connected?	false
Co-rupture Count	420
Co-rupture Rate	1.3760832E-4
