Alpine: Caswell - South George Details

PropertyValue
Rupture Count62,557
Ruptures Above Sect Min Mag62,555
Ruptures w/ Nonzero Rates93
Magnitude Range[6.71, 8.73]
Length Range[15, 1,204] km
Total Rate0.0021853375 /yr
Multi-Fault Rate0.0021853375 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults127

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

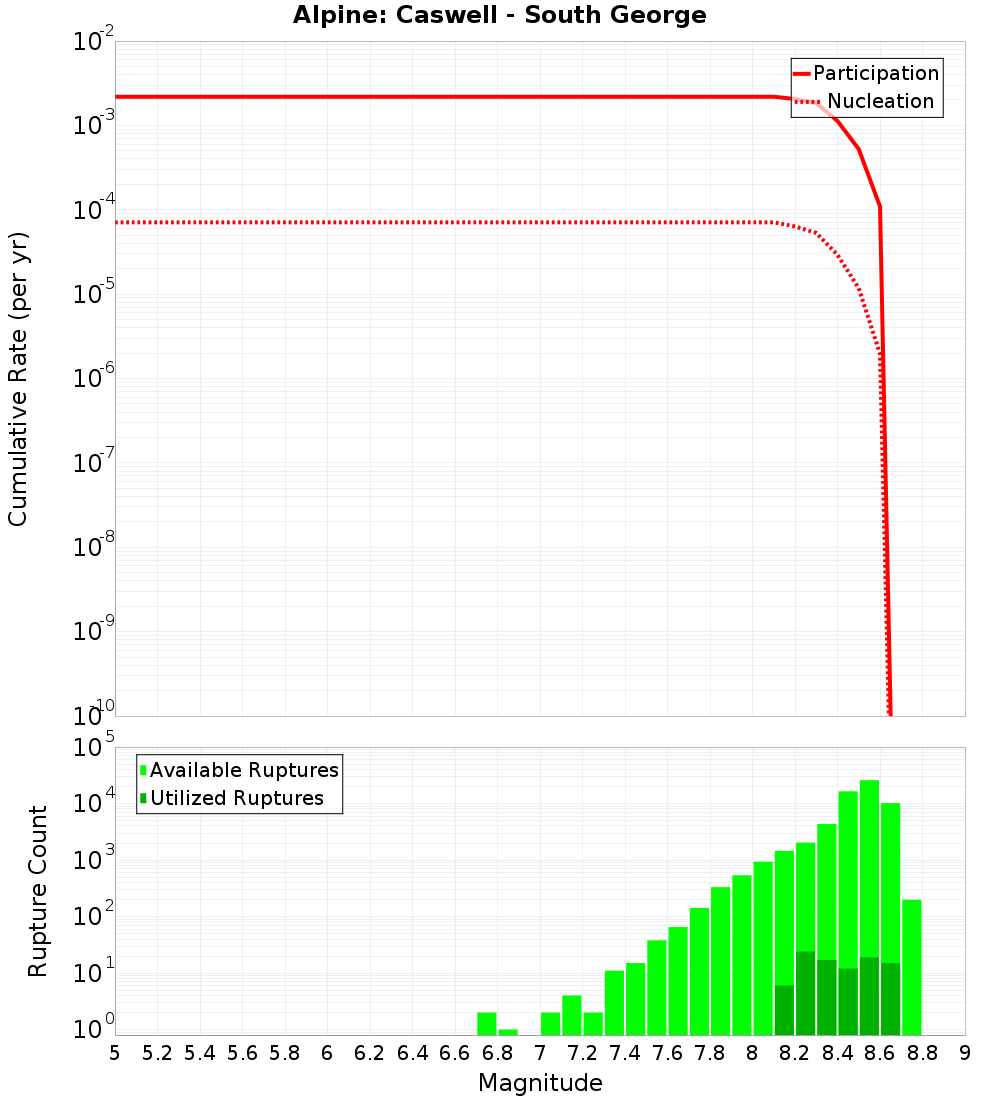

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell, 0 km away
Alpine: George landward, 0.03 km away
Alpine: George seaward, 0.03 km away
Central Wedge 1 & 2 & 3, 2.34 km away
Madagascar, 12.23 km away
Alpine: George to Jacksons, 15.22 km away
South Wedge 2, 17.22 km away
Central Wedge 4 - South Wedge 411, 18.5 km away

Alpine: Caswell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTIuMFBoUGtk
Connected?true
Directly Connected?true
Co-rupture Count58,141
Co-rupture Rate0.0021853375

Alpine: George landward, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTIuMFBoUGtk
Connected?true
Directly Connected?true
Co-rupture Count28,127
Co-rupture Rate7.1750005E-4

Alpine: George seaward, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTIuMFBoUGtk
Connected?true
Directly Connected?true
Co-rupture Count35,019
Co-rupture Rate0.0014678375

Central Wedge 1 & 2 & 3, 2.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTIuMFBoUGtk
Connected?true
Directly Connected?false
Co-rupture Count6,381
Co-rupture Rate0.0

Madagascar, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTIuMFBoUGtk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: George to Jacksons, 15.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTIuMFBoUGtk
Connected?true
Directly Connected?false
Co-rupture Count62,301
Co-rupture Rate0.0021853375

South Wedge 2, 17.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTIuMFBoUGtk
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 18.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTIuMFBoUGtk
Connected?true
Directly Connected?false
Co-rupture Count536
Co-rupture Rate9.2748145E-5
