Clarence: Northeast Details

Property	Value
Rupture Count	5,757
Ruptures Above Sect Min Mag	5,756
Ruptures w/ Nonzero Rates	24
Magnitude Range	[6.94, 8.65]
Length Range	[21, 894] km
Total Rate	5.739189E-4 /yr
Multi-Fault Rate	5.739189E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	85

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

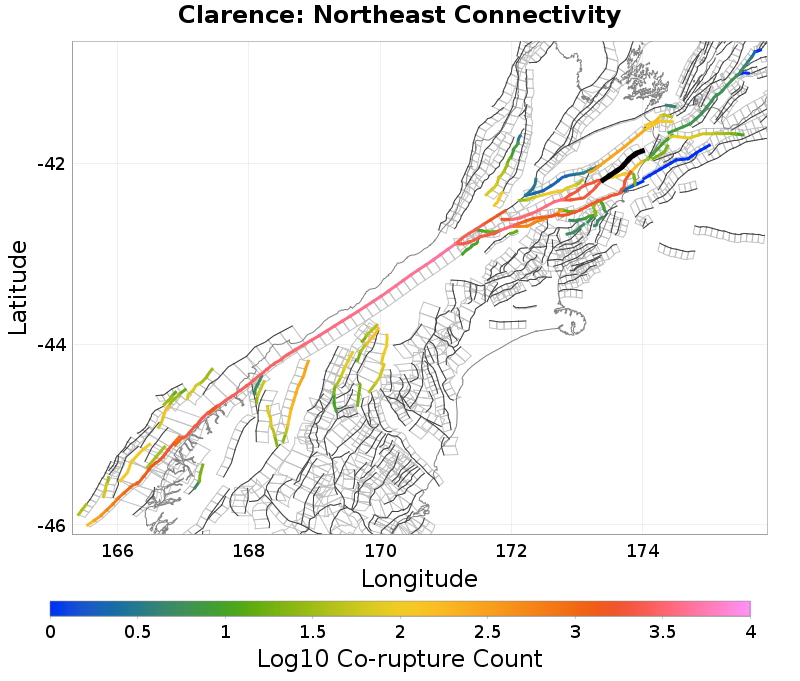

Connectivity

Nearby Sections

Fault Section
Elliott, 0.01 km away
Clarence: Central, 0.09 km away
Fidget, 0.64 km away
Jordan, 0.78 km away
Needles East 2, 8.38 km away
Awatere: Northeast 1, 9.18 km away
Kekerengu 1, 10.43 km away
London Hill, 10.86 km away
Awatere: Southwest, 11.07 km away
Papatea, 11.87 km away
Needles, 11.97 km away
Barefell, 16.85 km away
Chancet, 18.61 km away

Elliott, 0.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	true
Co-rupture Count	2,050
Co-rupture Rate	1.17812306E-4

Clarence: Central, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	true
Co-rupture Count	2,010
Co-rupture Rate	1.498355E-4

Fidget, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	false
Co-rupture Count	109
Co-rupture Rate	0.0

Jordan, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	true
Co-rupture Count	1,711
Co-rupture Rate	2.9928744E-4

Needles East 2, 8.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	1.2572447E-5

Awatere: Northeast 1, 9.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	true
Co-rupture Count	291
Co-rupture Rate	6.428395E-5

Kekerengu 1, 10.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	true
Co-rupture Count	164
Co-rupture Rate	1.7902757E-4

London Hill, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Southwest, 11.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	6.185796E-5

Papatea, 11.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	0.0

Needles, 11.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	1.2572447E-5

Barefell, 16.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chancet, 18.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
