Hawke Bay 4 Details
| Property | Value |
|---|---|
| Rupture Count | 40 |
| Ruptures Above Sect Min Mag | 40 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.82, 7.96] |
| Length Range | [13, 180] km |
| Total Rate | 8.996042E-5 /yr |
| Multi-Fault Rate | 8.996042E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

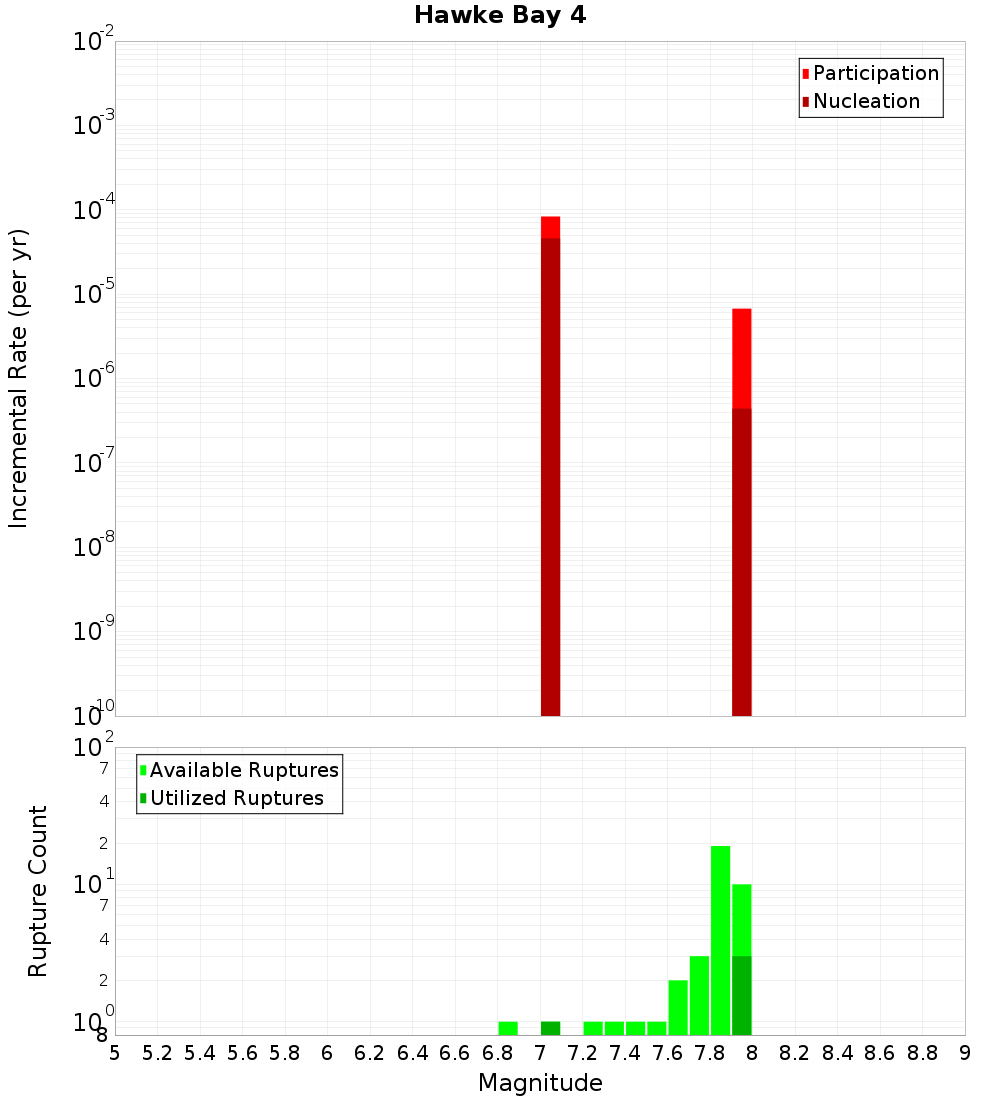

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

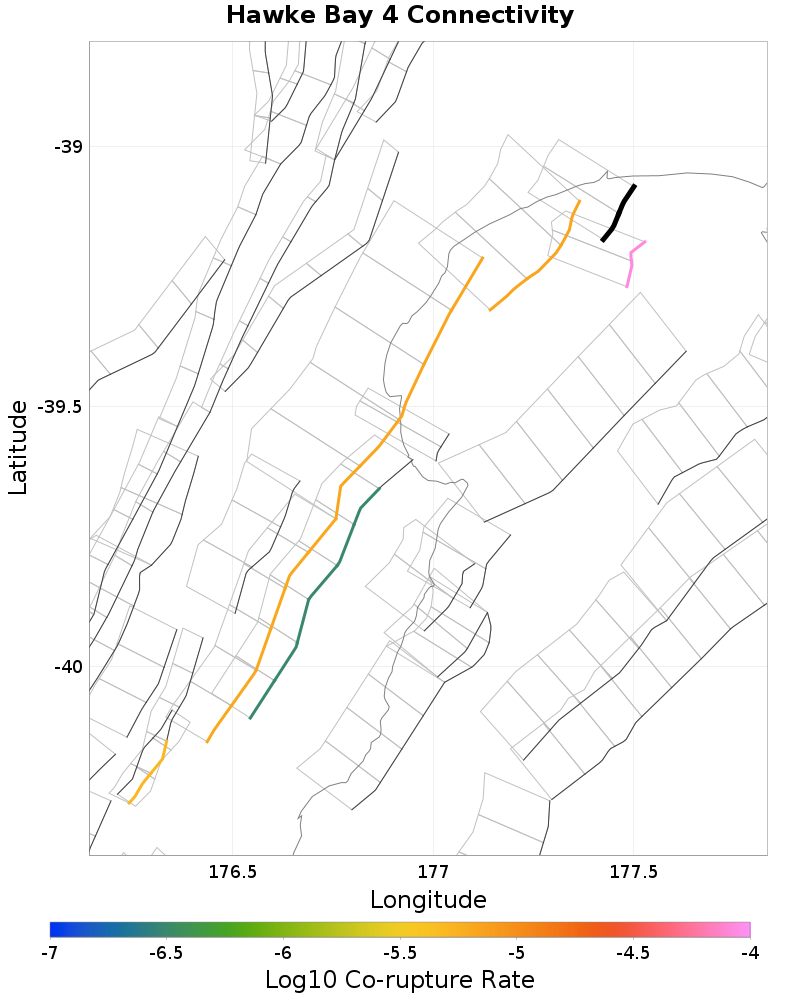

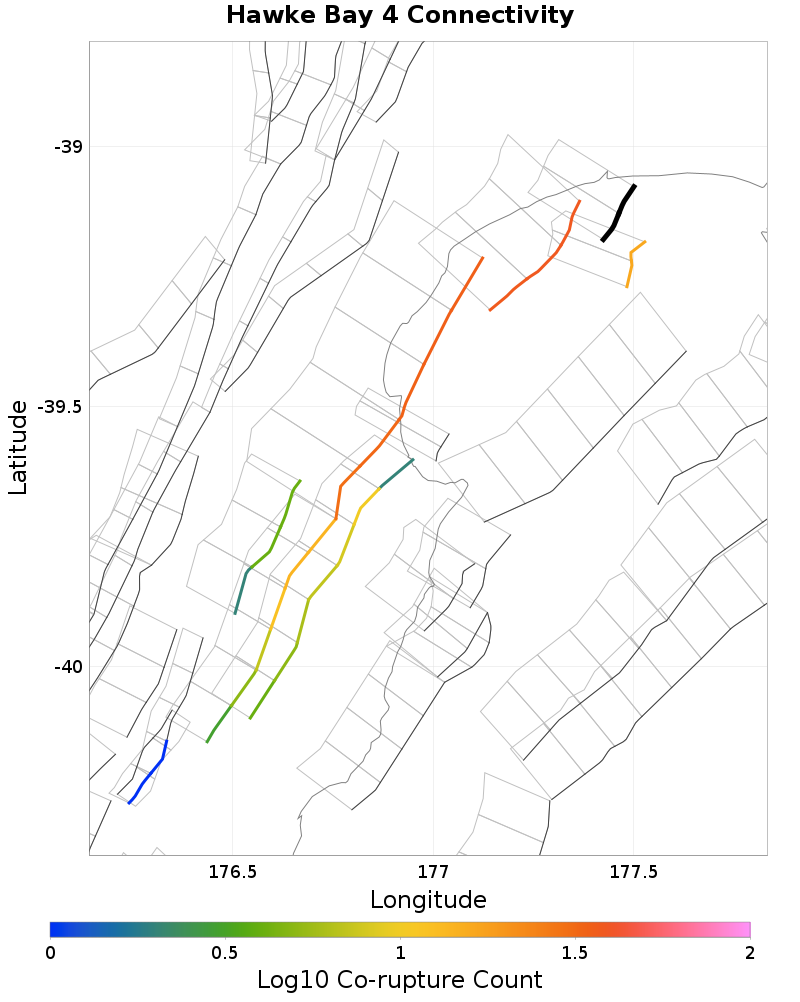

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 5 & 11, 4.23 km away |
| Hawke Bay 1, 4.48 km away |
| Kidnappers Ridge, 19.23 km away |
Hawke Bay 5 & 11, 4.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 8.466943E-5 |
Hawke Bay 1, 4.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 6.7314722E-6 |
Kidnappers Ridge, 19.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NTcuMGhZbW4y | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
