EarthquakeFlat - Tumunui Details
| Property | Value |
|---|---|
| Rupture Count | 10,613 |
| Ruptures Above Sect Min Mag | 10,578 |
| Ruptures w/ Nonzero Rates | 31 |
| Magnitude Range | [6.17, 7.84] |
| Length Range | [8, 217] km |
| Total Rate | 7.802514E-4 /yr |
| Multi-Fault Rate | 7.802514E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 32 |
Table Of Contents

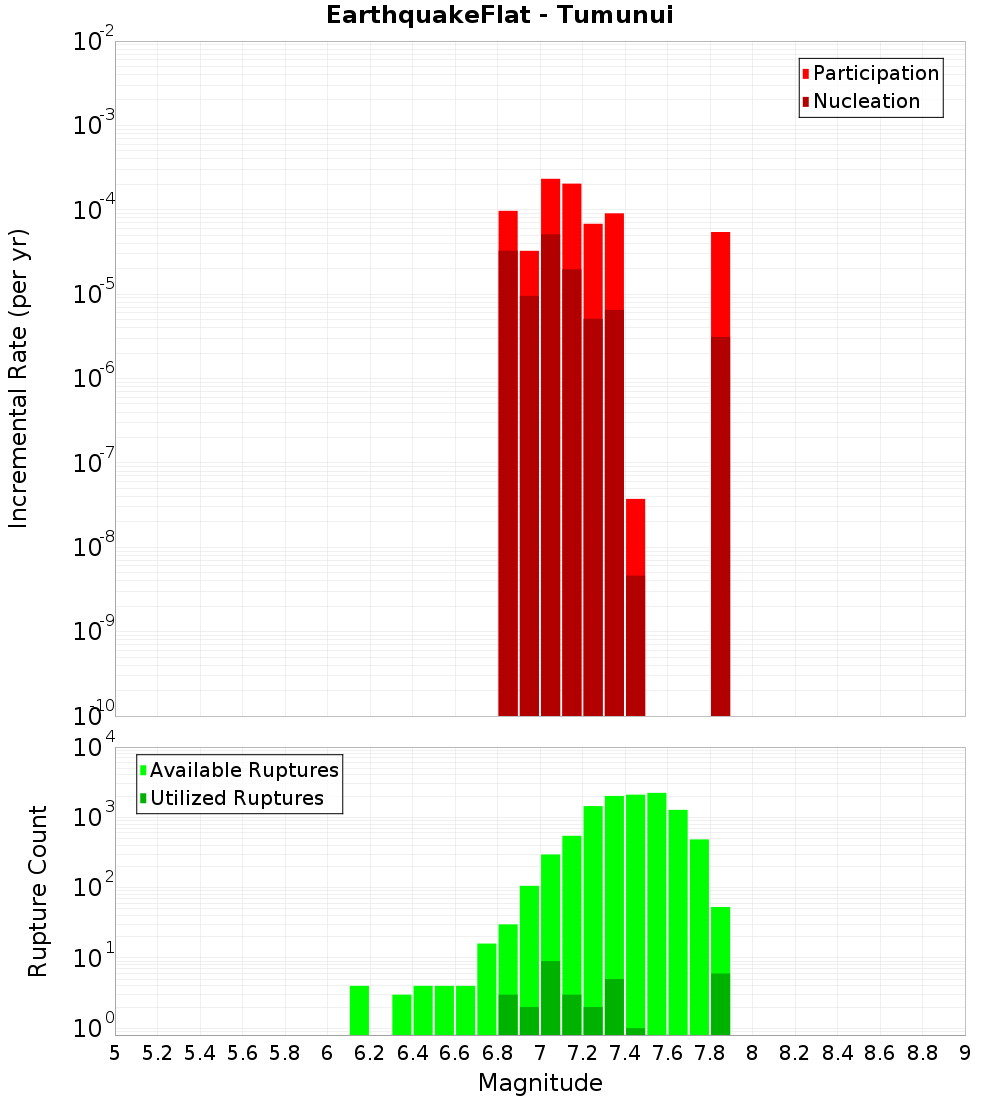

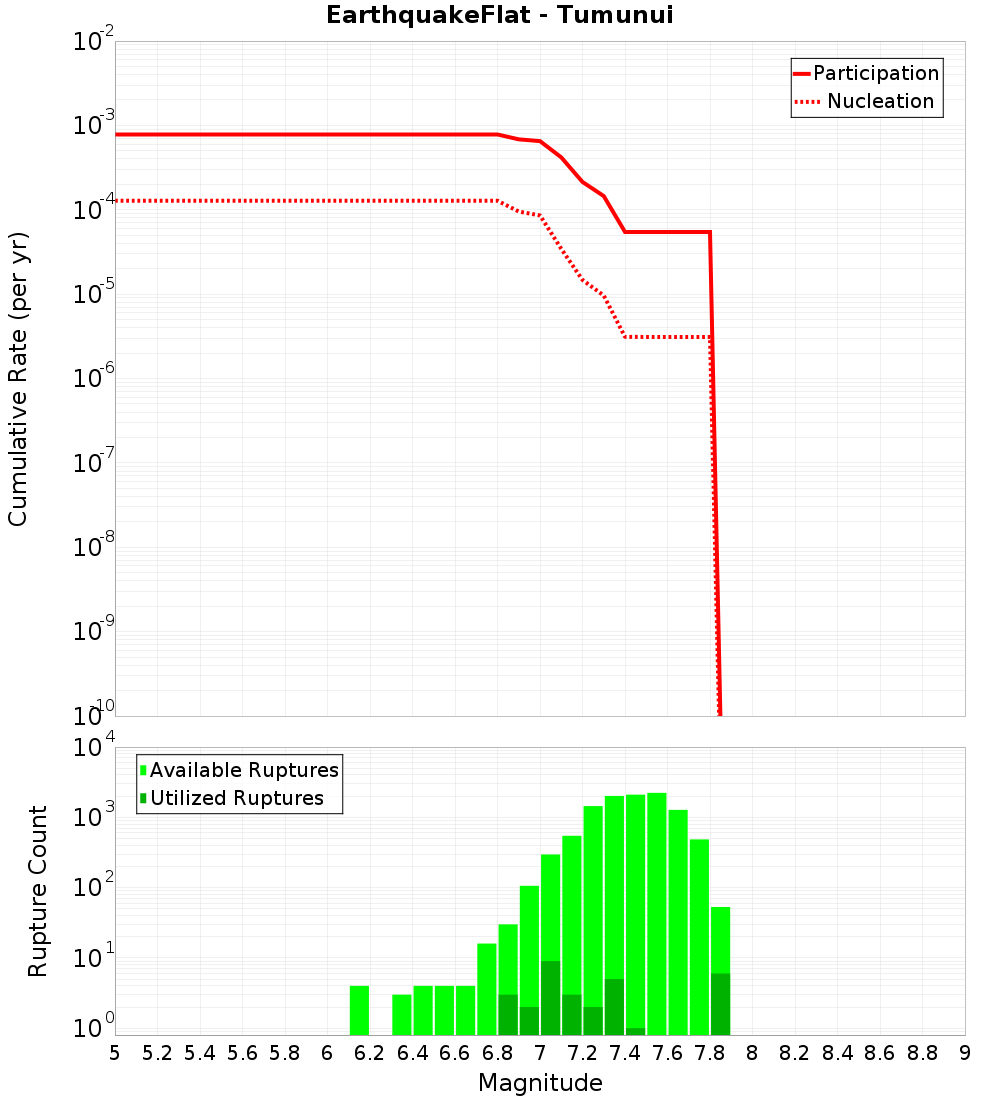

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

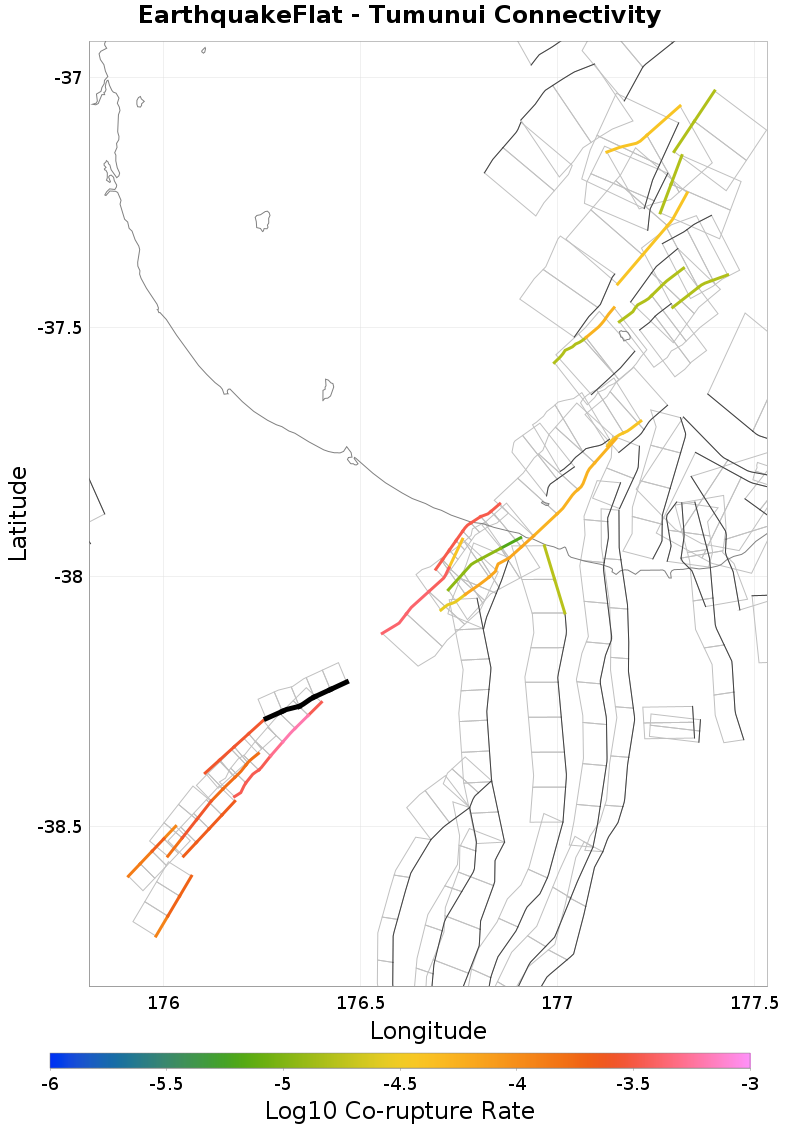

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maleme, 0.79 km away |
| Paeroa, 1.55 km away |
| Puketerata North, 7.65 km away |
| Braemar, 12.8 km away |
| Orakeikorako, 19.26 km away |
Maleme, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,135 |
| Co-rupture Rate | 2.7067057E-4 |
Paeroa, 1.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,467 |
| Co-rupture Rate | 6.234684E-4 |
Puketerata North, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,932 |
| Co-rupture Rate | 1.7132291E-4 |
Braemar, 12.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10,199 |
| Co-rupture Rate | 4.1408348E-4 |
Orakeikorako, 19.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4,215 |
| Co-rupture Rate | 2.2246294E-4 |
