Leonard Mound Details

PropertyValue
Rupture Count81
Ruptures Above Sect Min Mag80
Ruptures w/ Nonzero Rates7
Magnitude Range[6.86, 7.85]
Length Range[16, 167] km
Total Rate1.7183085E-4 /yr
Multi-Fault Rate1.7183085E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults17

Table Of Contents

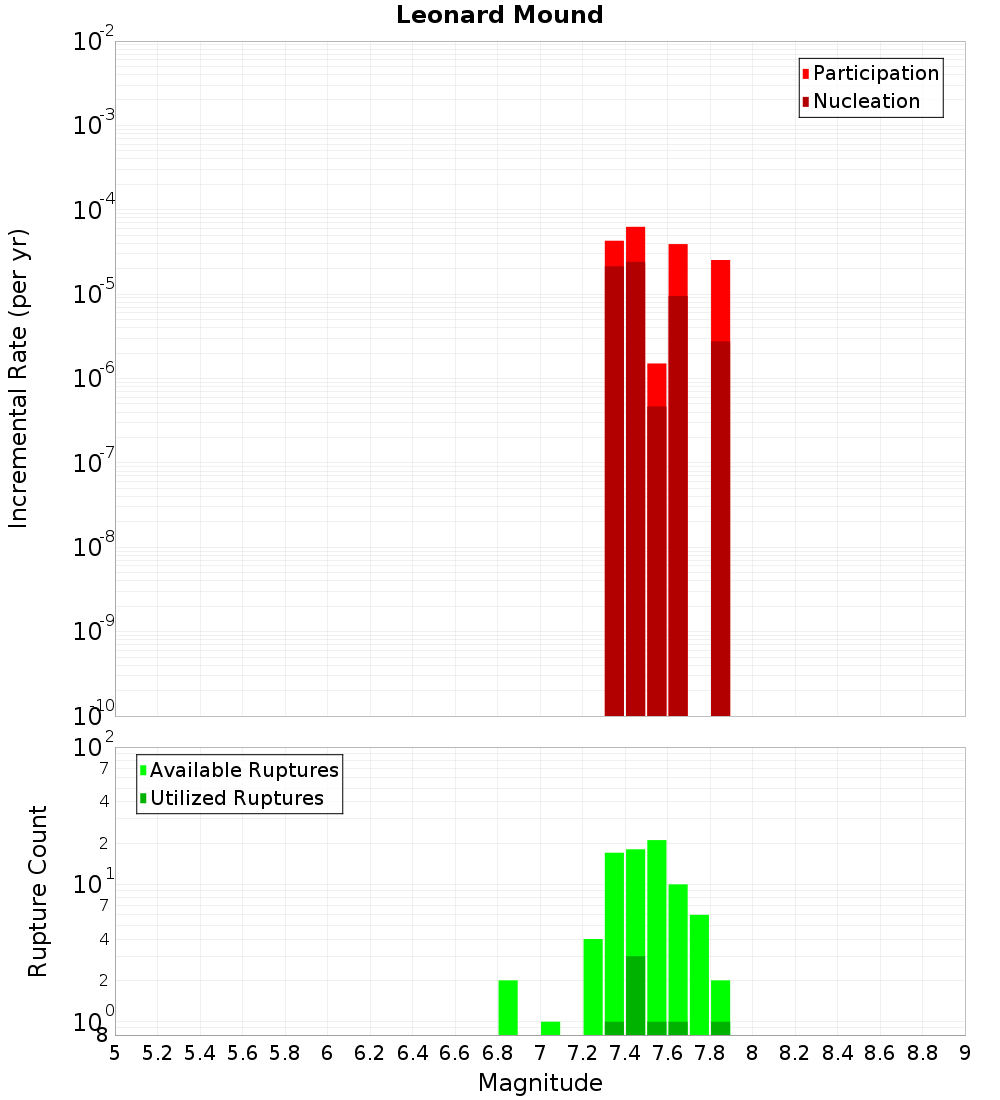

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

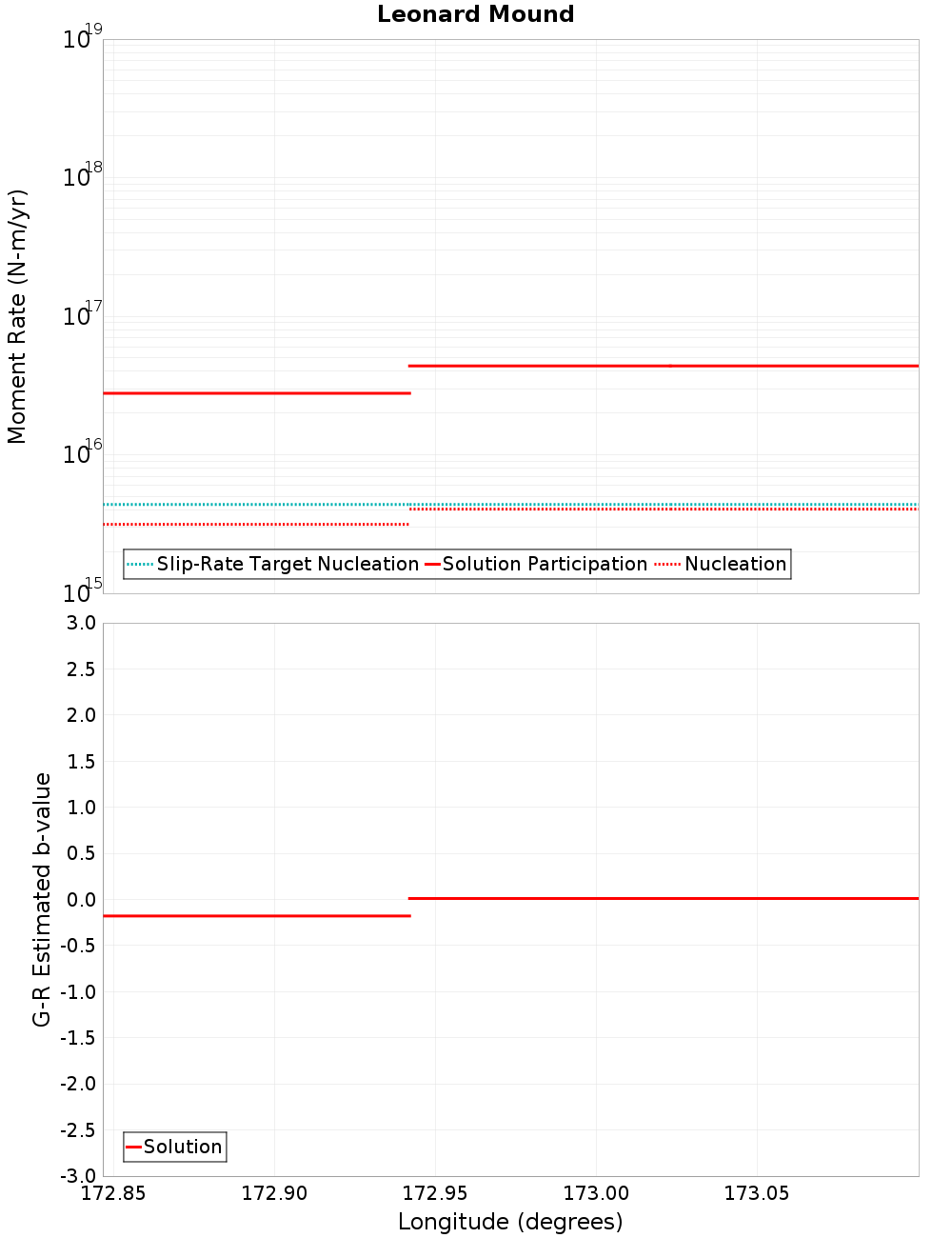

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Kaiwara North, 0.3 km awayDoctors, 12.65 km away
Lowry, 1.98 km awayHurunui Peak, 15.08 km away
The Humps, 4.72 km awayOmihiLwrHuru, 16.28 km away
Mt Culverden, 4.83 km awayHanmer, 17.29 km away
Leader: South, 6.16 km awayLeader: Central, 17.53 km away
Alexander, 8.1 km awayHawkswood, 17.63 km away
Hundalee, 9.87 km awayHope: Conway, 18.07 km away
Balmoral, 11.2 km awayHope: Hamner SE, 18.73 km away
Kaiwara South, 12.53 km away

Kaiwara North, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate2.90659E-5

Lowry, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate3.9173687E-5

The Humps, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate5.237868E-5

Mt Culverden, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate5.1212573E-5

Leader: South, 6.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Hundalee, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate2.5375319E-5

Balmoral, 11.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 12.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate4.0682004E-5

Hurunui Peak, 15.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

OmihiLwrHuru, 16.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate2.5375319E-5

Hanmer, 17.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: Central, 17.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Hawkswood, 17.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate2.5375319E-5

Hope: Conway, 18.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Hope: Hamner SE, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
