Ruatoria South 3 Details
| Property | Value |
|---|---|
| Rupture Count | 79 |
| Ruptures Above Sect Min Mag | 77 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.95, 7.69] |
| Length Range | [21, 131] km |
| Total Rate | 4.5907305E-4 /yr |
| Multi-Fault Rate | 4.5907305E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

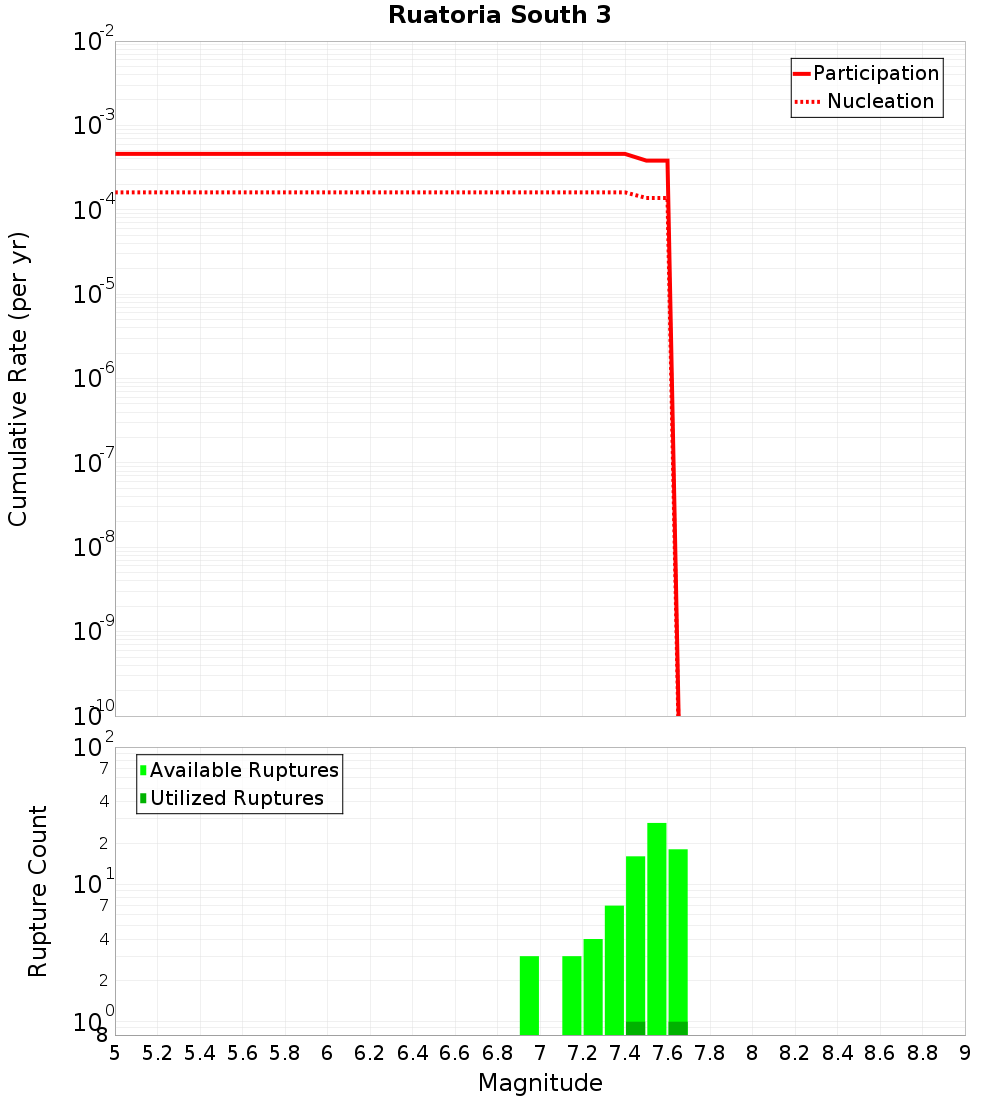

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

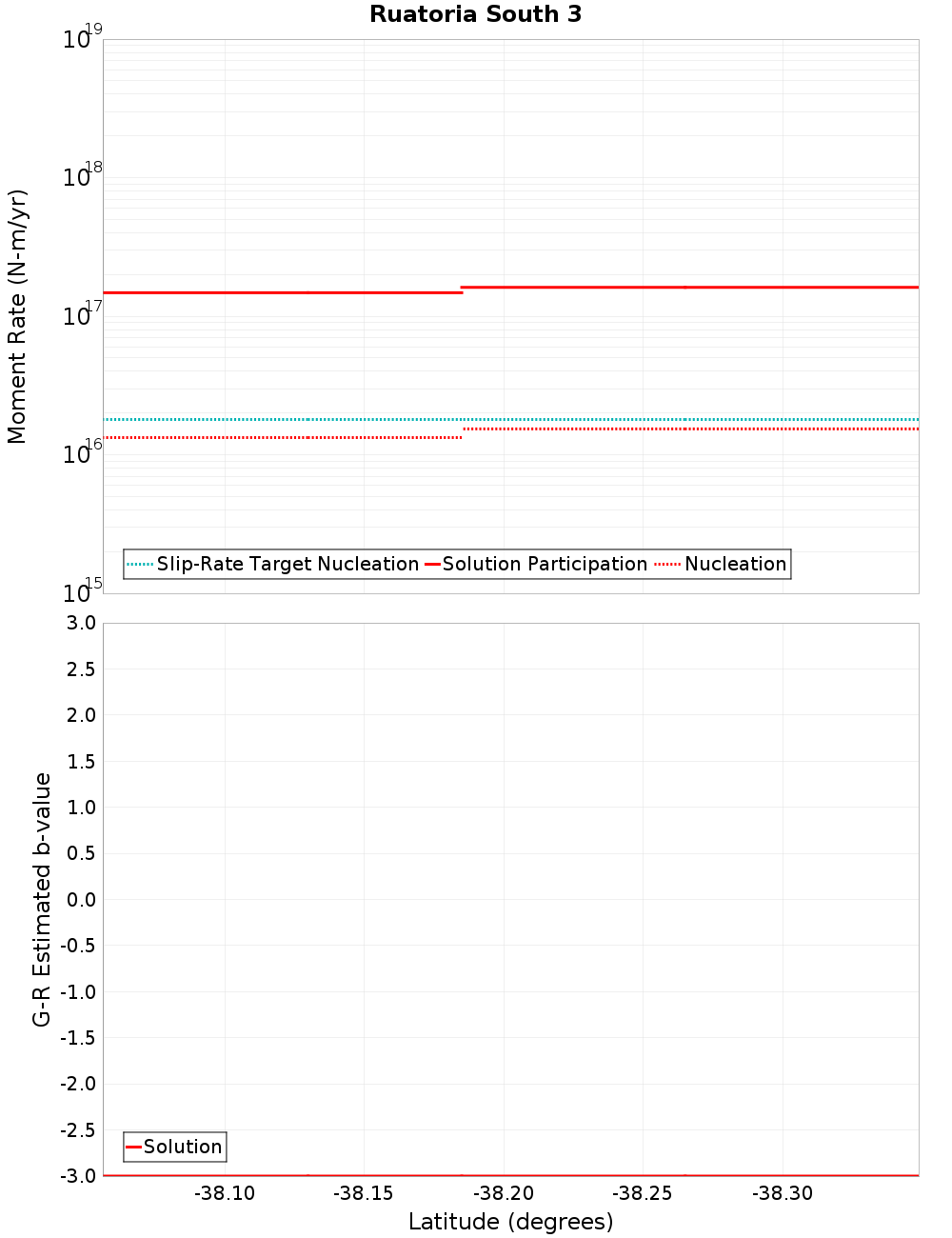

Moment-Rates and b-Values

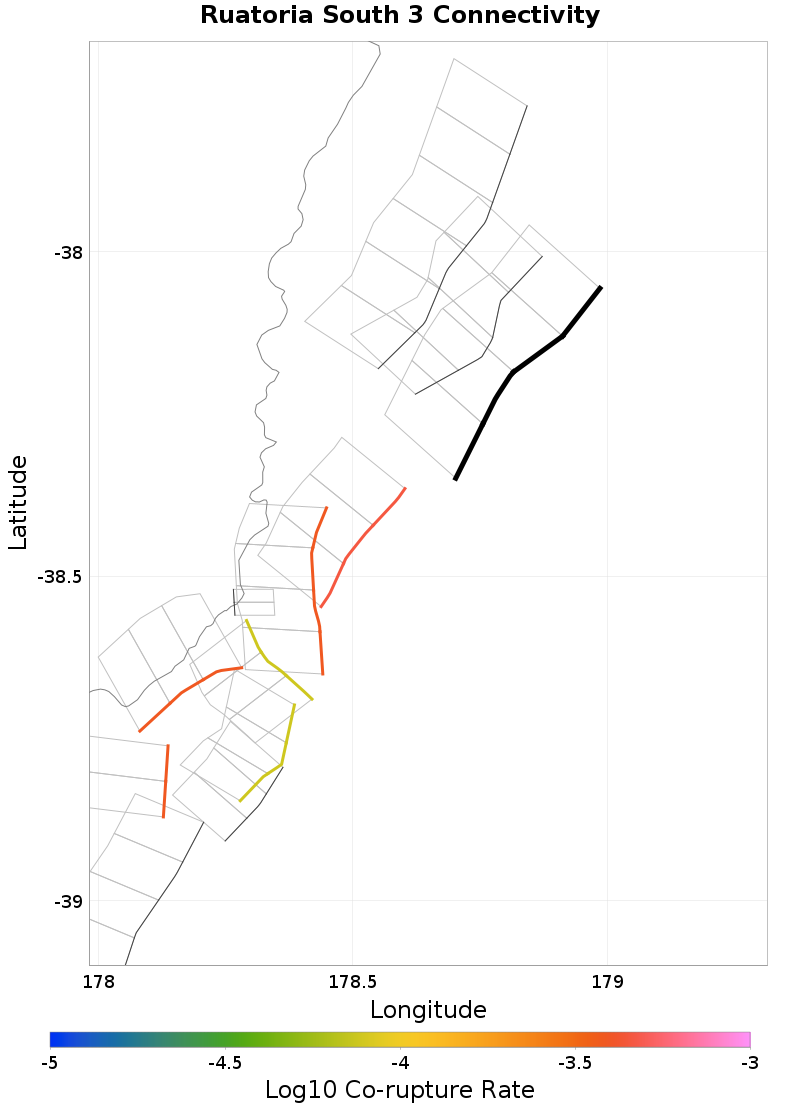

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria South 4, 3.77 km away |
| Ariel Bank 2, 7.91 km away |
| Houtunui, 11.22 km away |
Ruatoria South 4, 3.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Ariel Bank 2, 7.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 69 |
| Co-rupture Rate | 4.5907305E-4 |
Houtunui, 11.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
