Waihi South Details
| Property | Value |
|---|---|
| Rupture Count | 33 |
| Ruptures Above Sect Min Mag | 25 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.52, 7.19] |
| Length Range | [12, 61] km |
| Total Rate | 1.330906E-4 /yr |
| Multi-Fault Rate | 1.330906E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

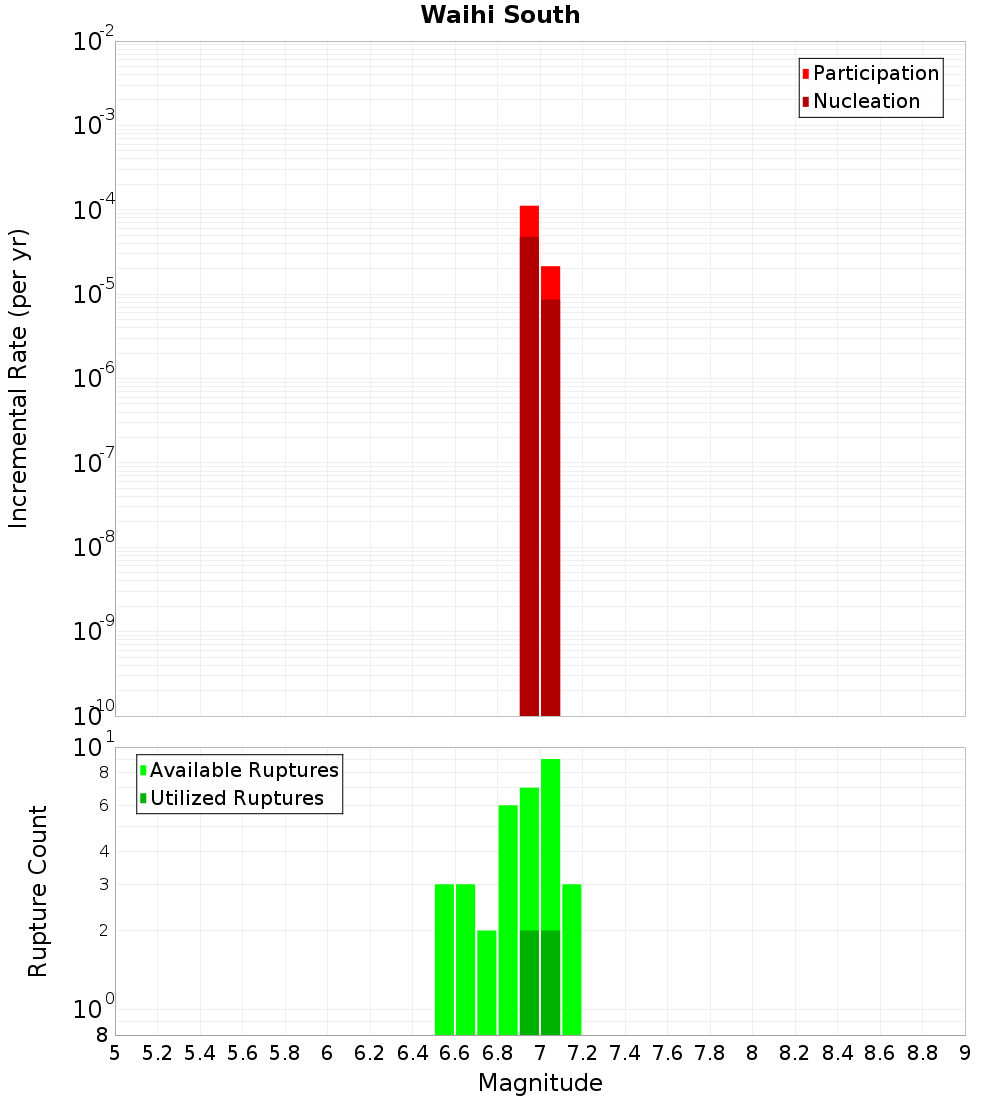

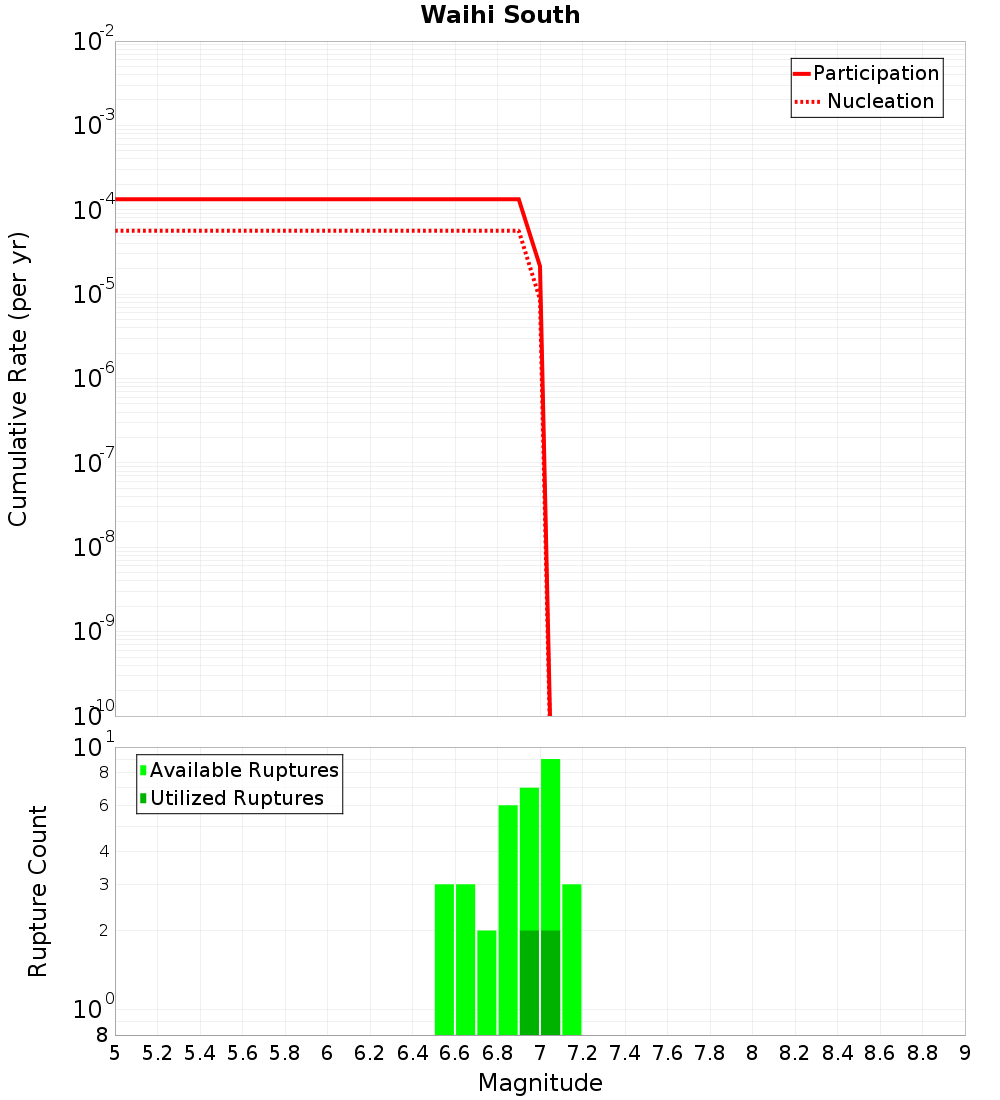

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

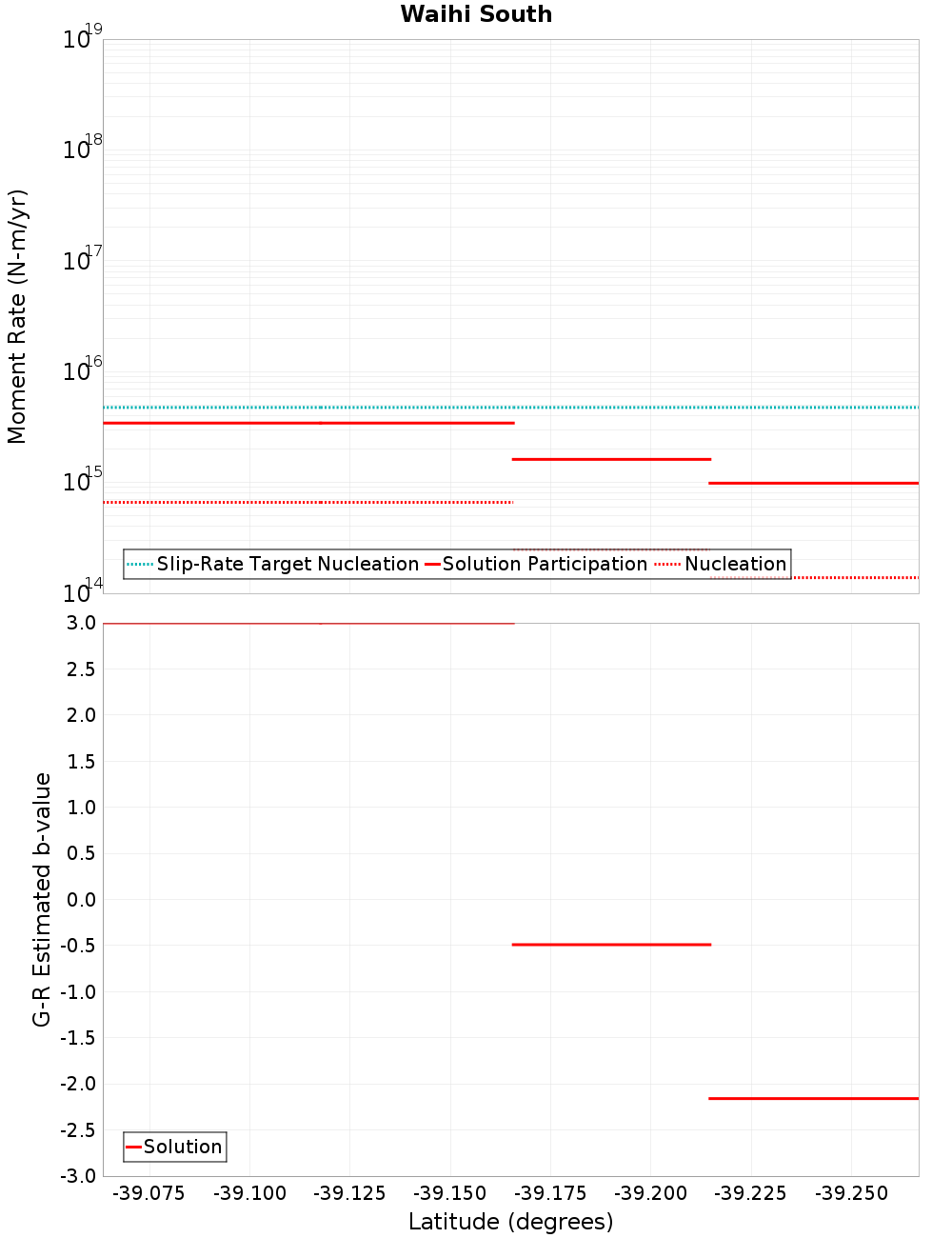

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Poutu, 0.3 km away |
| Waihi West, 0.45 km away |
Poutu, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 1.330906E-4 |
Waihi West, 0.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21 |
| Co-rupture Rate | 1.330906E-4 |
