Waiohau: South Details

Property	Value
Rupture Count	17,159
Ruptures Above Sect Min Mag	17,156
Ruptures w/ Nonzero Rates	8
Magnitude Range	[7.00, 8.66]
Length Range	[20, 985] km
Total Rate	1.9833584E-4 /yr
Multi-Fault Rate	1.9833584E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	115

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

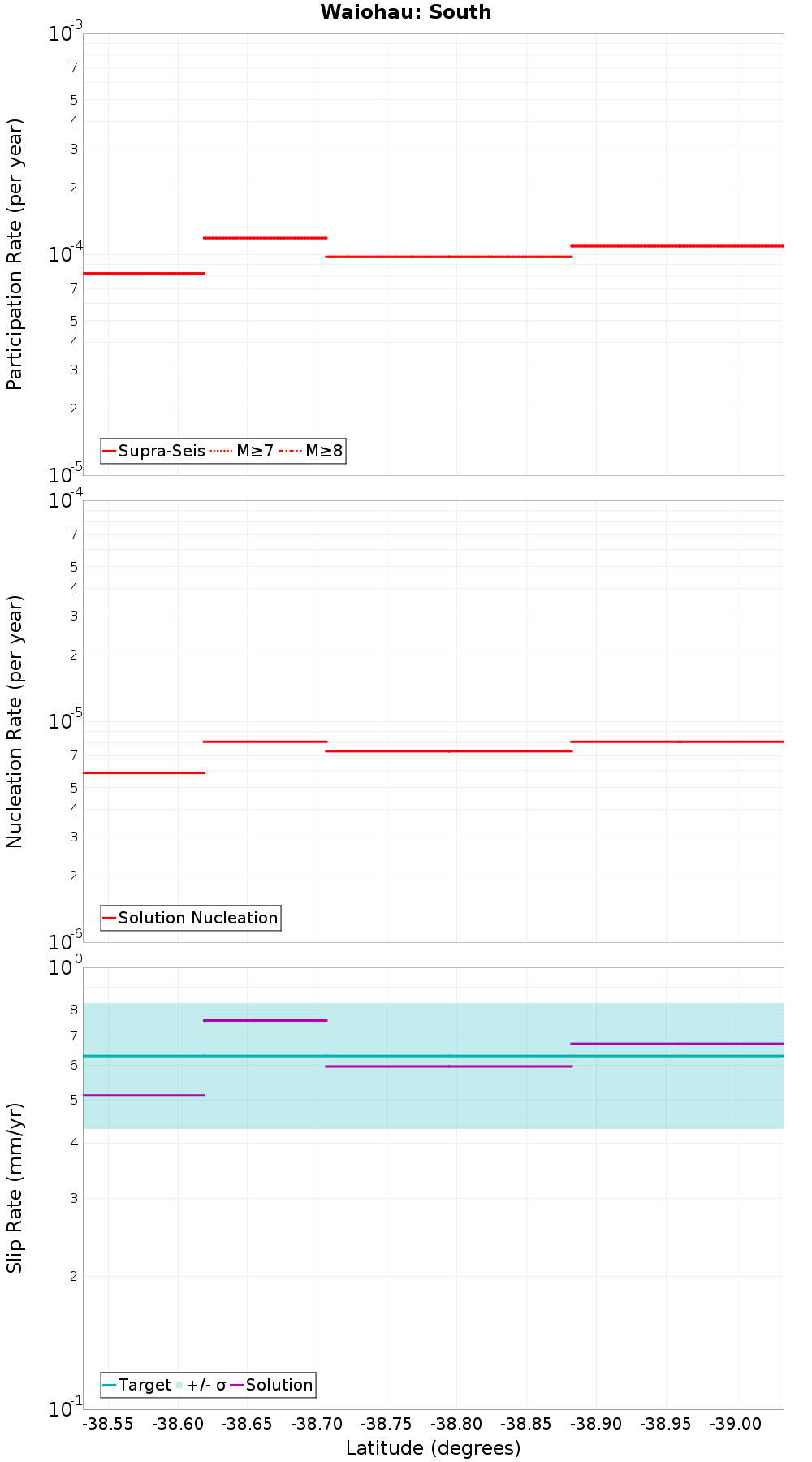

Along-Strike Values

Moment-Rates and b-Values

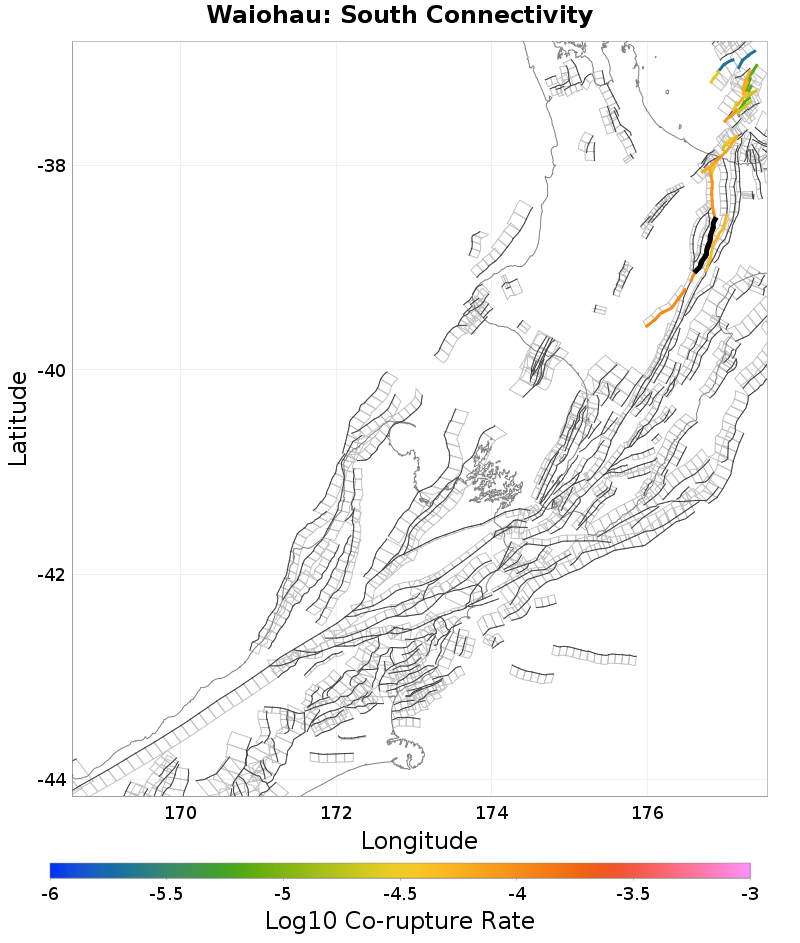

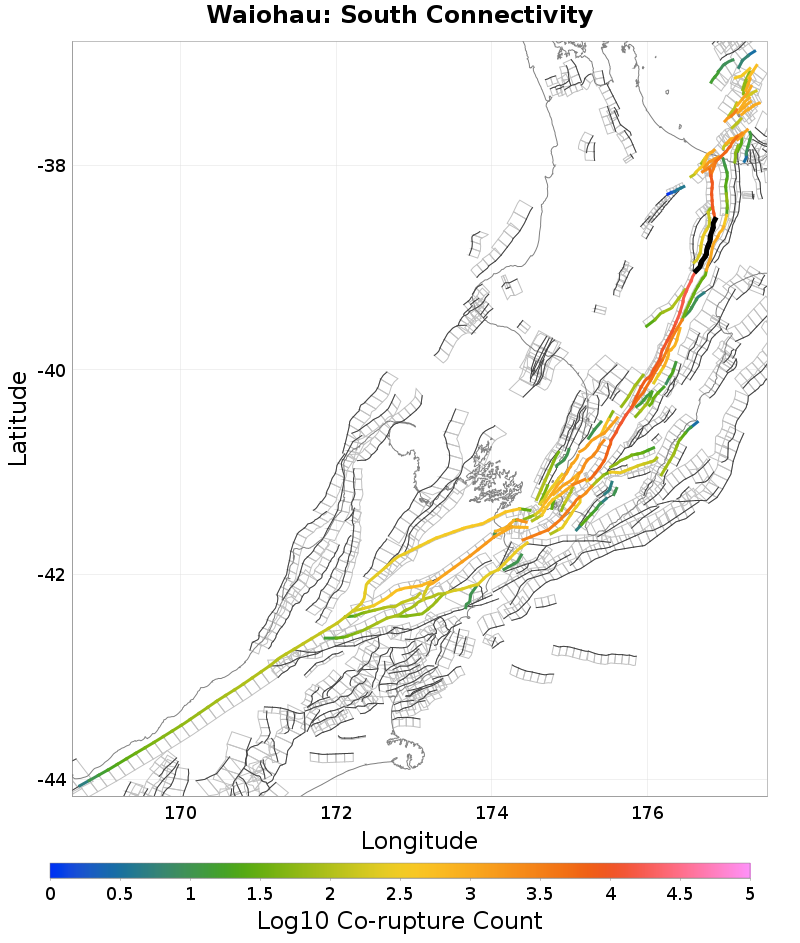

Connectivity

Nearby Sections

Fault Section
Ruahine: North, 0 km away
Waiohau: North, 0 km away
Wheao: South, 0.22 km away
Te Whaiti South, 0.76 km away
Whakatane: South, 4.67 km away
Waimana: South, 8.02 km away
Mohaka: North, 8.1 km away
Te Whaiti North, 10.36 km away
Wheao: North, 10.36 km away
Whakatane: North, 10.71 km away
Waiotahi: South, 12.21 km away
Waimana: North, 18.89 km away
Patoka - Rangiora, 19.65 km away

Ruahine: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	15,815
Co-rupture Rate	1.08865046E-4

Waiohau: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	9,197
Co-rupture Rate	8.947079E-5

Wheao: South, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Whaiti South, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	266
Co-rupture Rate	0.0

Whakatane: South, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,179
Co-rupture Rate	4.7997233E-5

Waimana: South, 8.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: North, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	0.0

Te Whaiti North, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	66
Co-rupture Rate	0.0

Wheao: North, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakatane: North, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	66
Co-rupture Rate	0.0

Waiotahi: South, 12.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana: North, 18.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	52
Co-rupture Rate	0.0

Patoka - Rangiora, 19.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMFN0c2Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	0.0
