Grandview Details

PropertyValue
Rupture Count1,531
Ruptures Above Sect Min Mag1,530
Ruptures w/ Nonzero Rates20
Magnitude Range[7.00, 8.57]
Length Range[20, 724] km
Total Rate1.2434865E-5 /yr
Multi-Fault Rate1.2434865E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults59

Table Of Contents

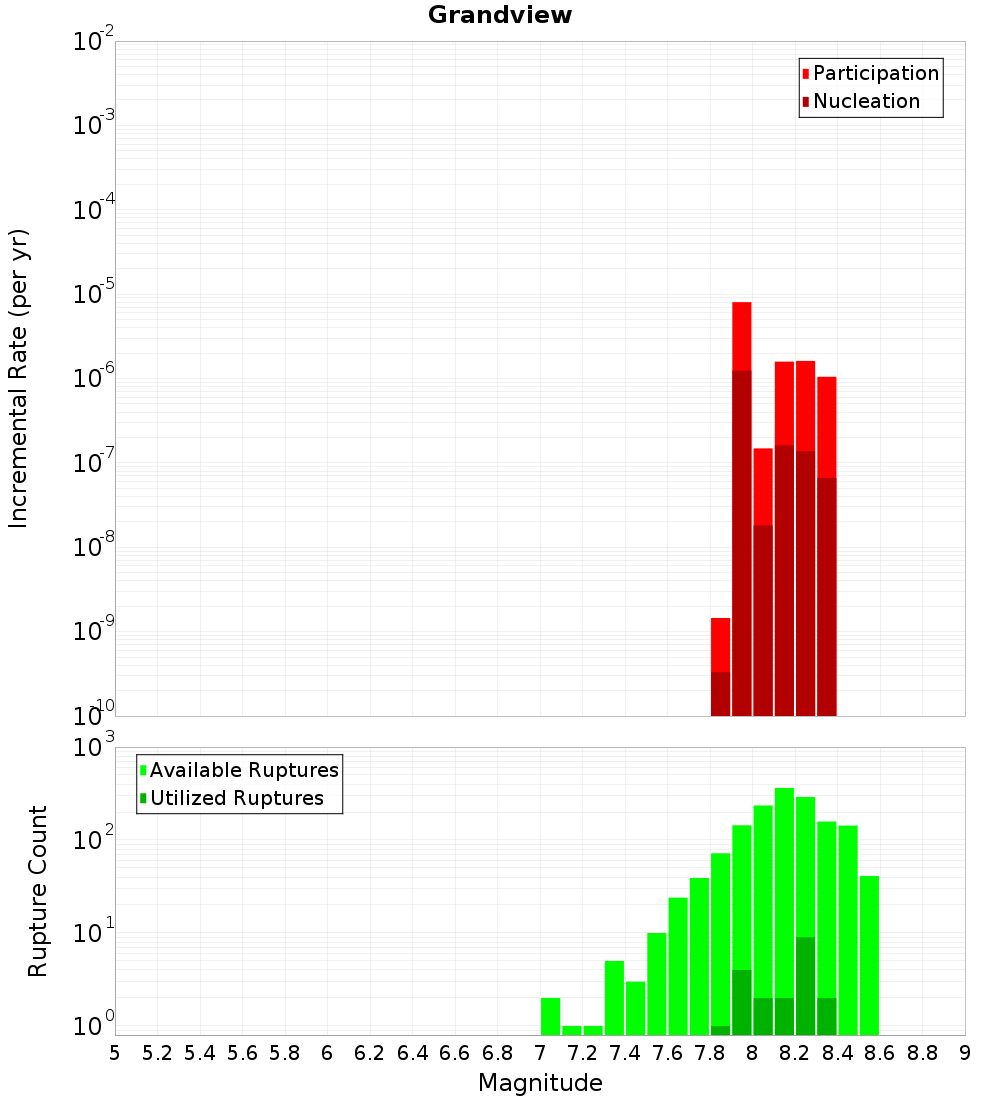

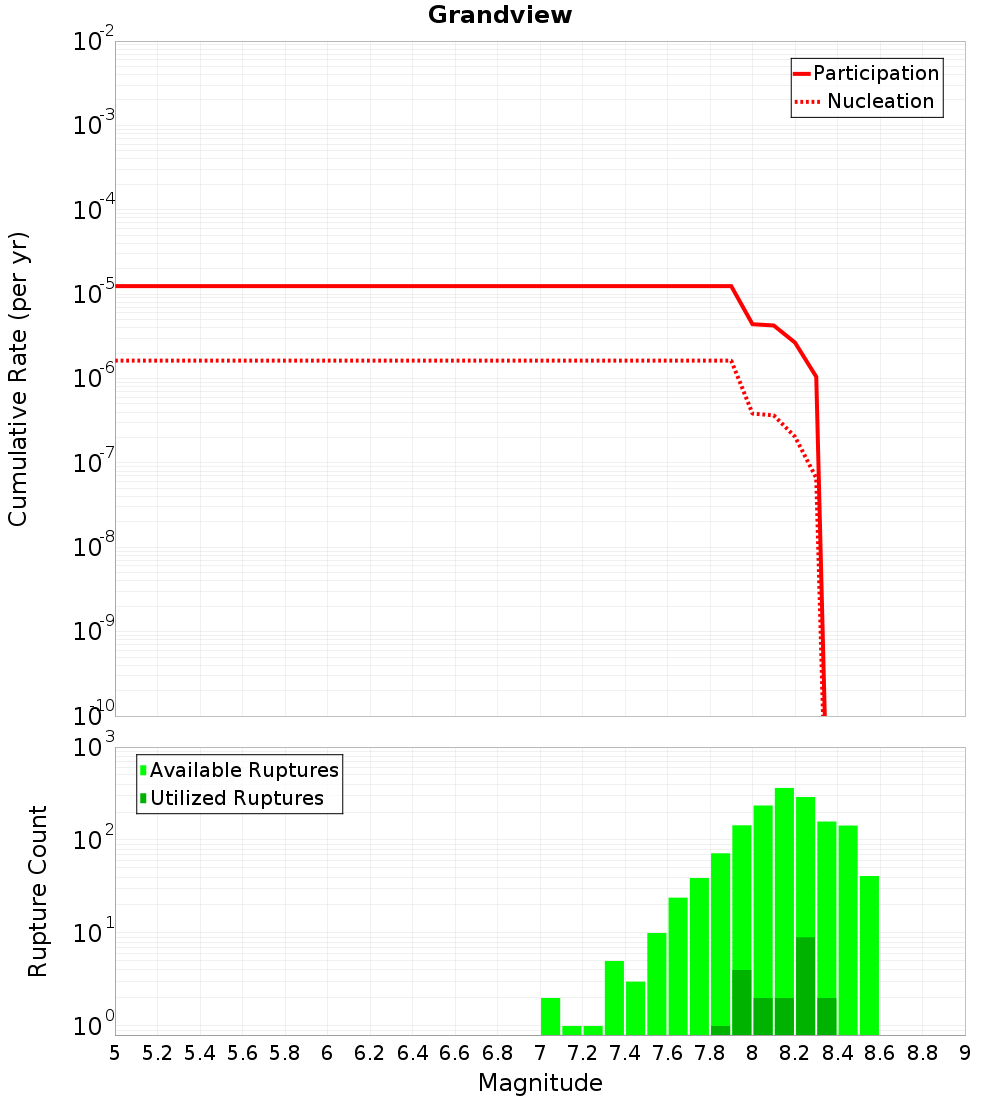

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

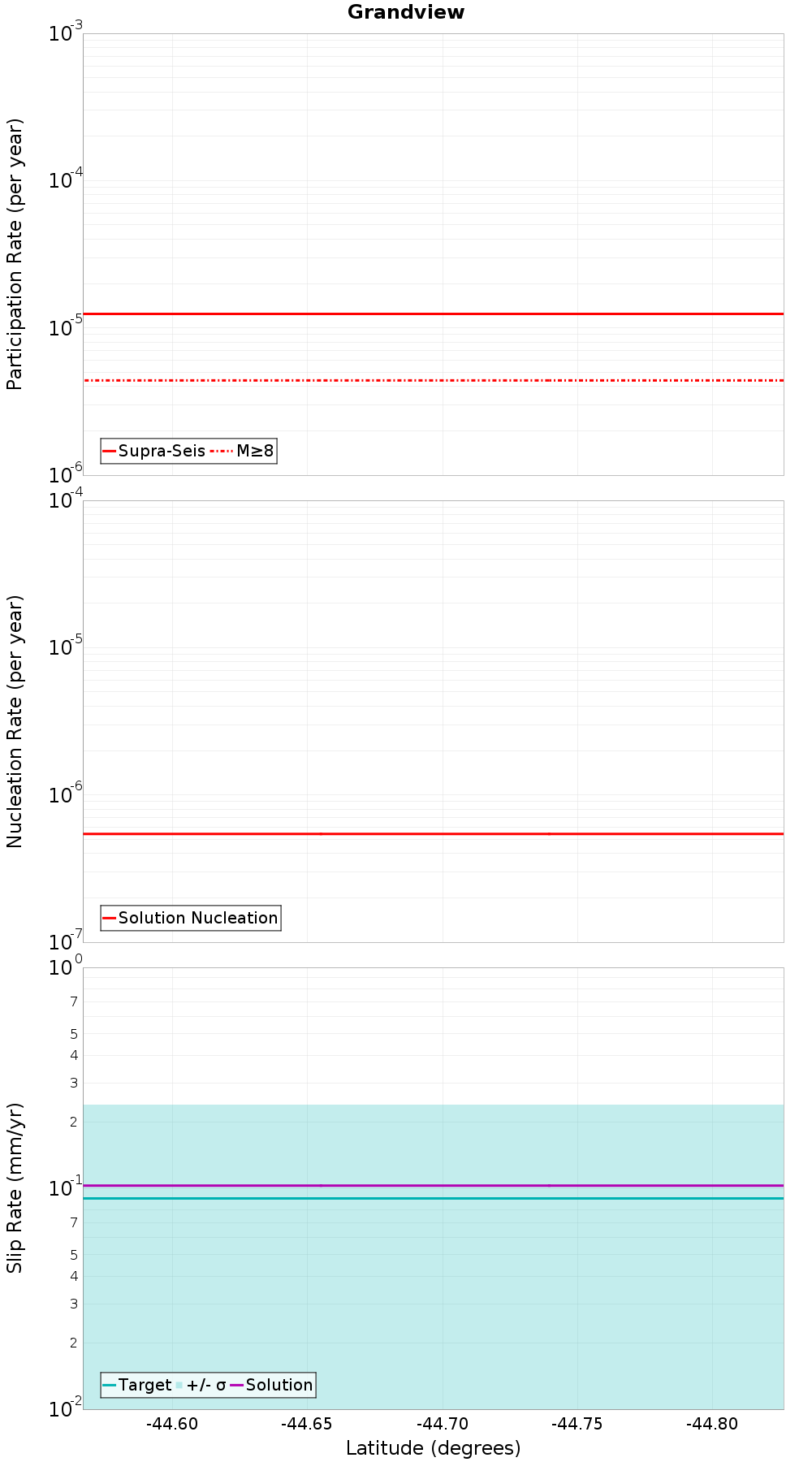

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

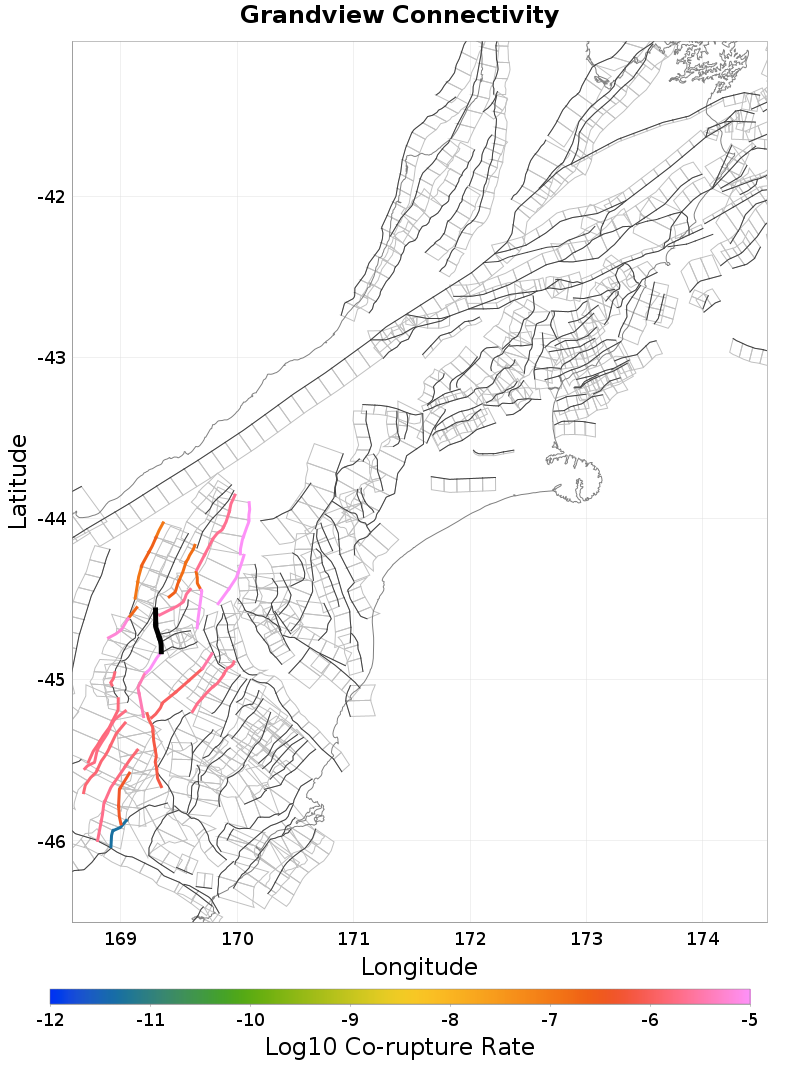

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Cluden, 0.17 km awayHunter Valley, 1.98 km away
Dunstan, 0.21 km awayDingle, 9.64 km away
Goodger, 0.22 km awayMotatapu, 11.63 km away
Lindis River, 0.23 km awayPaddys Ridge, 12.33 km away
Timaru Creek, 0.3 km awayWanaka, 12.54 km away
Cardrona - Hawea, 0.97 km awayNW Cardrona North, 14.11 km away
Dromedary, 1.36 km awayRaggedy - Blackstone, 14.9 km away
Pisa, 1.55 km awayOstler South, 14.98 km away

Cluden, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunstan, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate3.027023E-6

Goodger, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lindis River, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate0.0

Timaru Creek, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count554
Co-rupture Rate2.7165245E-6

Cardrona - Hawea, 0.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Dromedary, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count948
Co-rupture Rate9.900128E-6

Pisa, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count1,216
Co-rupture Rate9.653686E-6

Hunter Valley, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dingle, 9.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count361
Co-rupture Rate2.589775E-7

Motatapu, 11.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate6.20382E-6

Paddys Ridge, 12.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Wanaka, 12.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count344
Co-rupture Rate2.5285425E-7

NW Cardrona North, 14.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.9723495E-6

Ostler South, 14.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count527
Co-rupture Rate9.718341E-6
