Mt Sutton Details

PropertyValue
Rupture Count68
Ruptures Above Sect Min Mag67
Ruptures w/ Nonzero Rates6
Magnitude Range[7.08, 7.95]
Length Range[22, 199] km
Total Rate8.942873E-6 /yr
Multi-Fault Rate8.942873E-6 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults12

Table Of Contents

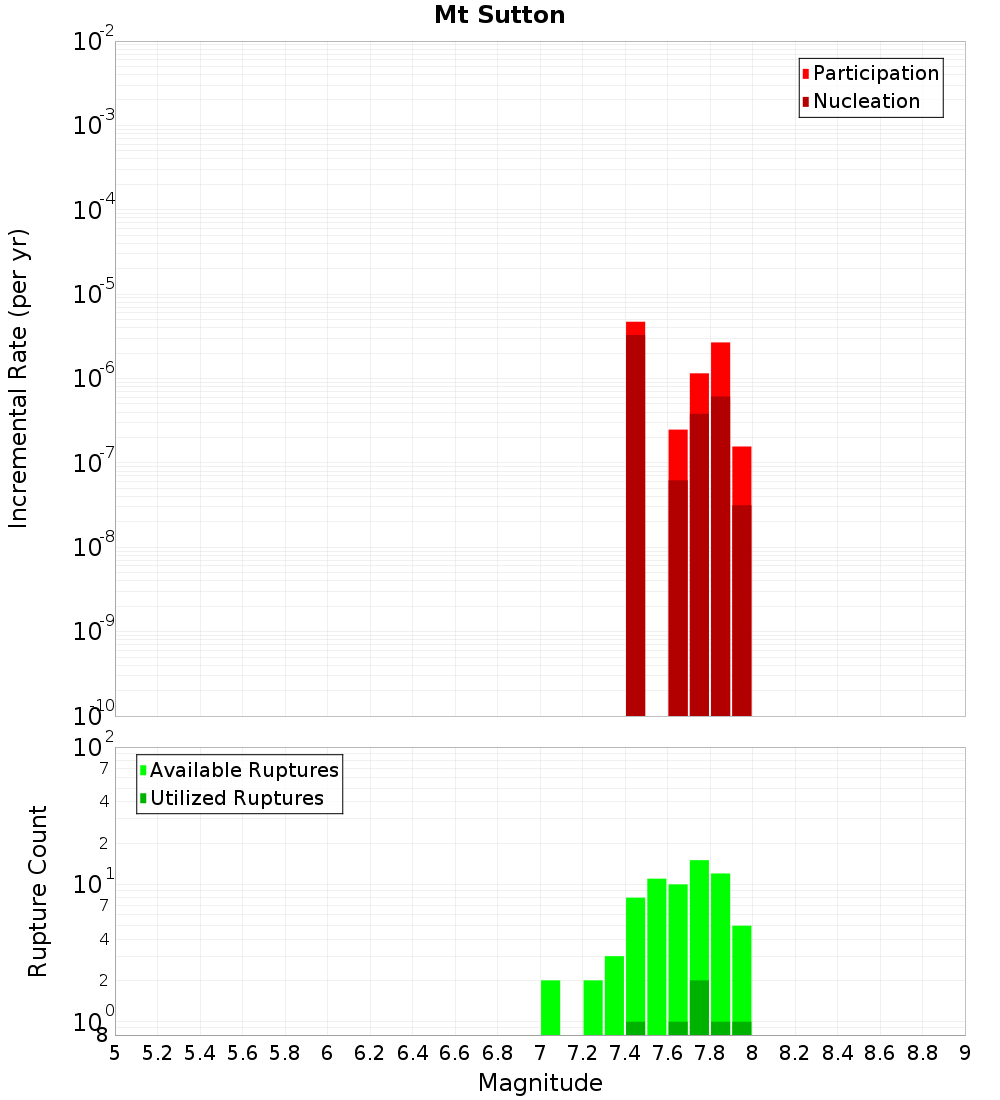

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

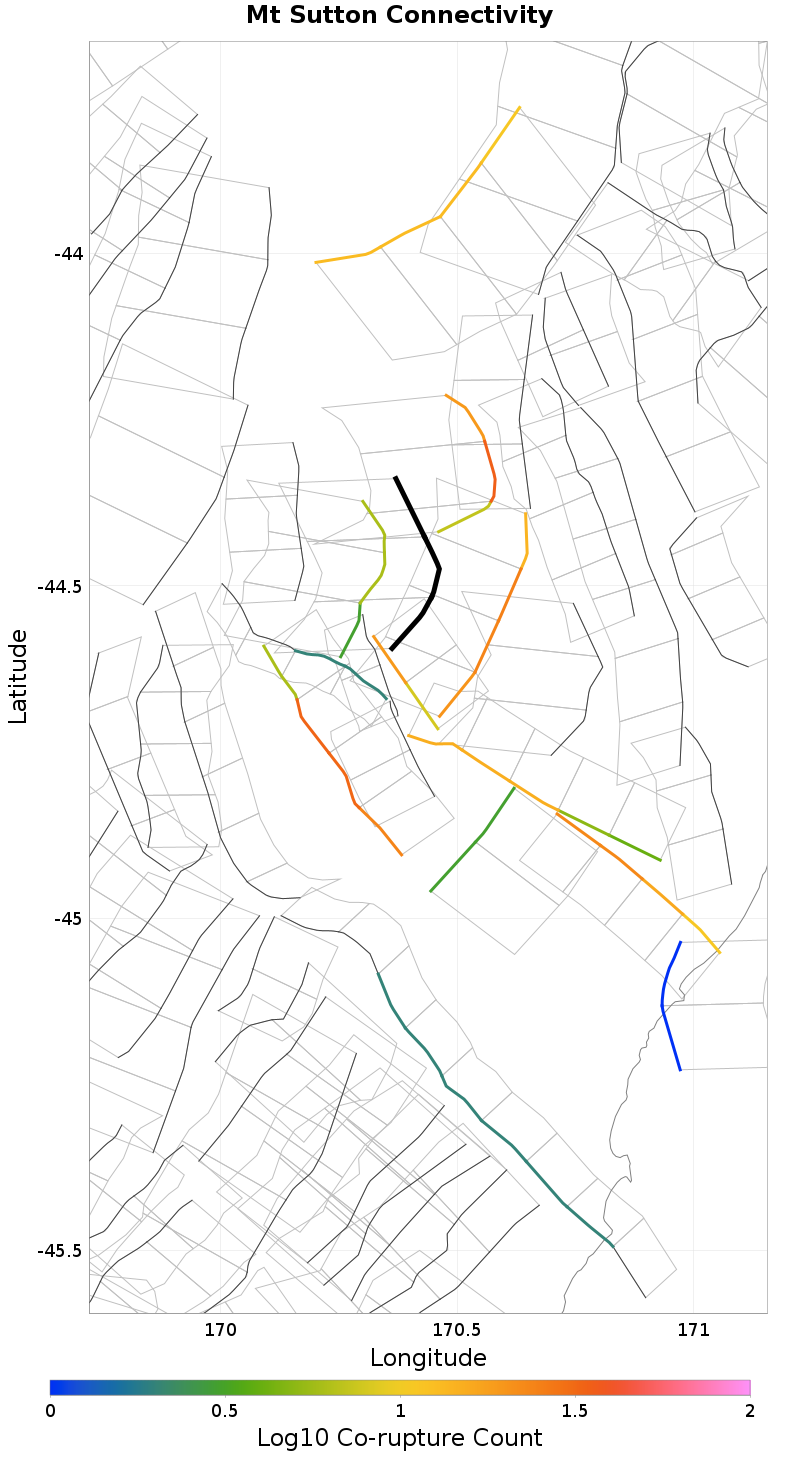

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Middle Range, 0.14 km away
Waitangi, 0.22 km away
Dryburgh, 0.25 km away
Grampian, 1.54 km away
Gibson, 2.87 km away
Fern Gully, 3.2 km away
Falstone, 7.01 km away
Omarama Saddle, 7.05 km away
Awahokomo, 8.83 km away
Kirkliston, 9.08 km away
Hawkdun, 9.36 km away
Stonewall, 13.56 km away
Dalgety, 16.02 km away
Campbell Hills, 16.31 km away
Ostler South, 19.97 km away

Middle Range, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count33
Co-rupture Rate2.4815716E-7

Waitangi, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate8.694717E-6

Grampian, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate2.6778227E-6

Gibson, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate0.0

Fern Gully, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Falstone, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 9.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate3.986215E-6

Hawkdun, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate1.308392E-6

Dalgety, 16.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Hills, 16.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 19.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzAuMHp2Vm0z
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
