Calypso 2 Details

PropertyValue
Rupture Count1,346
Ruptures Above Sect Min Mag1,345
Ruptures w/ Nonzero Rates10
Magnitude Range[6.71, 8.34]
Length Range[14, 468] km
Total Rate2.1810213E-4 /yr
Multi-Fault Rate2.1810213E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults39

Table Of Contents

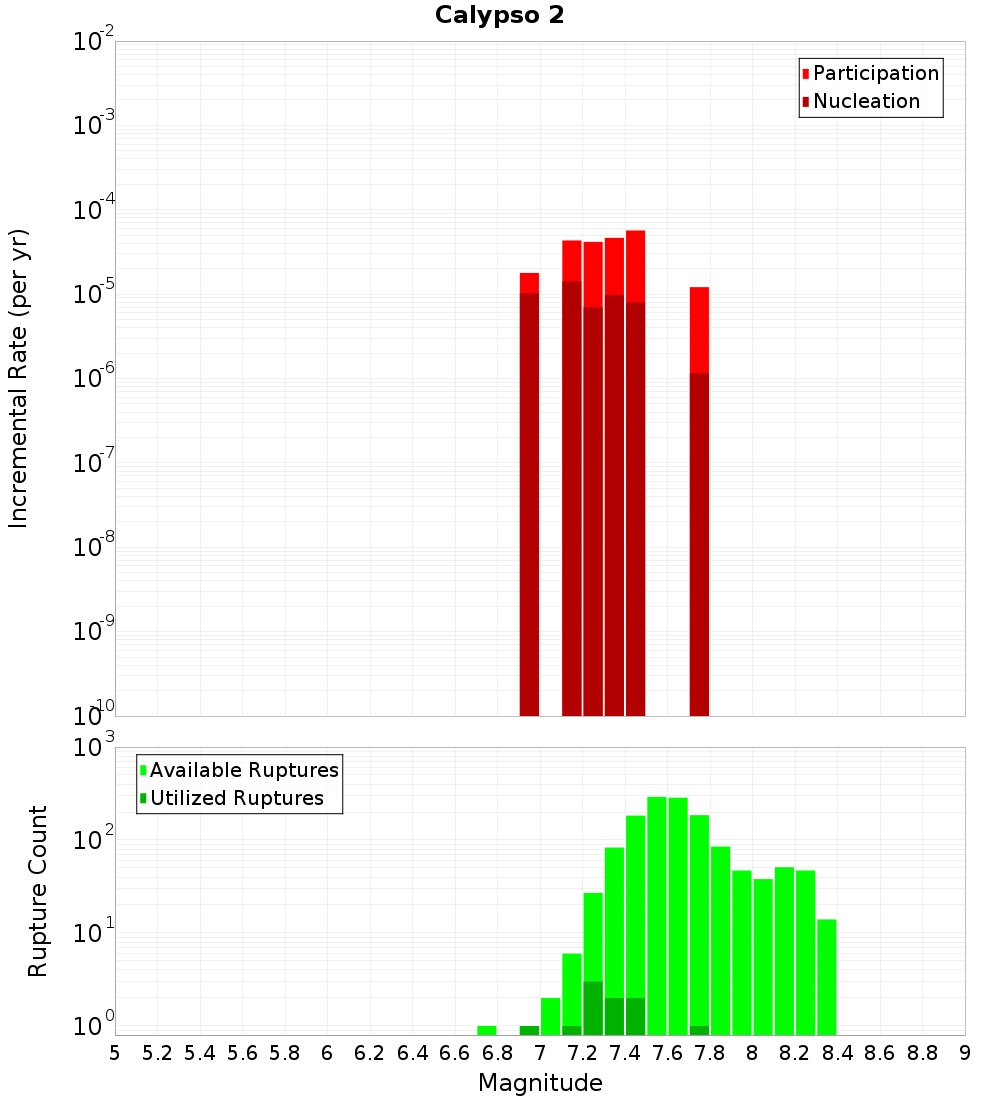

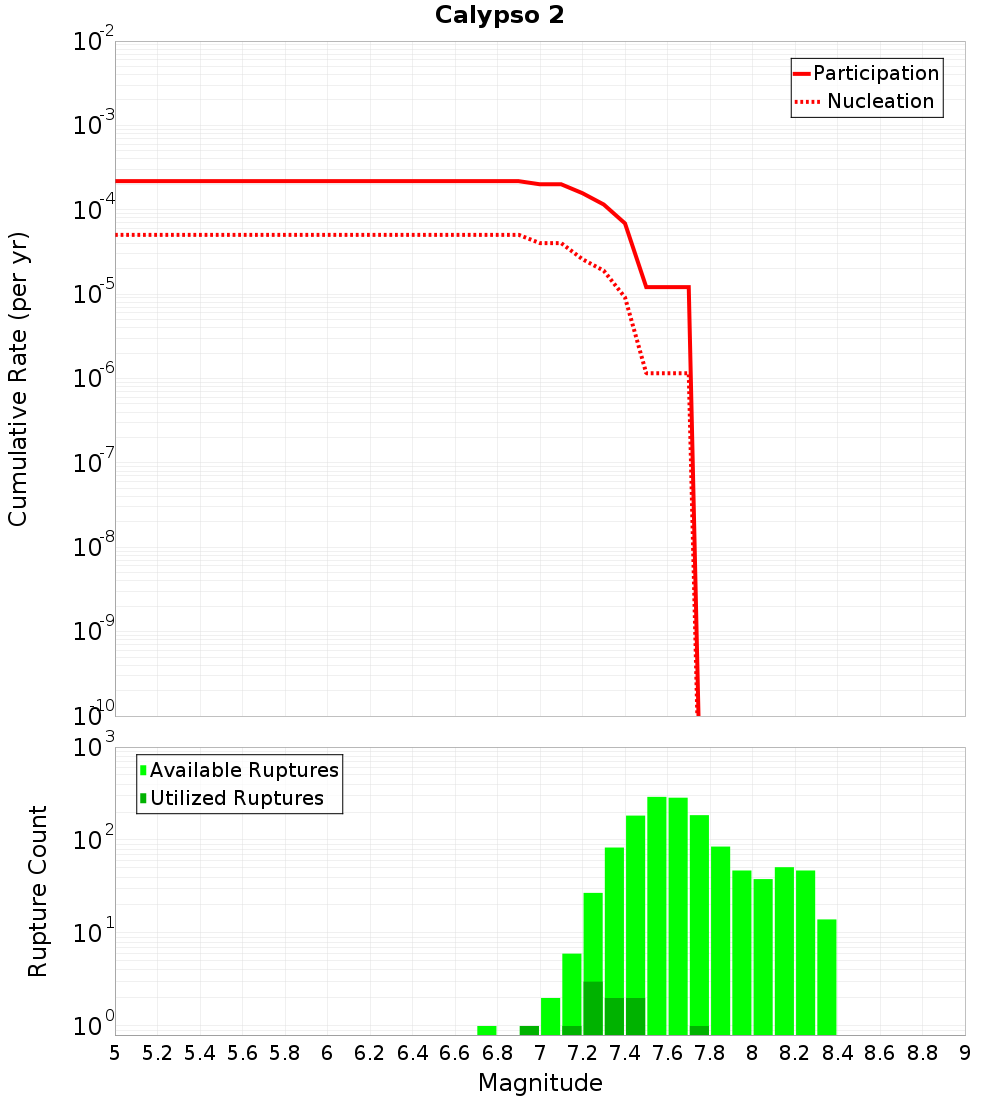

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

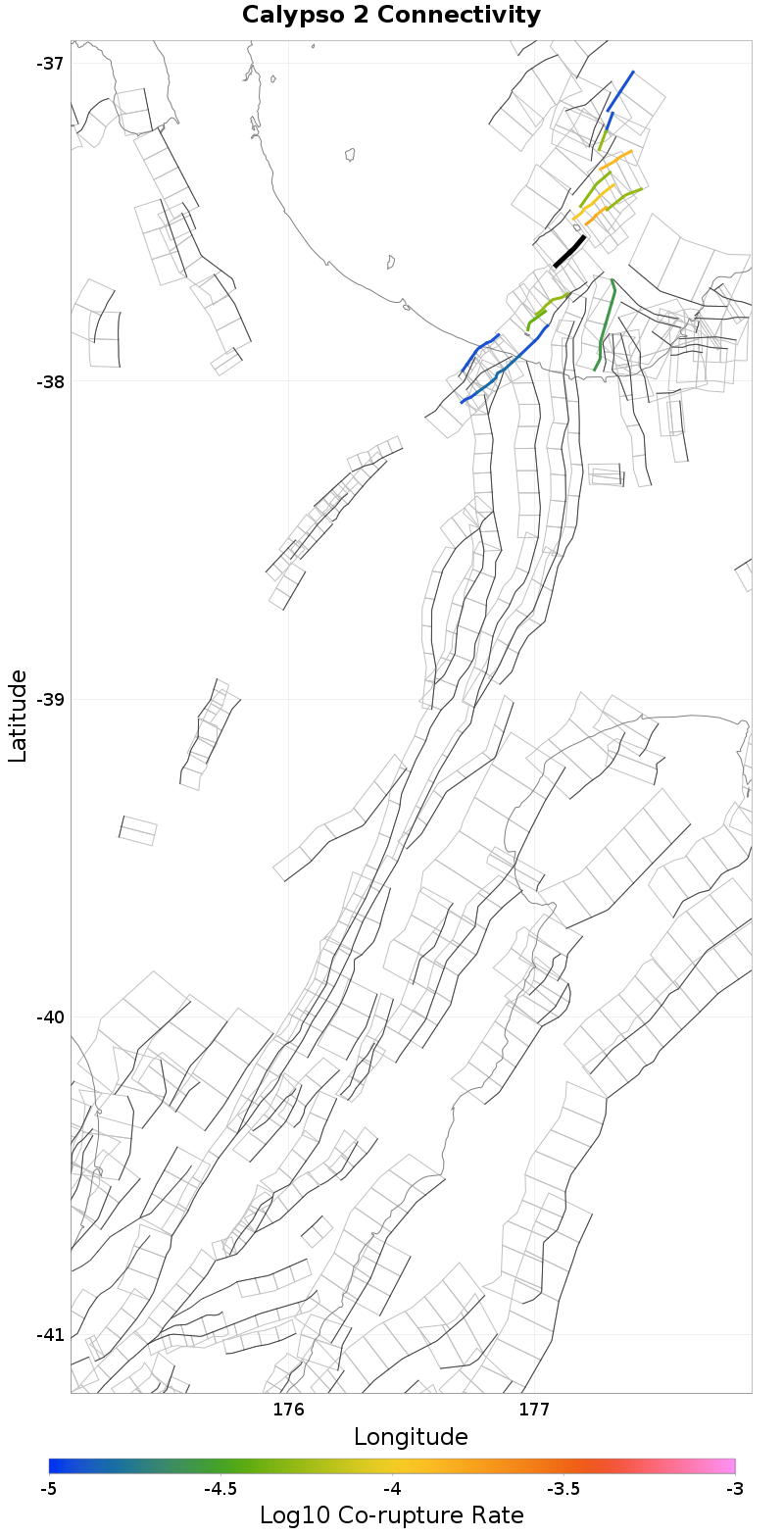

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.13 km awayVolkner 4, 12.2 km away
Te Arawa 1, 1.55 km awayTuatoru 2, 12.9 km away
Tuatoru 1, 3.87 km awayRangitaiki 1, 14.74 km away
Te Arawa 2, 6.98 km awayWaimanawa - Waikaremoana, 14.96 km away
Rangitaiki 2, 8.03 km awayOpotiki 3, 16.55 km away
Ohiwa 1, 8.32 km awayOhae 1, 17.8 km away
White Island 1, 8.93 km awayTe Arawa 3, 18.58 km away
Volkner 3, 9.11 km awayHariki, 18.86 km away
White Island 2, 10.05 km away

Whakaari 4, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?true
Co-rupture Count741
Co-rupture Rate1.07611035E-4

Tuatoru 1, 3.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?true
Co-rupture Count448
Co-rupture Rate1.6510671E-4

Te Arawa 2, 6.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate4.9790702E-5

Rangitaiki 2, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?true
Co-rupture Count996
Co-rupture Rate5.212508E-5

Ohiwa 1, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?false
Co-rupture Count1,161
Co-rupture Rate1.2097828E-5

Volkner 3, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?false
Co-rupture Count487
Co-rupture Rate0.0

Volkner 4, 12.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Tuatoru 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?false
Co-rupture Count382
Co-rupture Rate5.2025185E-5

Rangitaiki 1, 14.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate4.0027255E-5

Waimanawa - Waikaremoana, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 16.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?false
Co-rupture Count73
Co-rupture Rate2.6256414E-5

Ohae 1, 17.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate1.3544057E-4

Hariki, 18.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
