Ngatoro South 5 Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 6 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.98, 7.43] |
| Length Range | [22, 60] km |
| Total Rate | 1.13920534E-4 /yr |
| Multi-Fault Rate | 9.707642E-5 /yr (85.21%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

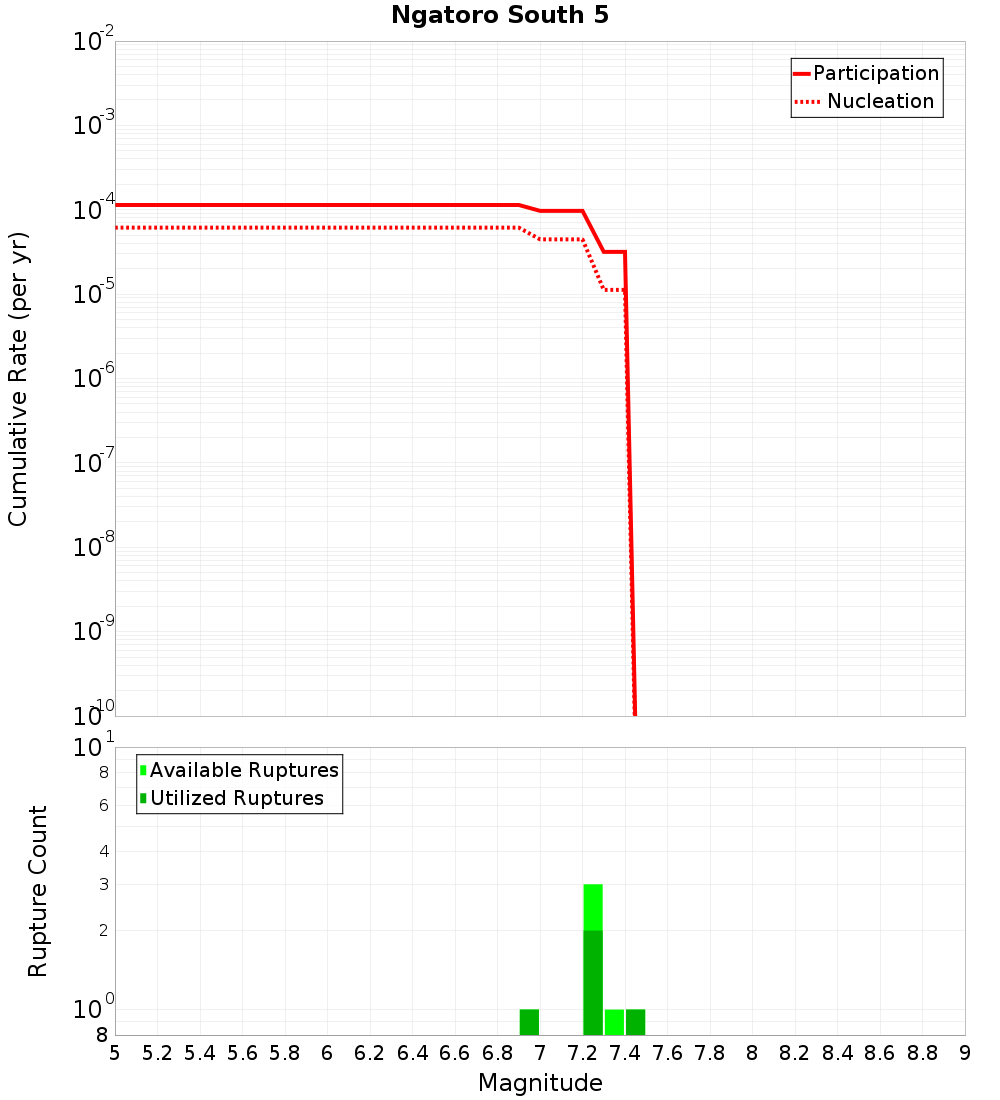

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

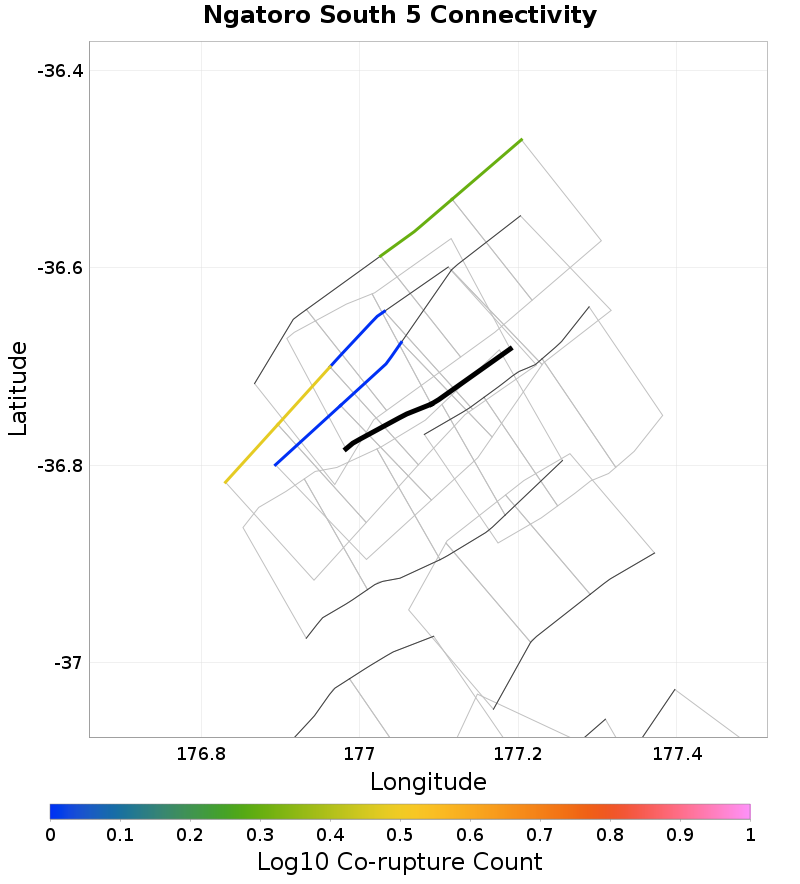

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ohena 2, 0.1 km away |
| Ohena 3, 0.23 km away |
| Ohena 4, 0.28 km away |
| Ngatoro South 2, 2.59 km away |
| Tauranga Trough West 2, 10.47 km away |
Ohena 2, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 6.0101673E-5 |
Ohena 3, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 3.1727057E-5 |
Ohena 4, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 3.697475E-5 |
Ngatoro South 2, 2.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough West 2, 10.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjU3NzMuMG5ORmVR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
