Edgecumbe Coastal Details

Property	Value
Rupture Count	23,729
Ruptures Above Sect Min Mag	23,702
Ruptures w/ Nonzero Rates	43
Magnitude Range	[6.23, 8.31]
Length Range	[7, 594] km
Total Rate	6.749737E-4 /yr
Multi-Fault Rate	6.749737E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	94

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

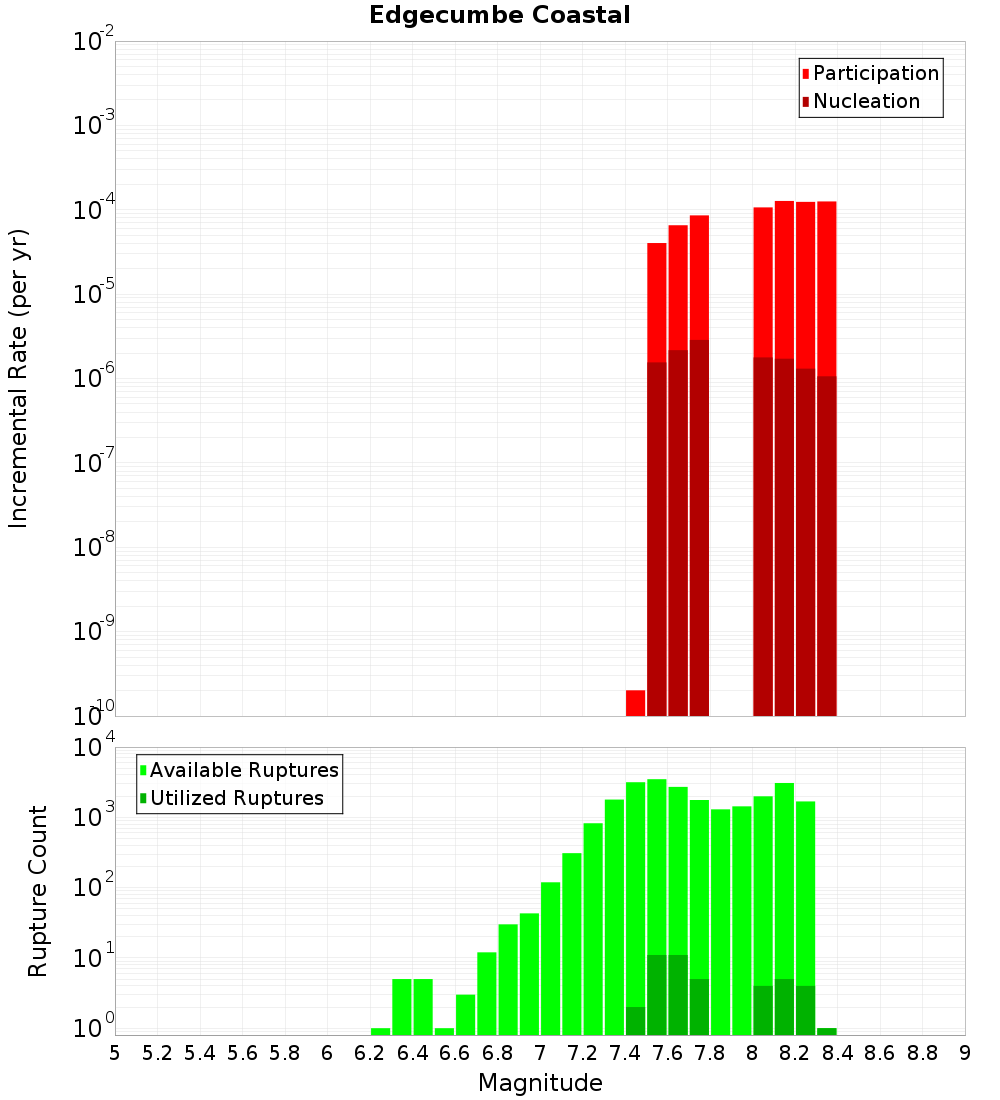

Magnitude-Frequency Distribution

Incremental	Cumulative

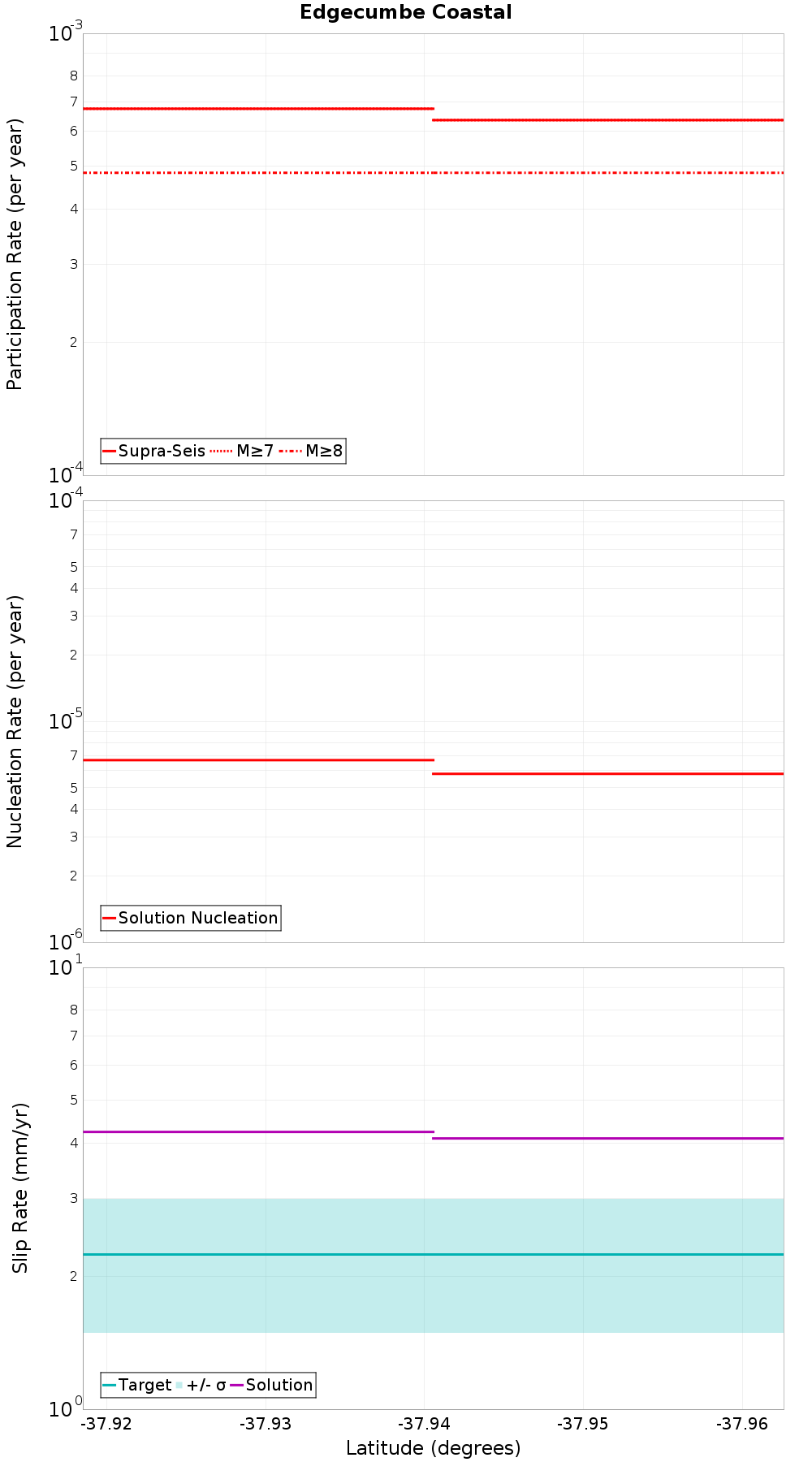

Along-Strike Values

Moment-Rates and b-Values

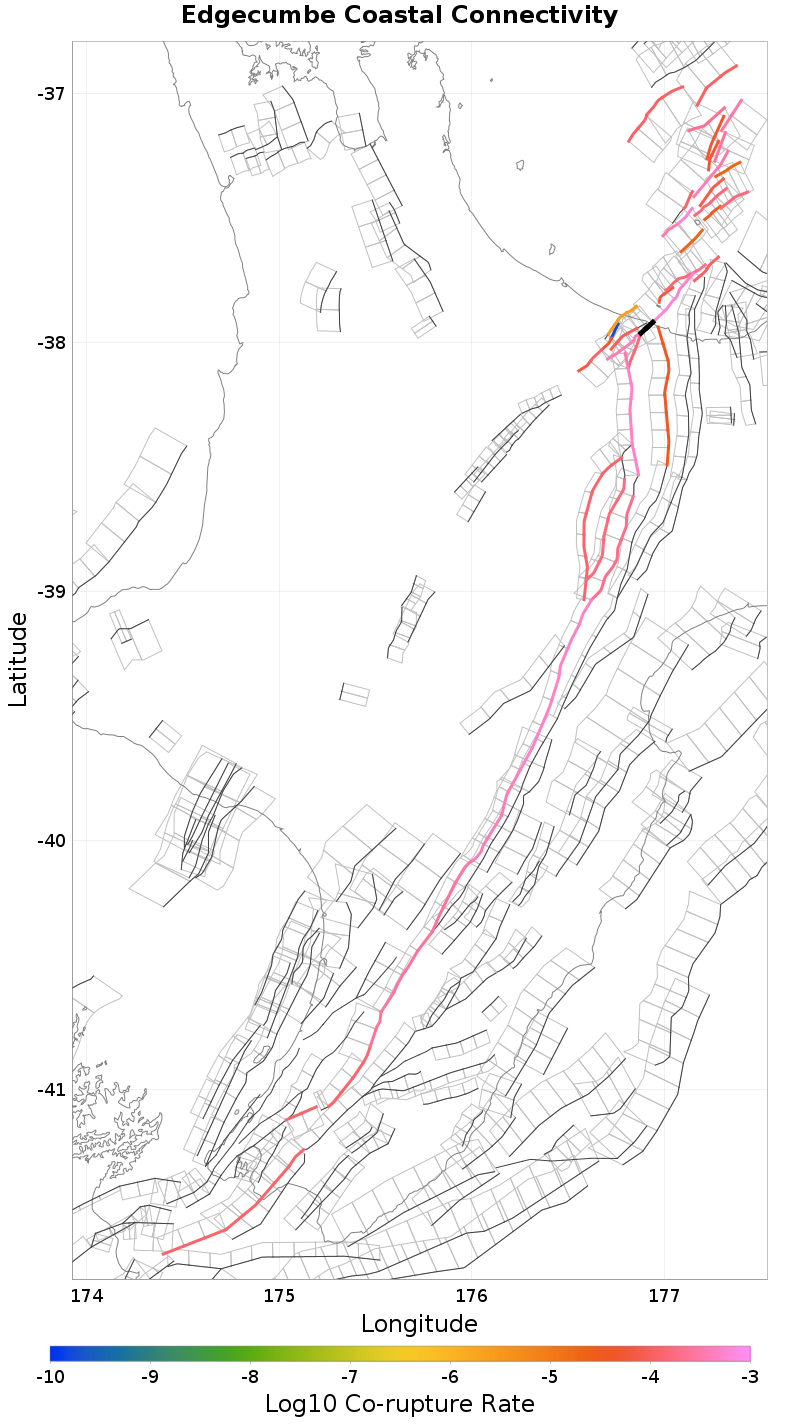

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.37 km away
Matata, 2.64 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.8 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimanawa - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	true
Co-rupture Count	20,939
Co-rupture Rate	6.0278014E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	true
Co-rupture Count	12,095
Co-rupture Rate	3.950382E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	true
Co-rupture Count	7,612
Co-rupture Rate	1.5125066E-4

Otakiri, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	true
Co-rupture Count	2,282
Co-rupture Rate	8.9722205E-5

Matata, 2.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	true
Co-rupture Count	1,157
Co-rupture Rate	2.366832E-6

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	true
Co-rupture Count	255
Co-rupture Rate	3.8962648E-5

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	true
Co-rupture Count	6,907
Co-rupture Rate	1.2387404E-4

Rangitaiki 1, 8.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	true
Co-rupture Count	1,282
Co-rupture Rate	7.219354E-5

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	false
Co-rupture Count	14,810
Co-rupture Rate	4.8333133E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	false
Co-rupture Count	5,496
Co-rupture Rate	1.5463843E-4

Waimana: North, 15.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	0.0

Waiotahi: North, 18.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMFdZVG5D
Connected?	true
Directly Connected?	false
Co-rupture Count	98
Co-rupture Rate	0.0
