Ruahine: North Details

Property	Value
Rupture Count	52,846
Ruptures Above Sect Min Mag	52,843
Ruptures w/ Nonzero Rates	10
Magnitude Range	[6.97, 8.60]
Length Range	[24, 1,113] km
Total Rate	6.6898396E-4 /yr
Multi-Fault Rate	2.0627413E-4 /yr (30.83%)
Directly-Connected Faults	8
All Co-Rupturing Faults	129

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

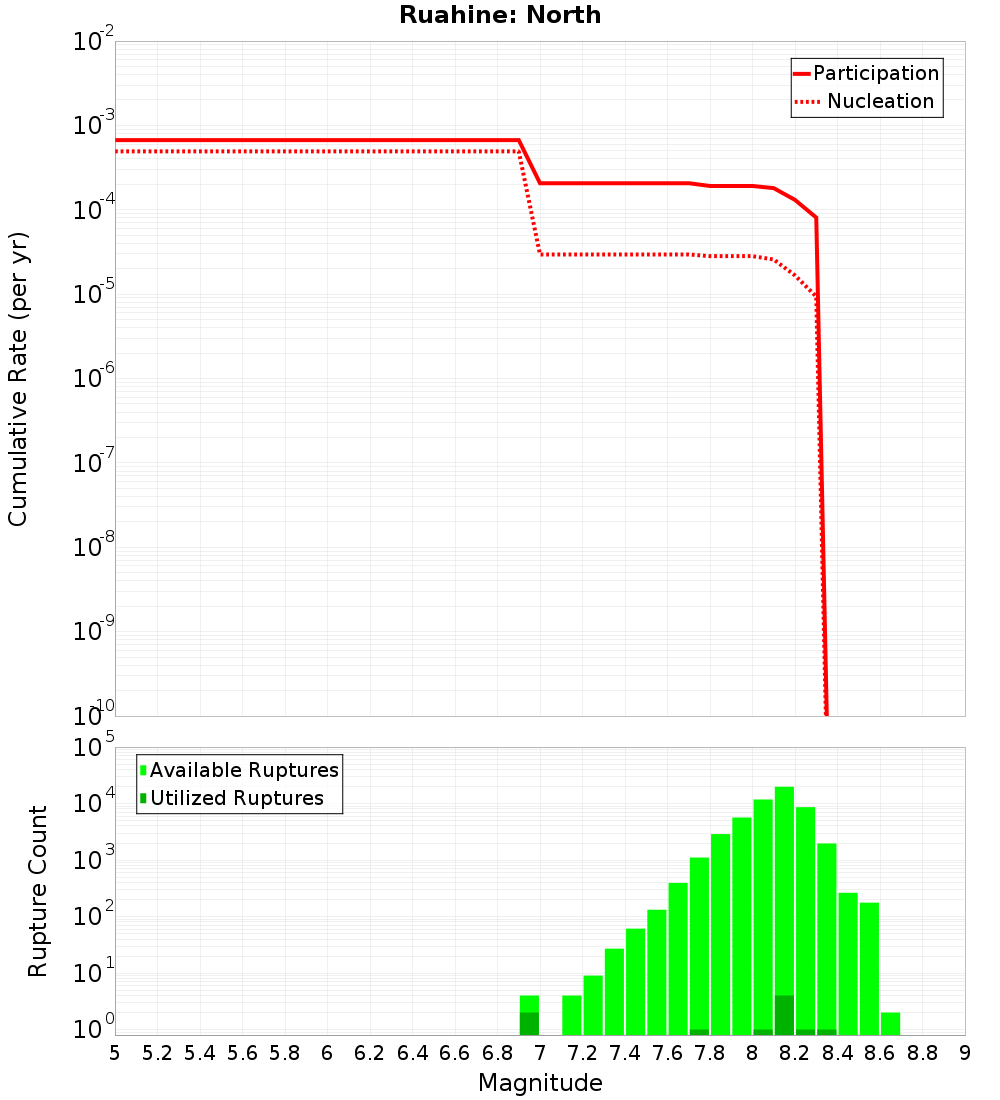

Magnitude-Frequency Distribution

Incremental	Cumulative

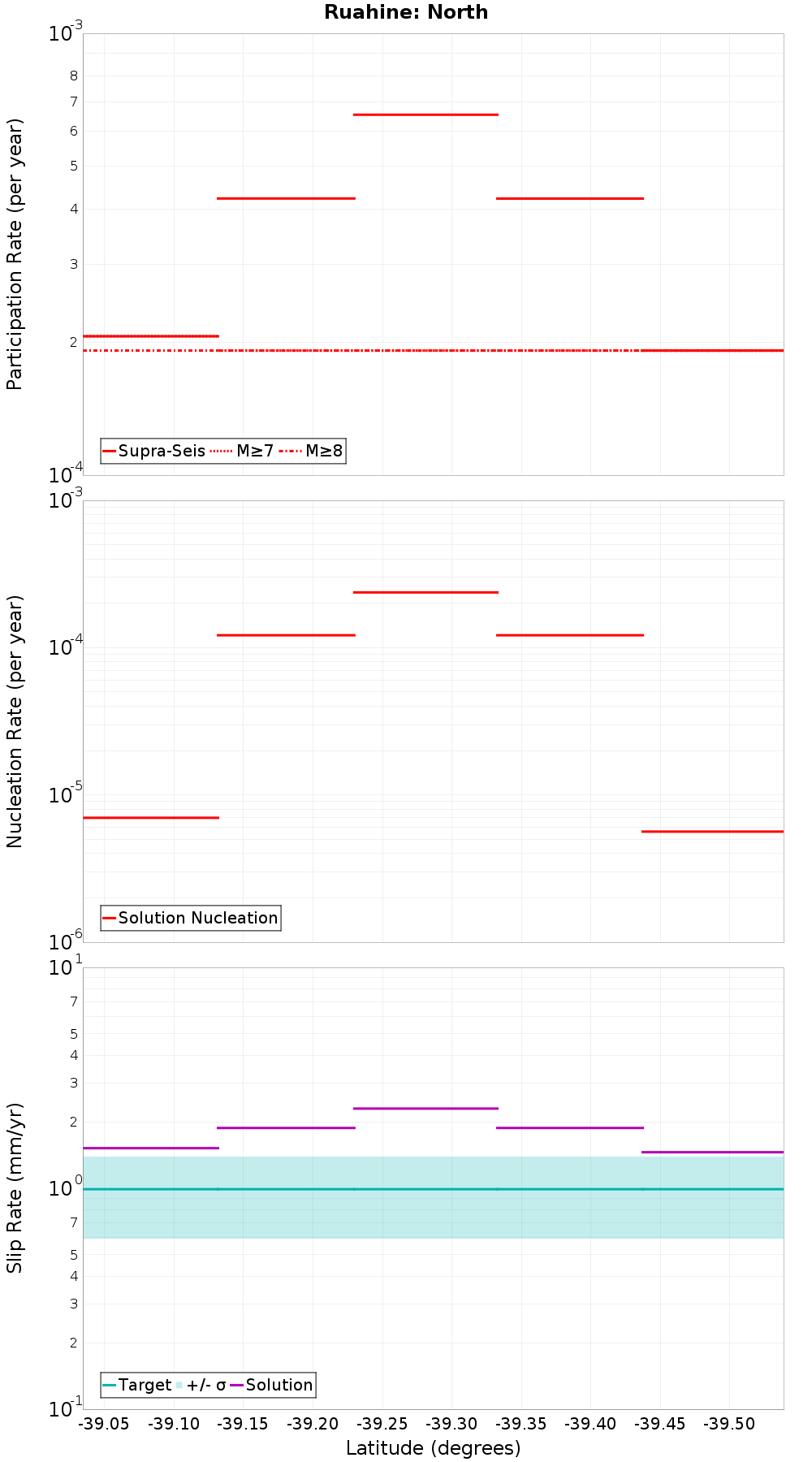

Along-Strike Values

Moment-Rates and b-Values

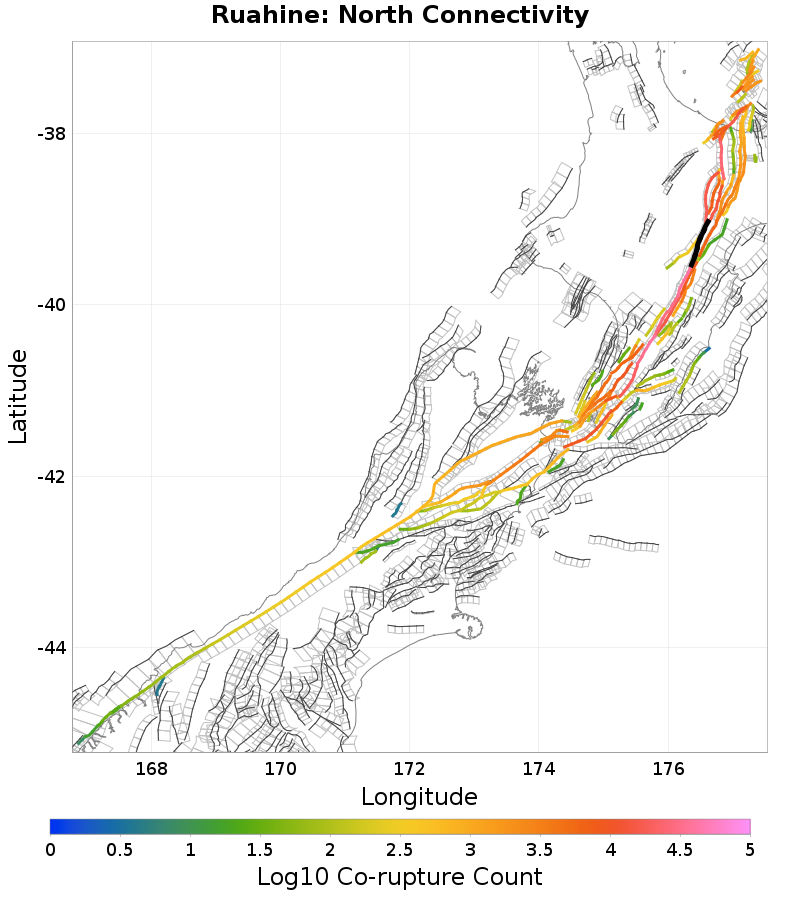

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 17.89 km away
Te Heka, 19.72 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	true
Co-rupture Count	15,815
Co-rupture Rate	9.707778E-5

Ruahine: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	true
Co-rupture Count	38,980
Co-rupture Rate	1.9135866E-4

Kaweka, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	true
Co-rupture Count	351
Co-rupture Rate	1.4915472E-5

Wheao: South, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	true
Co-rupture Count	17,548
Co-rupture Rate	8.0749516E-5

Wakarara, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,805
Co-rupture Rate	0.0

Mohaka: South, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	true
Co-rupture Count	17,854
Co-rupture Rate	1.0162807E-24

Mohaka: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	true
Co-rupture Count	6,572
Co-rupture Rate	0.0

Patoka - Rangiora, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	0.0

Te Whaiti South, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	true
Co-rupture Count	7,133
Co-rupture Rate	2.8446828E-5

Whakatane: South, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	false
Co-rupture Count	2,006
Co-rupture Rate	0.0

Waimana: South, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	true
Directly Connected?	false
Co-rupture Count	4,510
Co-rupture Rate	0.0

Awanui, 17.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 19.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTIuMHo0aHJt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
