StoneJug Details

Property	Value
Rupture Count	740
Ruptures Above Sect Min Mag	737
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.43, 8.34]
Length Range	[12, 784] km
Total Rate	6.695329E-5 /yr
Multi-Fault Rate	6.695329E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	58

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

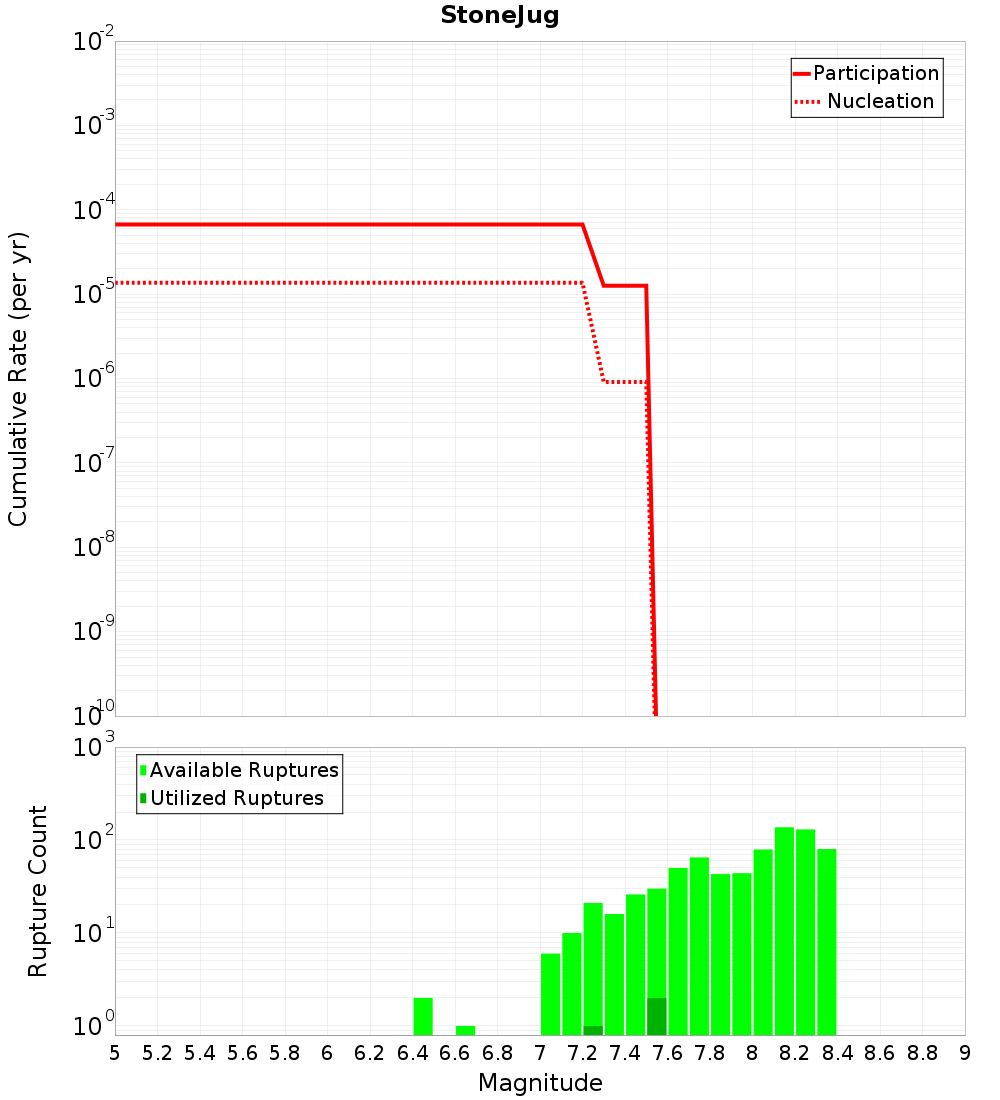

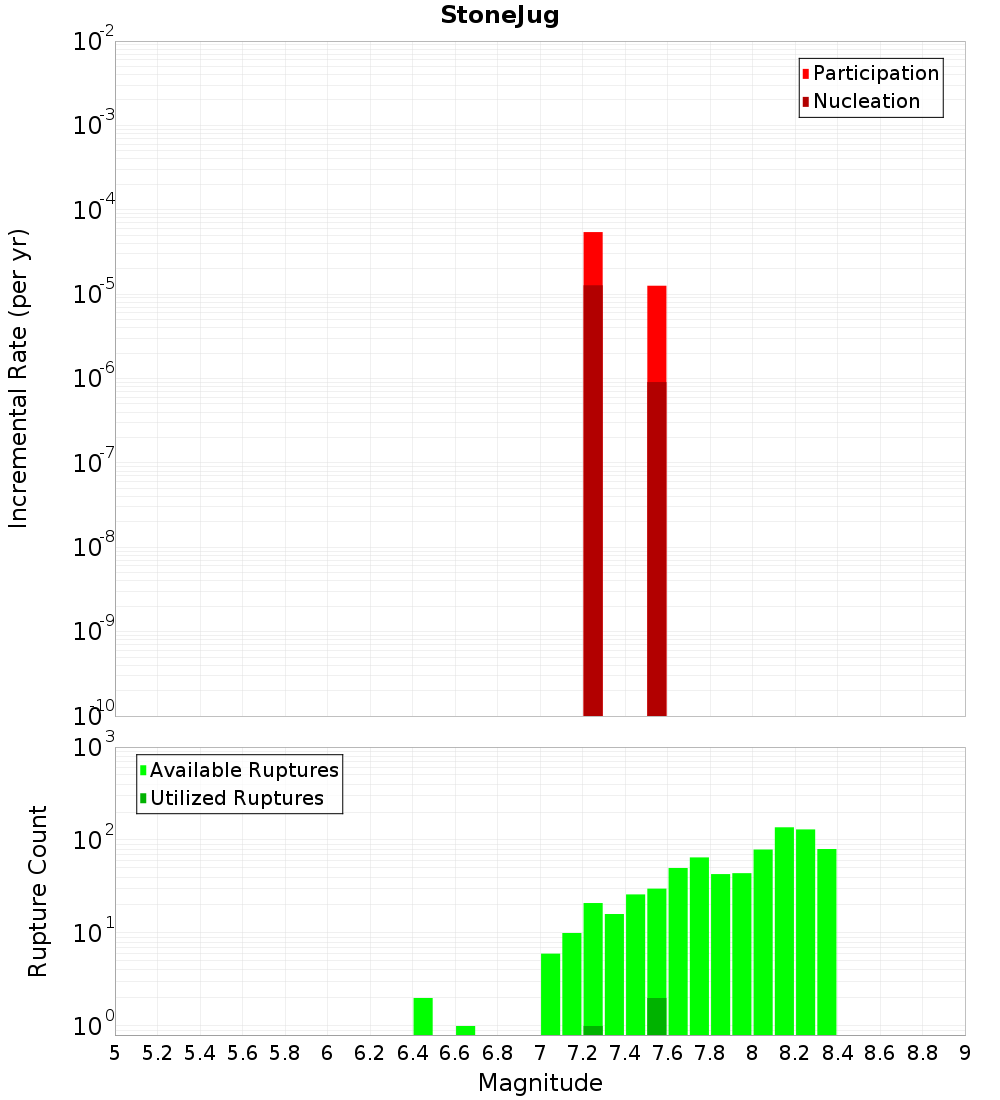

Magnitude-Frequency Distribution

Incremental	Cumulative

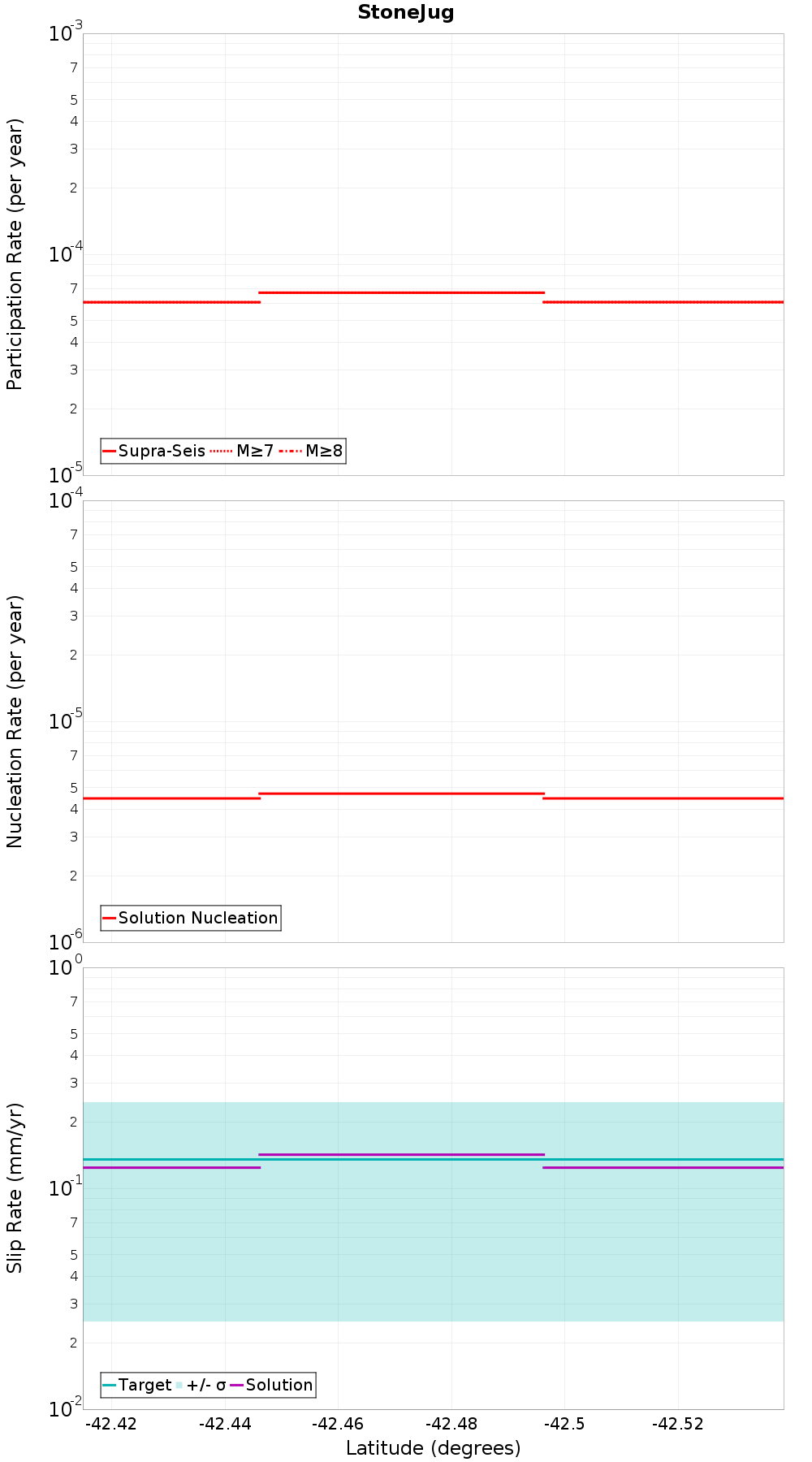

Along-Strike Values

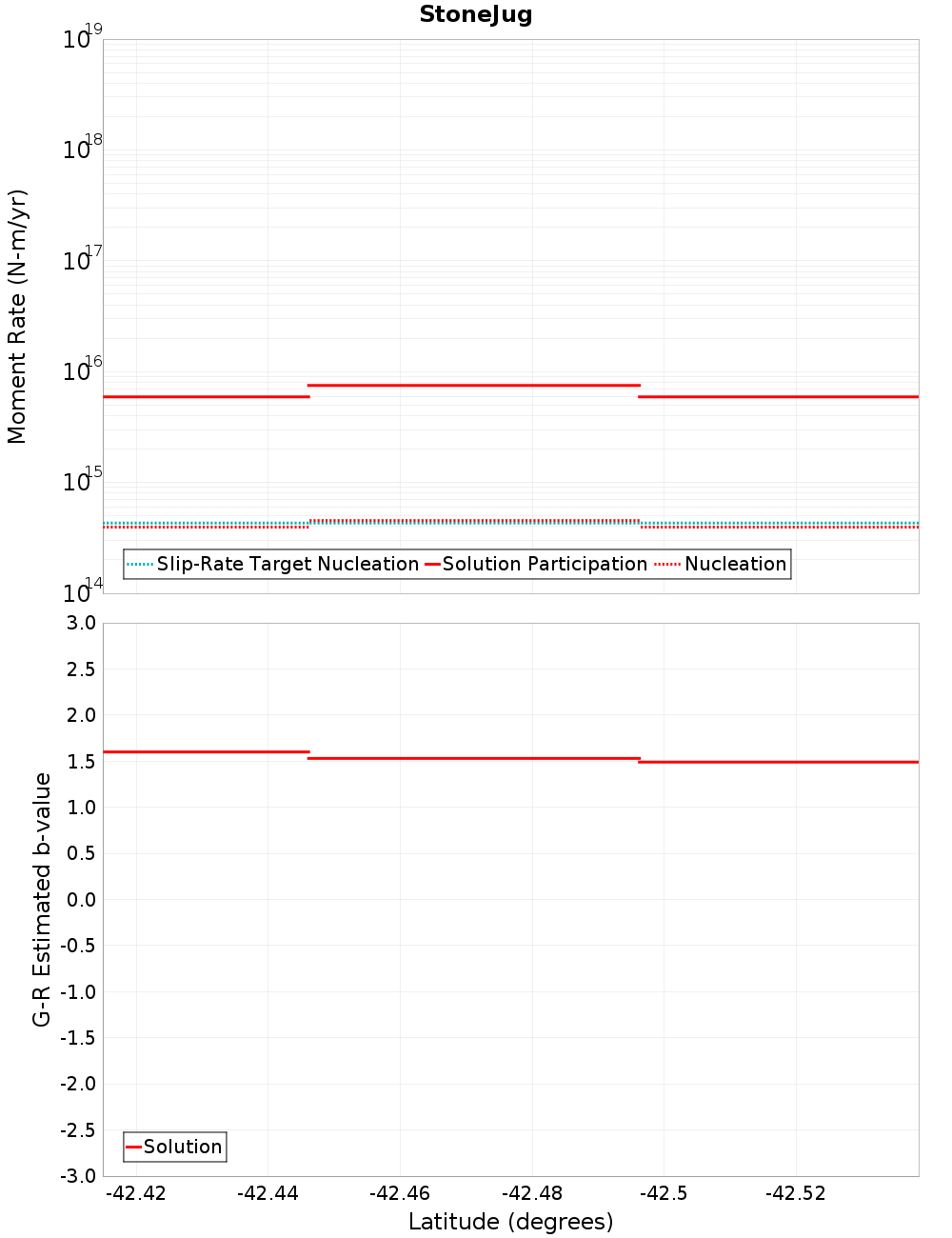

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hundalee, 0.16 km away
Hope: Conway, 0.26 km away
Leader: North, 0.61 km away
Hawkswood, 2.25 km away
Leader: South, 8.48 km away
Leader: Central, 9.3 km away
Conway Trough West, 10.85 km away
Kaiwara North, 13.46 km away
The Humps, 14.2 km away
Elliott, 14.23 km away
Conway Trough East, 19.67 km away

Hundalee, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Conway, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	true
Directly Connected?	true
Co-rupture Count	697
Co-rupture Rate	1.2579727E-5

Leader: North, 0.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkswood, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: South, 8.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: Central, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Conway Trough West, 10.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaiwara North, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	5.4373562E-5

The Humps, 14.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Elliott, 14.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	true
Directly Connected?	true
Co-rupture Count	108
Co-rupture Rate	0.0

Conway Trough East, 19.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMDdYSEx4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
