Ridge Road - Okaia 2 Details

PropertyValue
Rupture Count31
Ruptures Above Sect Min Mag30
Ruptures w/ Nonzero Rates9
Magnitude Range[7.11, 7.65]
Length Range[30, 106] km
Total Rate7.98983E-5 /yr
Multi-Fault Rate2.8874409E-5 /yr (36.14%)
Directly-Connected Faults8
All Co-Rupturing Faults8

Table Of Contents

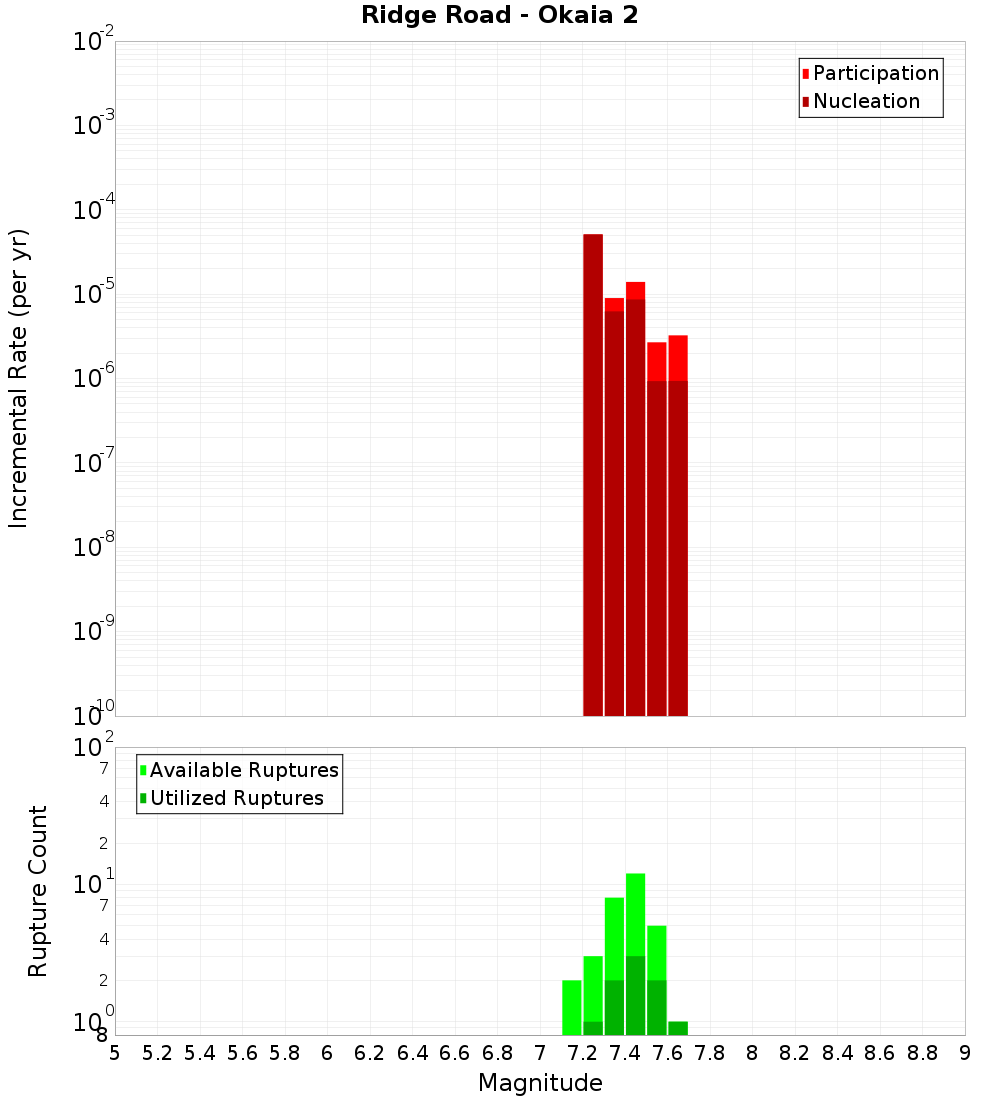

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

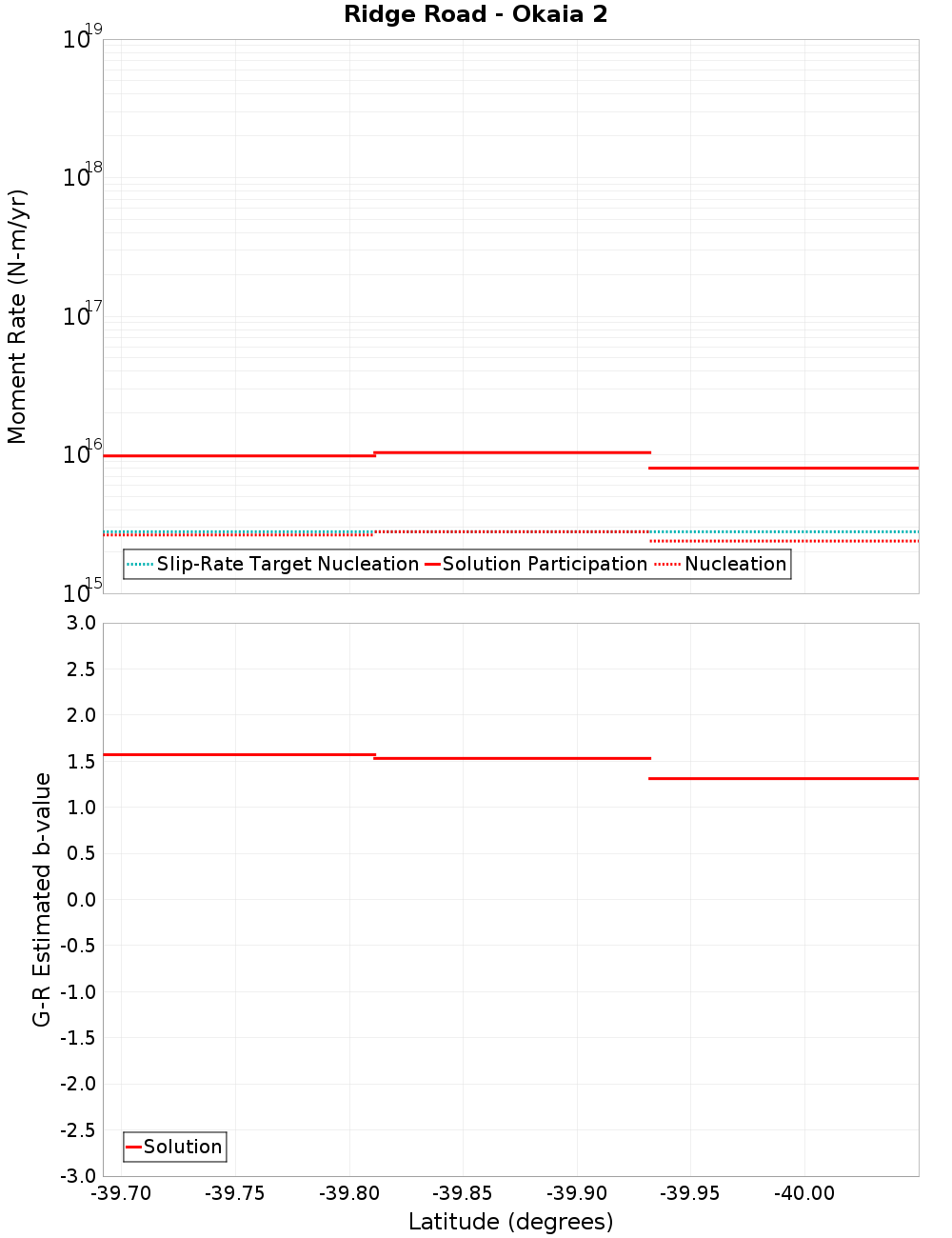

Moment-Rates and b-Values

(top)

Along-strike plot

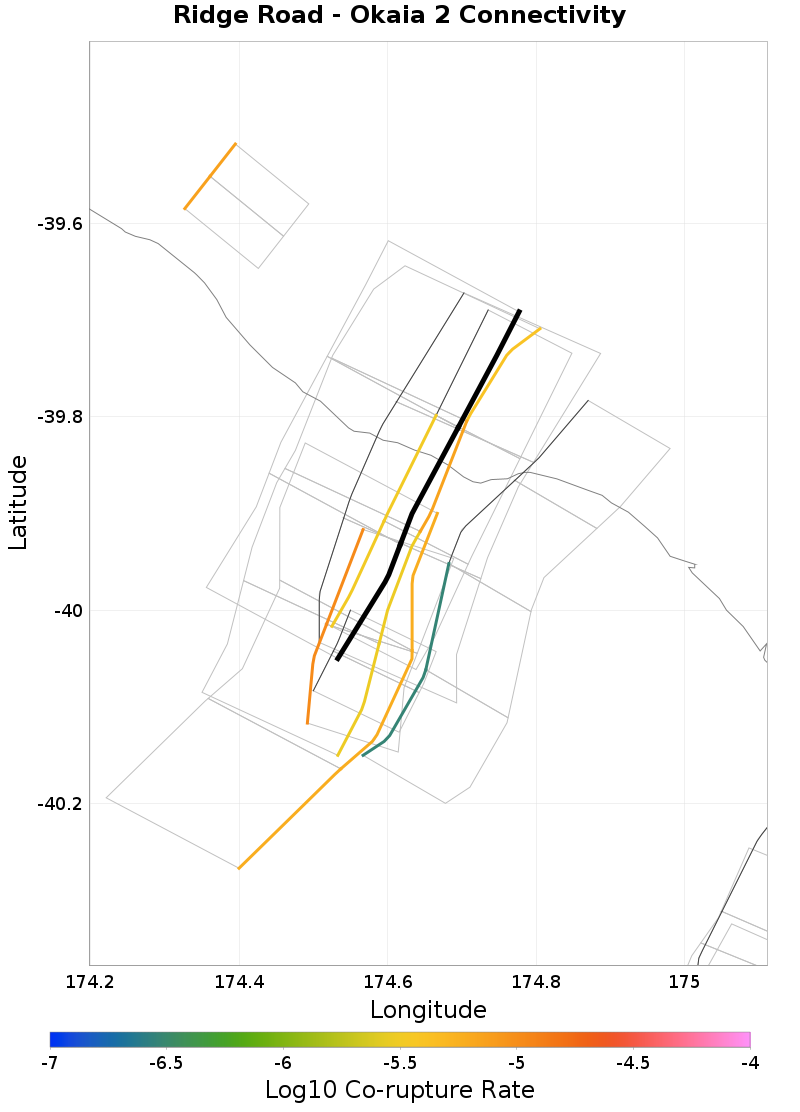

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waverley - Okaia 1, 0.04 km away
Okaia 3, 0.18 km away
Moumahaki - Okaia 4, 0.29 km away
Okaia 5, 0.34 km away
Waitotara 10 & 11, 0.52 km away
Waitotara 8 & 9, 2.25 km away
Nukumuru - Waitotara 1-6, 5.96 km away
Ararata, 10.1 km away

Waverley - Okaia 1, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMGhKUGZF
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

Okaia 3, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMGhKUGZF
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate0.0

Moumahaki - Okaia 4, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMGhKUGZF
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate3.246939E-6

Okaia 5, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMGhKUGZF
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate1.065952E-5

Waitotara 10 & 11, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMGhKUGZF
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate7.0392225E-6

Waitotara 8 & 9, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMGhKUGZF
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate5.932368E-6

Nukumuru - Waitotara 1-6, 5.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMGhKUGZF
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate2.8974998E-7

Ararata, 10.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwMTMuMGhKUGZF
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate7.2828716E-6
