Monowai Details
| Property | Value |
|---|---|
| Rupture Count | 25 |
| Ruptures Above Sect Min Mag | 24 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.98, 7.71] |
| Length Range | [23, 123] km |
| Total Rate | 3.0431699E-4 /yr |
| Multi-Fault Rate | 1.5292577E-4 /yr (50.25%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

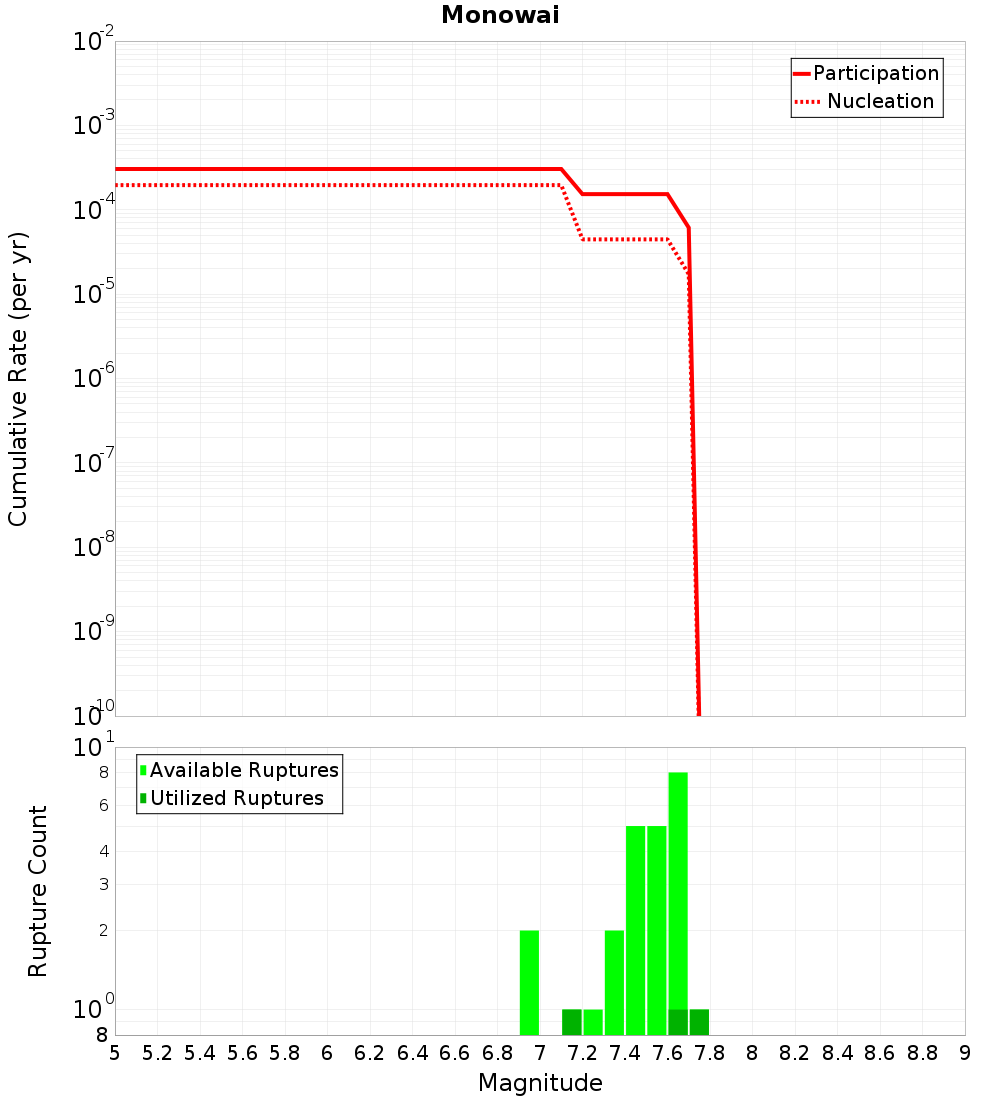

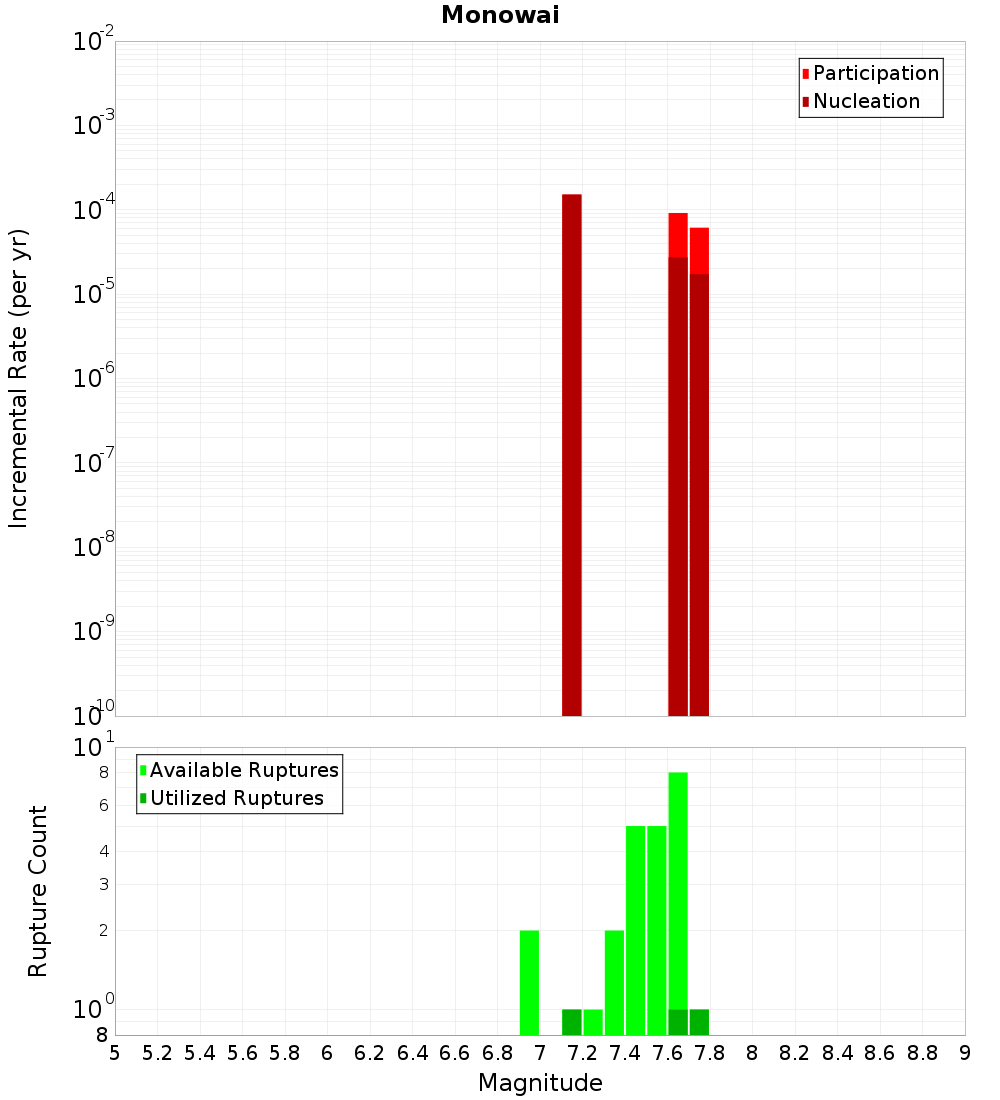

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

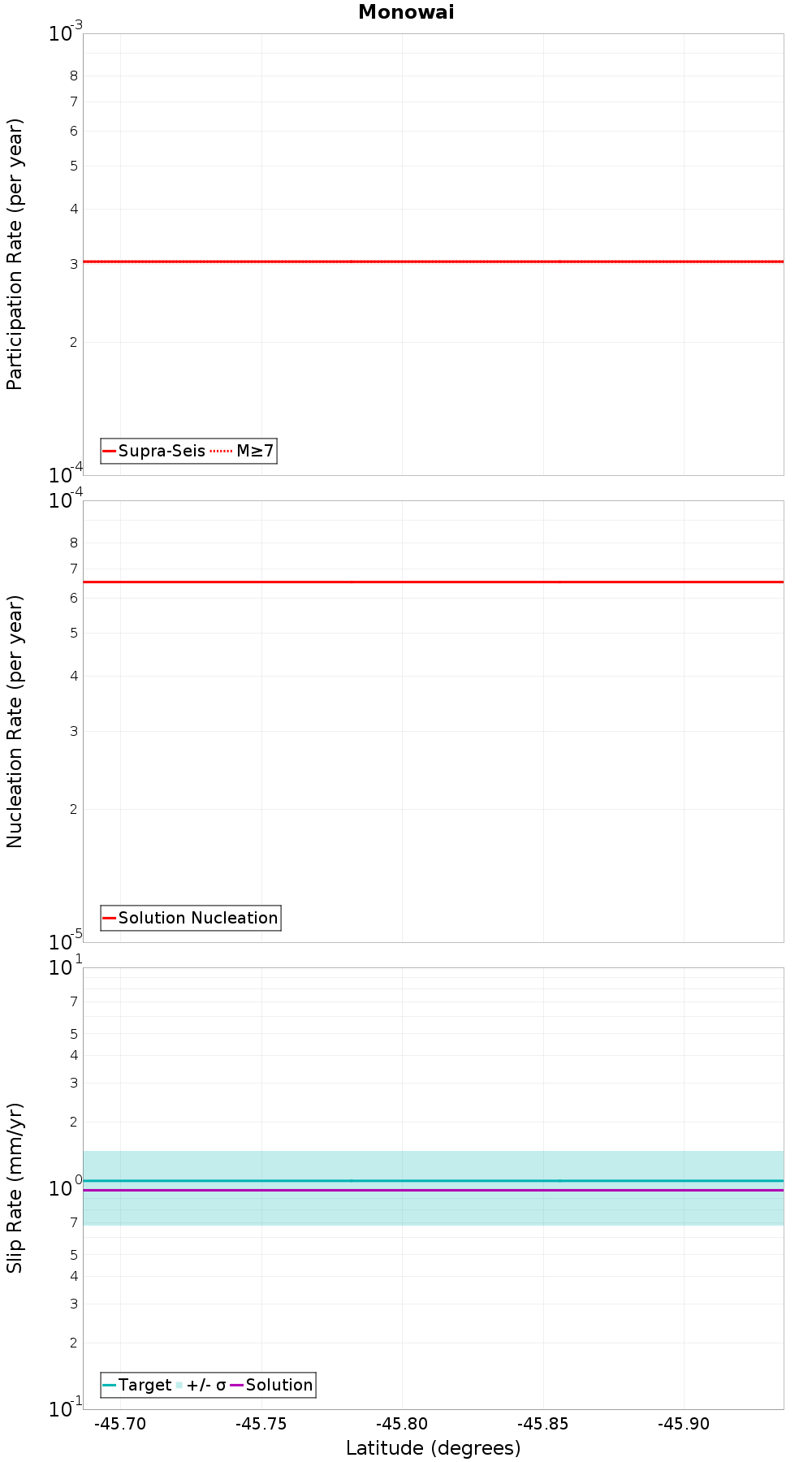

Along-Strike Values
Moment-Rates and b-Values

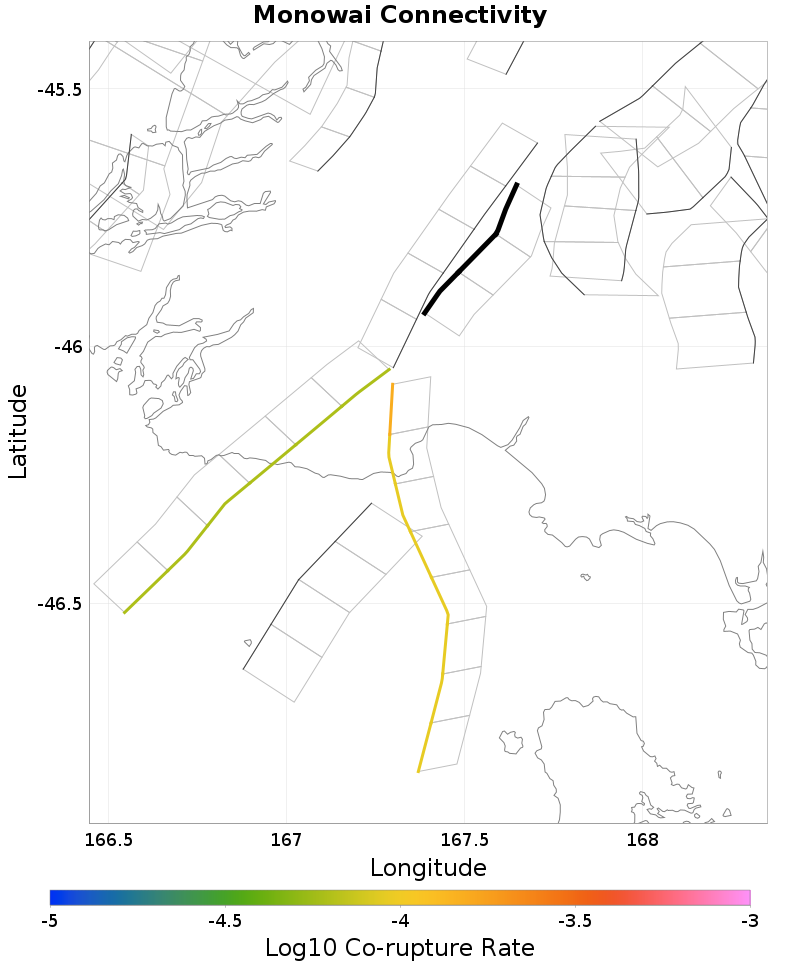

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: North, 1.01 km away |
| Tin Hut, 3.53 km away |
| McKerchar, 6.1 km away |
| Hump Ridge, 10.79 km away |
| Hauroko: South, 14.37 km away |
| Mossburn, 15.82 km away |
Hauroko: North, 1.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwNzQuMHc0YVc1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tin Hut, 3.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwNzQuMHc0YVc1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
McKerchar, 6.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwNzQuMHc0YVc1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hump Ridge, 10.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwNzQuMHc0YVc1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22 |
| Co-rupture Rate | 1.5292577E-4 |
Hauroko: South, 14.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwNzQuMHc0YVc1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 6.134178E-5 |
Mossburn, 15.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUwNzQuMHc0YVc1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
