Fisherman 1 Details

PropertyValue
Rupture Count22
Ruptures Above Sect Min Mag22
Ruptures w/ Nonzero Rates4
Magnitude Range[6.89, 7.56]
Length Range[16, 72] km
Total Rate2.8205072E-4 /yr
Multi-Fault Rate1.1815467E-4 /yr (41.89%)
Directly-Connected Faults2
All Co-Rupturing Faults7

Table Of Contents

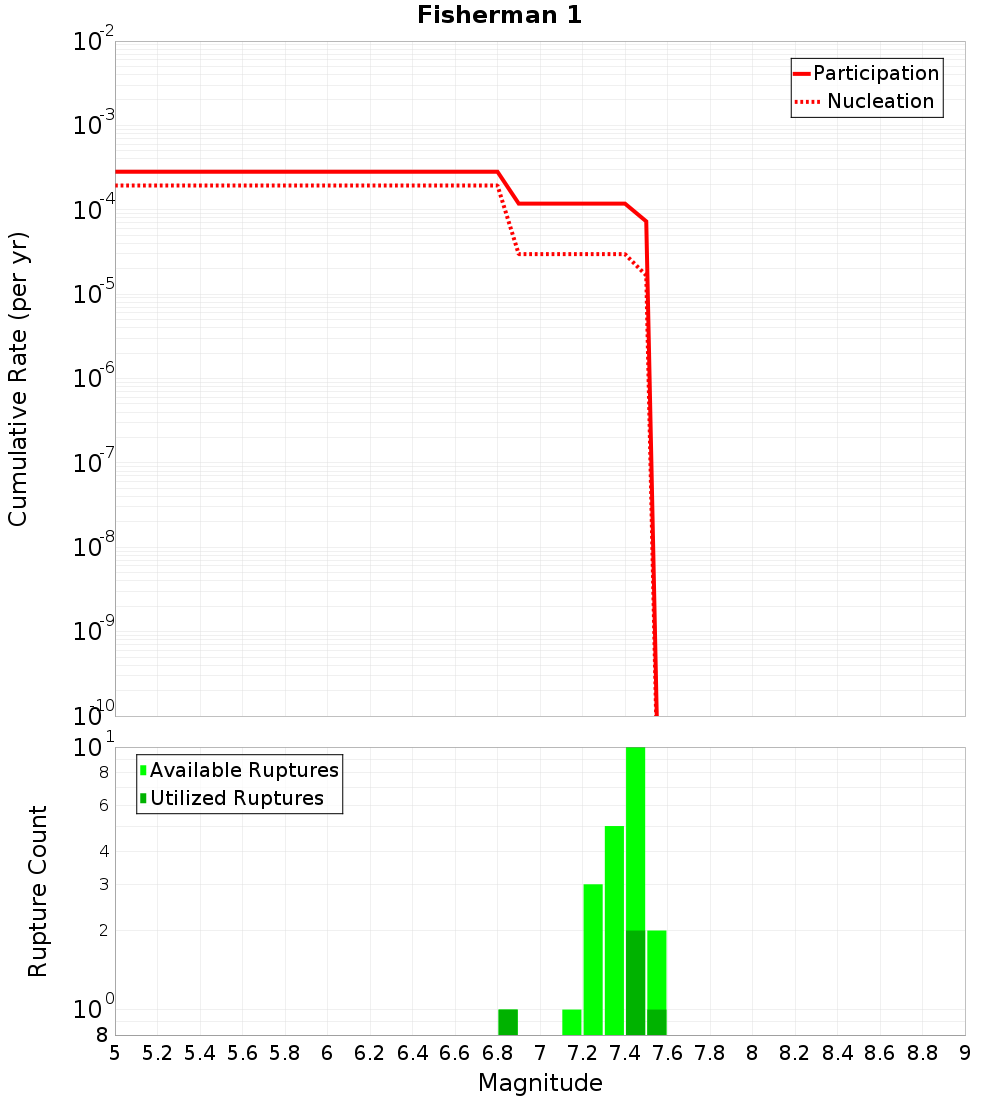

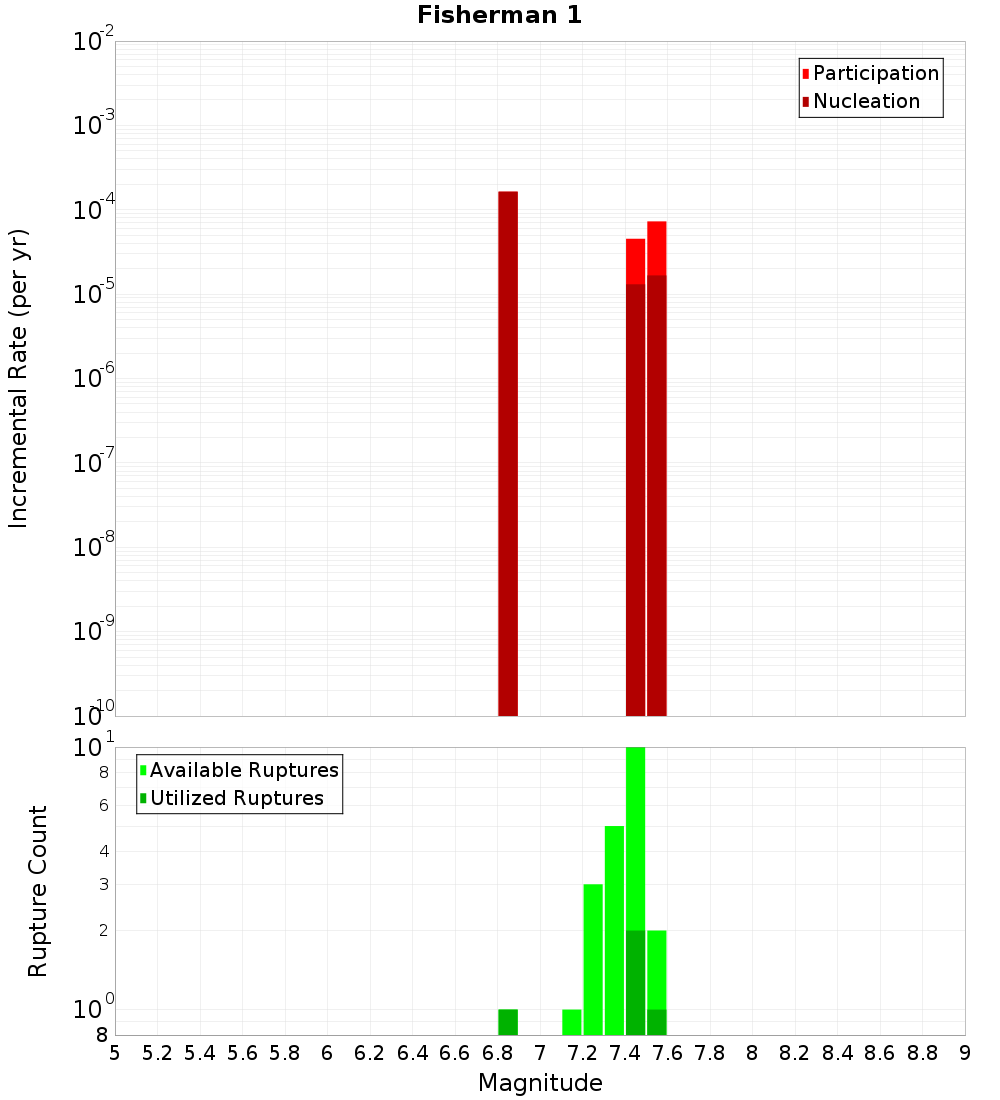

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Fisherman 2, 0 km away
Okupe 1, 3.93 km away
Shepherds Gully - Mana, 8.62 km away
Otaheke South, 8.64 km away
Pukerua - Shepherds Gully: 3, 13.16 km away
Pukerua - Shepherds Gully: 2, 13.34 km away
Ohariu, 17.14 km away
Pukerua - Shepherds Gully: 1, 17.2 km away
Moonshine, 19.14 km away

Fisherman 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate1.9080348E-4

Shepherds Gully - Mana, 8.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 3, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate4.5325956E-5

Pukerua - Shepherds Gully: 2, 13.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Ohariu, 17.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate1.7990327E-7

Pukerua - Shepherds Gully: 1, 17.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate7.282871E-5

Moonshine, 19.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
