Ruahine: Central Details

PropertyValue
Rupture Count41,579
Ruptures Above Sect Min Mag41,577
Ruptures w/ Nonzero Rates16
Magnitude Range[7.06, 8.70]
Length Range[22, 1,113] km
Total Rate1.7329397E-4 /yr
Multi-Fault Rate1.7329397E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults129

Table Of Contents

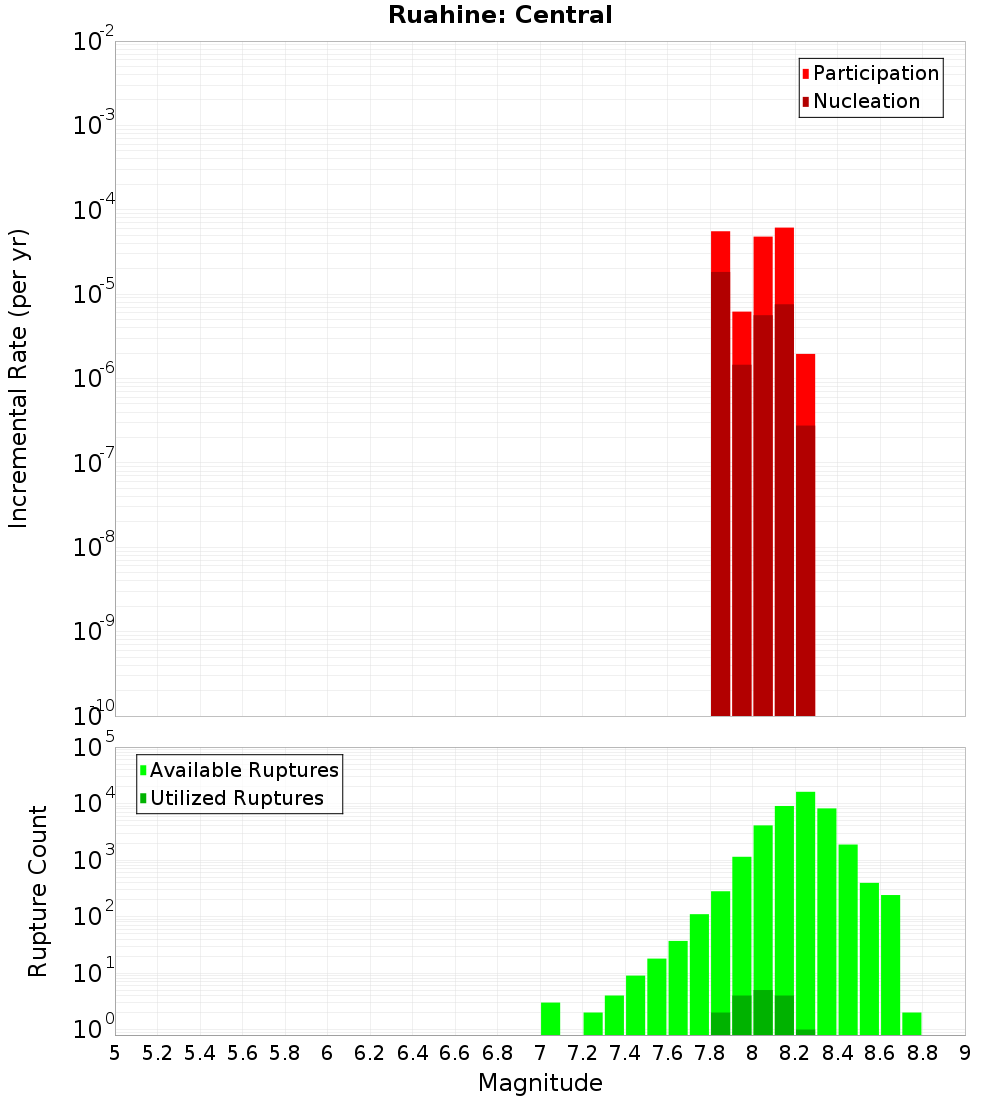

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

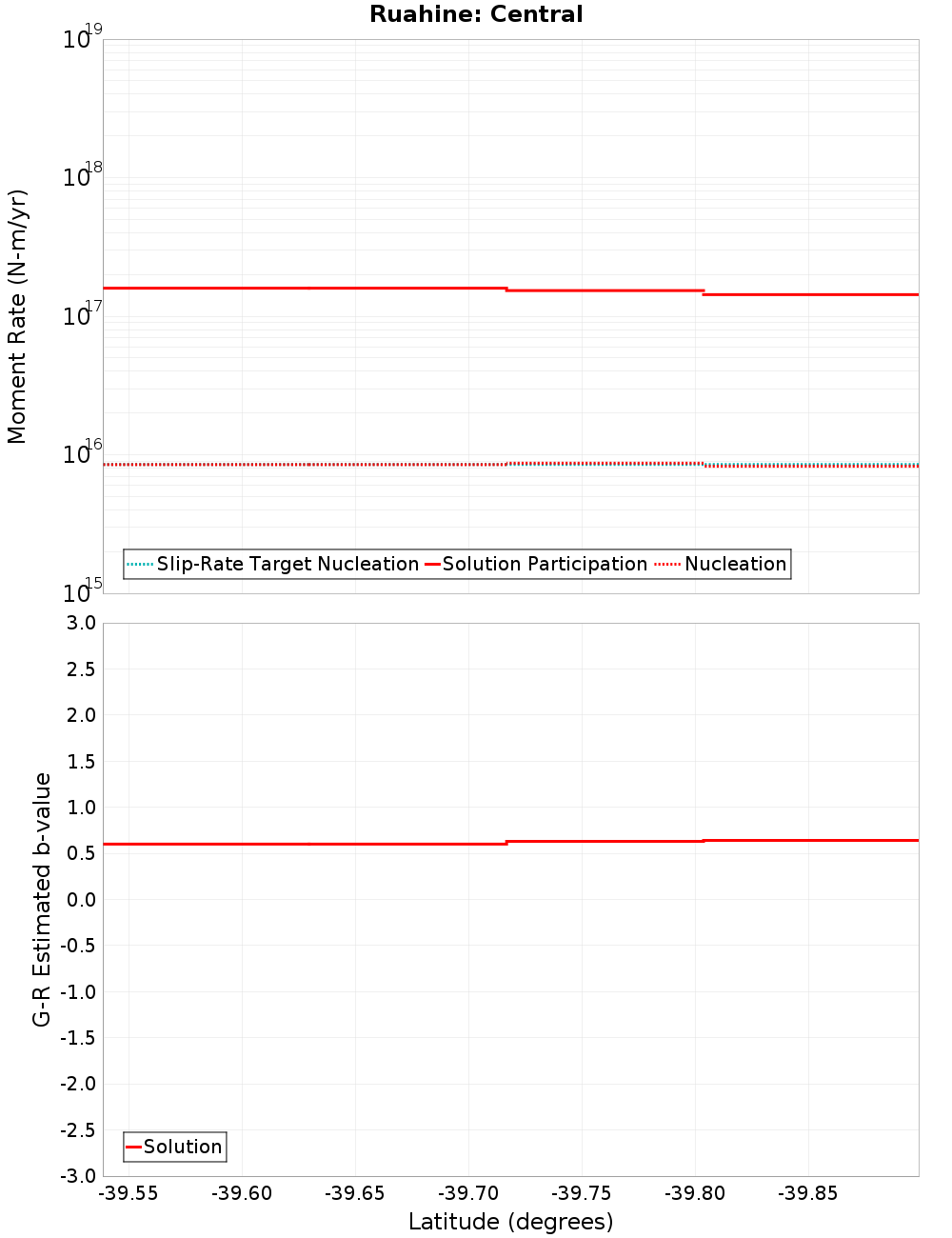

Moment-Rates and b-Values

(top)

Along-strike plot

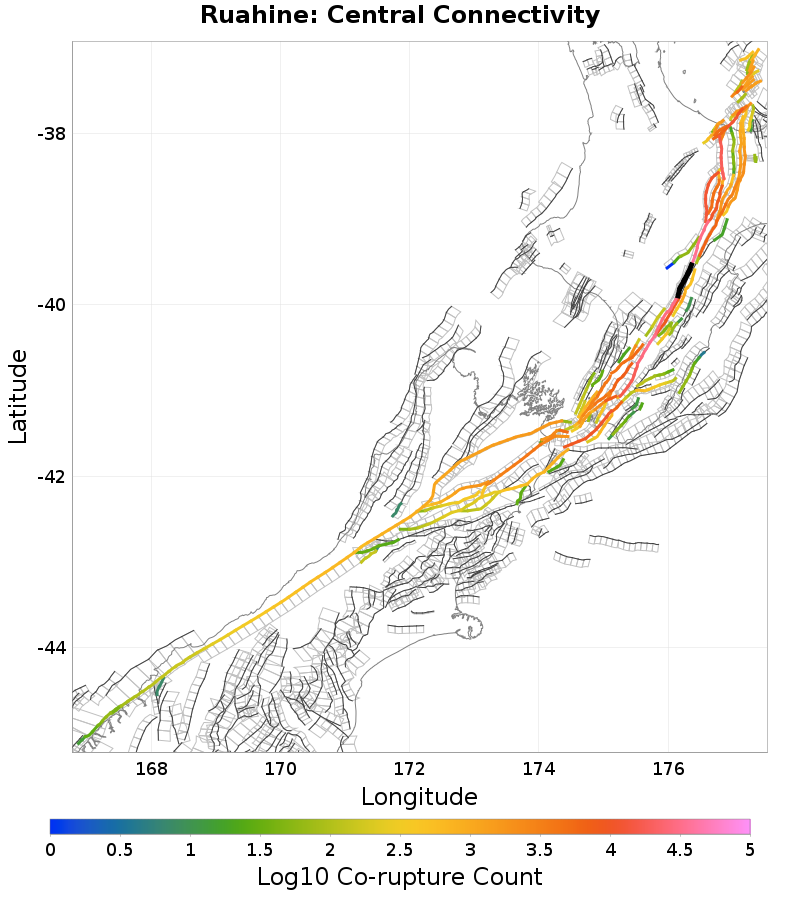

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ruahine: North, 0 km away
Wakarara, 0.11 km away
Ruahine: South, 0.16 km away
Rangefront, 0.2 km away
Mohaka: South, 2.68 km away
Mohaka: North, 7.58 km away
Ruataniwha, 9.9 km away
Patoka - Rangiora, 12.66 km away
Kaweka, 16.09 km away
Te Heka, 18.27 km away
Awanui, 18.65 km away

Ruahine: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count38,980
Co-rupture Rate1.2548744E-4

Wakarara, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count499
Co-rupture Rate1.2111845E-5

Ruahine: South, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count29,324
Co-rupture Rate1.17491996E-4

Rangefront, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count1,059
Co-rupture Rate1.2111845E-5

Mohaka: South, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count9,296
Co-rupture Rate2.143913E-5

Mohaka: North, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count6,550
Co-rupture Rate7.705549E-5

Ruataniwha, 9.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Patoka - Rangiora, 12.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Kaweka, 16.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count59
Co-rupture Rate0.0

Te Heka, 18.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 18.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
