Te Arawa 3 Details

PropertyValue
Rupture Count1,680
Ruptures Above Sect Min Mag1,679
Ruptures w/ Nonzero Rates6
Magnitude Range[6.74, 8.38]
Length Range[13, 560] km
Total Rate1.7344528E-4 /yr
Multi-Fault Rate1.7344528E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults57

Table Of Contents

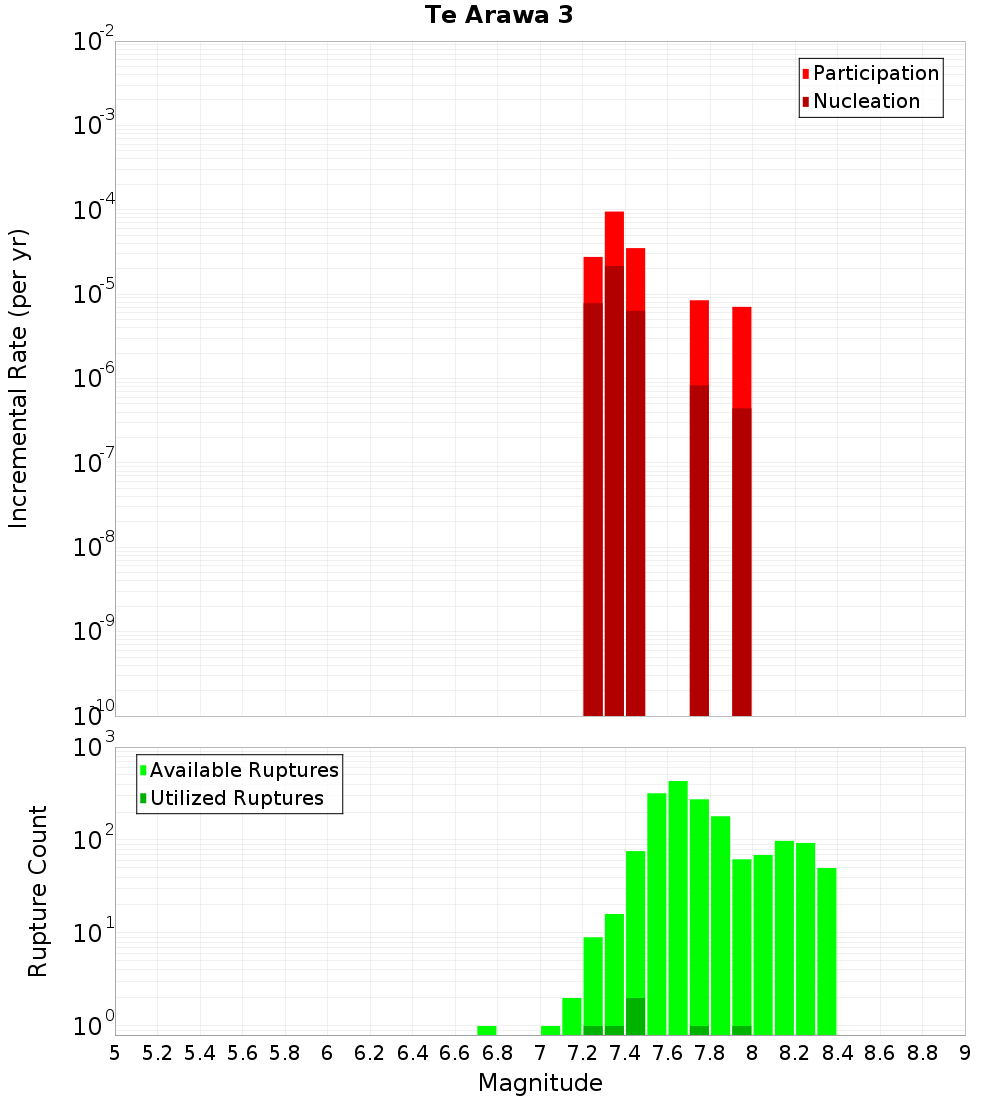

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

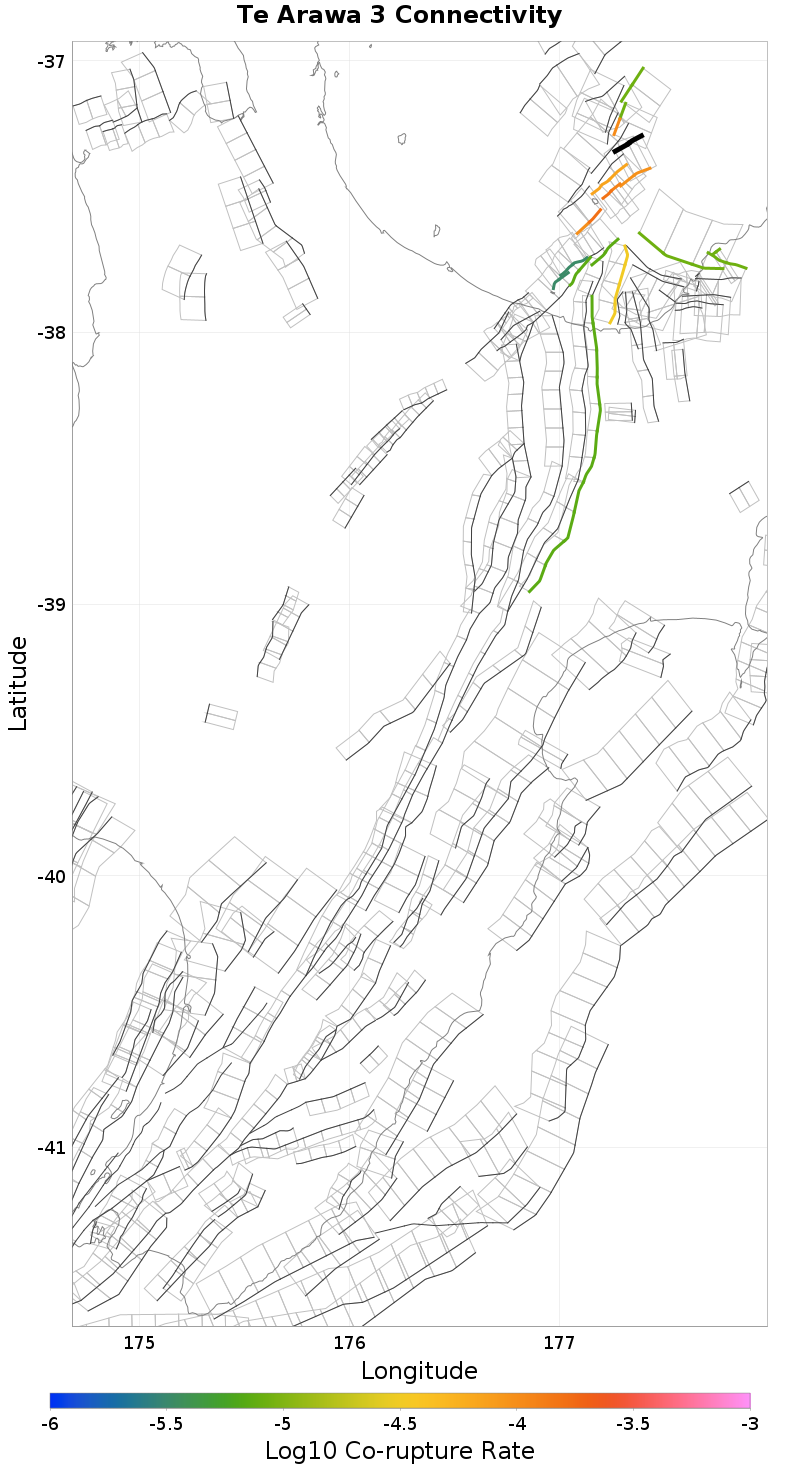

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.15 km away
Te Arawa 2, 1.7 km away
Volkner 4, 1.72 km away
Otara West 1, 4.41 km away
Otara East 1, 5.22 km away
Te Arawa 1, 5.32 km away
Otara West 2, 8.79 km away
Tuatoru 1, 10.12 km away
Hariki, 11.17 km away
Volkner 3, 12.62 km away
Otara East 2, 13.29 km away
Whakaari 4, 15.19 km away
Otara West 3, 16.96 km away
Calypso 2, 18.58 km away

Tuatoru 2, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count161
Co-rupture Rate9.51976E-5

Te Arawa 2, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Otara West 1, 4.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count480
Co-rupture Rate1.0365645E-4

Te Arawa 1, 5.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count1,487
Co-rupture Rate6.978884E-5

Otara West 2, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 10.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count165
Co-rupture Rate1.546433E-4

Hariki, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate8.4588455E-6

Volkner 3, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Otara East 2, 13.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count137
Co-rupture Rate8.4588455E-6

Whakaari 4, 15.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count1,049
Co-rupture Rate0.0

Otara West 3, 16.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate1.5791929E-4
