Wakarara Details

Property	Value
Rupture Count	8,053
Ruptures Above Sect Min Mag	8,053
Ruptures w/ Nonzero Rates	8
Magnitude Range	[7.17, 8.41]
Length Range	[26, 540] km
Total Rate	2.1994776E-5 /yr
Multi-Fault Rate	2.1994776E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	98

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

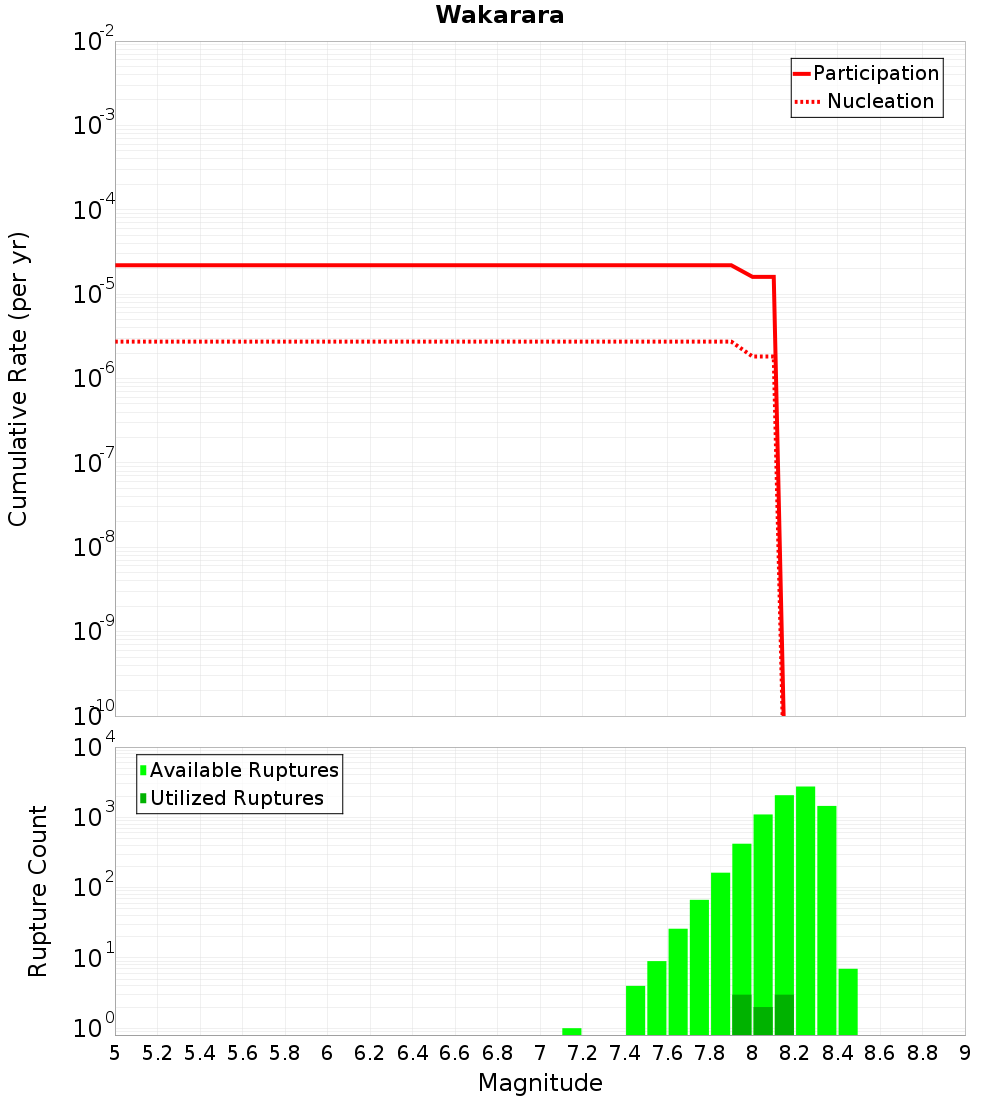

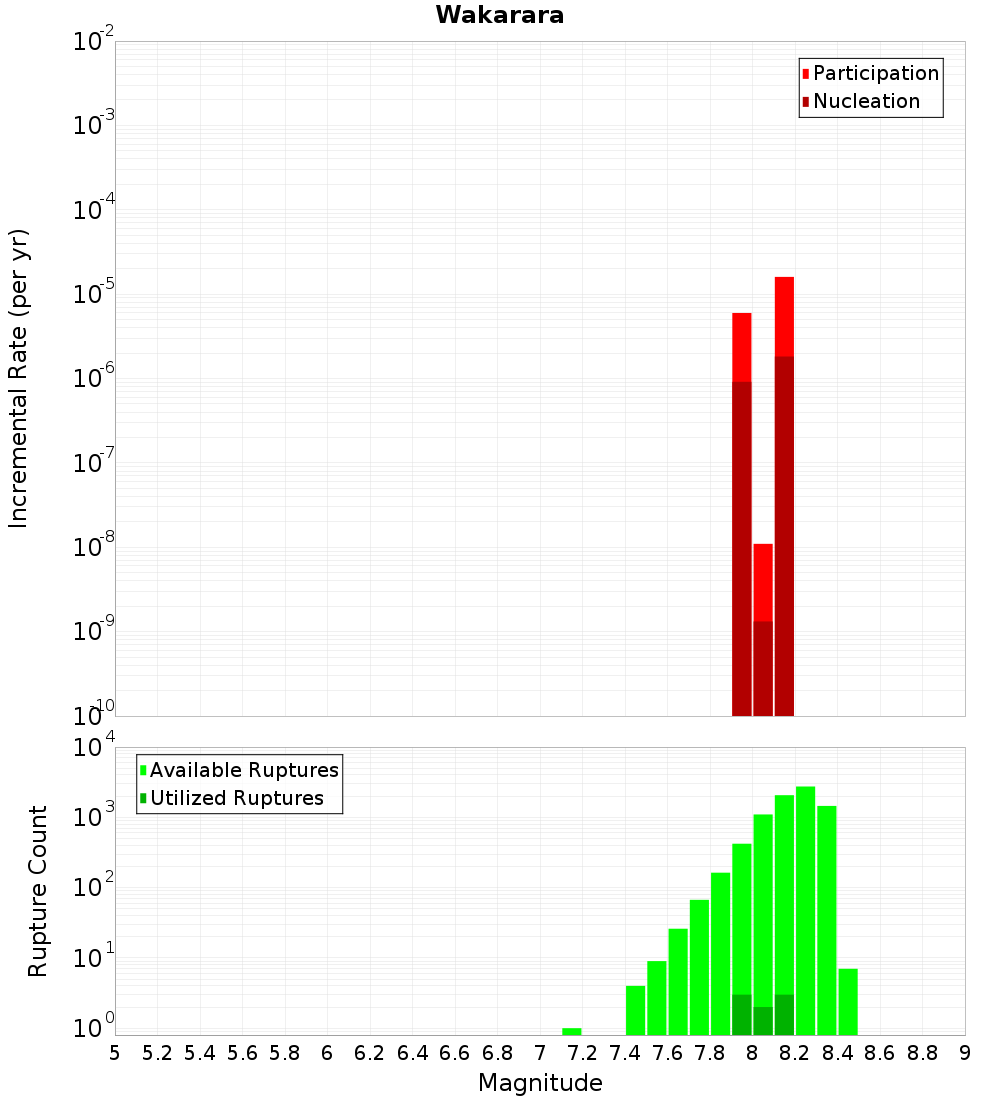

Magnitude-Frequency Distribution

Incremental	Cumulative

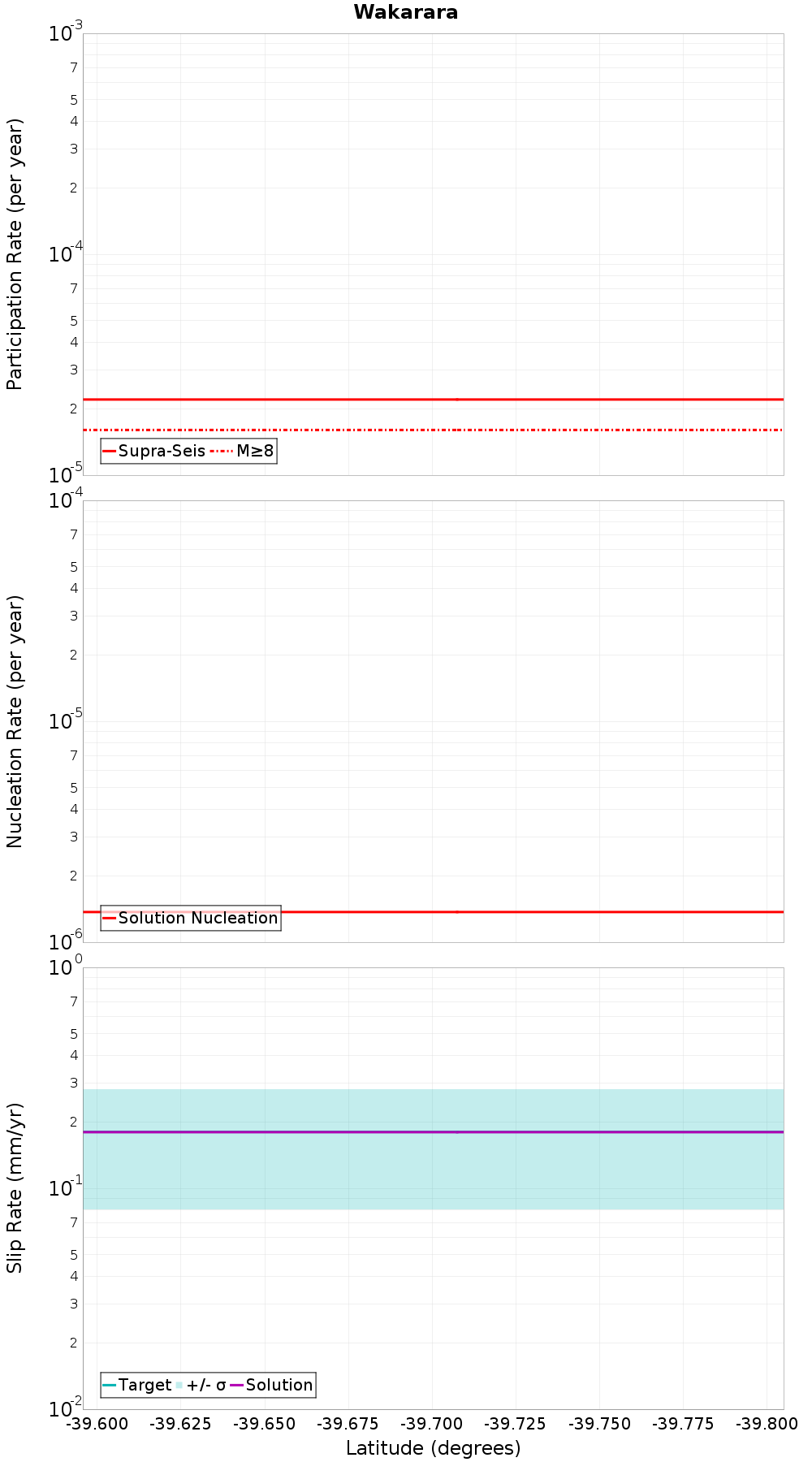

Along-Strike Values

Moment-Rates and b-Values

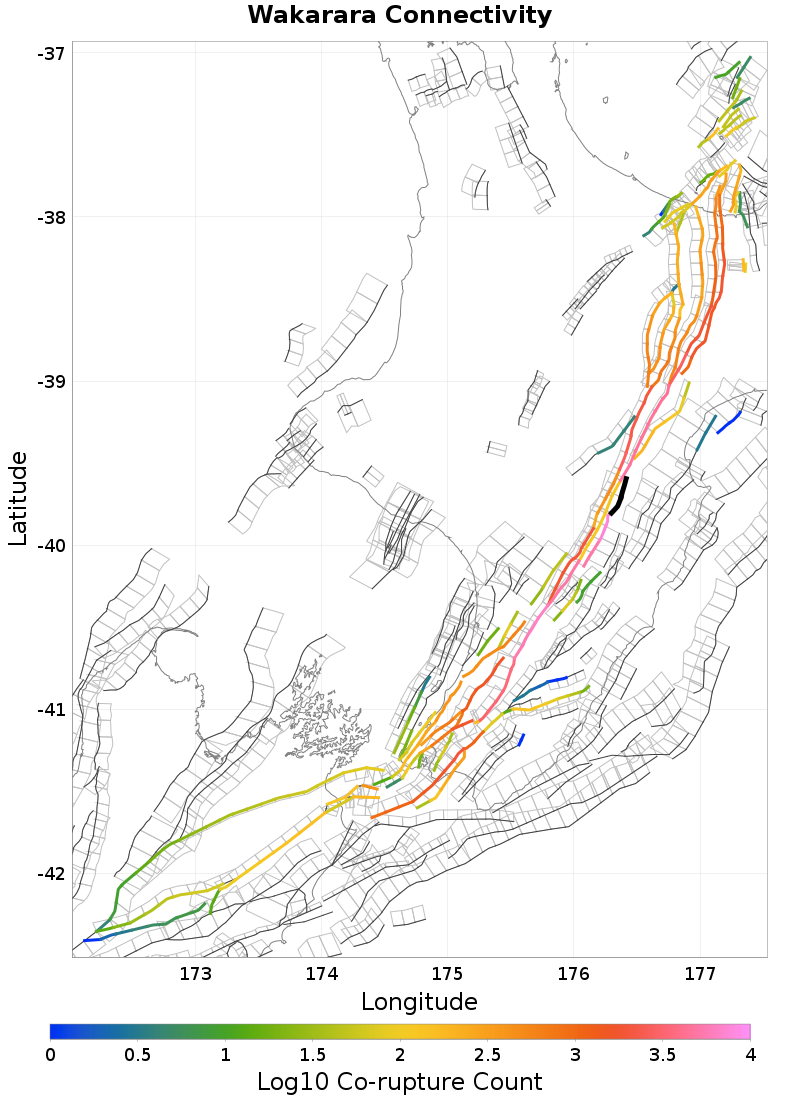

Connectivity

Nearby Sections

Fault Section
Rangefront, 0 km away
Ruahine: Central, 0.11 km away
Mohaka: South, 0.13 km away
Ruahine: North, 4 km away
Mohaka: North, 9.63 km away
Ruataniwha, 13.37 km away
Ruahine: South, 14.13 km away
Te Heka, 14.9 km away
Patoka - Rangiora, 14.99 km away
Awanui, 18.32 km away
Oruawharo - Mangatoro, 18.53 km away
Kaweka, 18.88 km away

Rangefront, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	true
Co-rupture Count	7,494
Co-rupture Rate	2.1994776E-5

Ruahine: Central, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	false
Co-rupture Count	499
Co-rupture Rate	1.2111845E-5

Mohaka: South, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	true
Co-rupture Count	9,783
Co-rupture Rate	0.0

Ruahine: North, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	true
Co-rupture Count	2,805
Co-rupture Rate	1.2111845E-5

Mohaka: North, 9.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	false
Co-rupture Count	4,507
Co-rupture Rate	0.0

Ruataniwha, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruahine: South, 14.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	false
Co-rupture Count	1,988
Co-rupture Rate	2.1994776E-5

Te Heka, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Patoka - Rangiora, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	false
Co-rupture Count	193
Co-rupture Rate	0.0

Awanui, 18.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Oruawharo - Mangatoro, 18.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaweka, 18.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTEuMHFpN3Vl
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0
