Motu River Details
| Property | Value |
|---|---|
| Rupture Count | 19 |
| Ruptures Above Sect Min Mag | 19 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [7.09, 7.81] |
| Length Range | [20, 112] km |
| Total Rate | 5.7316925E-6 /yr |
| Multi-Fault Rate | 5.7316925E-6 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

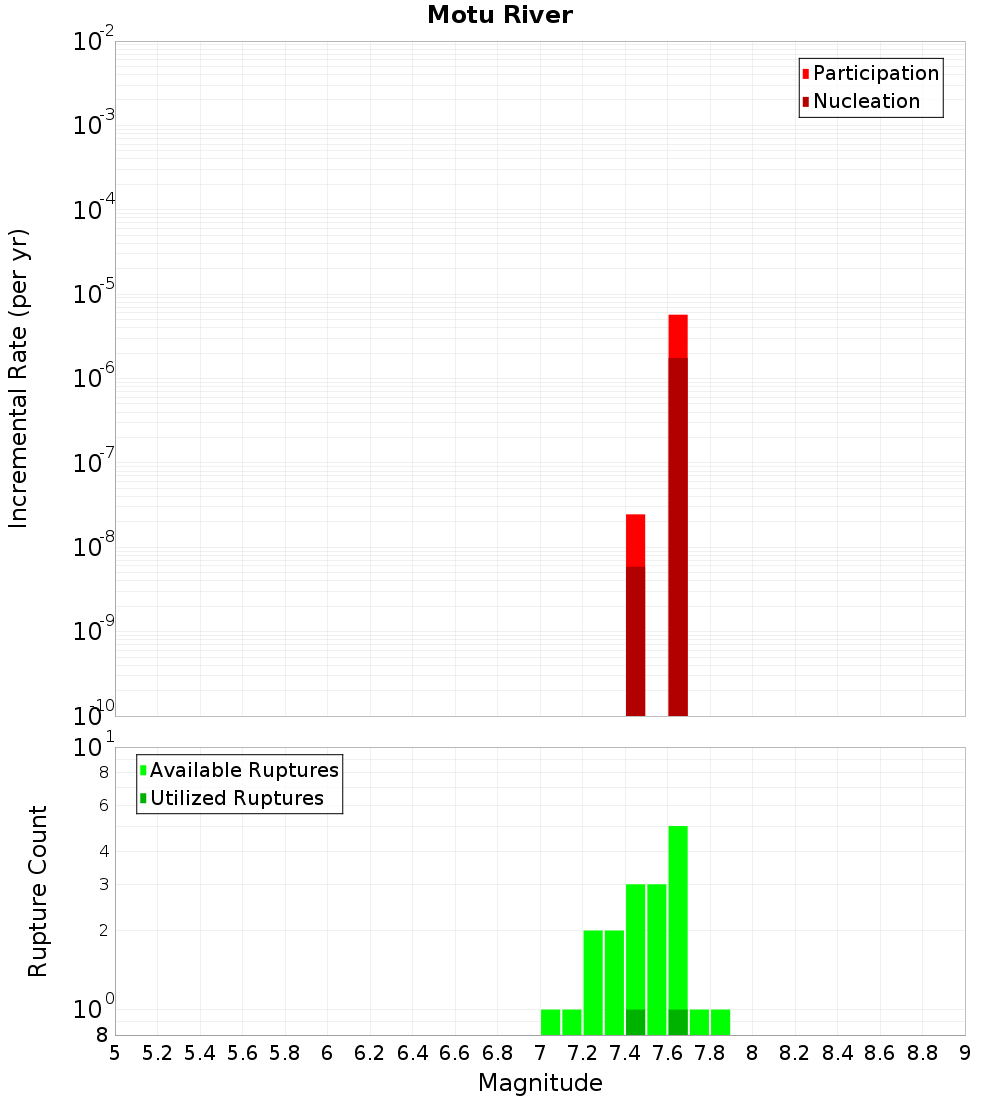

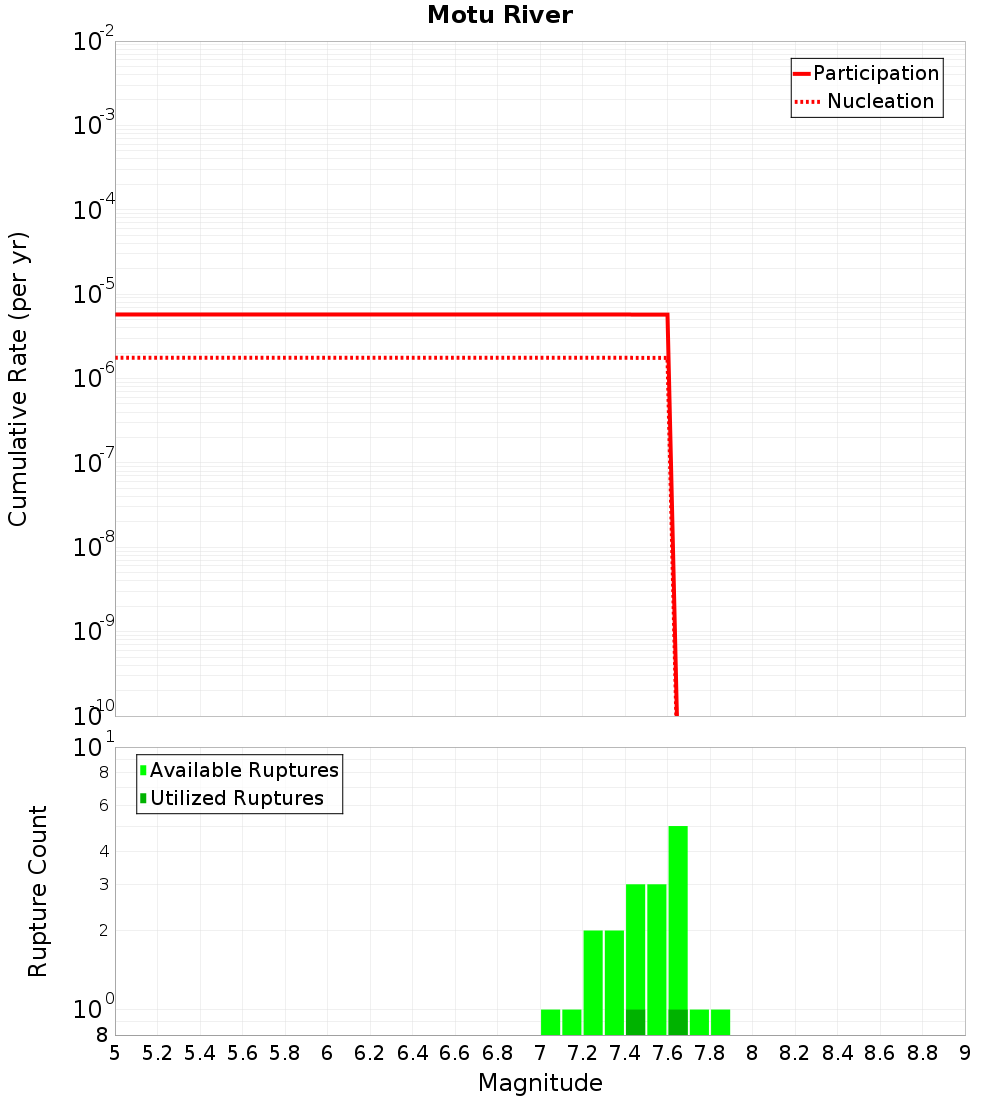

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

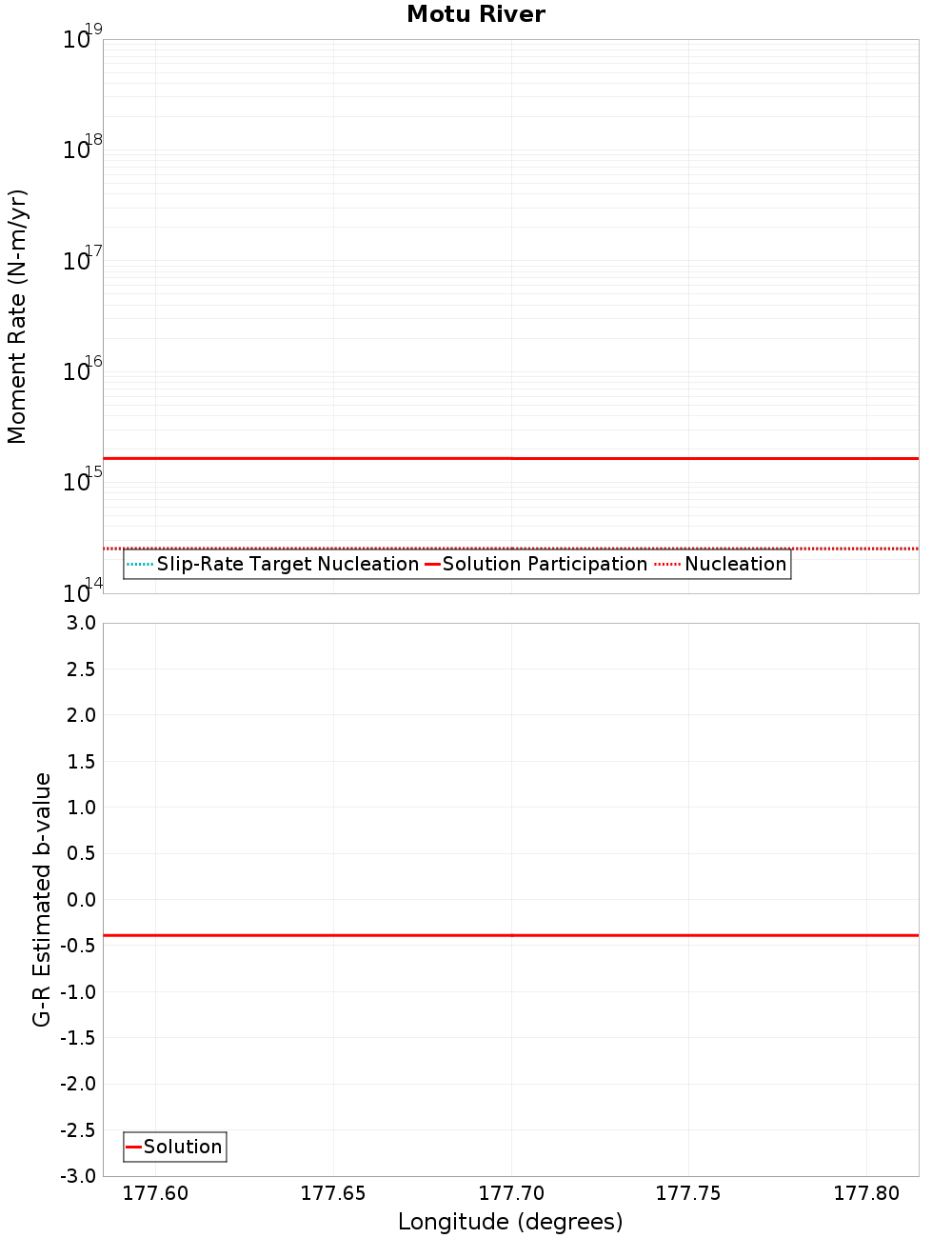

Moment-Rates and b-Values

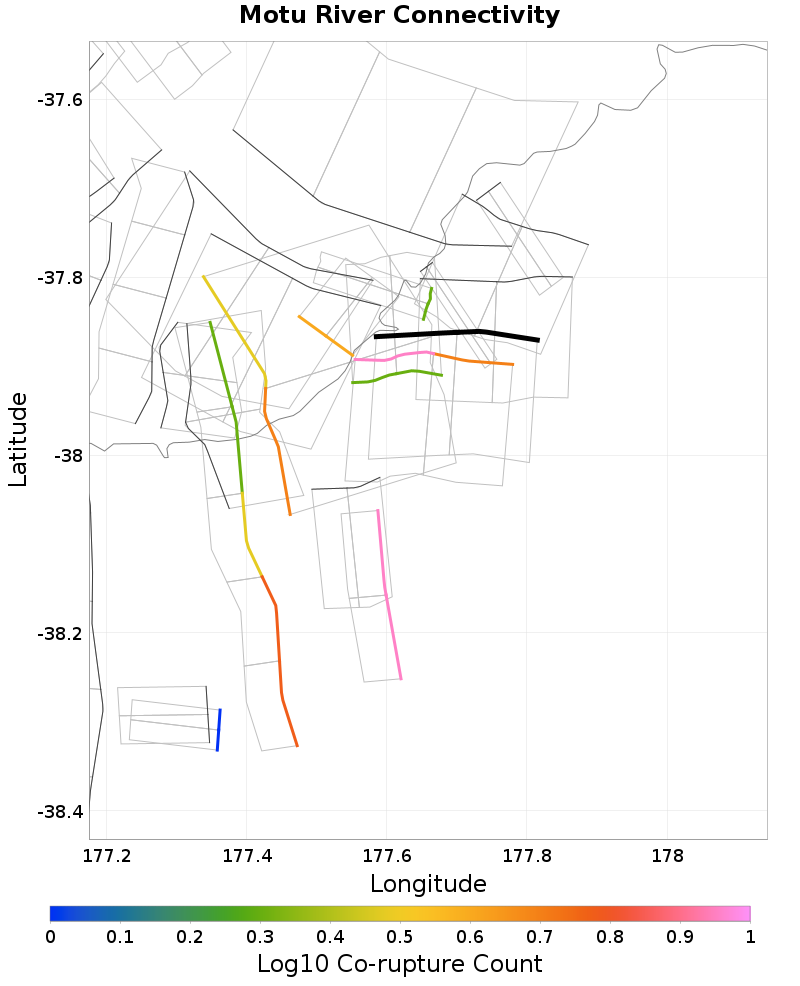

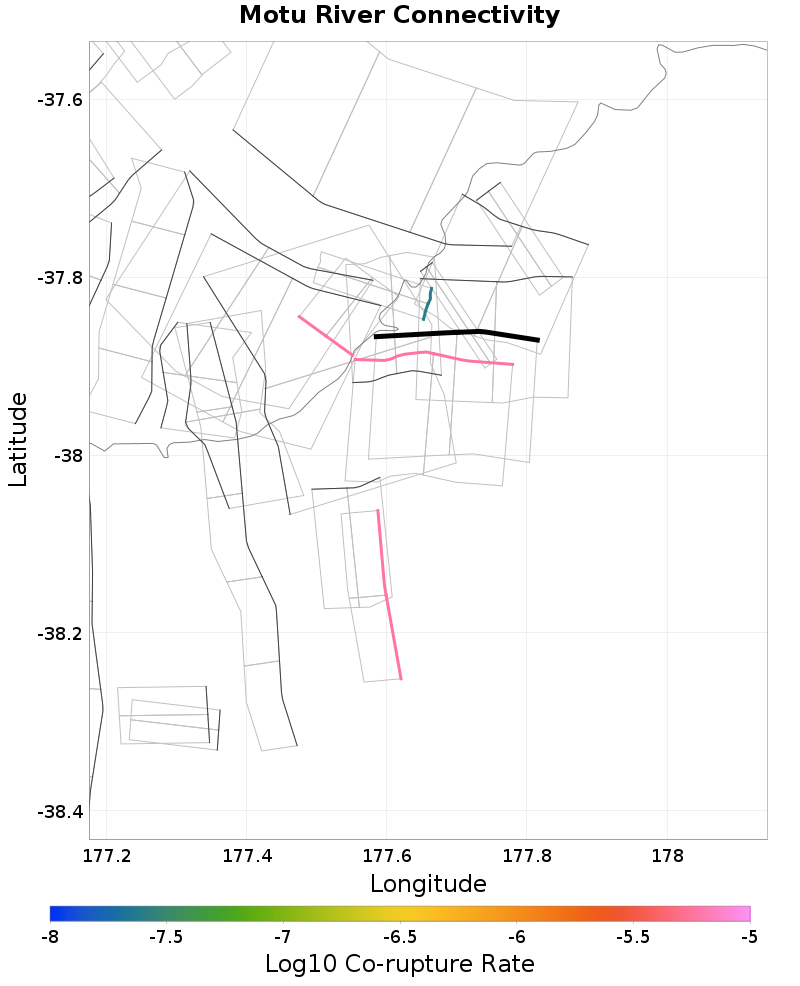

Connectivity
 |  |
|---|
Nearby Sections
Opape 1, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Raukumara 17, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Raukumara 20, 1.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.4554884E-8 |
Raukumara 18, 1.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9 |
| Co-rupture Rate | 5.7316925E-6 |
Ohae 3, 2.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 5.7071375E-6 |
Ohae 2, 2.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 21, 5.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 1, 6.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 25, 7.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 5.7316925E-6 |
Tirohanga, 9.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hariki, 10.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kereu, 11.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 24, 14.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 16, 15.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opotiki 2, 16.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kotare - Moutuhora, 19.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTMuMGlGZFk3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
