Alfredton South Details

Property	Value
Rupture Count	2,281
Ruptures Above Sect Min Mag	2,279
Ruptures w/ Nonzero Rates	10
Magnitude Range	[6.55, 8.69]
Length Range	[10, 1,112] km
Total Rate	6.45484E-4 /yr
Multi-Fault Rate	6.45484E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	58

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

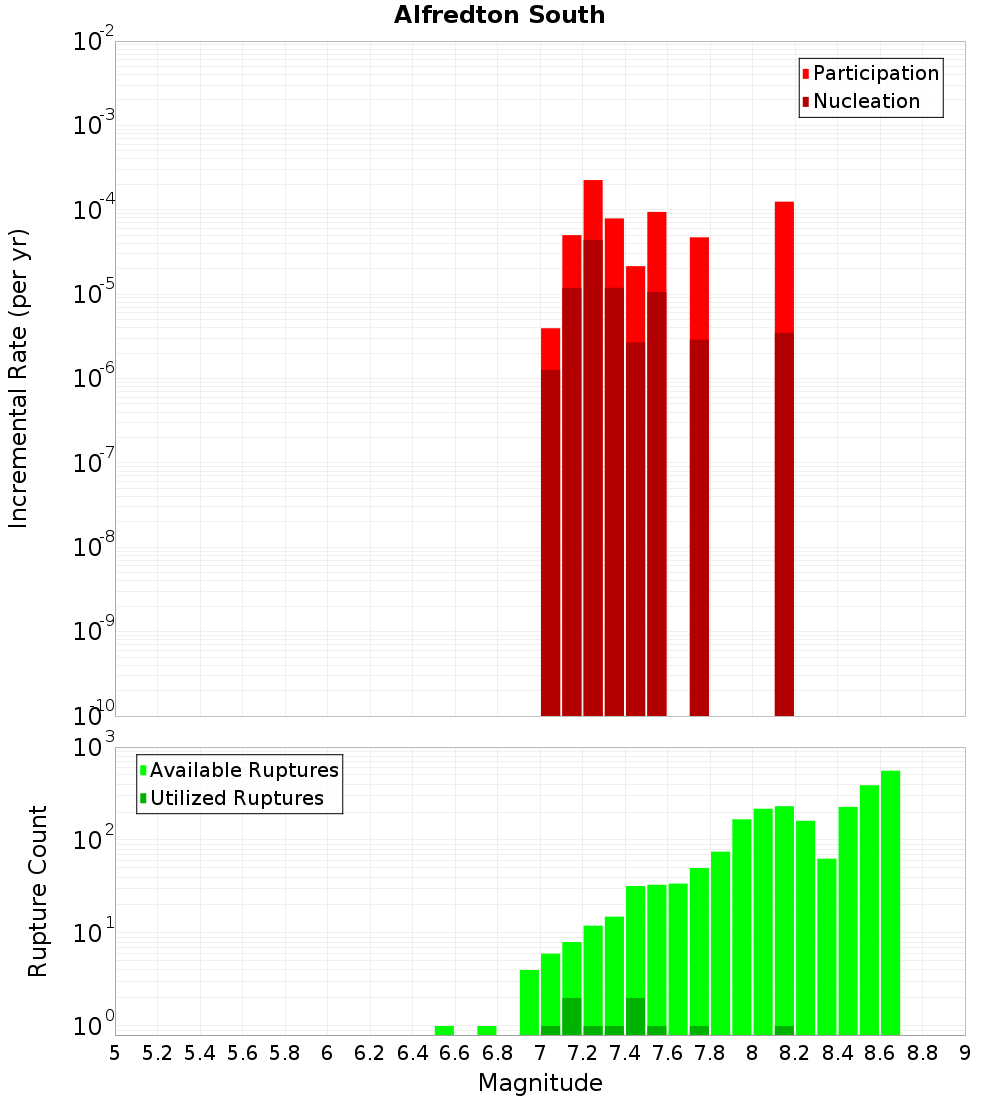

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Saunders Road, 0 km away
Alfredton North, 0 km away
Dreyers Rock, 0 km away
Pa Valley, 0.07 km away
Wairarapa: 3, 7.46 km away
Mokonui Northeast, 9.5 km away
Mokonui Southwest, 9.66 km away
Makuri - Waewaepa, 15.34 km away
Waitawhiti, 15.85 km away
Tokomaru, 17.22 km away
Wellington: Pahiatua, 18.67 km away

Saunders Road, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	true
Directly Connected?	true
Co-rupture Count	1,185
Co-rupture Rate	2.7493204E-4

Alfredton North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	true
Directly Connected?	true
Co-rupture Count	656
Co-rupture Rate	3.6660896E-4

Dreyers Rock, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	true
Directly Connected?	true
Co-rupture Count	2,230
Co-rupture Rate	5.954497E-4

Pa Valley, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	true
Directly Connected?	true
Co-rupture Count	88
Co-rupture Rate	0.0

Wairarapa: 3, 7.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	true
Directly Connected?	false
Co-rupture Count	2,249
Co-rupture Rate	2.8763738E-4

Mokonui Northeast, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	3.943056E-6

Mokonui Southwest, 9.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 15.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	true
Directly Connected?	false
Co-rupture Count	490
Co-rupture Rate	3.6660896E-4

Waitawhiti, 15.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tokomaru, 17.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Pahiatua, 18.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
