Edgecumbe 1987 Details

PropertyValue
Rupture Count16,060
Ruptures Above Sect Min Mag16,050
Ruptures w/ Nonzero Rates7
Magnitude Range[6.59, 8.41]
Length Range[13, 594] km
Total Rate2.2156395E-4 /yr
Multi-Fault Rate2.2156395E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults83

Table Of Contents

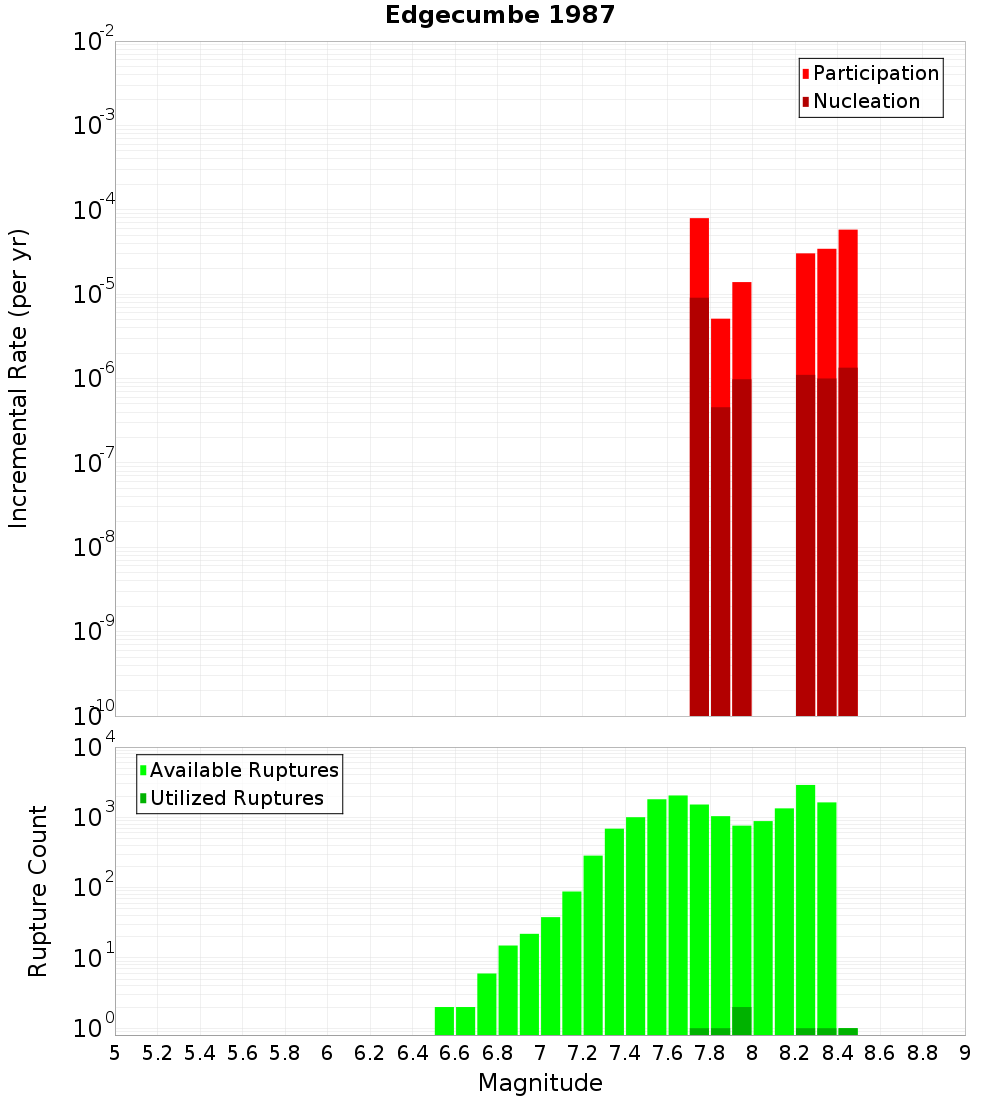

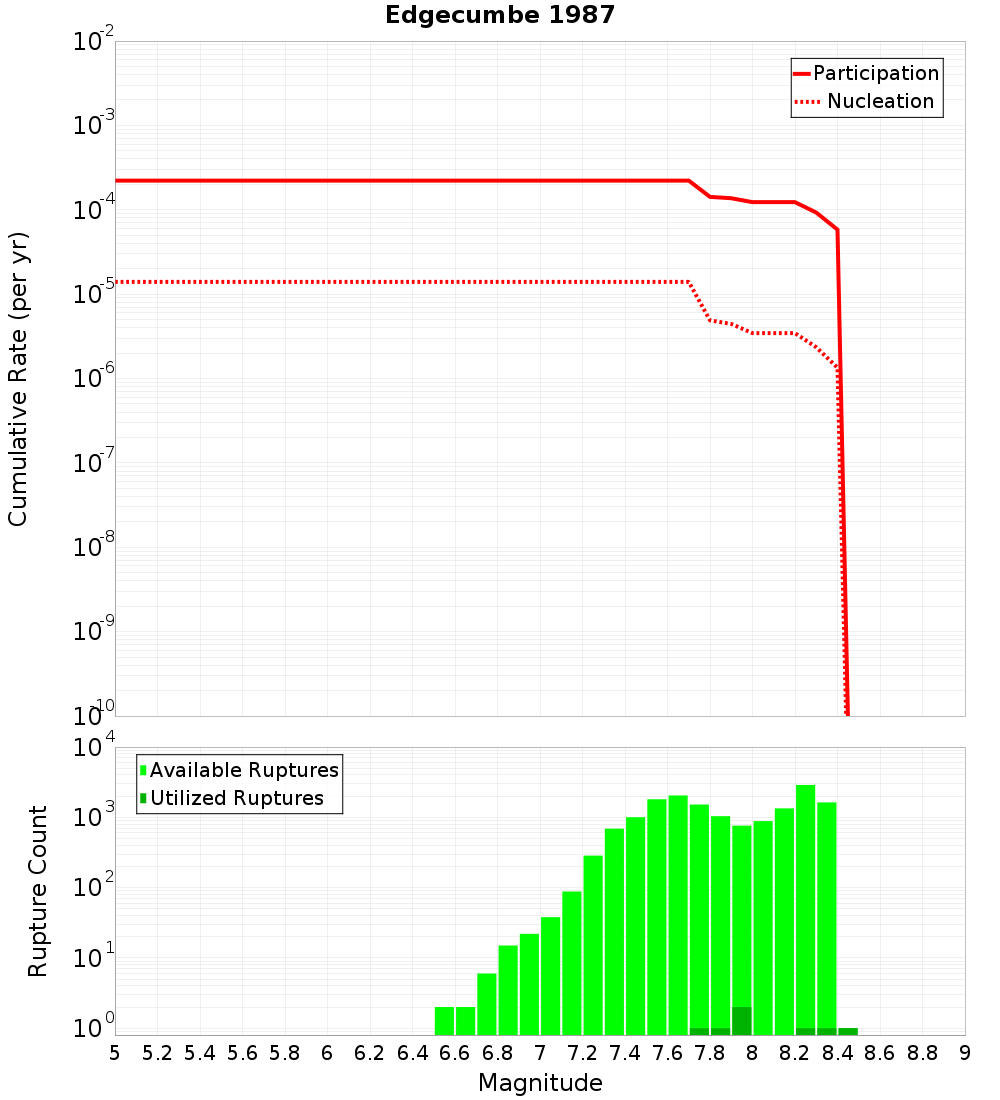

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

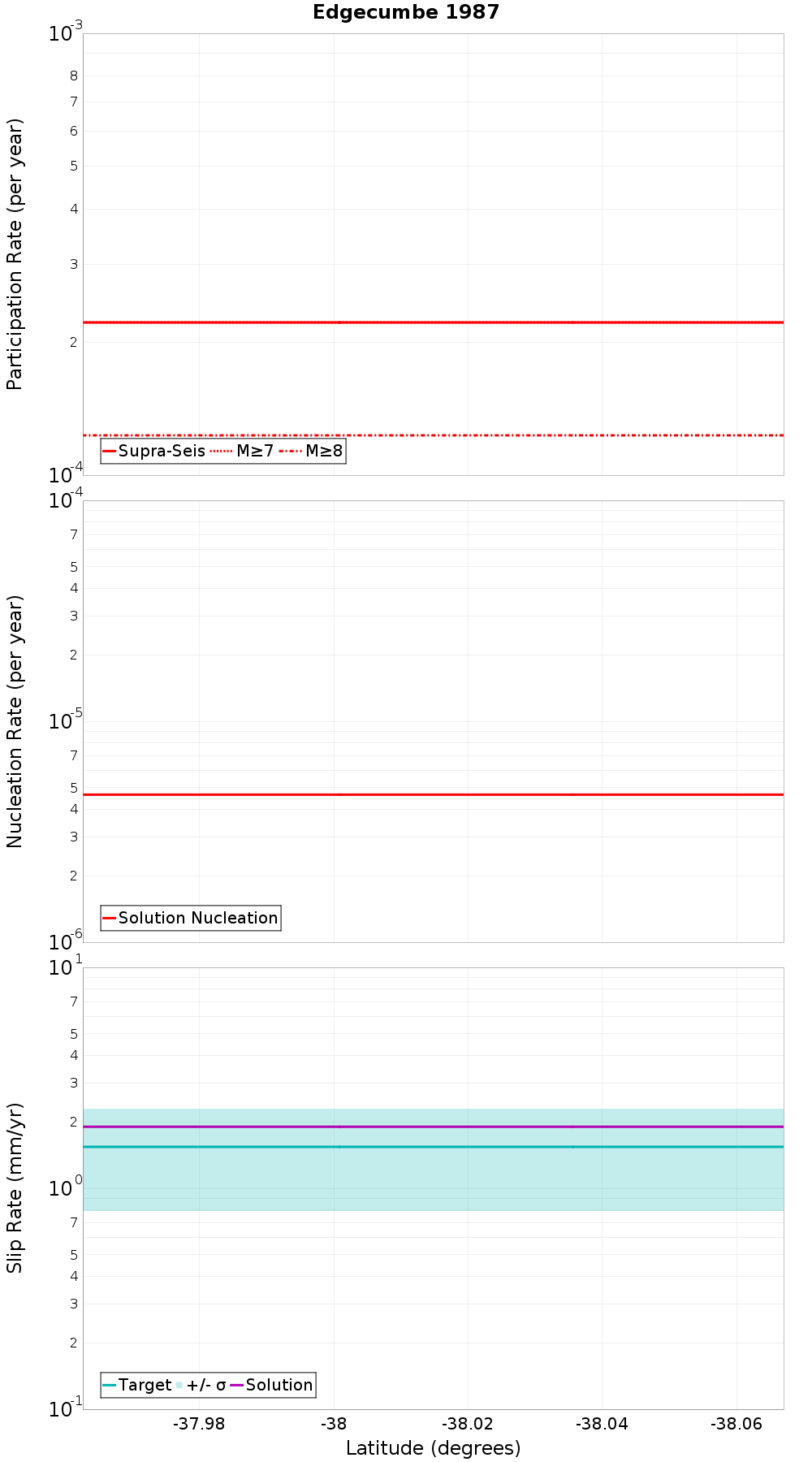

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

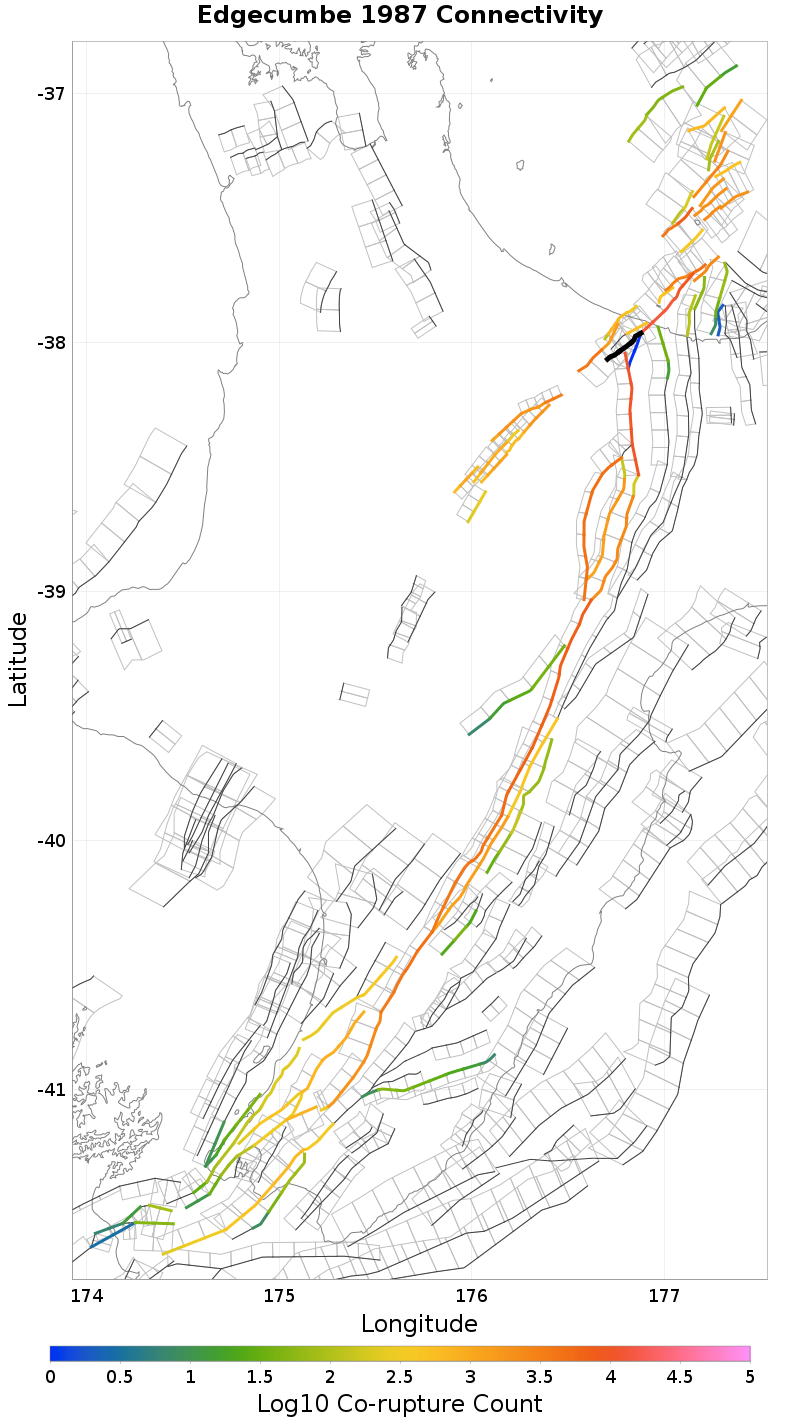

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Edgecumbe Coastal, 0 km away
Awakeri, 0 km away
Otakiri, 0.16 km away
Braemar, 0.31 km away
Matata, 1.18 km away
Waiohau: North, 2.21 km away
White Island 1, 5.15 km away
Whakatane: North, 7.16 km away
Rangitaiki 1, 15.18 km away

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?true
Co-rupture Count12,095
Co-rupture Rate2.2156395E-4

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Otakiri, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?true
Co-rupture Count504
Co-rupture Rate0.0

Braemar, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?true
Co-rupture Count3,994
Co-rupture Rate8.463829E-5

Matata, 1.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?true
Co-rupture Count779
Co-rupture Rate0.0

Waiohau: North, 2.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?true
Co-rupture Count10,705
Co-rupture Rate1.3692566E-4

White Island 1, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?true
Co-rupture Count13,634
Co-rupture Rate1.4204335E-4

Whakatane: North, 7.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate0.0

Rangitaiki 1, 15.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMTguMHVCNEZO
Connected?true
Directly Connected?false
Co-rupture Count463
Co-rupture Rate7.95206E-5
