Ariel Bank 2 Details

PropertyValue
Rupture Count136
Ruptures Above Sect Min Mag134
Ruptures w/ Nonzero Rates10
Magnitude Range[6.78, 7.69]
Length Range[17, 136] km
Total Rate0.001455612 /yr
Multi-Fault Rate0.001455612 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

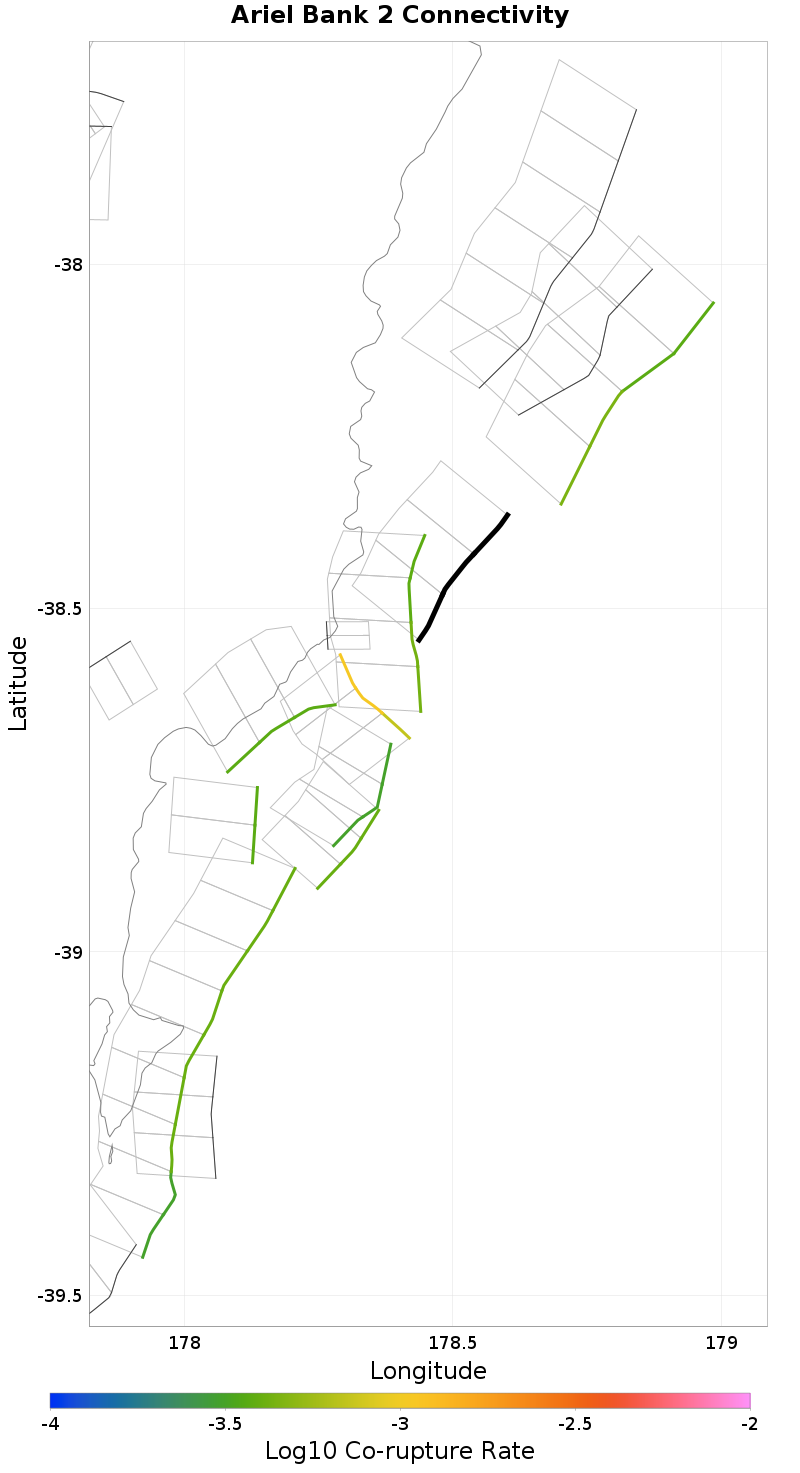

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Gable End North, 0.9 km away
Pakarae, 3.93 km away
Ruatoria South 3, 7.91 km away
Te Ikaarongamai, 11.26 km away
Gable End South, 11.88 km away
Ruatoria South 4, 14.82 km away
Houtunui, 16.42 km away
Ariel Bank, 17.07 km away

Gable End North, 0.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?true
Co-rupture Count78
Co-rupture Rate4.267601E-4

Pakarae, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruatoria South 3, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?true
Co-rupture Count69
Co-rupture Rate4.4557726E-4

Te Ikaarongamai, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?true
Co-rupture Count59
Co-rupture Rate0.001084708

Gable End South, 11.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate3.6698923E-4

Ruatoria South 4, 14.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Houtunui, 16.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Ariel Bank, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate3.07574E-4
