Leader: Central Details

PropertyValue
Rupture Count696
Ruptures Above Sect Min Mag695
Ruptures w/ Nonzero Rates15
Magnitude Range[6.52, 8.57]
Length Range[10, 756] km
Total Rate2.3238452E-5 /yr
Multi-Fault Rate2.3238452E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults74

Table Of Contents

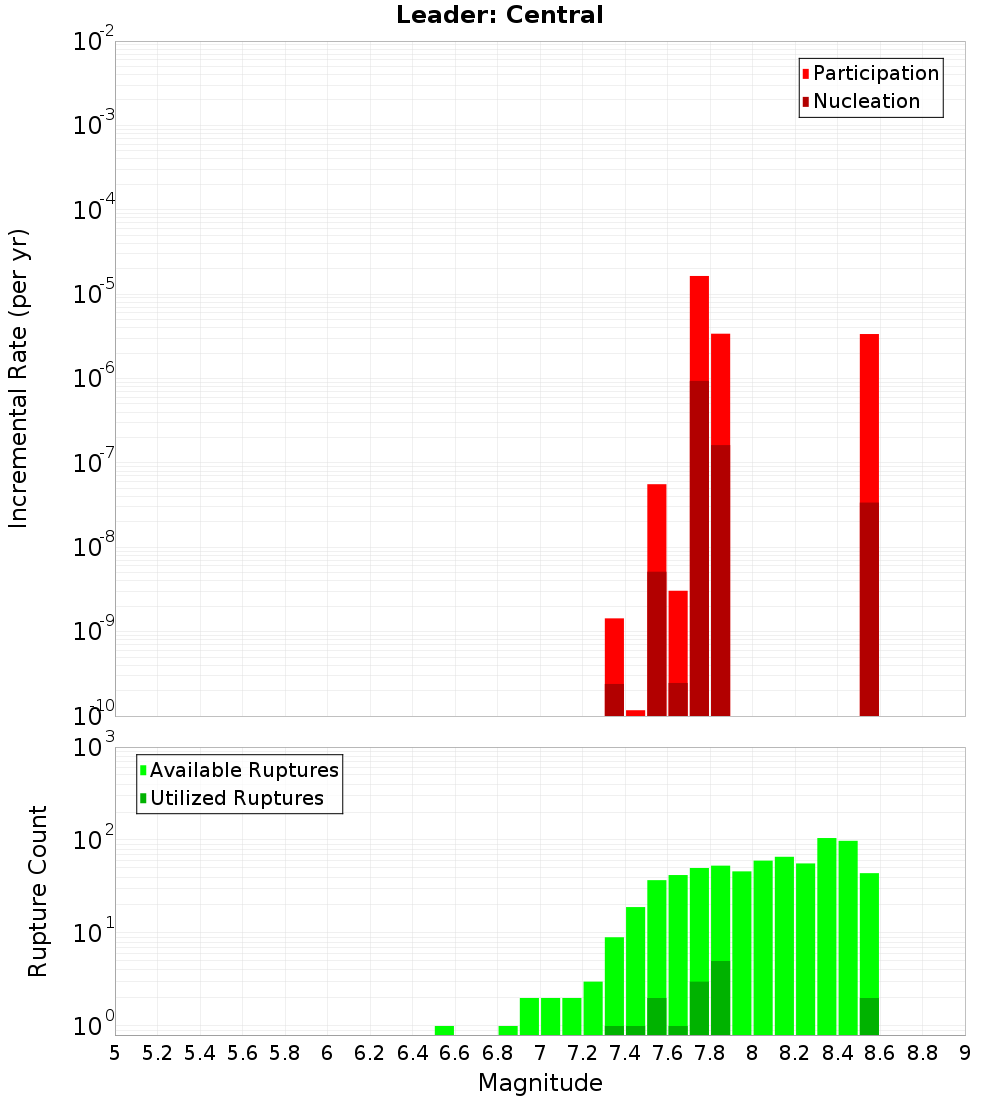

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Leader: North, 0 km away
Leader: South, 0 km away
Hundalee, 0.1 km away
Kaiwara North, 2.03 km away
The Humps, 2.9 km away
Hope: Conway, 4.85 km away
StoneJug, 9.3 km away
Hawkswood, 10.66 km away
Elliott, 16.7 km away
Leonard Mound, 17.53 km away
Hope: Hamner SE, 19.36 km away

Leader: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate5.9646864E-6

Leader: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?true
Co-rupture Count137
Co-rupture Rate1.3445598E-5

Hundalee, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate5.9646864E-6

Kaiwara North, 2.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate5.9646864E-6

The Humps, 2.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate0.0

Hope: Conway, 4.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?true
Co-rupture Count625
Co-rupture Rate1.7273765E-5

StoneJug, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkswood, 10.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 16.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?false
Co-rupture Count57
Co-rupture Rate0.0

Leonard Mound, 17.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Hope: Hamner SE, 19.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?true
Directly Connected?false
Co-rupture Count422
Co-rupture Rate3.3661338E-6
