Solander Details
| Property | Value |
|---|---|
| Rupture Count | 17 |
| Ruptures Above Sect Min Mag | 15 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [7.07, 7.70] |
| Length Range | [23, 100] km |
| Total Rate | 1.7764878E-5 /yr |
| Multi-Fault Rate | 1.4256165E-5 /yr (80.25%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

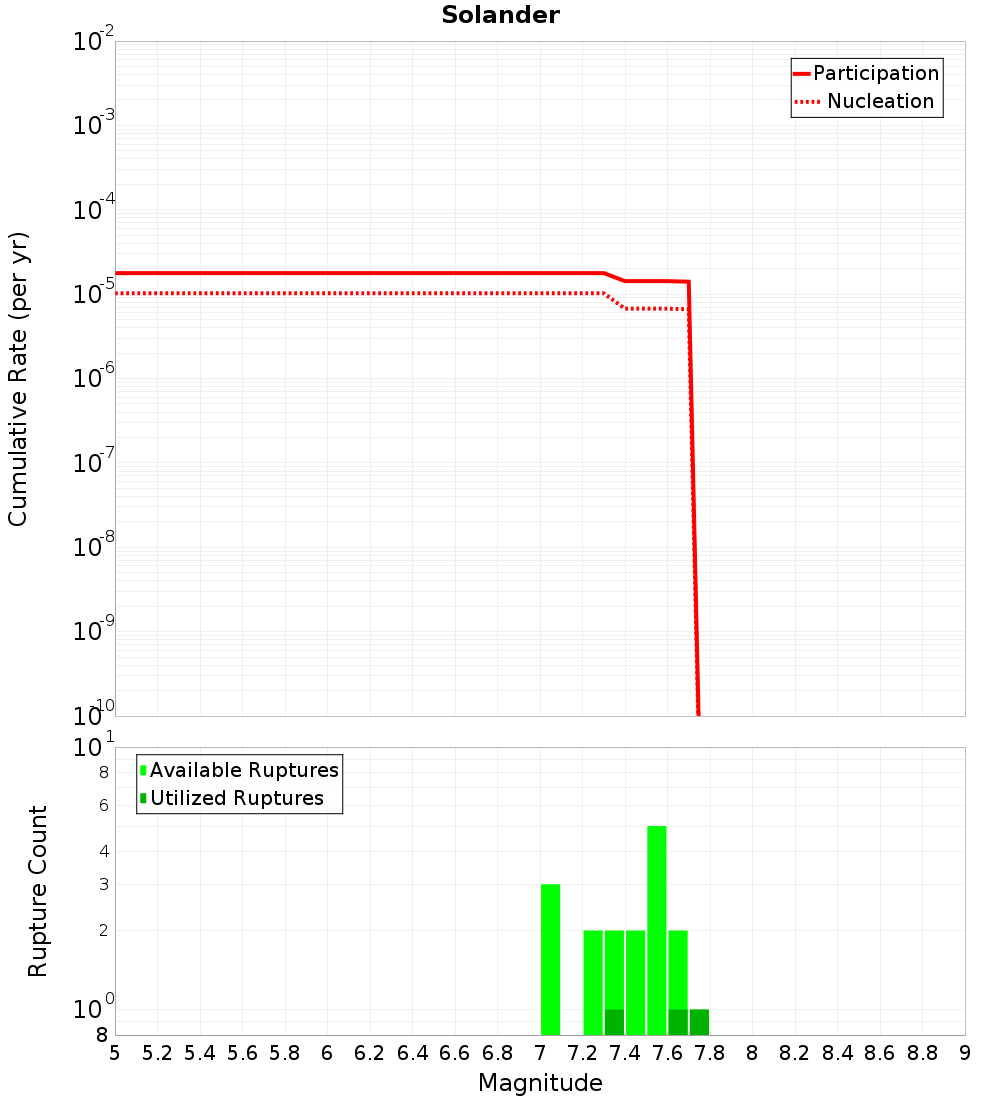

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

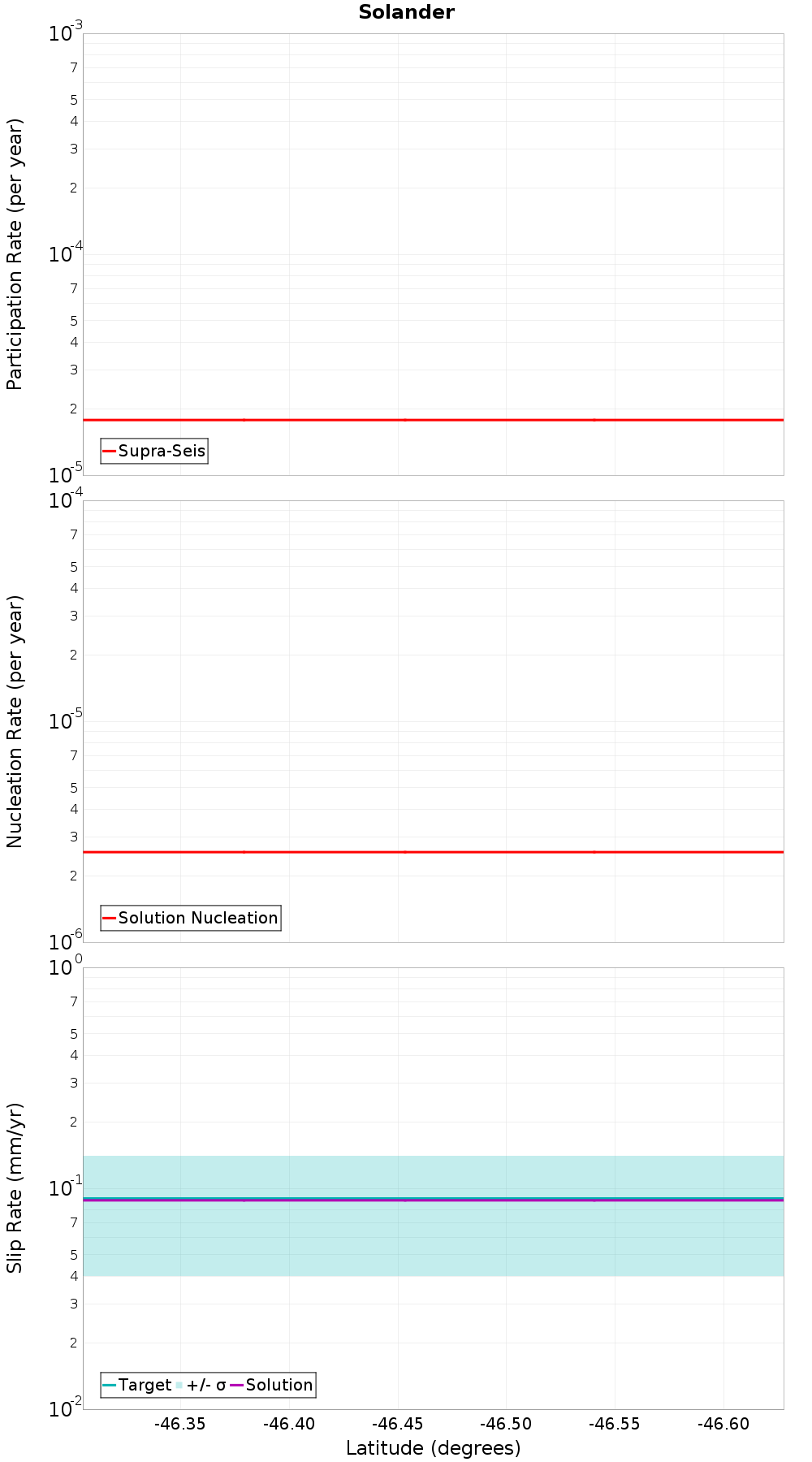

Along-Strike Values

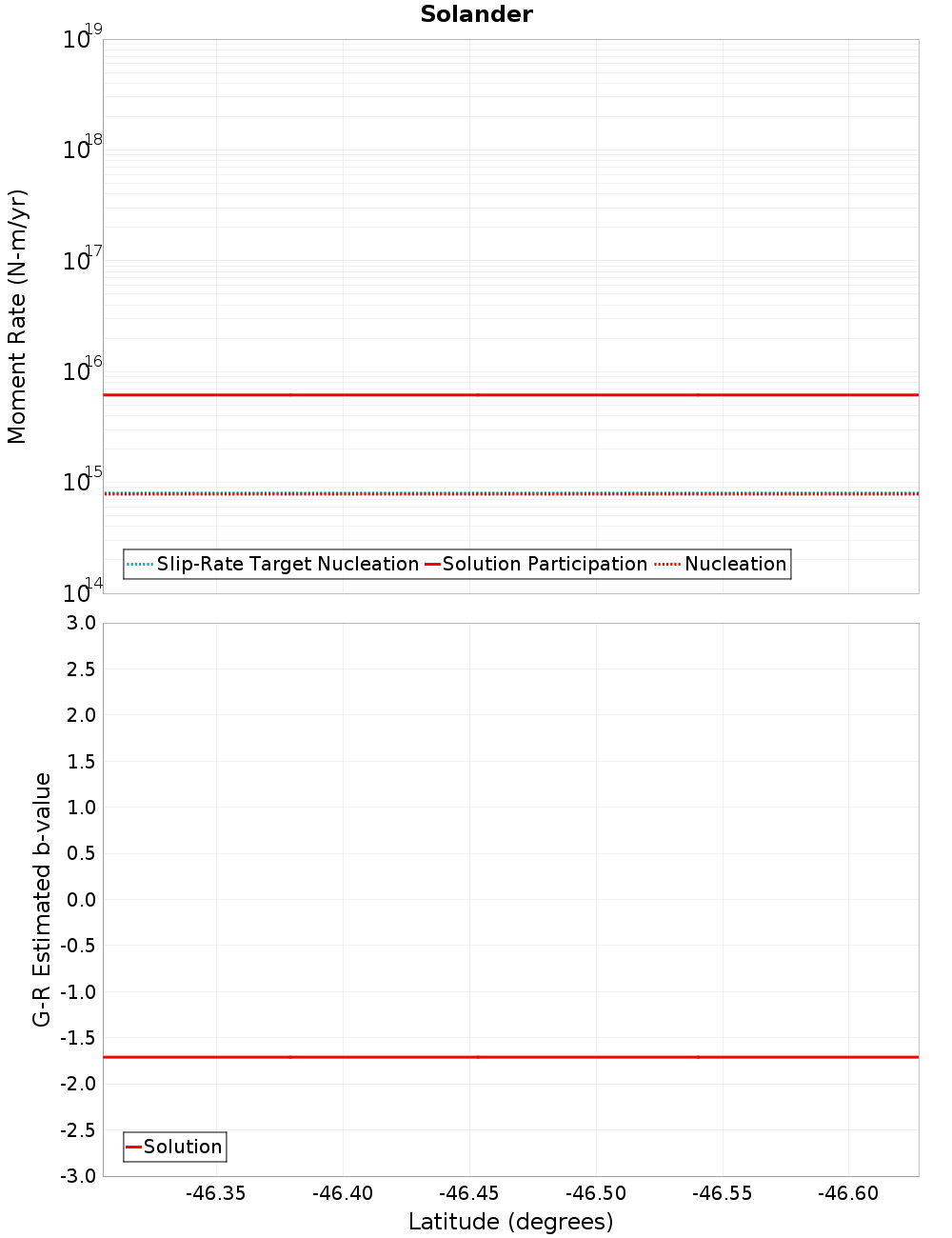

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hump Ridge, 5.29 km away |
Hump Ridge, 5.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 1.4256165E-5 |
