Vernon 2 Details

Property	Value
Rupture Count	11,770
Ruptures Above Sect Min Mag	11,769
Ruptures w/ Nonzero Rates	30
Magnitude Range	[6.70, 8.56]
Length Range	[13, 816] km
Total Rate	5.8399385E-4 /yr
Multi-Fault Rate	5.8399385E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	131

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

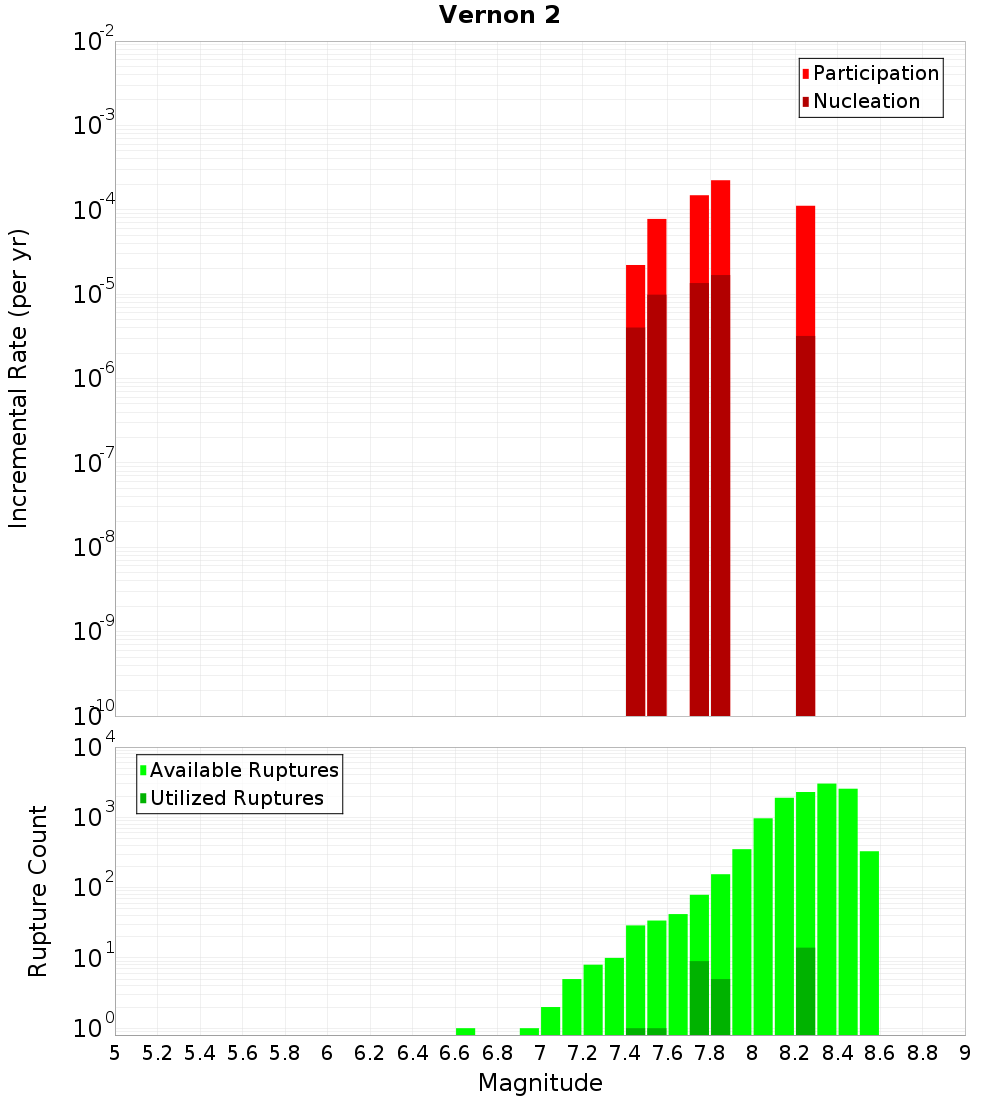

Magnitude-Frequency Distribution

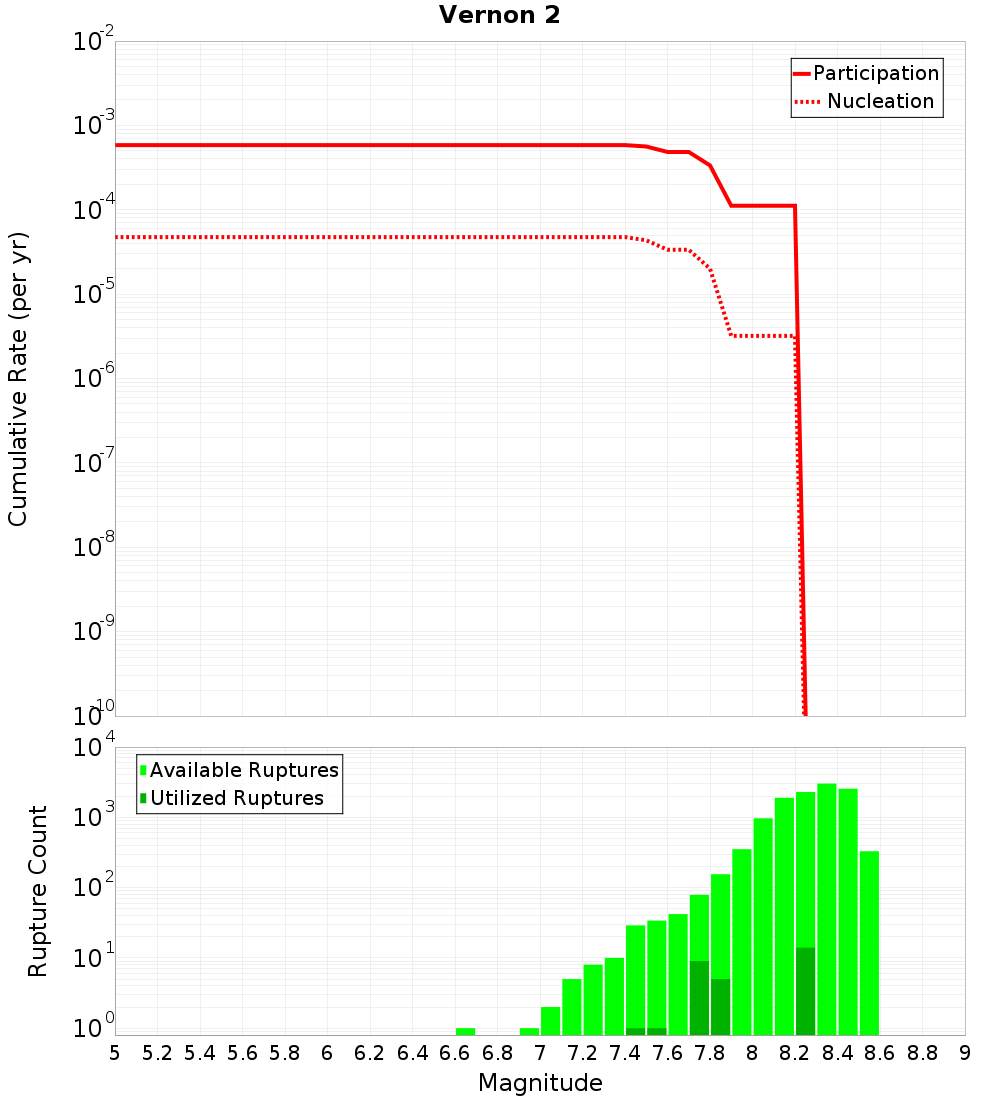

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

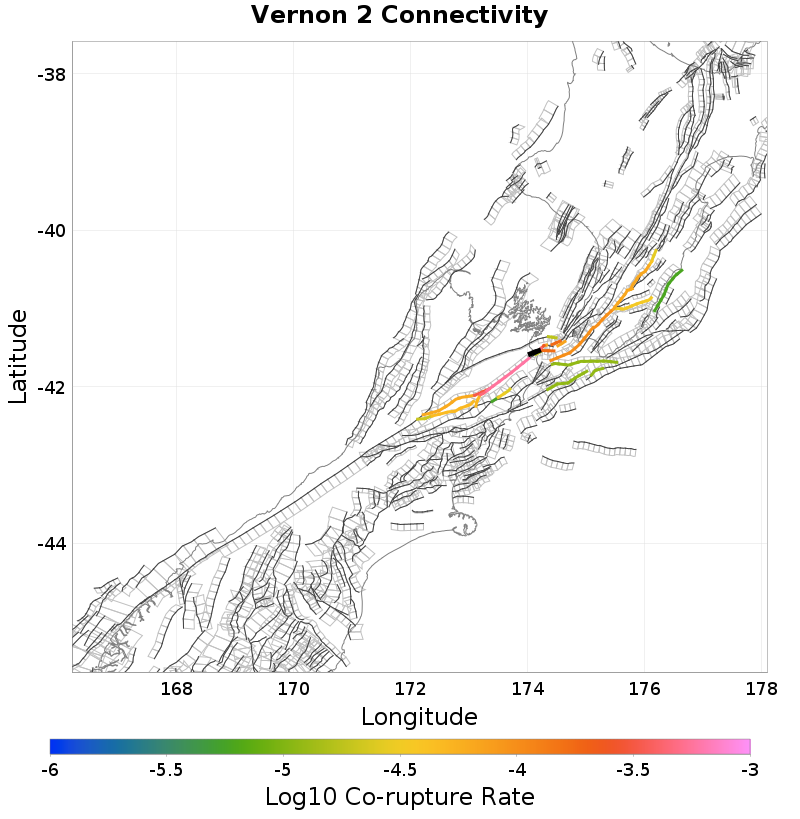

Connectivity

Nearby Sections

Fault Section
Cloudy 1, 0 km away
Vernon 1, 0 km away
Vernon 3, 0 km away
Awatere: Northeast 2, 0.12 km away
Awatere: Northeast 1, 4.62 km away
Vernon 4, 5.22 km away
Cloudy 3, 7.26 km away
Cloudy 2, 8.36 km away
Needles East 2, 12.36 km away
Wairau, 14 km away
Wairarapa: Needles, 14.03 km away
Wairau 2, 14.3 km away
London Hill, 16.59 km away
Wairau 3, 17 km away

Cloudy 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	11,624
Co-rupture Rate	4.294089E-4

Vernon 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	0.0

Vernon 3, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Awatere: Northeast 2, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	45
Co-rupture Rate	1.7445365E-5

Awatere: Northeast 1, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	11,006
Co-rupture Rate	5.8399385E-4

Vernon 4, 5.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	4,139
Co-rupture Rate	1.6680459E-4

Cloudy 3, 7.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	7,190
Co-rupture Rate	0.0

Cloudy 2, 8.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	117
Co-rupture Rate	6.942329E-5

Needles East 2, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau, 14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0

Wairarapa: Needles, 14.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	9,705
Co-rupture Rate	9.9924124E-5

Wairau 2, 14.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

London Hill, 16.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairau 3, 17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjMuMHo2ZFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	1.7445365E-5
