Chancet Details

PropertyValue
Rupture Count3,014
Ruptures Above Sect Min Mag3,010
Ruptures w/ Nonzero Rates25
Magnitude Range[6.68, 8.63]
Length Range[14, 947] km
Total Rate4.8375226E-4 /yr
Multi-Fault Rate4.8375226E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults72

Table Of Contents

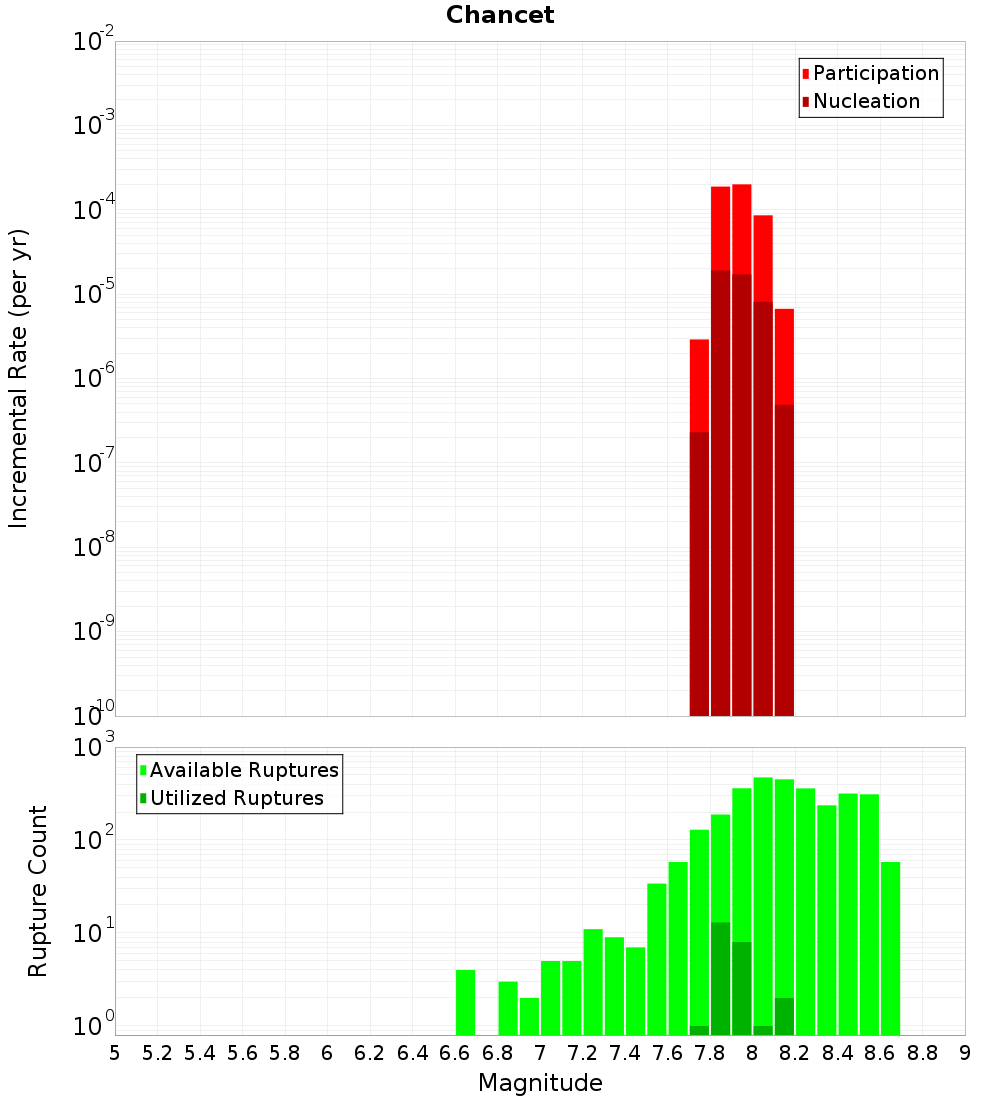

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

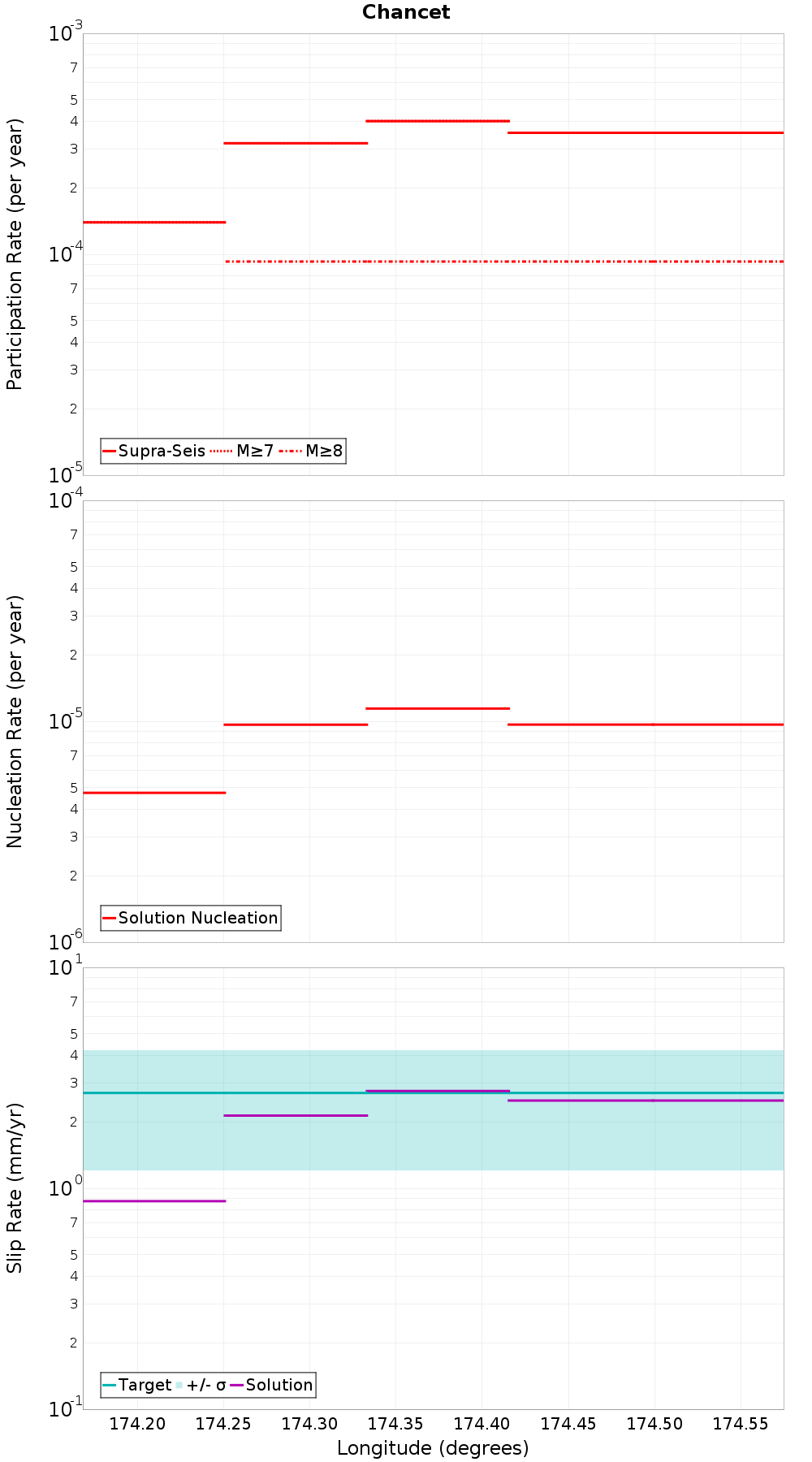

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

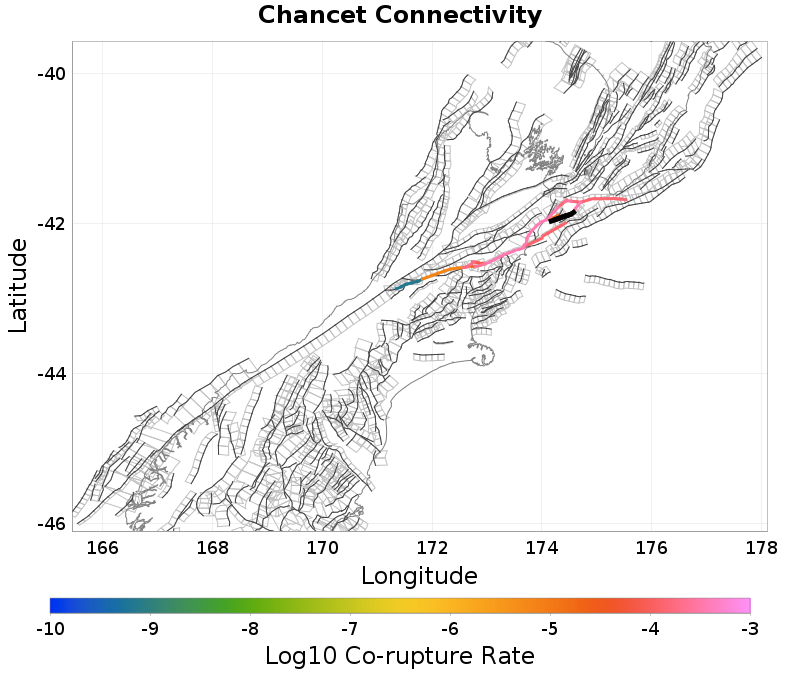

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Campbell Bank, 0 km away
Wharanui, 0.07 km away
London Hill, 0.17 km away
Upper Slope, 1.61 km away
Needles East 2, 2.61 km away
Needles, 6.52 km away
Kekerengu 1, 7.4 km away
Hope: Te Rapa, 8.16 km away
Te Rapa 1, 8.16 km away
Te Rapa 2, 11.11 km away
Kekerengu Bank, 15.35 km away
BooBoo, 15.89 km away
Clarence: Northeast, 18.61 km away

Campbell Bank, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?true
Co-rupture Count1,841
Co-rupture Rate3.5447846E-4

Wharanui, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

London Hill, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?true
Co-rupture Count150
Co-rupture Rate0.0

Upper Slope, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 2.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?true
Co-rupture Count496
Co-rupture Rate1.4035382E-5

Needles, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?true
Co-rupture Count877
Co-rupture Rate3.4427084E-4

Kekerengu 1, 7.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?false
Co-rupture Count724
Co-rupture Rate3.5830622E-4

Hope: Te Rapa, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?true
Co-rupture Count889
Co-rupture Rate1.2544605E-4

Te Rapa 1, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Te Rapa 2, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Kekerengu Bank, 15.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?false
Co-rupture Count123
Co-rupture Rate0.0

BooBoo, 15.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?true
Directly Connected?false
Co-rupture Count1,634
Co-rupture Rate2.7250117E-4

Clarence: Northeast, 18.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMjQuMDJVaVJ0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
