Caswell High 10 Details
| Property | Value |
|---|---|
| Rupture Count | 953 |
| Ruptures Above Sect Min Mag | 952 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.89, 8.59] |
| Length Range | [19, 847] km |
| Total Rate | 1.2048844E-4 /yr |
| Multi-Fault Rate | 2.7563392E-5 /yr (22.88%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 52 |
Table Of Contents

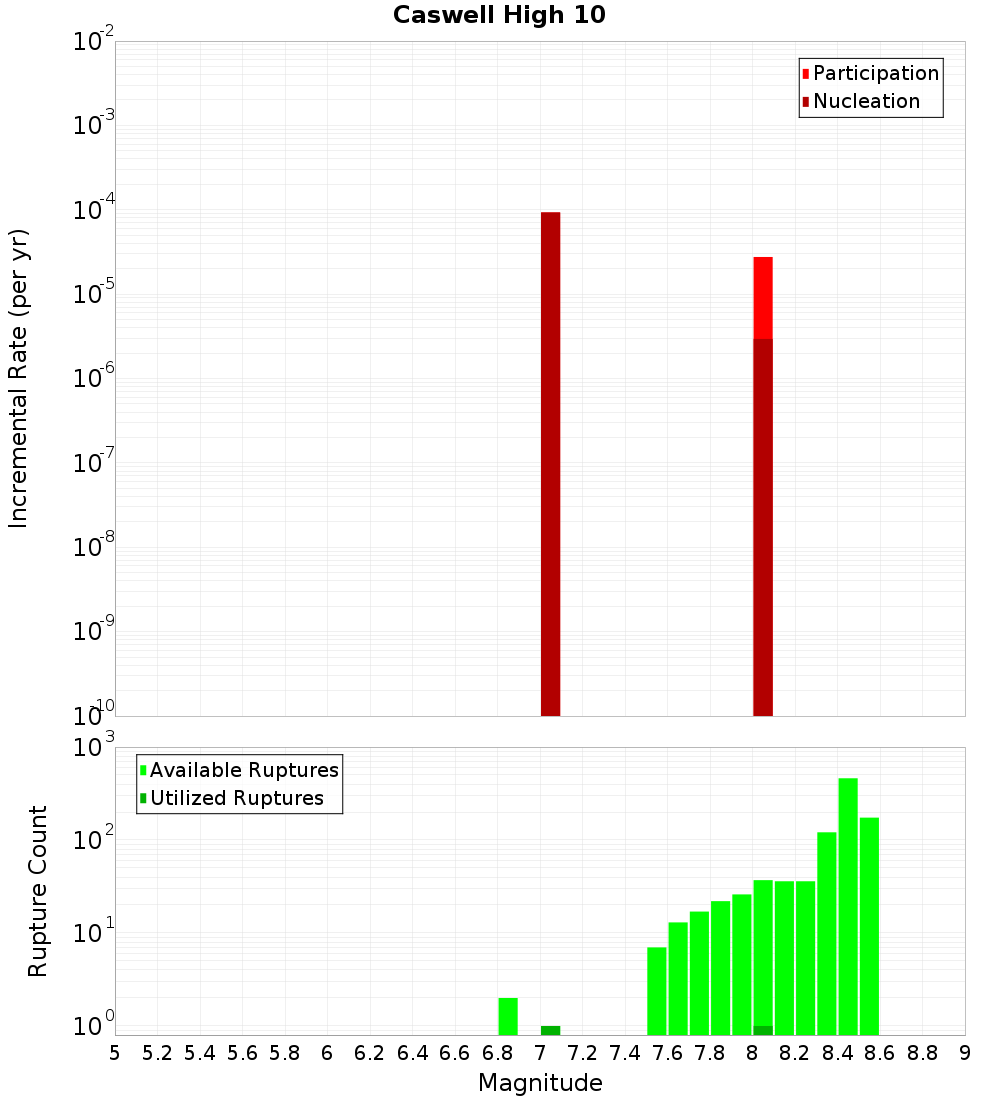

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

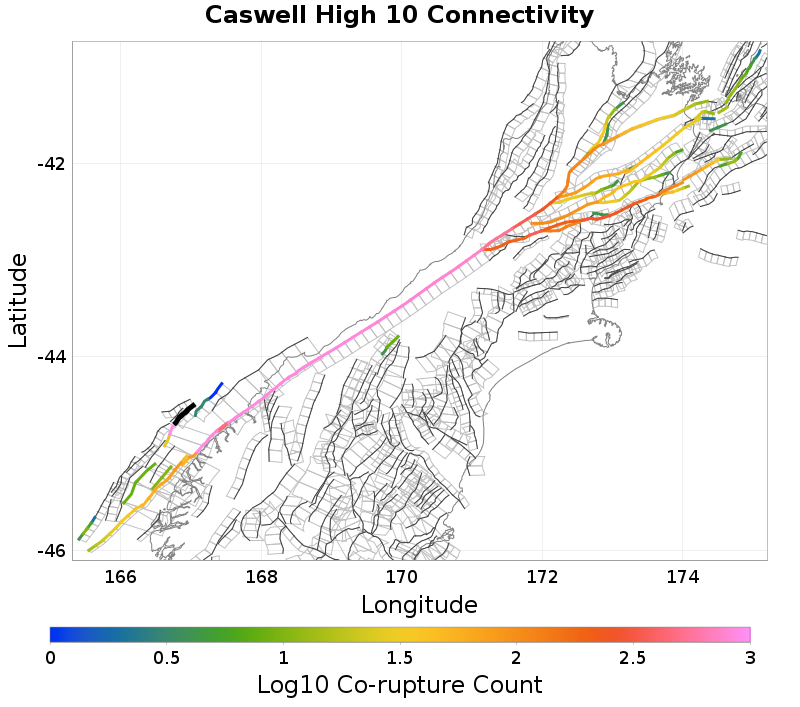

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Central Wedge 1 & 2 & 3, 1.11 km away |
| Caswell High 9, 3.01 km away |
| Caswell High 67, 5.94 km away |
| Milford Basin 5 to George R2, 6.09 km away |
| Caswell High 8, 6.72 km away |
Central Wedge 1 & 2 & 3, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 950 |
| Co-rupture Rate | 2.7563392E-5 |
Caswell High 9, 3.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Caswell High 67, 5.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Milford Basin 5 to George R2, 6.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Caswell High 8, 6.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
