Caswell High 3 Details

PropertyValue
Rupture Count238
Ruptures Above Sect Min Mag235
Ruptures w/ Nonzero Rates3
Magnitude Range[6.64, 7.95]
Length Range[13, 197] km
Total Rate9.788968E-5 /yr
Multi-Fault Rate9.788968E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults13

Table Of Contents

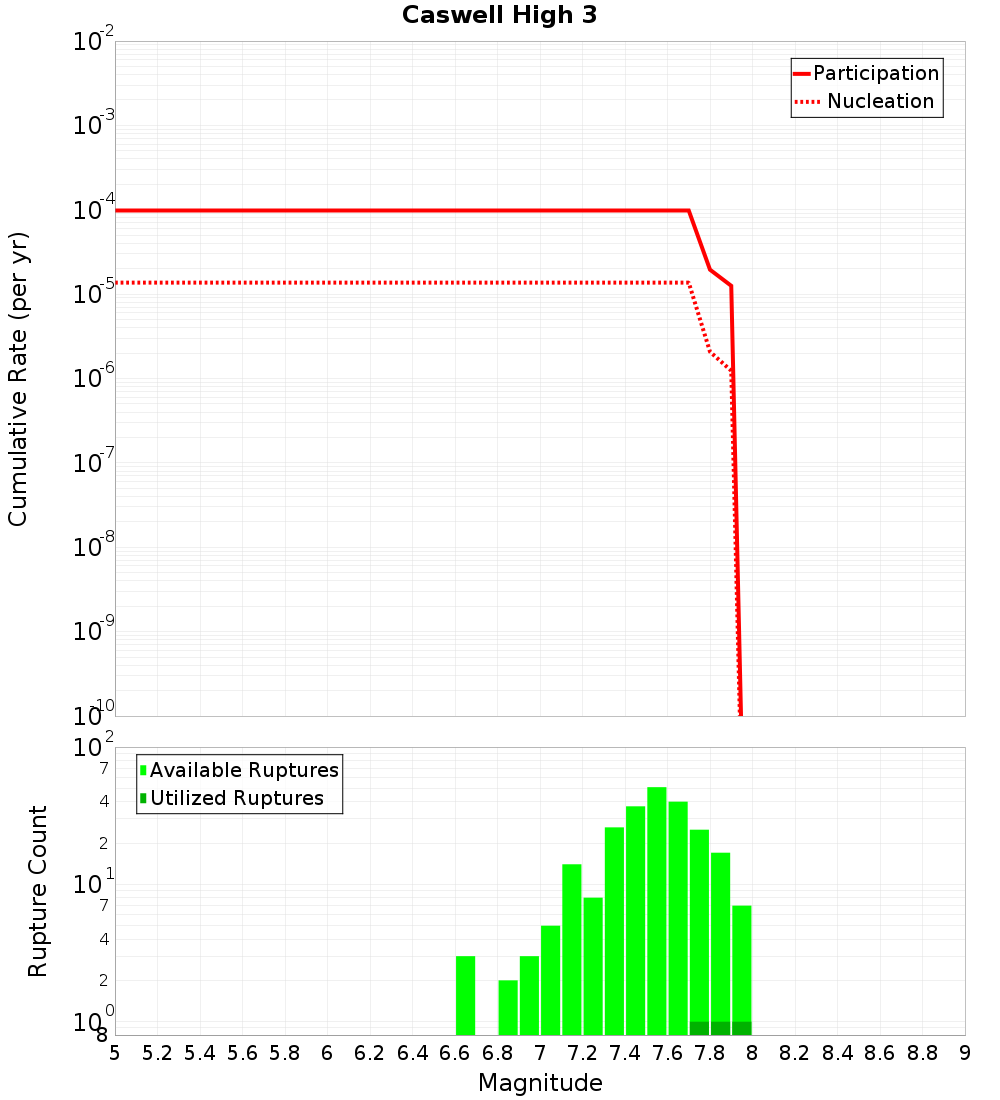

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

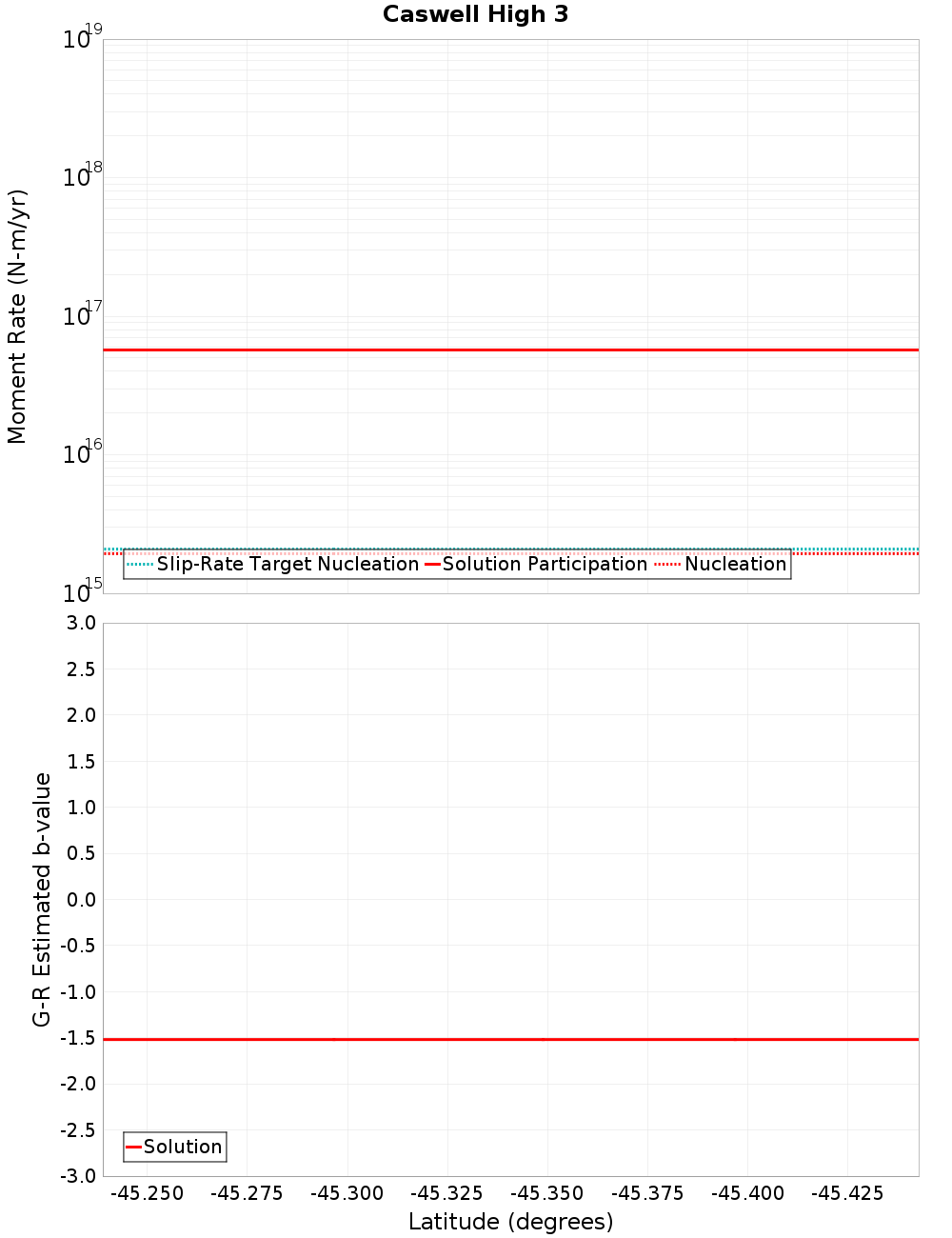

Moment-Rates and b-Values

(top)

Along-strike plot

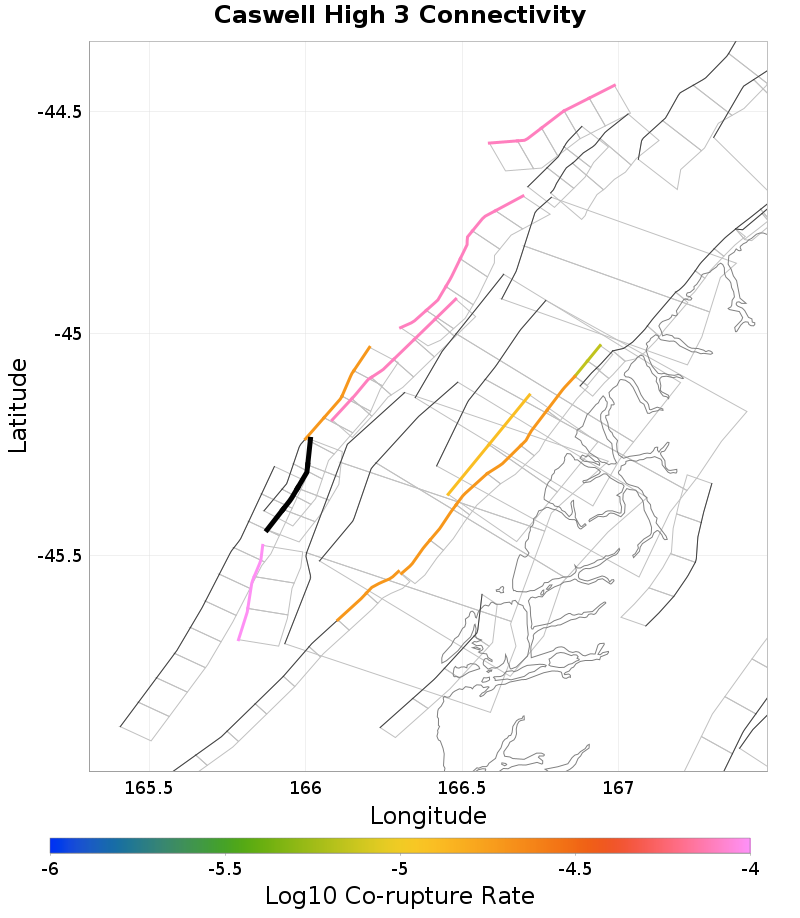

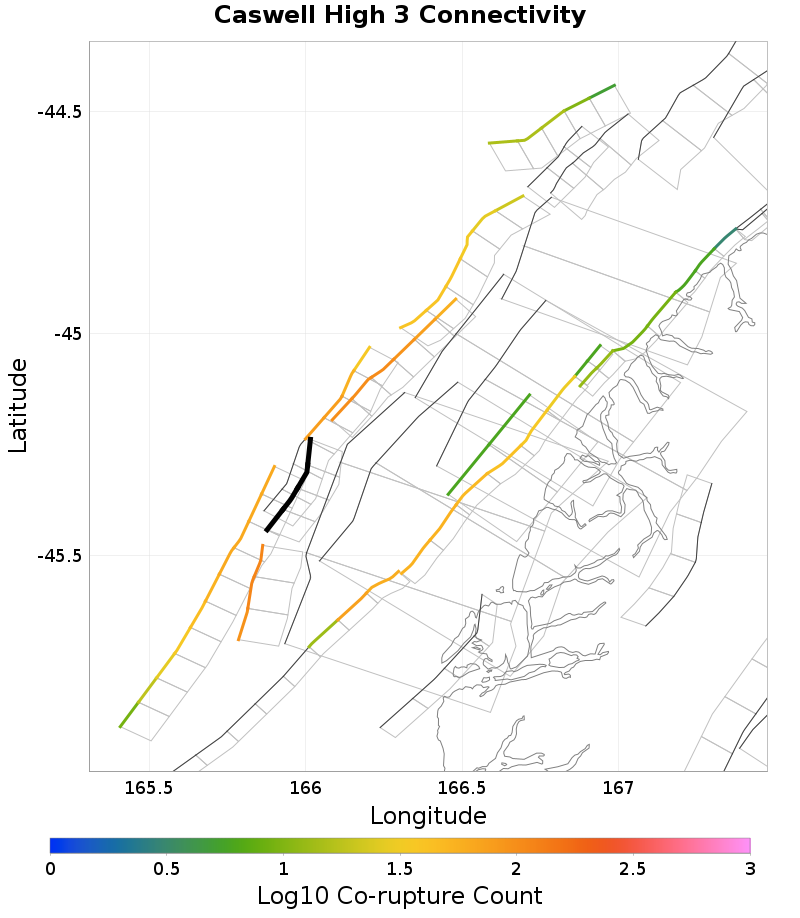

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Caswell High 4, 0.7 km away
Caswell 211, 2.33 km away
Caswell High 5, 4.35 km away
Caswell High 1, 4.37 km away
South Wedge 5, 6.11 km away
South Wedge 3-6-10, 12.92 km away

Caswell High 4, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count78
Co-rupture Rate1.9483543E-5

Caswell 211, 2.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count115
Co-rupture Rate9.788968E-5

Caswell High 5, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count117
Co-rupture Rate7.840614E-5

Caswell High 1, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate0.0

South Wedge 5, 6.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

South Wedge 3-6-10, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
