Ohariu South 2 Details

PropertyValue
Rupture Count2,635
Ruptures Above Sect Min Mag2,634
Ruptures w/ Nonzero Rates3
Magnitude Range[6.53, 8.40]
Length Range[7, 567] km
Total Rate4.3948702E-4 /yr
Multi-Fault Rate4.3948702E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults78

Table Of Contents

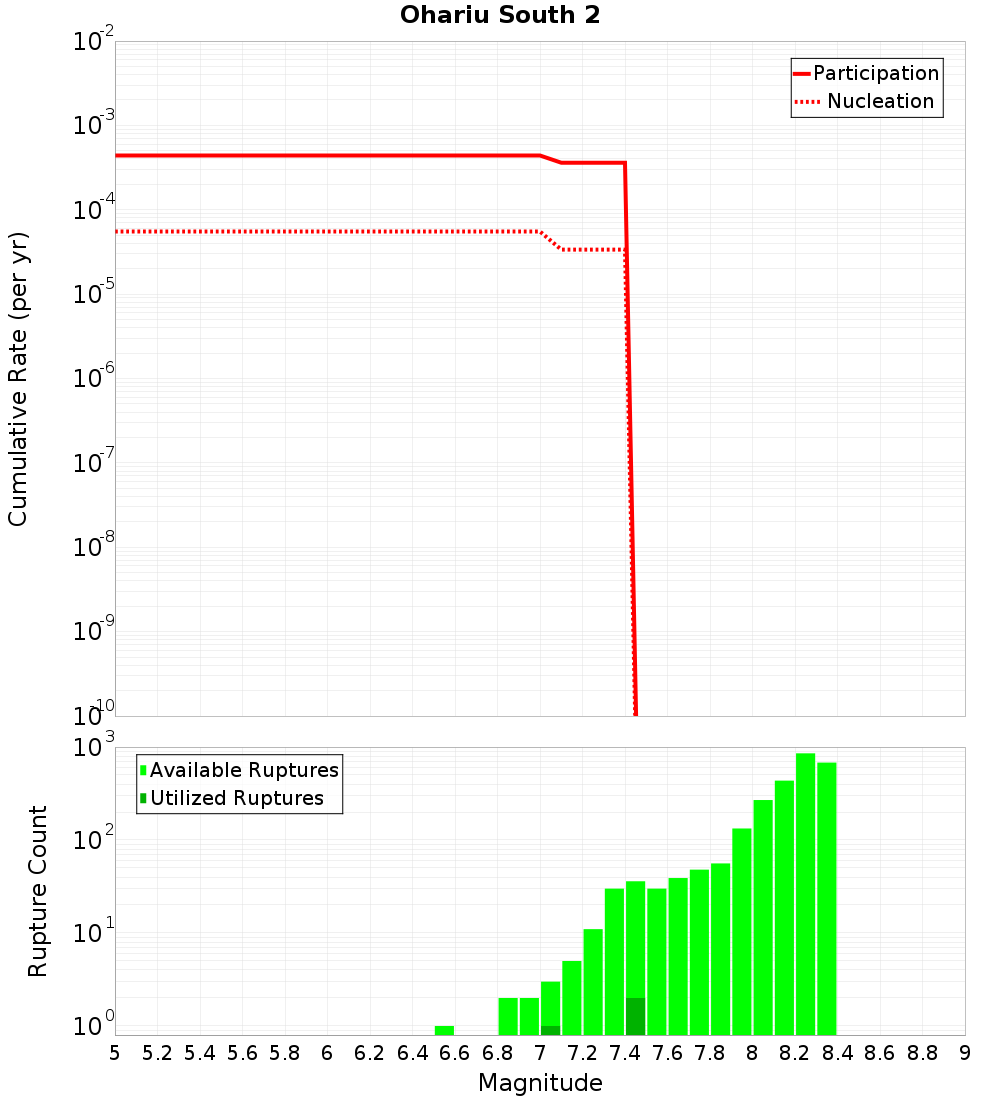

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

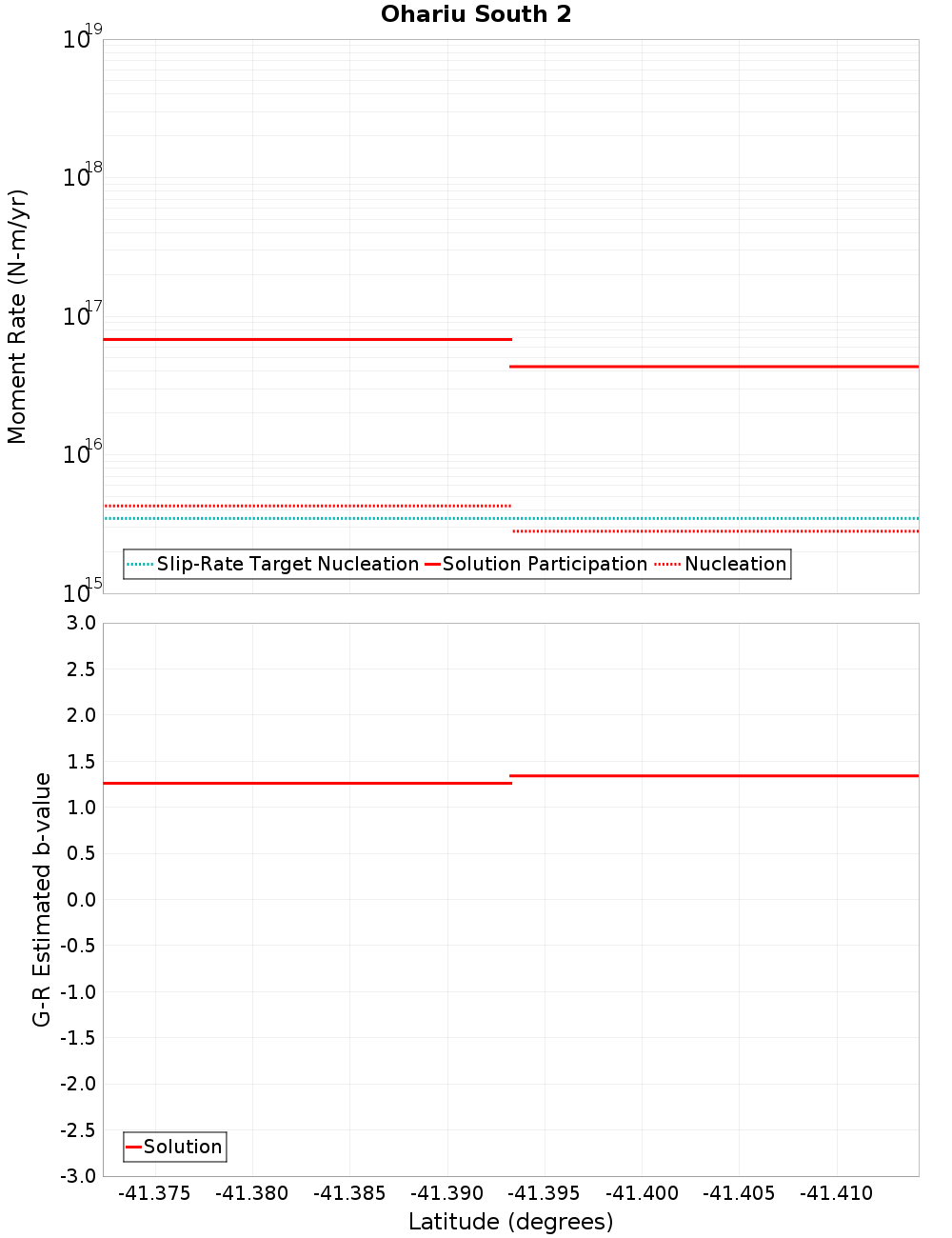

Moment-Rates and b-Values

(top)

Along-strike plot

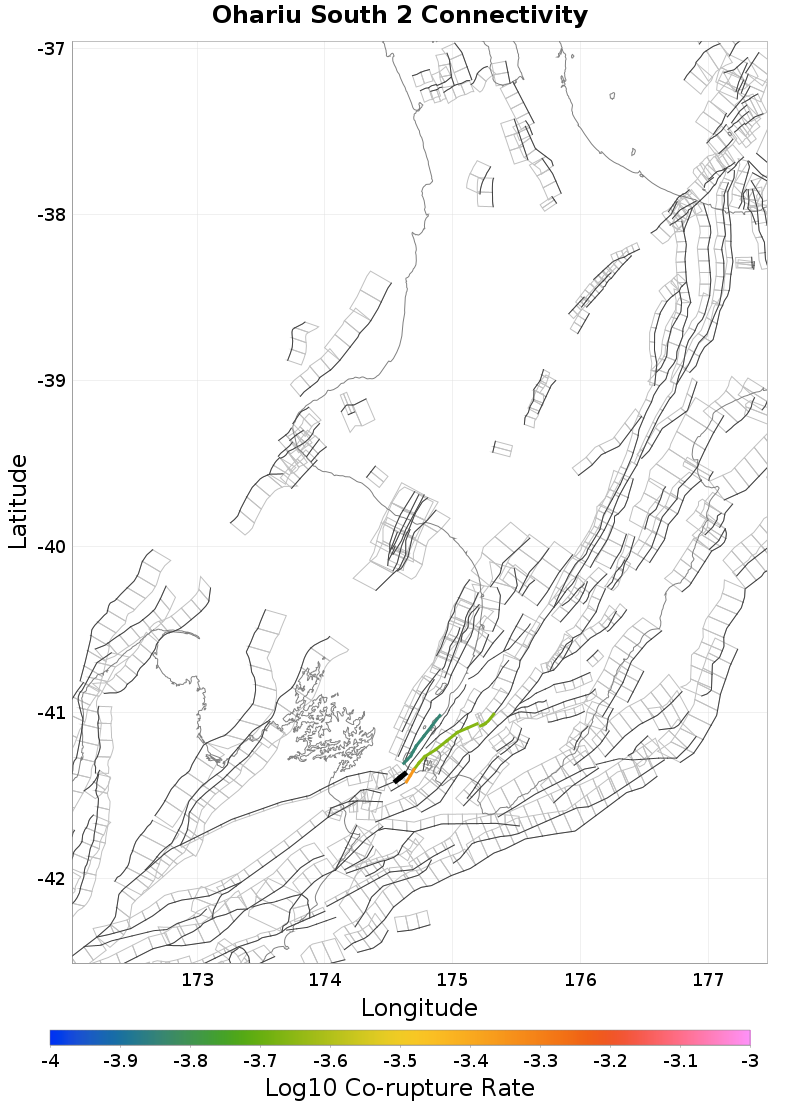

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohariu South 1, 0 km awayWairau 2, 12.02 km away
Ohariu, 0 km awayAotea - Evans Bay, 12.23 km away
Shepherds Gully - Mana, 3.29 km awayCloudy 3, 12.76 km away
Wellington Hutt Valley: 2, 3.71 km awayWharekauhau, 15.14 km away
Wellington Hutt Valley: 1, 3.83 km awayWhitemans Valley, 16.28 km away
Pukerua - Shepherds Gully: 1, 4.02 km awayVernon 4, 16.56 km away
Wairau 3, 4.72 km awayWellington Hutt Valley: 4, 17.41 km away
Wellington Hutt Valley: 3, 6.81 km awayPukerua - Shepherds Gully: 3, 17.6 km away
Okupe 1, 9.01 km awayWairarapa: Needles, 19.11 km away
Pukerua - Shepherds Gully: 2, 10.73 km away

Ohariu South 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Ohariu, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count1,635
Co-rupture Rate0.0

Shepherds Gully - Mana, 3.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count1,498
Co-rupture Rate4.3948702E-4

Wellington Hutt Valley: 1, 3.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count605
Co-rupture Rate1.4293558E-4

Wairau 3, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 6.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count1,088
Co-rupture Rate2.2144437E-4

Okupe 1, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 2, 10.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count533
Co-rupture Rate1.4293558E-4

Wairau 2, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 12.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 15.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Whitemans Valley, 16.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 4, 16.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 4, 17.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count347
Co-rupture Rate2.1804264E-4

Pukerua - Shepherds Gully: 3, 17.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count539
Co-rupture Rate1.4293558E-4

Wairarapa: Needles, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
