Otara West 3 Details

PropertyValue
Rupture Count2,137
Ruptures Above Sect Min Mag2,137
Ruptures w/ Nonzero Rates3
Magnitude Range[6.95, 8.41]
Length Range[20, 594] km
Total Rate1.7717466E-4 /yr
Multi-Fault Rate1.7717466E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults61

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

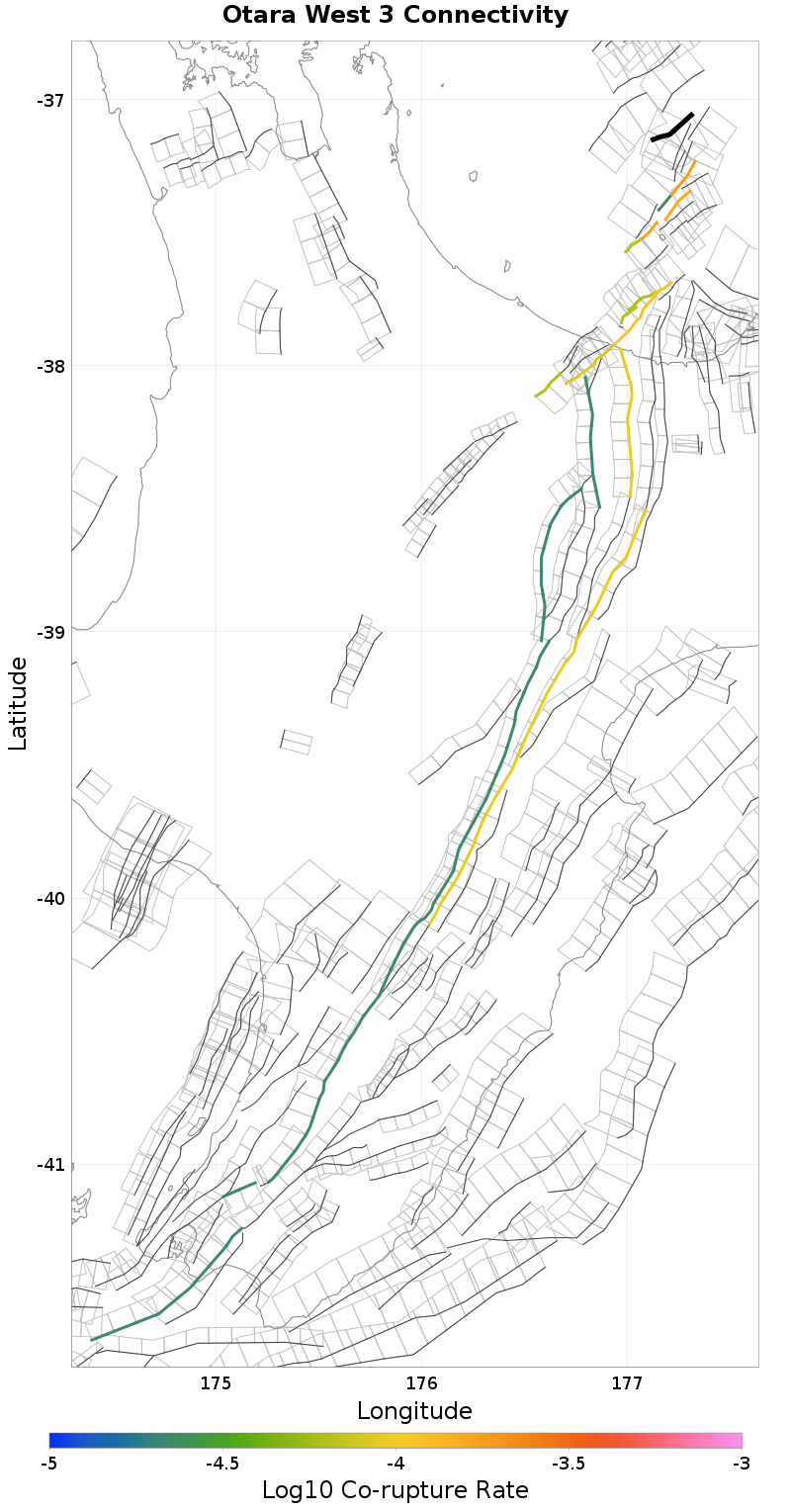

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Volkner 4, 0.09 km away
Otara West 2, 0.15 km away
Otara West 1, 0.26 km away
Otara East 2, 3.67 km away
Tuatoru 2, 5.39 km away
Otara East 1, 6.02 km away
Tauranga Trough East 2, 9.11 km away
Tuakana 7, 14.61 km away
Tuakana 6, 14.97 km away
Volkner 3, 16.8 km away
Te Arawa 3, 16.96 km away
Te Arawa 2, 19.12 km away

Volkner 4, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count2,134
Co-rupture Rate1.7717466E-4

Otara West 2, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate0.0

Otara East 2, 3.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?true
Co-rupture Count418
Co-rupture Rate0.0

Tuatoru 2, 5.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 1, 6.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tauranga Trough East 2, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 7, 14.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 6, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Volkner 3, 16.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Te Arawa 3, 16.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 19.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjUxMzUuMHA3VVdn
Connected?true
Directly Connected?false
Co-rupture Count642
Co-rupture Rate1.5520398E-4
