Cape Foulwind 4 Details
| Property | Value |
|---|---|
| Rupture Count | 117 |
| Ruptures Above Sect Min Mag | 112 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.86, 7.73] |
| Length Range | [24, 185] km |
| Total Rate | 1.5487848E-4 /yr |
| Multi-Fault Rate | 2.5080584E-9 /yr (0.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 4 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

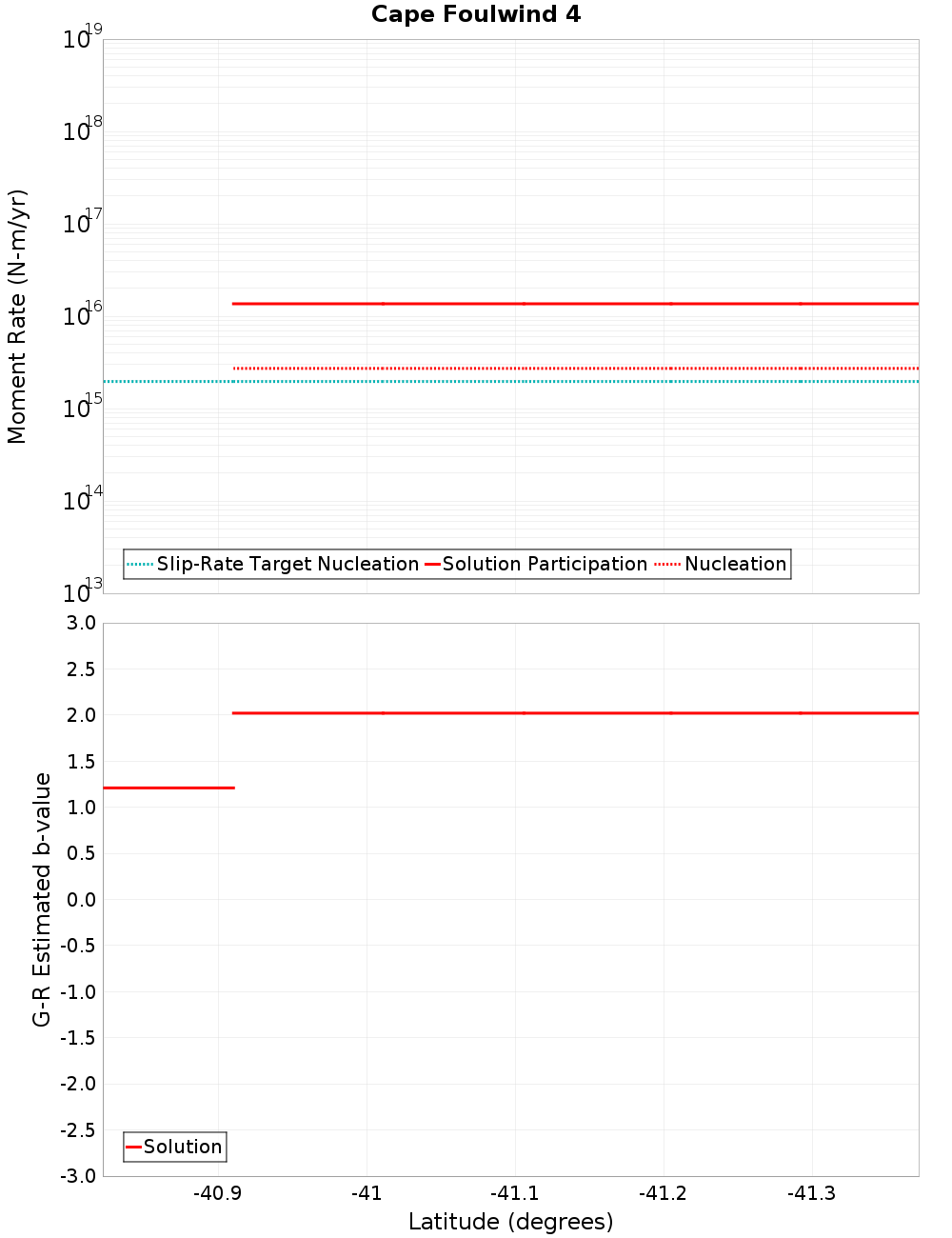

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kahurangi, 0.46 km away |
| Kongahau, 1.15 km away |
| Wakamarama, 1.46 km away |
| Cape Foulwind 2, 8.22 km away |
| Kohaihai, 11.38 km away |
| Farewell, 19.87 km away |
Kahurangi, 0.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 63 |
| Co-rupture Rate | 2.5080582E-9 |
Kongahau, 1.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 49 |
| Co-rupture Rate | 1.8128284E-9 |
Wakamarama, 1.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Cape Foulwind 2, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kohaihai, 11.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Farewell, 19.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYwODEuMGRlM0hx | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 2.4198471E-16 |
